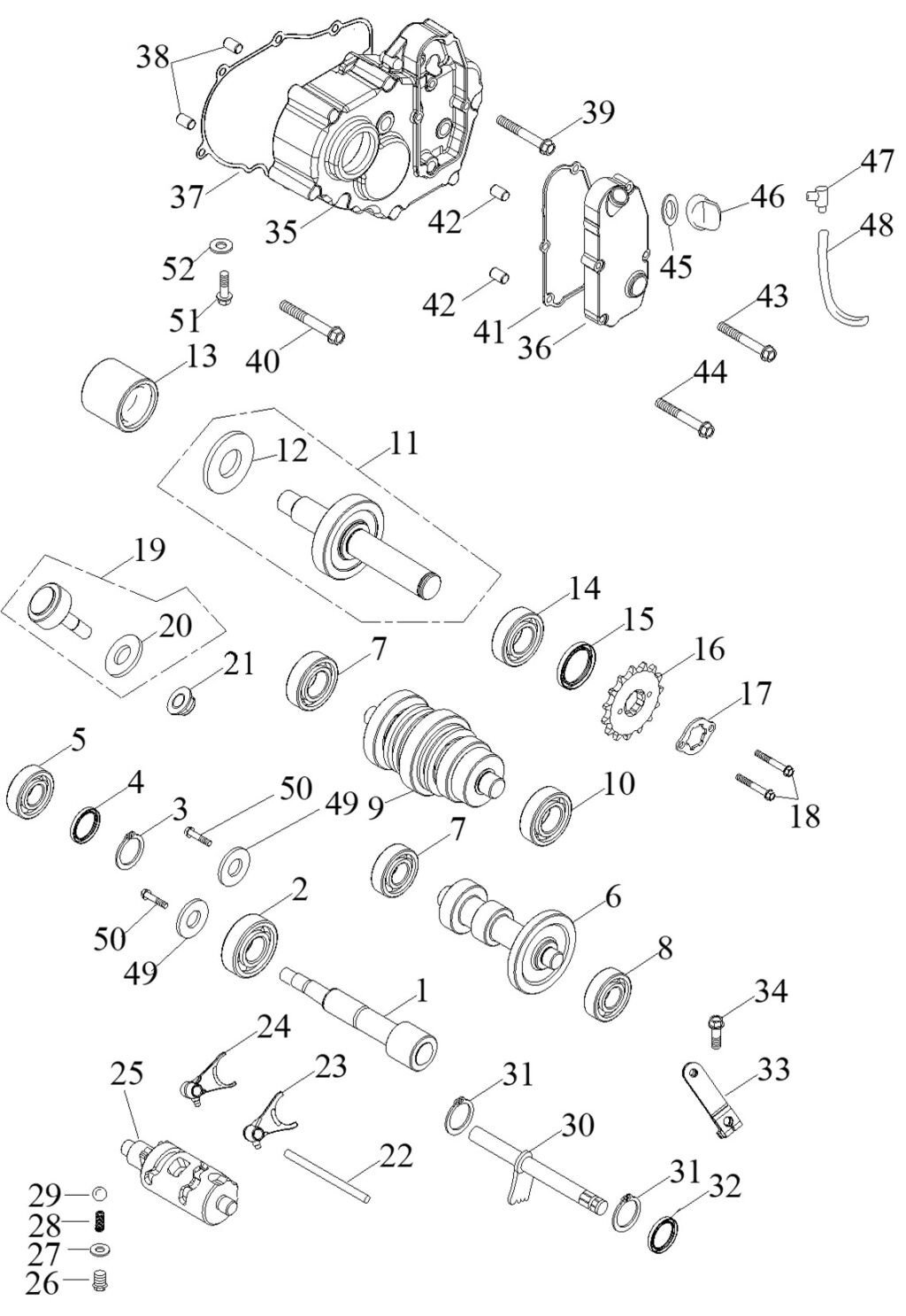

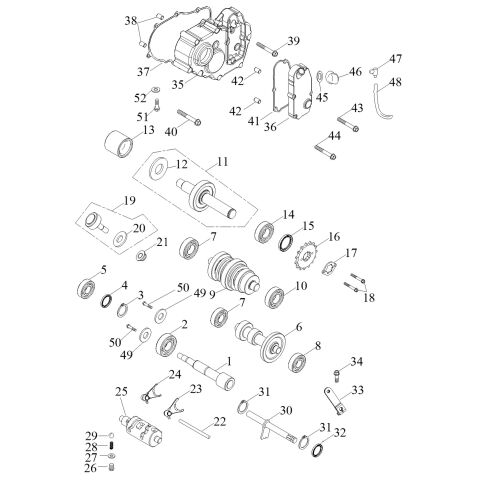

TRANSMISSION CASE

ACCESS MOTOR
  • Výrobca  ACCESS MOTOR
  • Kód produktu  Access_E-7_MAX-5-400-EFI
MODEL:
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
53 Oil Window (Ref. č 53) 96100-GW162510 Oil Window  1 € 4,13 € 5
NA CESTE
36 Cover, Transmission Gear Case (Ref. č 36) 11505-E10-000 Cover, Transmission Gear Case  1 € 18,18 € 22
SKLADOM

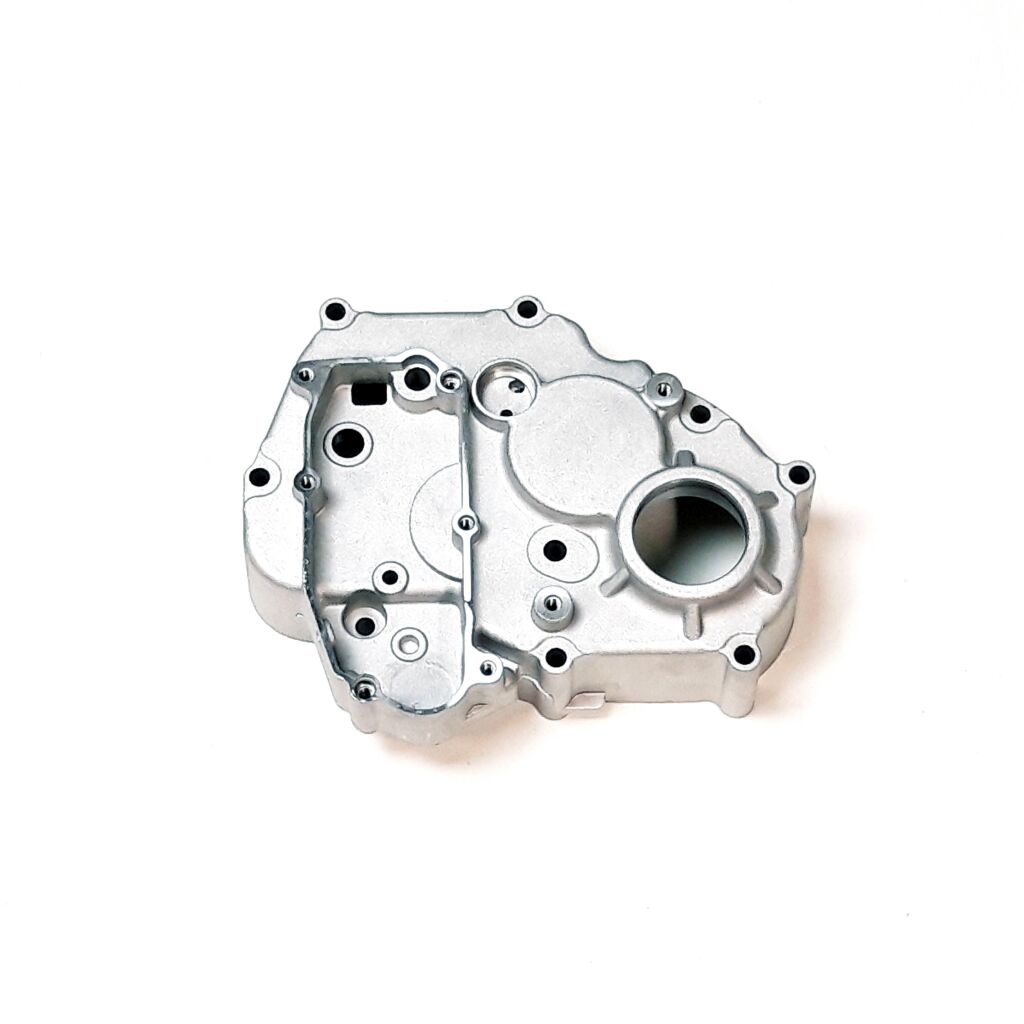

35 Transmission Gear Case (Ref. č 35) 11500-E10-000 Transmission Gear Case  1 € 69,42 € 85
SKLADOM
33 Bar, Gear Change (Ref. č 33) 41072-E10-000 Bar, Gear Change  1 € 4,13 € 5
SKLADOM
32 Seal, Oil (Ref. č 32) 96100-14287 Seal, Oil  1 € 2,48 € 3
SKLADOM
31 Cir Clip (Ref. č 31) 93406-STW14A Cir Clip  2 € 2,48 € 3
SKLADOM
30 Gear Shift Fork Guide Shaft (Ref. č 30) 41040-E10-100 Gear Shift Fork Guide Shaft  1 € 20,66 € 25
SKLADOM
29 Shift Ball (Ref. č 29) 41053-E01-100 Shift Ball  1 € 2,48 € 3
SKLADOM
28 Spring,Reverse Gear (Ref. č 28) 41052-E01-100 Spring,Reverse Gear  1 € 2,48 € 3
SKLADOM
27 Flat Washer Aluminium (Ref. č 27) 41054-E01-100 Flat Washer Aluminium  1 € 2,48 € 3
NA DOPYT
37 Gasket, Transmission (Ref. č 37) 11410-E10-000 Gasket, Transmission  1 € 14,88 € 18
SKLADOM
38 Pin, Dowel (Ref. č 38) 94001-100140 Pin, Dowel  2 € 2,48 € 3
SKLADOM
41 Gasket ,Transmission Gear Case (Ref. č 41) 11430-E10-000 Gasket ,Transmission Gear Case  1 € 4,13 € 5
SKLADOM
52 Washer, Plain (AL) (Ref. č 52) 93105-12020-20-2 Washer, Plain (AL)  1 € 2,48 € 3
SKLADOM
51 R/B 91833-E10-201 Drain Bolt (Ref. č 51) 91833-E10-202 R/B 91833-E10-201 Drain Bolt  1 € 4,13 € 5
NA DOPYT
50 Hex Washer Face Bolt R/B 92130-08S-12G (Ref. č 50) 91700-06012-10G Hex Washer Face Bolt R/B 92130-08S-12G  2 € 2,48 € 3
NA CESTE
48 Hose,Breather (Ref. č 48) 11211-A03-000 Hose,Breather  1 € 3,31 € 4
NA DOPYT
47 Breather (Ref. č 47) 11210-E01-000 Breather  1 € 2,48 € 3
NA DOPYT
46 Plug, Oil (Ref. č 46) 11212-E01-000 Plug, Oil  1 € 2,48 € 3
SKLADOM
45 O-Ring (Ref. č 45) 96200-138024 O-Ring  1 € 2,48 € 3
SKLADOM
43 Hex. Bolt, Flange (Ref. č 43) 91700-06020-08G-1 Hex. Bolt, Flange  4 € 2,48 € 3
SKLADOM
42 Pin, Dowel (Ref. č 42) 94001-080140 Pin, Dowel  2 € 2,48 € 3
SKLADOM
26 R/B 41051-E01-200 Bolt (Ref. č 26) 41051-E01-100 R/B 41051-E01-200 Bolt  1 € 2,48 € 3
NA DOPYT
25 Gear Shift Drum (Ref. č 25) 41030-E10-000 Gear Shift Drum  1 € 32,23 € 40
SKLADOM
11 Final Shaft (Ref. č 11) 23650-E10-000 Final Shaft  1 € 57,02 € 70
SKLADOM
10 Bearing,Ball (Ref. č 10) 95100-T6304 Bearing,Ball  1 € 5,79 € 7
SKLADOM
09 Gear Change Crank (Ref. č 09) 23640-E10-001 Gear Change Crank  1 € 200,83 € 247
SKLADOM
08 Ball Bearing, Crankshaft (Ref. č 08) 95100-T6204C3 Ball Bearing, Crankshaft  1 € 8,26 € 10
NA DOPYT
07 Ball Bearing, Crankshaft (Ref. č 07) 95100-T6203 Ball Bearing, Crankshaft  2 € 7,69 € 9
NA DOPYT

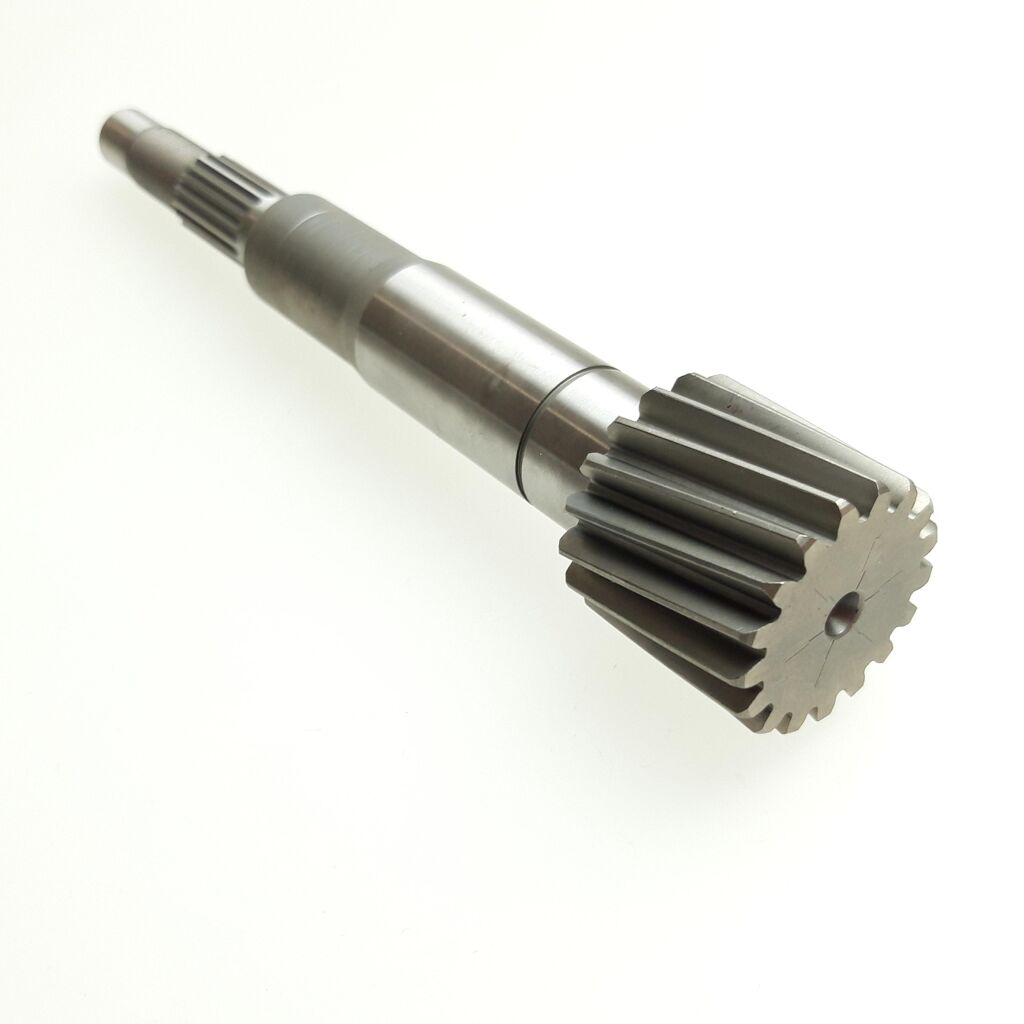

06 Main Axle (Ref. č 06) 23620-E10-000 Main Axle  1 € 72,73 € 89
SKLADOM
05 Bearing,Ball (Ref. č 05) 95100-T6301LLU Bearing,Ball  1 € 4,96 € 6
SKLADOM
04 Seal, Oil (Ref. č 04) 96100-223407 Seal, Oil  1 € 3,31 € 4
SKLADOM
03 Cir Clip (Ref. č 03) 93406-STW22A Cir Clip  1 € 2,48 € 3
SKLADOM
12 Washer , Plate(SK5) (Ref. č 12) P93107-20027-05 Washer , Plate(SK5)  1 € 2,48 € 3
SKLADOM
13 Bearing, Needle (Ref. č 13) 95200-HK2020 Bearing, Needle  1 € 9,92 € 12
SKLADOM
14 Bearing,Ball (Ref. č 14) 95100-T6205 Bearing,Ball  1 € 4,96 € 6
SKLADOM
24 Shift ,Fork (Ref. č 24) 41000-E10-010 Shift ,Fork  1 € 23,14 € 28
SKLADOM
23 Shift ,Fork (Ref. č 23) 41000-E10-000 Shift ,Fork  1 € 23,14 € 28
SKLADOM
22 Gear Shift Fork Guide Shaft (Ref. č 22) 41020-E10-000 Gear Shift Fork Guide Shaft  1 € 4,96 € 6
SKLADOM
20 Washer , Plate(SK5) (Ref. č 20) 93107-10218-10 Washer , Plate(SK5)  1 € 2,48 € 3
SKLADOM
19 Shaft (Ref. č 19) 23621-E10-000 Shaft  1 € 33,88 € 42
NA CESTE
17 Safety Clip (Ref. č 17) 23900-E10-000 Safety Clip  1 € 2,48 € 3
NA DOPYT
16 Sprocket, Drive (Ref. č 16) 23810-E10-010 Sprocket, Drive  1 € 23,97 € 29
NA DOPYT
15 Seal, Oil (Ref. č 15) 96100-254707 Seal, Oil  1 € 2,48 € 3
SKLADOM
01 Drive Gear, Primary (Ref. č 01) 23610-E13-001 Drive Gear, Primary  1 € 40,50 € 50
SKLADOM
Kód produktu Access_E-7_MAX-5-400-EFI
typ rozkresu: ENGINE PARTS
ZNACKA: ACCESS
TYP: ACCESS MAX
MODEL: MAX 5 400 EFI
