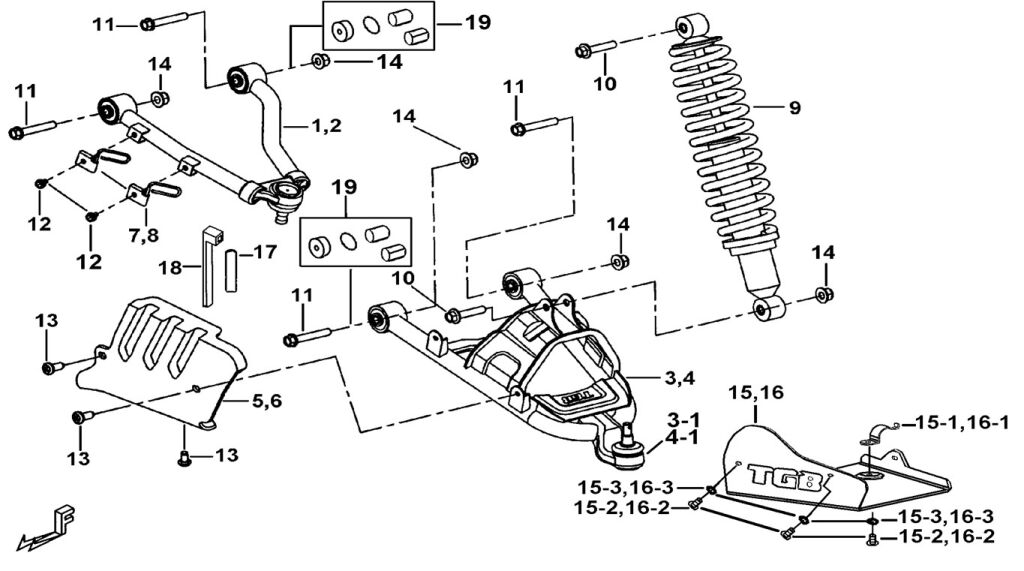

FRONT SUSPENSION

Ref. č Obr. Kód p. Popis p. ks Cena Dostupnost
01 ARM SET, UPPER, LH.(FRONT) (Ref. č 01) 511137Y ARM SET, UPPER, LH.(FRONT)  1 € 135,54 € 164
SKLADOM
12 BOLT, FLANGE (Ref. č 12) S21605 BOLT, FLANGE  4 € 2,40 € 2,90
SKLADOM
13 BOLT, FLANGE (Ref. č 13) S07601 BOLT, FLANGE  6 € 2,40 € 2,90
SKLADOM
14 NUT, SELF LOCK (Ref. č 14) GA551NT01 NUT, SELF LOCK  10 € 2,40 € 2,90
SKLADOM
15 511405B COVER COMP., ORNAMENTAL(LH)(AL)

OPTION

1 € 67,85 € 82,10
NA DOPYT
15.1 513363 ANCHOR PLATE

OPTION

1 € 5,79 € 7
NA DOPYT
15.2 S21604 BOLT, FLANGE M6X1.0X20L

OPTION

3 € 2,15 € 2,60
NA DOPYT
15.3 WASHER (Ref. č 15-3) GA555WS02 WASHER

OPTION

3 € 2,40 € 2,90
SKLADOM
16 511406B COVER COMP., ORNAMENTAL(RH)(AL)

OPTION

1 € 67,85 € 82,10
NA DOPYT
17 516519 HOSE  2 € 3,14 € 3,80
NA DOPYT
18 CLAMP L200 (Ref. č 18) 518739 CLAMP L200  2 € 3,06 € 3,70
SKLADOM
11 BOLT, FLANGE (Ref. č 11) S20017 BOLT, FLANGE  8 € 2,40 € 2,90
NA CESTE
10 BOLT, FLANGE, HEX HEAD M10X1,25x48L (Ref. č 10) S20009 BOLT, FLANGE, HEX HEAD M10X1,25x48L  4 € 5,54 € 6,70
SKLADOM

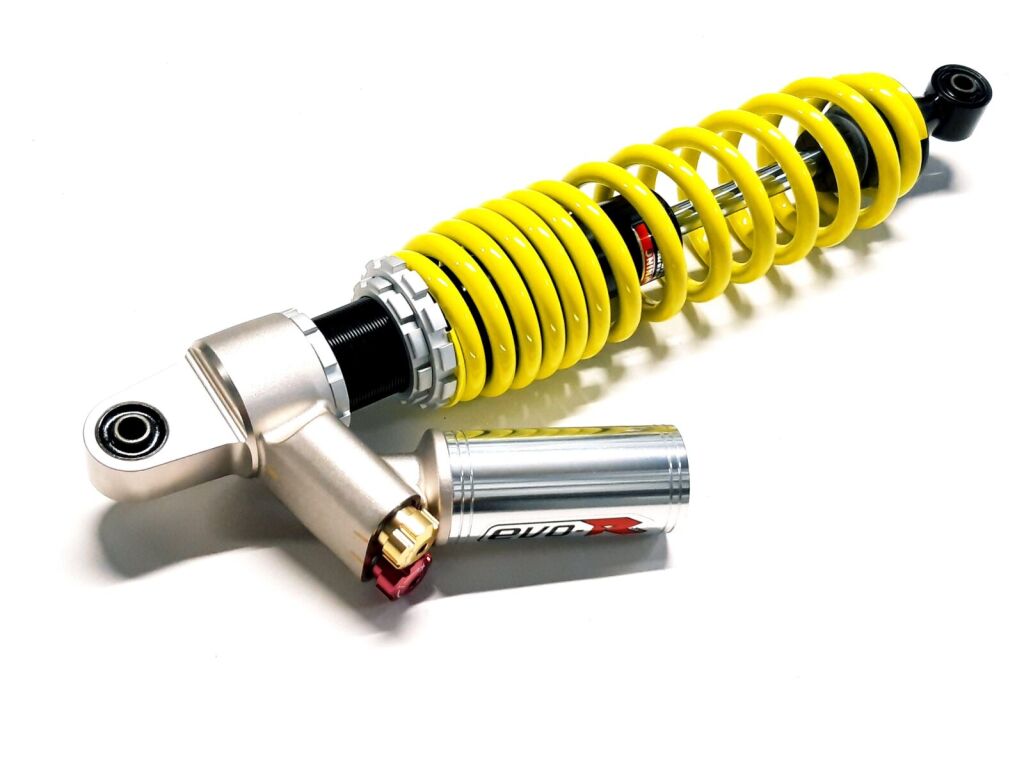

09D 516369KSY SHOCK ABSORBER ASSY., FRONT(NITROGEN ANK)(FLO. YELLOW)

OPTION

2 € 784,46 € 949,20
NA DOPYT
02 ARM SET, UPPER, RH.(FRONT) (Ref. č 02) 511138Y ARM SET, UPPER, RH.(FRONT)  1 € 135,54 € 164
SKLADOM
03 ARM SET, LOWER, LH.(FRONT) (Ref. č 03) 511139Y ARM SET, LOWER, LH.(FRONT)  1 € 174,30 € 210,90
SKLADOM
03.1 BALL JOINT (Ref. č 03-1) 511153 BALL JOINT  1 € 58,68 € 71
SKLADOM
04.1 BALL JOINT (Ref. č 04-1) 511153 BALL JOINT  1 € 58,68 € 71
SKLADOM
04 ARM SET, LOWER, RH.(FRONT) (Ref. č 04) 511140Y ARM SET, LOWER, RH.(FRONT)  1 € 192,81 € 233,30
SKLADOM
05 TGB PROTECTOR, COVER LH. (Ref. č 05) 516306 TGB PROTECTOR, COVER LH.  1 € 10,33 € 12,50
SKLADOM
06 TGB PROTECTOR, COVER RH. (Ref. č 06) 516307 TGB PROTECTOR, COVER RH.  1 € 10,33 € 12,50
SKLADOM
07 CLAMP (LH.) (Ref. č 07) 513329 CLAMP (LH.)  2 € 2,81 € 3,40
SKLADOM
08 CLAMP (RH.) (Ref. č 08) 513330 CLAMP (RH.)  2 € 2,73 € 3,30
SKLADOM
09 511163CA SHOCK ABSORBER ASSY., FRONT

OPTION

2 € 195,45 € 236,50
NA DOPYT
09B SHOCK ABSORBER ASSY., FRONT (Ref. č 09B) 511163SY SHOCK ABSORBER ASSY., FRONT

OPTION

2 € 208,84 € 252,70
SKLADOM
09C 516369KOF SHOCK ABSORBER ASSY., FRONT(NITROGEN TANK)(BRIGHT ORANGE)

OPTION

2 € 660,66 € 799,40
NA DOPYT
19 ARM SET MAINTENANCE PACKAGE (Ref. č 19) 518712B ARM SET MAINTENANCE PACKAGE

OPTION

8 € 19,30 € 23,35
SKLADOM
16.1 513363 ANCHOR PLATE

OPTION

1 € 5,79 € 7
NA DOPYT
16.2 S21604 BOLT, FLANGE M6X1.0X20L

OPTION

3 € 2,15 € 2,60
NA DOPYT
16.3 WASHER (Ref. č 16-3) GA555WS02 WASHER

OPTION

3 € 2,40 € 2,90
SKLADOM
