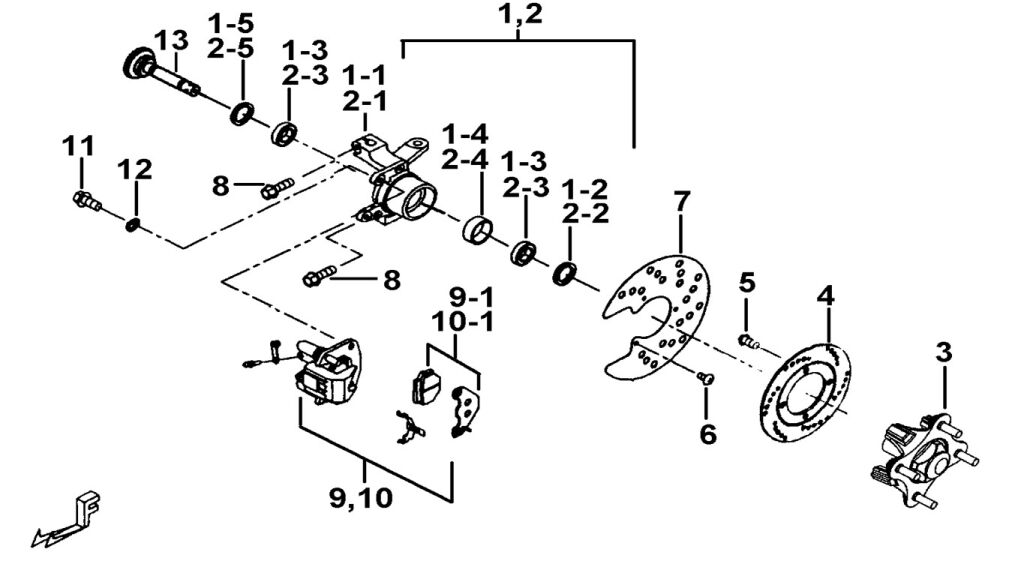

STEERING KNUCKLE

TGB
  • Výrobca  TGB
  • Kód produktu  TGB_2_212_VSF
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
01 516344A KNUCKLE, STEERING, LH  1 € 189,26 € 233
NA DOPYT
05 SCREW, SOCKET (Ref. č 05) S72005 SCREW, SOCKET  8 € 3,06 € 4
SKLADOM
06 SCREW, AN HEAD (Ref. č 06) GA555SC02 SCREW, AN HEAD

OPTION

6 € 2,40 € 3
SKLADOM
07 PROTECTIVE COVER (Ref. č 07) 512944 PROTECTIVE COVER

OPTION

2 € 7,77 € 10
SKLADOM
08 S20050 BOLT  4 € 4,96 € 6
NA DOPYT
09 513505 CALIPER ASSY., FRONT, LH  1 € 103,22 € 127
NA DOPYT
09.1 BRAKE PAD TGB front Target 425, 525, Blade 250, 300 (Ref. č 09-1) 514038 BRAKE PAD TGB front Target 425, 525, Blade 250, 300  1 € 36,20 € 45
NA DOPYT
10 CALIPER ASSY., FRONT, RH (Ref. č 10) 513506 CALIPER ASSY., FRONT, RH  1 € 74,05 € 91
NA DOPYT
11 BOLT (Ref. č 11) S21809 BOLT  4 € 2,40 € 3
SKLADOM
12 SPRING WASHER (Ref. č 12) GA556WS04 SPRING WASHER  4 € 2,40 € 3
SKLADOM
04 R/B 512935Y DISC, BRAKE 180mm (Ref. č 04) 512919Y R/B 512935Y DISC, BRAKE 180mm  2 € 38,68 € 48
NA DOPYT
03 512959 R/B 512959Y HUB, FRONT WHEEL  2 € 71,82 € 88
NA DOPYT
02.5 Oil Seal Inner (Ref. č 02-5) 513367 Oil Seal Inner  1 € 4,63 € 6
SKLADOM
01.1 516344 KNUCKLE, STEERING, LH  1 € 162,98 € 200
NA DOPYT
01.2 OIL SEAL, OUTER (Ref. č 01-2) 513325 OIL SEAL, OUTER  1 € 3,22 € 4
SKLADOM
01.3 BEARING (Ref. č 01-3) 513350 BEARING  2 € 26,69 € 33
SKLADOM
01.4 SPACER (Ref. č 01-4) 513324 SPACER  1 € 2,40 € 3
SKLADOM
02 516345A KNUCKLE, STEERING, RH  1 € 176,94 € 218
NA DOPYT
02.1 KNUCKLE, STEERING, RH (Ref. č 02-1) 516345 KNUCKLE, STEERING, RH  1 € 149,67 € 184
SKLADOM
13 512924 FRONT AXLE  2 € 39,92 € 49
NA DOPYT
Kód produktu TGB_2_212_VSF
typ rozkresu: FRAME PARTS
