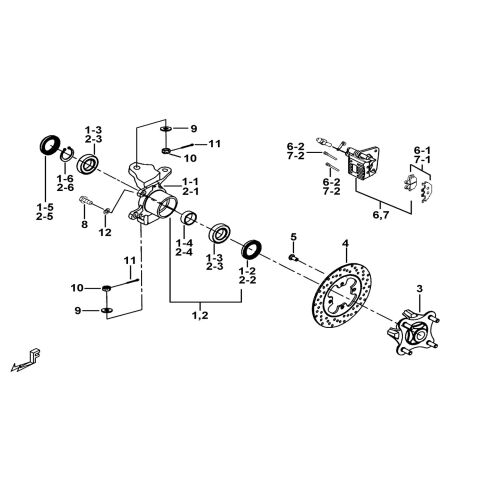

STEERING KNUCKLE

Ref. č Obr. Kód p. Popis p. ks Cena Dostupnost
01 KNUCKLE, STEERING, LH. (Ref. č 01) 511115YA KNUCKLE, STEERING, LH.  1 € 244,30 € 295,60
SKLADOM
04 DISC, BRAKE 200mm (Ref. č 04) 513484Y DISC, BRAKE 200mm  2 € 40,83 € 49,40
SKLADOM
01.6 C CLIP (Ref. č 01-6) R01601 C CLIP  1 € 6,03 € 7,30
SKLADOM
05 SCREW, SOCKET (Ref. č 05) S72005 SCREW, SOCKET  8 € 3,06 € 3,70
NA CESTE
06 R/B 511207 CALIPER ASSY., FRONT, LH (Ref. č 06) 511224 R/B 511207 CALIPER ASSY., FRONT, LH  1 € 117,36 € 142
NA DOPYT
06.1 BRAKE PAD TGB front Blade 425 up to VIN 016182, 550 EFI, Target 550 EFI, Blade 1000i (Ref. č 06-1) 515402 BRAKE PAD TGB front Blade 425 up to VIN 016182, 550 EFI, Target 550 EFI, Blade 1000i  1 € 46,45 € 56,20
SKLADOM
06.2 PLATE, SPRING (Ref. č 06-2) 515172 PLATE, SPRING  2 € 7,19 € 8,70
SKLADOM
07 CALIPER ASSY., FRONT, RH. (Ref. č 07) 511225 CALIPER ASSY., FRONT, RH.  1 € 129,09 € 156,20
SKLADOM
08 BOLT (Ref. č 08) S21809 BOLT  4 € 2,40 € 2,90
SKLADOM
09 WASHER 2T (Ref. č 09) W99229 WASHER 2T  4 € 2,15 € 2,60
SKLADOM
10 NUT M12X1.25 (Ref. č 10) N13202 NUT M12X1.25  4 € 3,31 € 4
SKLADOM
11 PIN, COTTER 2,5 (Ref. č 11) GA551PN04 PIN, COTTER 2,5  4 € 2,40 € 2,90
SKLADOM
03 HUB, FRONT WHEEL (Ref. č 03) 518604Y HUB, FRONT WHEEL  2 € 112,73 € 136,40
SKLADOM
02.6 C CLIP (Ref. č 02-6) R01601 C CLIP  1 € 6,03 € 7,30
SKLADOM
01.1 KNUCKLE, STEERING, LH. (Ref. č 01-1) 511115 KNUCKLE, STEERING, LH.  1 € 169,26 € 204,80
SKLADOM
01.2 OIL SEAL (OUTSIDE) (Ref. č 01-2) 512862 OIL SEAL (OUTSIDE)  1 € 10 € 12,10
SKLADOM
02.2 OIL SEAL (OUTSIDE) (Ref. č 02-2) 512862 OIL SEAL (OUTSIDE)  1 € 10 € 12,10
SKLADOM
01.3 BEARING (Ref. č 01-3) 925001 BEARING  2 € 47,02 € 56,90
SKLADOM
02.3 BEARING (Ref. č 02-3) 925001 BEARING  2 € 47,02 € 56,90
SKLADOM
01.4 SPACER (Ref. č 01-4) 517820 SPACER  1 € 19,67 € 23,80
SKLADOM
02.4 SPACER (Ref. č 02-4) 517820 SPACER  1 € 19,67 € 23,80
SKLADOM
01.5 R/B 512860K OIL SEAL, INNER (Ref. č 01-5) 512860 R/B 512860K OIL SEAL, INNER  1 € 8,60 € 10,40
NA DOPYT
02.5 R/B 512860K OIL SEAL, INNER (Ref. č 02-5) 512860 R/B 512860K OIL SEAL, INNER  1 € 8,60 € 10,40
NA DOPYT
02 KNUCKLE, STEERING, RH. (Ref. č 02) 511116YA KNUCKLE, STEERING, RH.  1 € 205,45 € 248,60
NA DOPYT
02.1 KNUCKLE, STEERING, RH. (Ref. č 02-1) 511116 KNUCKLE, STEERING, RH.  1 € 164,71 € 199,30
NA DOPYT
12 SPRING WASHER (Ref. č 12) GA556WS04 SPRING WASHER  4 € 2,40 € 2,90
SKLADOM
07.1 BRAKE PAD TGB front Blade 425 up to VIN 016182, 550 EFI, Target 550 EFI, Blade 1000i (Ref. č 07-1) 515402 BRAKE PAD TGB front Blade 425 up to VIN 016182, 550 EFI, Target 550 EFI, Blade 1000i  1 € 46,45 € 56,20
SKLADOM
07.2 PLATE, SPRING (Ref. č 07-2) 515172 PLATE, SPRING  2 € 7,19 € 8,70
SKLADOM
