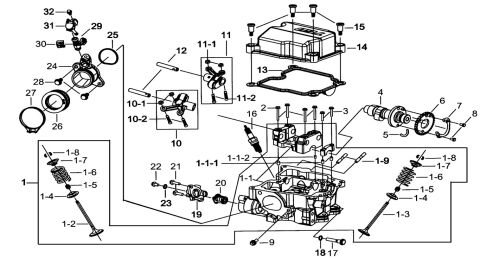

HEAD ASSY, CYLINDER

TGB
  • Výrobca  TGB
  • Kód produktu  TGB_1_102_FBH-HDLE
MODEL:
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
28 S20829 BOLT,FLANGE 8*25  2 € 1,98 € 2
NA DOPYT

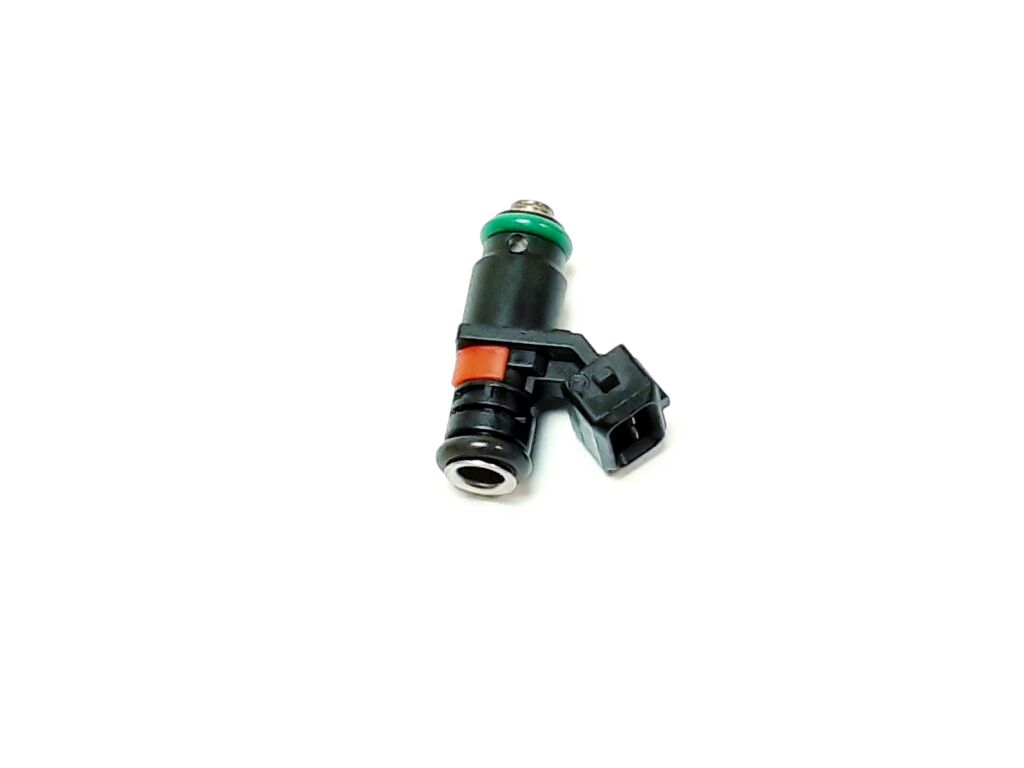

29 FUEL INJECTOR DEKA 7 (Ref. č 29) 926024Y FUEL INJECTOR DEKA 7  1 € 91,32 € 112
NA DOPYT

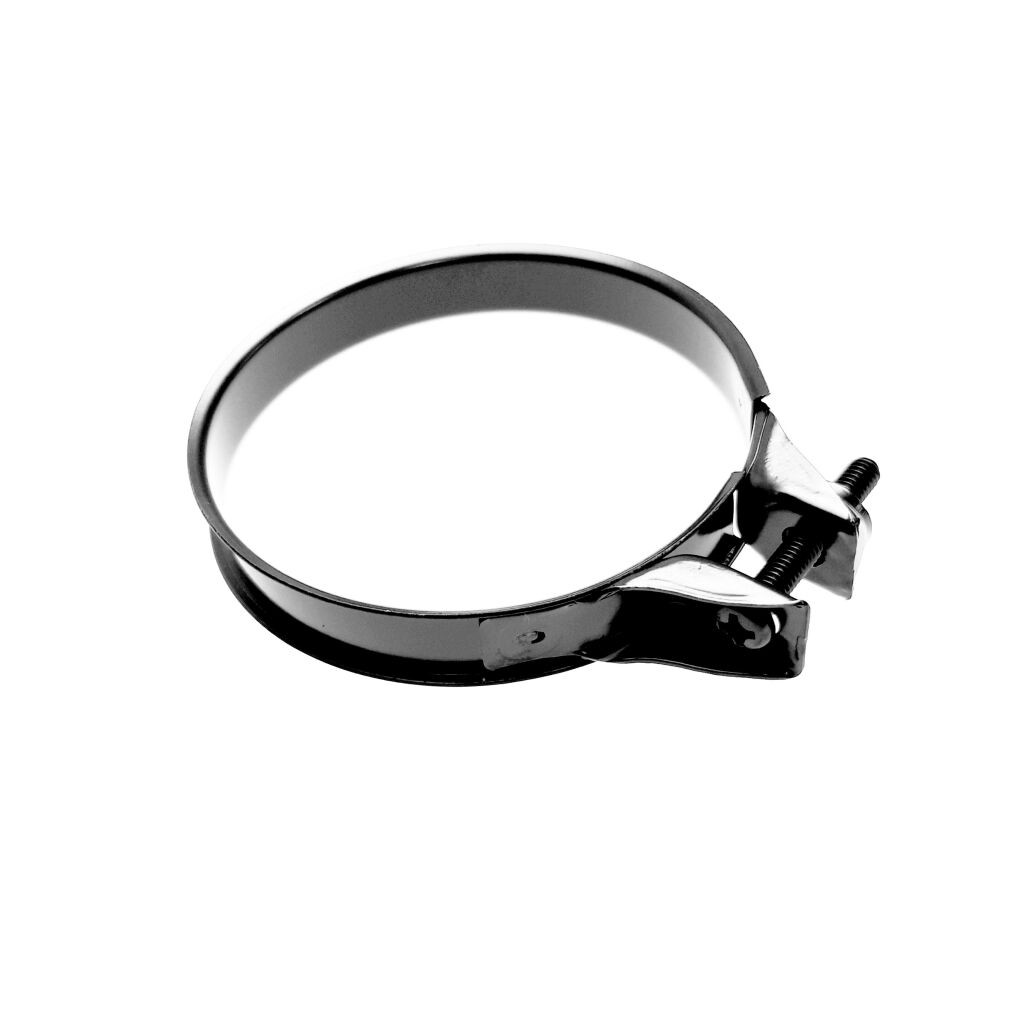

27 CLAMP (Ref. č 27) R66004 CLAMP  2 € 14,71 € 18
SKLADOM

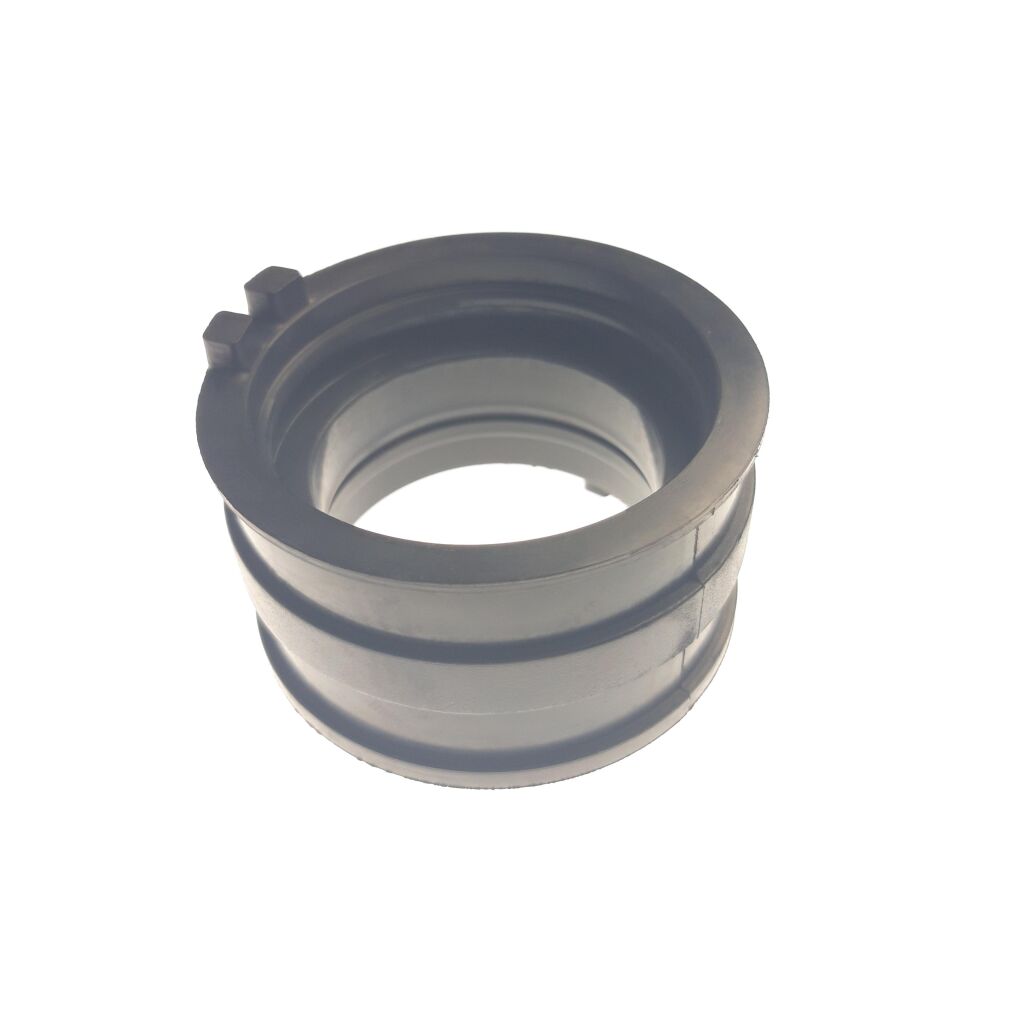

26 RUBBER TUBE (Ref. č 26) 926101 RUBBER TUBE  1 € 8,68 € 11
NA DOPYT
25 SEAL (Ref. č 25) 910305 SEAL  1 € 2,40 € 3
NA DOPYT

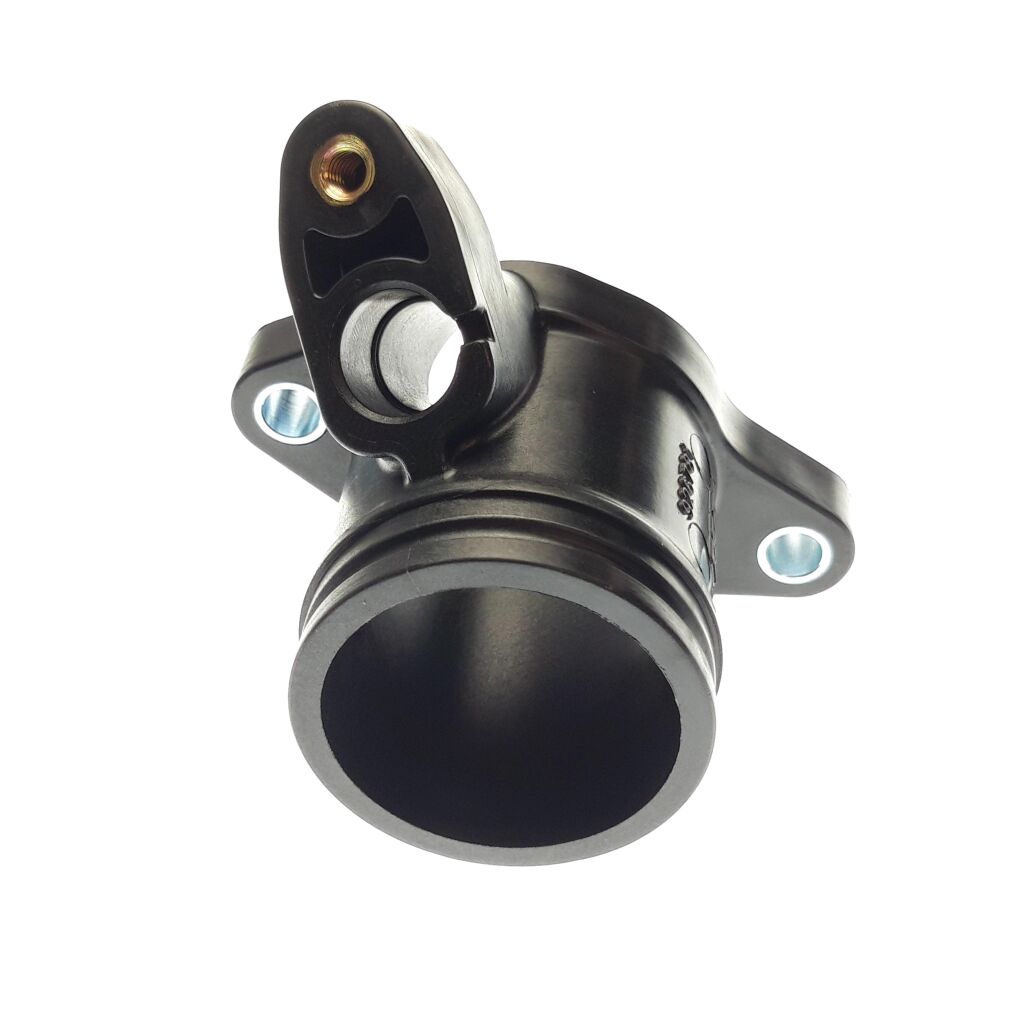

24 INTAKE PIPE (Ref. č 24) 926781 INTAKE PIPE  1 € 17,93 € 22
NA DOPYT
23 WASHER (Ref. č 23) 925115 WASHER  1 € 2,40 € 3
SKLADOM
22 BOLT, FLANGE (Ref. č 22) S96605 BOLT, FLANGE  1 € 2,15 € 3
SKLADOM
21 SCREW, SOCKET HEAD M6x20 (Ref. č 21) S24616 SCREW, SOCKET HEAD M6x20  2 € 4,79 € 6
SKLADOM
20 THERMOSTAT (Ref. č 20) 924294 THERMOSTAT  1 € 52,64 € 65
Naskladňujeme

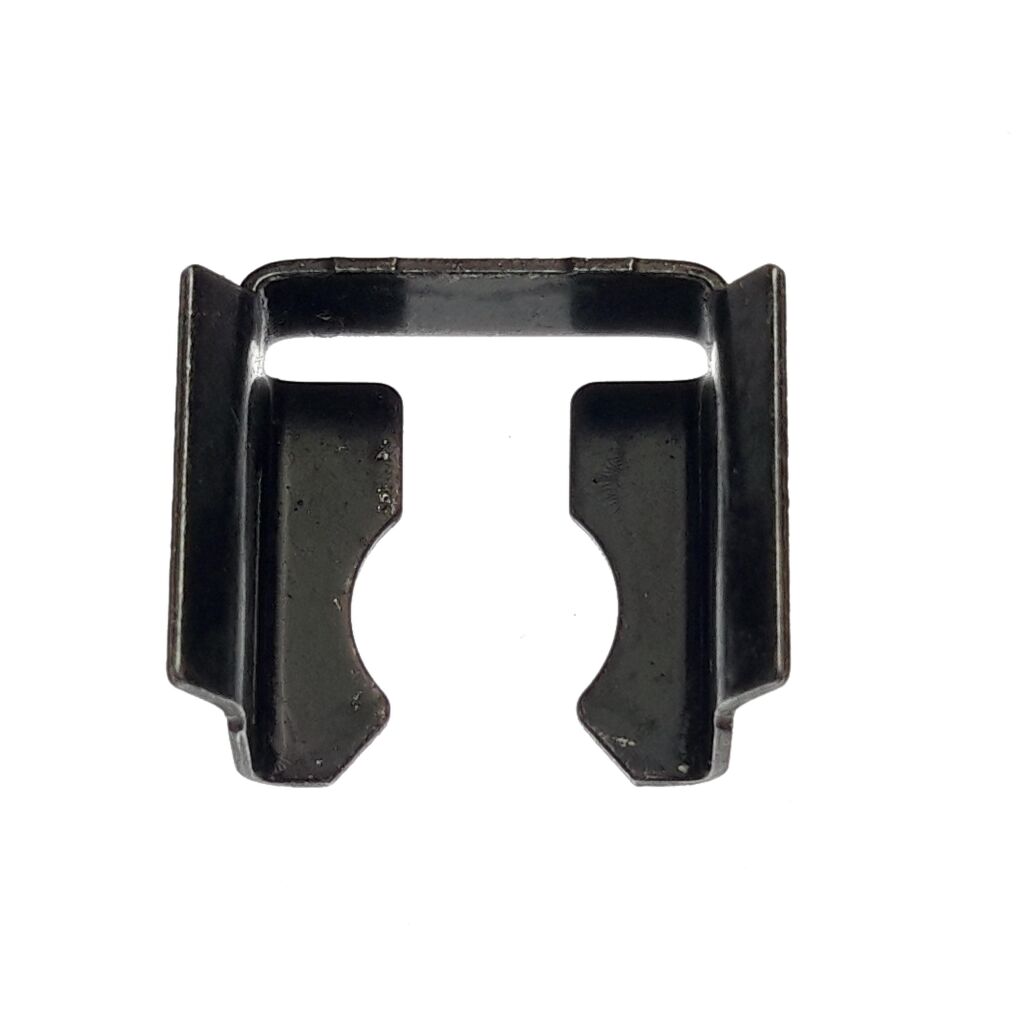

30 INJECTOR CLIP (Ref. č 30) 926030 INJECTOR CLIP  1 € 2,98 € 4
NA DOPYT
31 FUEL RAIL (Ref. č 31) 926153 FUEL RAIL  1 € 15,62 € 19
Naskladňujeme
32 BOLT, FLANGE 6X12 (Ref. č 32) S24604 BOLT, FLANGE 6X12  1 € 2,40 € 3
SKLADOM
12 ROCKER ARM SHAFT (Ref. č 12) 910420 ROCKER ARM SHAFT  2 € 58,02 € 71
SKLADOM
11.2 910219 BOLT, ADJUSTING  2 € 9,17 € 11
NA DOPYT
11.1 910319 NUT, HEX  2 € 1,98 € 2
NA DOPYT
02 BOLT, FLANGE M6X60 (Ref. č 02) S20625 BOLT, FLANGE M6X60  4 € 2,40 € 3
NA DOPYT

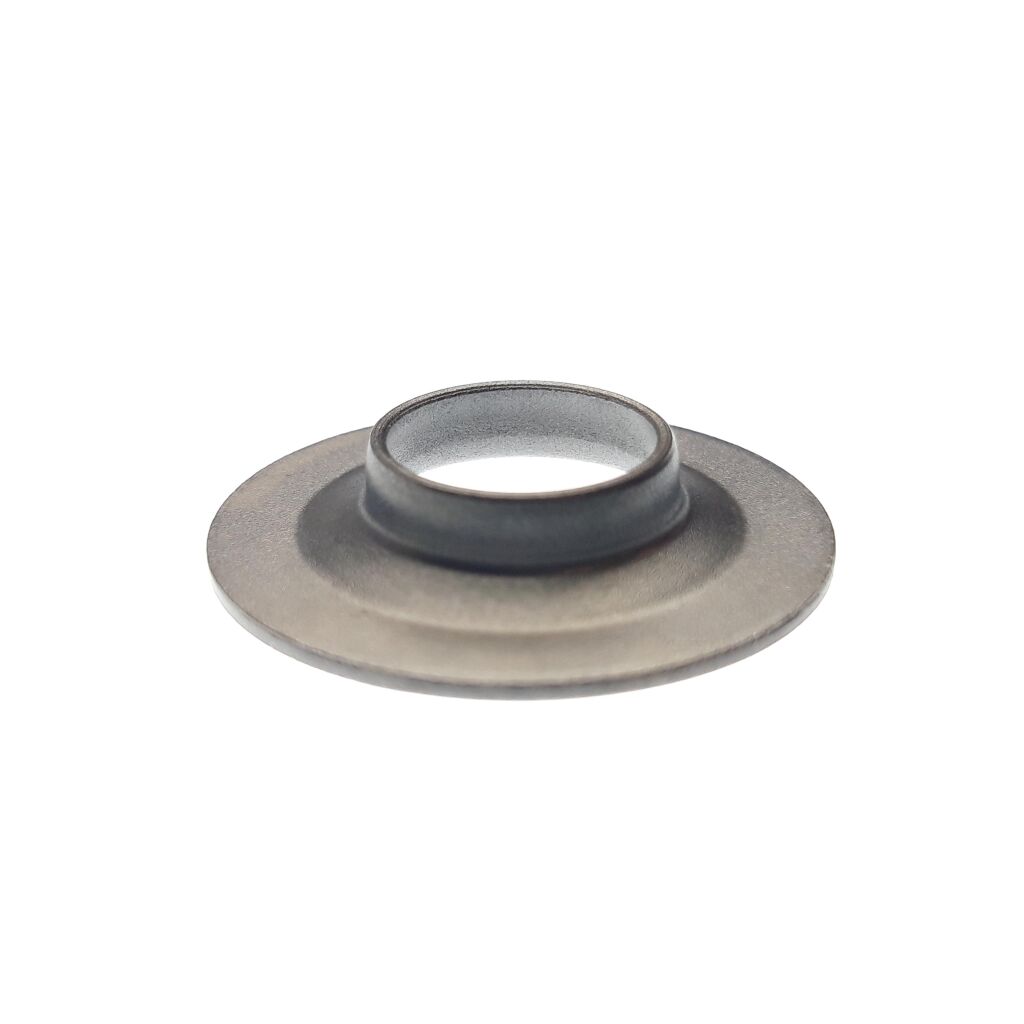

01.7 910269 VALVE SPRING RETAINER  4 € 4,71 € 6
NA DOPYT
01.1.2 P30502 PIN, DOWEL  1 € 1,98 € 2
NA DOPYT
01.1 HEAD COMP., CYLINDER (Ref. č 01-1) 926772A HEAD COMP., CYLINDER  1 € 274,96 € 338
SKLADOM
19 THERMOSTAT COVER COMPLETE (Ref. č 19) 926143 THERMOSTAT COVER COMPLETE  1 € 18,68 € 23
SKLADOM
18 GASKET (Ref. č 18) W99818 GASKET  1 € 2,40 € 3
SKLADOM
17 BOLT, CAM CHAIN TENSIONER (Ref. č 17) S96806 BOLT, CAM CHAIN TENSIONER  1 € 2,40 € 3
SKLADOM
03 BOLT, FLANGE (Ref. č 03) S20616 BOLT, FLANGE  2 € 2,15 € 3
SKLADOM
01.9 S95808 STUD ?10.5  2 € 2,15 € 3
NA DOPYT
01.8 COTTER, VALVE (Ref. č 01-8) 400093 COTTER, VALVE  8 € 2,40 € 3
SKLADOM

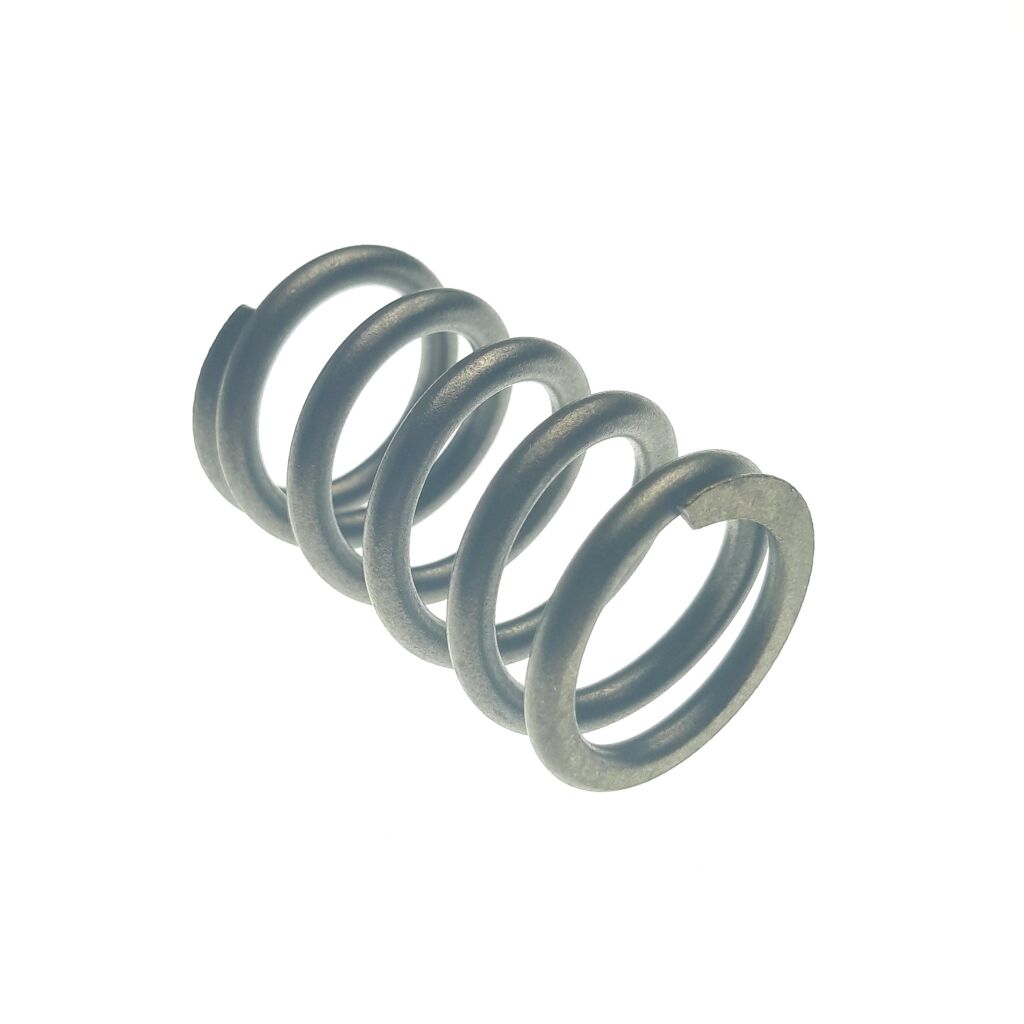

01.6 SPRING, VALVE (Ref. č 01-6) 910286 SPRING, VALVE  4 € 4,38 € 5
NA DOPYT
01.5 SEAL, VALVE STEM (Ref. č 01-5) 924024 SEAL, VALVE STEM  4 € 6,78 € 8
Naskladňujeme
01.4 TRUST WASHER (Ref. č 01-4) 910270 TRUST WASHER  4 € 3,22 € 4
SKLADOM

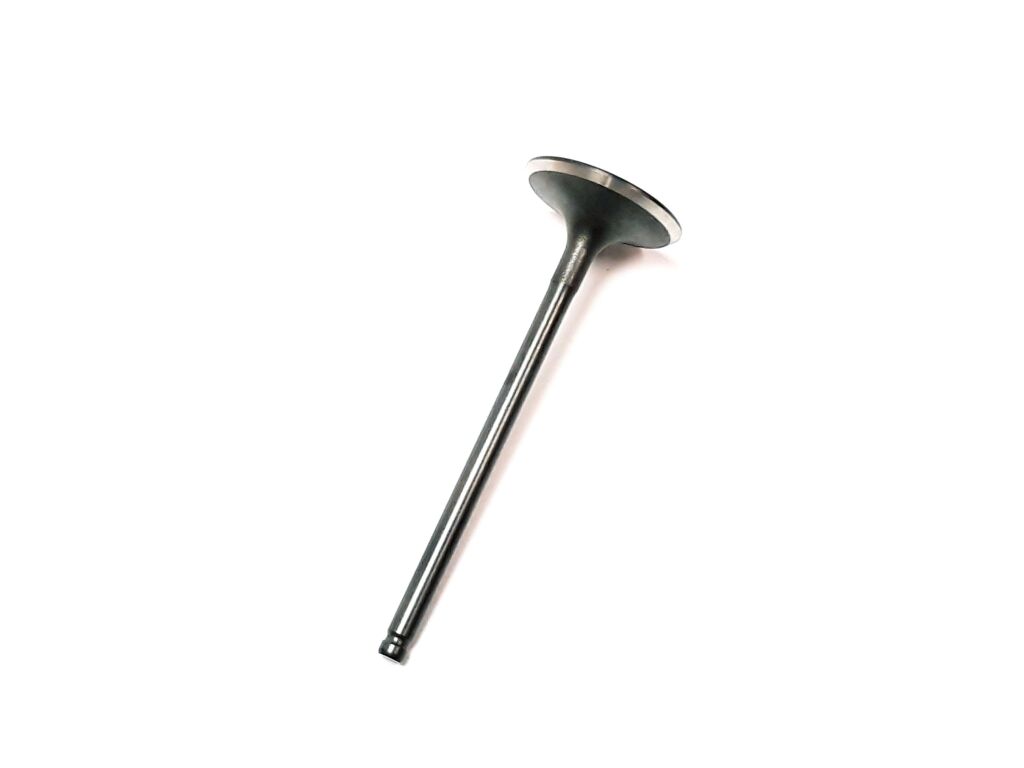

01.3 VALVE, EXHAUST (Ref. č 01-3) 910284 VALVE, EXHAUST  2 € 19,67 € 24
SKLADOM
01.2 VALVE, INTAKE (Ref. č 01-2) 910283 VALVE, INTAKE  2 € 9,50 € 12
SKLADOM
01.1.1 PIN, DOWEL (Ref. č 01-1-1) P40803 PIN, DOWEL  3 € 2,40 € 3
SKLADOM
04 CAM SHAFT COMP (Ref. č 04) 910281 CAM SHAFT COMP  1 € 114,38 € 141
SKLADOM
05 “C” RING (Ref. č 05) 924032 “C” RING  1 € 4,96 € 6
SKLADOM
06 VALVE, EXHAUST (Ref. č 06) 926084 VALVE, EXHAUST  1 € 15,37 € 19
SKLADOM
16 910528 SPARK PLUG (NGK DCPR8E) (unavailable)  1 € 36,94 € 45
NA DOPYT
15 BOLT M7X31 (Ref. č 15) 924019 BOLT M7X31  4 € 2,40 € 3
Naskladňujeme

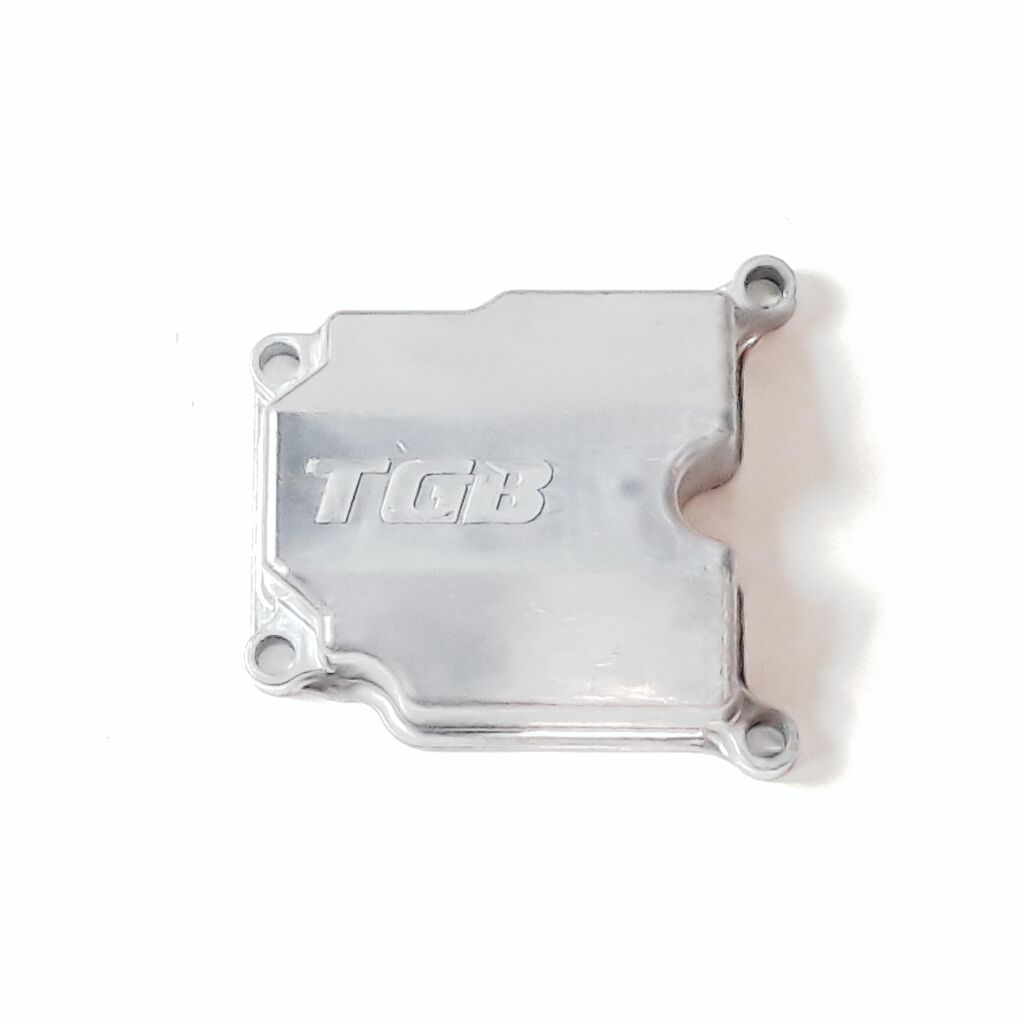

14 COVER, HEAD CYLINDER (Ref. č 14) 910289 COVER, HEAD CYLINDER  1 € 40,83 € 50
SKLADOM
13 R/B 911597 GASKET, CYLINDER HEAD (Ref. č 13) 910331 R/B 911597 GASKET, CYLINDER HEAD  1 € 22,40 € 28
NA DOPYT

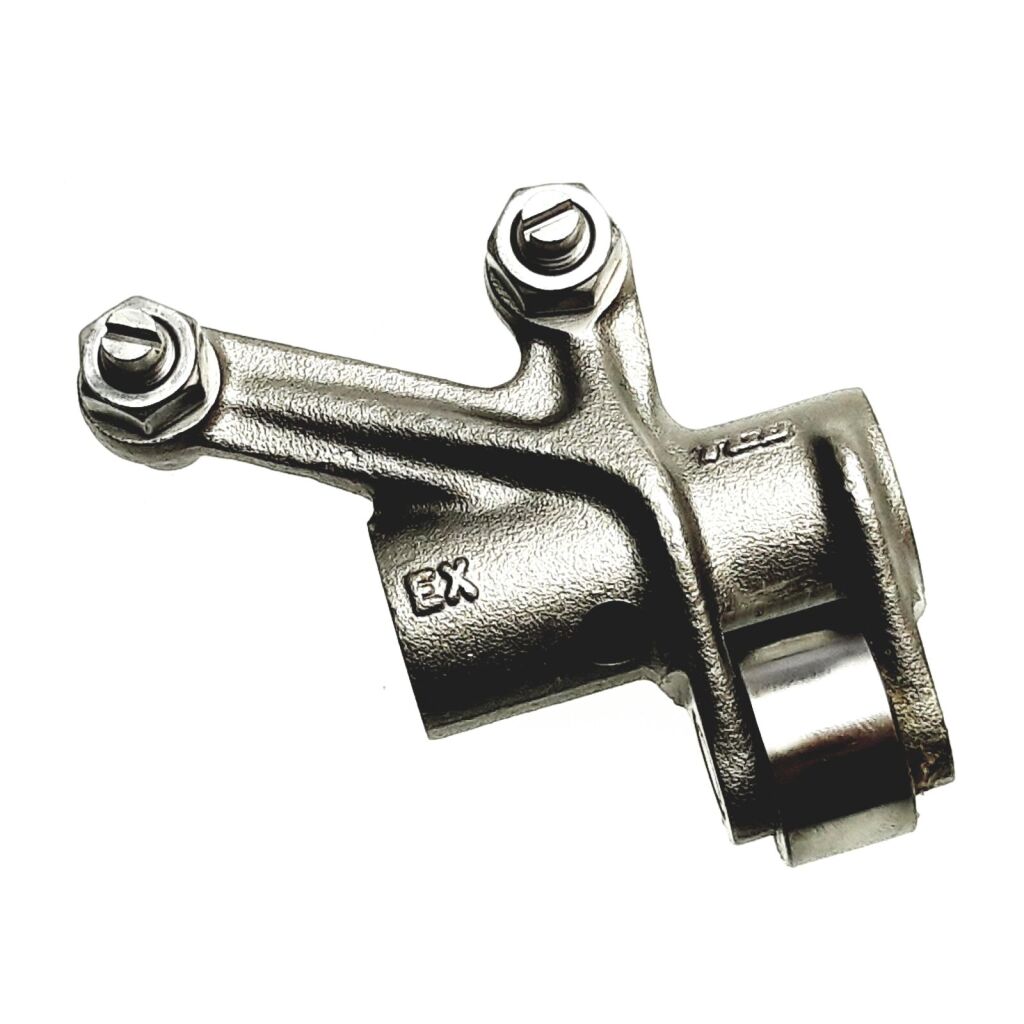

11 ROCKER ARM EXHAUST (Ref. č 11) 910268 ROCKER ARM EXHAUST  1 € 91,32 € 112
SKLADOM

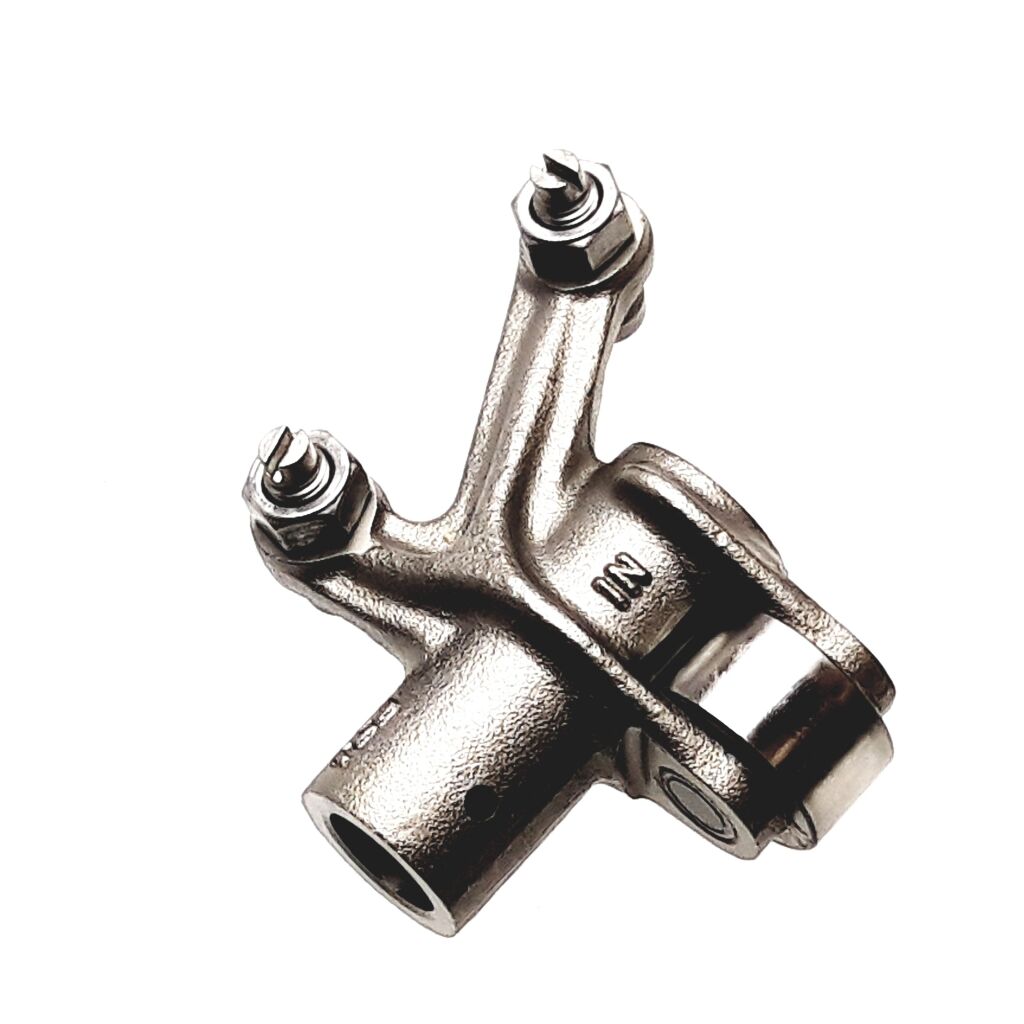

10 ROCKER ARM INLET (Ref. č 10) 910267 ROCKER ARM INLET  1 € 91,32 € 112
NA DOPYT
09 S77601 BOLT ,FLANGE  1 € 6,28 € 8
NA DOPYT
08 BOLT (Ref. č 08) S99605 BOLT  2 € 2,40 € 3
SKLADOM
07 FIXING PLATE (Ref. č 07) 924031 FIXING PLATE  1 € 2,40 € 3
Naskladňujeme
01 HEAD COMP., CYLINDER (Ref. č 01) 926178 HEAD COMP., CYLINDER  1 € 390,74 € 481
SKLADOM
Kód produktu TGB_1_102_FBH-HDLE
typ rozkresu: ENGINE PARTS
ZNACKA: TGB
TYP: BLADE 600
MODEL: BLADE 600LT E4
