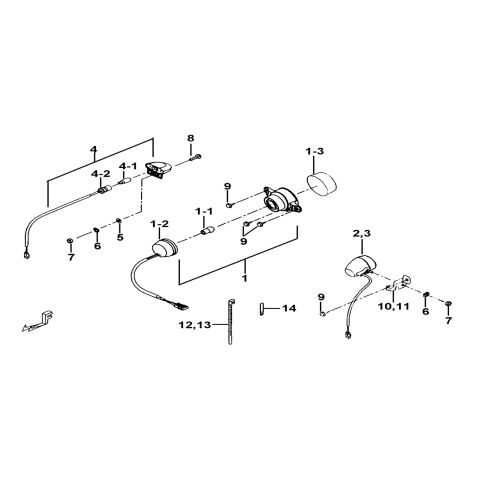

REAR LAMP ASSY.

TGB
  • Výrobca  TGB
  • Kód produktu  TGB_3_203_VSG-DE
MODEL:
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
01 REAR LAMP ASSY. (Ref. č 01) 511810Y REAR LAMP ASSY.  2 € 25,21 € 31
NA DOPYT
13 GA510SR02 CLAMP L200  1 € 2,64 € 3
NA DOPYT
12 CLAMP 13X150 (Ref. č 12) GA510SR01 CLAMP 13X150  3 € 2,40 € 3
SKLADOM
11 BRACKET (RH.) (Ref. č 11) 511825 BRACKET (RH.)  1 € 2,40 € 3
SKLADOM
10 BRACKET (LH.) (Ref. č 10) 511824 BRACKET (LH.)  1 € 2,40 € 3
SKLADOM
09 SCREW, OVAL HEAD, TAPPING M5X14 (Ref. č 09) S57501 SCREW, OVAL HEAD, TAPPING M5X14  8 € 2,40 € 3
SKLADOM
08 SCREW, HEX HEAD M5X20 (Ref. č 08) GA510SC10 SCREW, HEX HEAD M5X20  1 € 2,40 € 3
SKLADOM
07 NUT, FLANGE M5 (Ref. č 07) GA552NT05 NUT, FLANGE M5  3 € 2,40 € 3
SKLADOM
06 WASHER, SPRING (Ref. č 06) W10501 WASHER, SPRING  3 € 2,40 € 3
SKLADOM
05 WASHER (Ref. č 05) GA552WS05 WASHER  1 € 2,40 € 3
SKLADOM
04.2 515369 WIRING SET, NUMBER-PLATE LAMP  1 € 22,56 € 28
NA DOPYT
04.1 BULB (Ref. č 04-1) 451038 BULB  1 € 2,40 € 3
SKLADOM
04 NUMBER-PLATE LAMP (Ref. č 04) 511829 NUMBER-PLATE LAMP  1 € 51,74 € 64
SKLADOM
03 TURN SIGNAL LAMP COMP., RH (Ref. č 03) 511781 TURN SIGNAL LAMP COMP., RH  1 € 59,26 € 73
SKLADOM
02 TURN SIGNAL LAMP COMP., LH (Ref. č 02) 511780 TURN SIGNAL LAMP COMP., LH  1 € 62,64 € 77
SKLADOM
01.3 REAR LAMP COMP (Ref. č 01-3) 514036Y REAR LAMP COMP  2 € 14,96 € 18
NA DOPYT
01.2 WIRING SET, REAR LAMP (Ref. č 01-2) 514035Y WIRING SET, REAR LAMP  2 € 13,31 € 16
NA DOPYT
01.1 BULB 12V, P21/5W (Ref. č 01-1) GF5180002 BULB 12V, P21/5W  2 € 3,06 € 4
SKLADOM
14 CLAMP (Ref. č 14) 514410 CLAMP  1 € 2,40 € 3
SKLADOM
Kód produktu TGB_3_203_VSG-DE
typ rozkresu: ELECTRICAL PARTS
ZNACKA: TGB
TYP: TARGET 525/550
MODEL: TARGET 550 EFI
