WHEEL REAR

LINHAI
Výrobca: LINHAI
Kód produktu: LINHAI_2_208_ATV500-D T3b
MODEL:
500 T3b 500 T3b

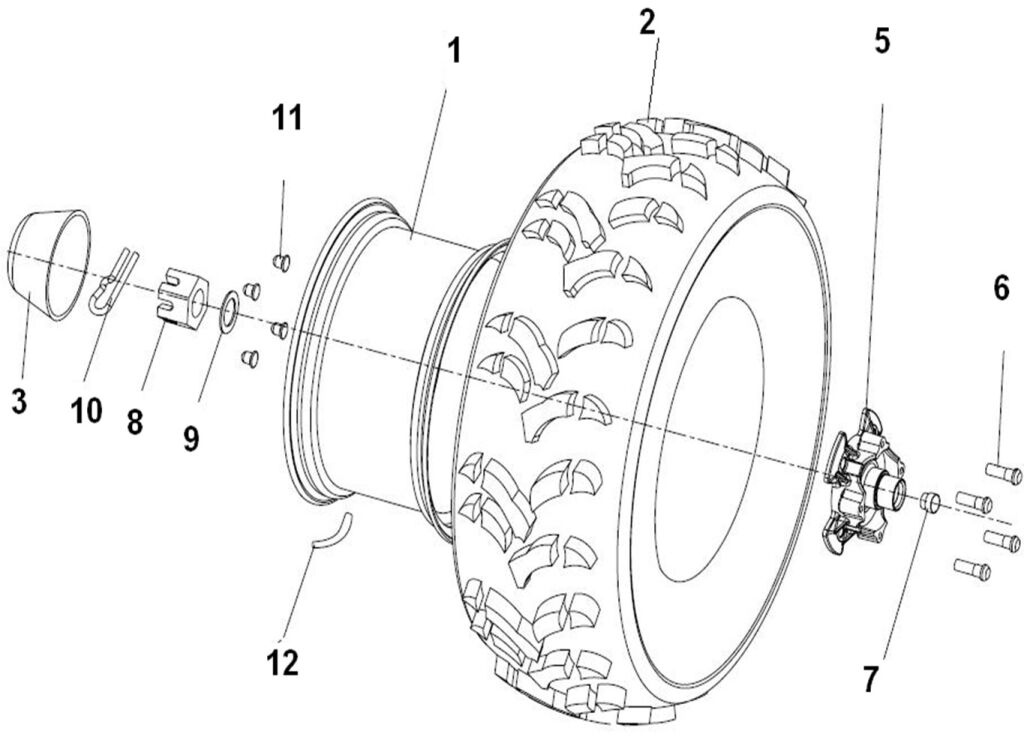

Ref. č Obr. Kód p. Popis p. ks Cena Dostupnost
1A 35510 WHEEL SUB-ASSY, RR (ALUMINIUM) (FRANCE)  2 € 171,40 € 207,40
SKLADOM
11 NUT, WHEEL (Ref. č 11) 27411 NUT, WHEEL  8 € 2,40 € 2,90
NA CESTE
10 10945 COTTER PIN 2X22  2 € 7,19 € 8,70
NA DOPYT
9 70722 WASHER  2 € 3,55 € 4,30
NA CESTE
8 BOLT SLOTTED (Ref. č 8) 70721 BOLT SLOTTED  2 € 2,40 € 2,90
SKLADOM
7 SEAL (Ref. č 7) 70718 SEAL  4 € 2,40 € 2,90
SKLADOM
6 BOLT M12X1.25 (Ref. č 6) 70714 BOLT M12X1.25  16 € 2,40 € 2,90
SKLADOM
5 HUB, RR WHEEL (Ref. č 5) 70719 HUB, RR WHEEL  2 € 63,72 € 77,10
NA CESTE
3 CAP, WHEEL CENTER (Ref. č 3) 70717 CAP, WHEEL CENTER  2 € 13,64 € 16,50
NA DOPYT

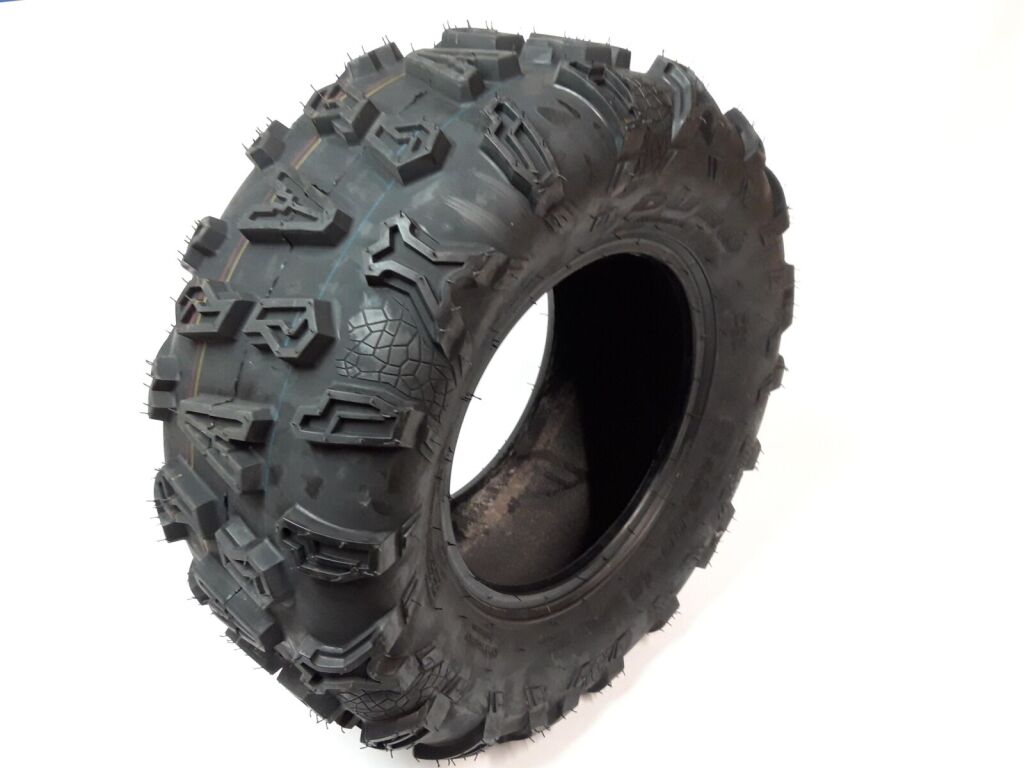

2 Rear tire AT25X10-12 79F 4PR（DURO）（E4-75R-0012912） (Ref. č 2) 36436 Rear tire AT25X10-12 79F 4PR（DURO）（E4-75R-0012912）  2 € 233,31 € 282,30
SKLADOM
2 27620 TIRE FRONT“SUN.F”LOGO(25X10-12 70J)（FOR T3）  2 € 267,69 € 323,90
NA DOPYT
2 35779 TIRE，RR AT25X10-12 65F 6PR（INNOVA）(E11-75R-002004)（ONLY FOR EURO 4）  2 € 223,47 € 270,40
NA DOPYT
2 27618 TIRE FRONT“WANDA”LOGO (25X10-12 65F)（FOR T3）(unavailable)  2 € 222,23 € 268,90
NA DOPYT
2 35511 TIRE, RR AT25X10-12 50J (WANDA) (E4-75R-0006367)  2 € 337,60 € 408,50
NA DOPYT
2 35006 TIRE，RR AT24X8-12 6PR（WANDA）  2 € 234,55 € 283,80
SKLADOM
1 27331 WHEEL SUB-ASSY，RR(IRON)（FRANCE）（SIMPLE）  2 € 106,12 € 128,40
Naskladňujeme
1B 35717 WHEEL SUN-ASSY, RR(ALUMINIUM)  2 € 160,17 € 193,80
SKLADOM
12 VALVE.RIM (Ref. č 12) 20807a VALVE.RIM  4 € 2,40 € 2,90
SKLADOM
