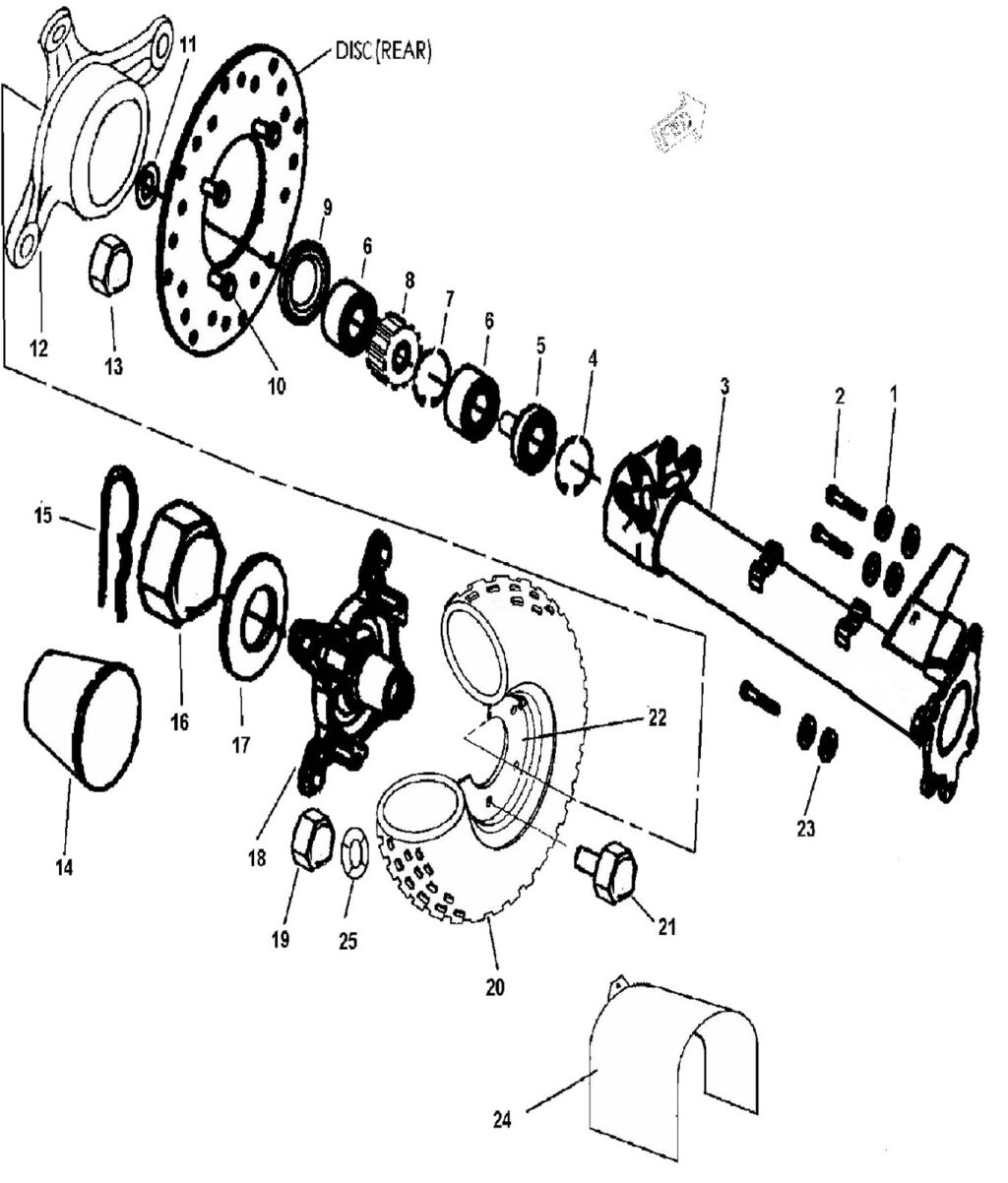

WHEEL REAR (FOR EUROPE)

LINHAI
Výrobca: LINHAI
Kód produktu: LINHAI_2_209_ATV200-D_T3b
MODEL:
200 T3b 200 T3b
Ref. č Obr. Kód p. Popis p. ks Cena Dostupnost
1 WASHER 12 (Ref. č 1) 10032 WASHER 12  8 € 9,59 € 11,60
SKLADOM
15 PIN 4X36 (Ref. č 15) 10051 PIN 4X36  2 € 2,40 € 2,90
SKLADOM
16 NUT SLOTTED M20X2 (Ref. č 16) 10142 NUT SLOTTED M20X2  2 € 2,40 € 2,90
NA DOPYT
17 WASHER (Ref. č 17) 21017 WASHER  2 € 1,98 € 2,40
NA DOPYT
18 WHEEL HUB (Ref. č 18) 21018 WHEEL HUB  2 € 45,54 € 55,10
SKLADOM
19 LUG NUT M12X1.25 (Ref. č 19) 21019 LUG NUT M12X1.25  8 € 2,40 € 2,90
NA CESTE
19A LUG NUT M12X1.25 (Ref. č 19A) 21019S LUG NUT M12X1.25  8 € 2,40 € 2,90
SKLADOM
19B NUT, WHEEL (Ref. č 19B) 27411 NUT, WHEEL  8 € 2,40 € 2,90
NA CESTE
21 WHEEL STUD M12x1.25x45 (Ref. č 21) 10053 WHEEL STUD M12x1.25x45  8 € 2,40 € 2,90
SKLADOM
22 21022a WHEEL REAR (IRON AND ARGENTINE)  2 € 119,17 € 144,20
NA DOPYT
23 WASHER 12 (Ref. č 23) 10054 WASHER 12  8 € 2,40 € 2,90
SKLADOM
24 BRAKE HOSE COVER (Ref. č 24) 31024 BRAKE HOSE COVER  1 € 2,40 € 2,90
SKLADOM
25 WHEEL WASHER (Ref. č 25) 21026 WHEEL WASHER  8 € 2,40 € 2,90
SKLADOM
14B AXLE CAP, 1. (Ref. č 14B) 21014 AXLE CAP, 1.  2 € 2,40 € 2,90
SKLADOM
14A AXLE CAP, R (Ref. č 14A) 25106 AXLE CAP, R  2 € 2,40 € 2,90
NA DOPYT
2 BOLT M12X30 (Ref. č 2) 10045 BOLT M12X30  8 € 2,40 € 2,90
SKLADOM
3 AXLE TUBE AND HITCH ASSEMBLY (Ref. č 3) 29823 AXLE TUBE AND HITCH ASSEMBLY  1 € 80,91 € 97,90
SKLADOM
4 RING RETAINER INT (Ref. č 4) 21004 RING RETAINER INT  1 € 2,40 € 2,90
NA DOPYT
5 SPACER (Ref. č 5) 21005 SPACER  1 € 7,69 € 9,30
SKLADOM
6 BEARING BALL DBL SEAL 6206-2Z (Ref. č 6) 27039 BEARING BALL DBL SEAL 6206-2Z  4 € 5,04 € 6,10
SKLADOM
7 RING 62 (Ref. č 7) 10047 RING 62  1 € 2,56 € 3,10
SKLADOM
8 SPACER - BEARING (Ref. č 8) 31008 SPACER - BEARING  1 € 8,68 € 10,50
SKLADOM
9 SEAL REAR AXLE (Ref. č 9) 21009 SEAL REAR AXLE  2 € 2,81 € 3,40
SKLADOM
10 BOLTS M10X1.25X20 (Ref. č 10) 10048 BOLTS M10X1.25X20  3 € 2,40 € 2,90
SKLADOM
11 O-RING (Ref. č 11) 10029 O-RING  1 € 2,40 € 2,90
SKLADOM
12 HUB BRAKE DISC MACH (Ref. č 12) 21012 HUB BRAKE DISC MACH  1 € 23,06 € 27,90
NA DOPYT
13 10050 NUT M10X1.25  3
NA DOPYT
Detail
20 29826 TIRE REAR AT22X10-10 ATV200-D T3b  2
NA DOPYT
Detail
