WATER PUMP

ACCESS MOTOR
  • Výrobca  ACCESS MOTOR
  • Kód produktu  ACCESSS_1_114_WARRIOR_450
MODEL:
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
1 15215-E12-100 CASE COMP, water pump  1
NA DOPYT
Detail
18 94002-040160-1 PIN, oil pump driven gear  1 € 1,90 € 2
NA DOPYT
17 93107-10518-05 SHIM, oil pump driver gear  1 € 1,90 € 2
NA DOPYT
16 Gear, Water Pump (Ref. č 16) 15214-E12-000 Gear, Water Pump  1 € 5,79 € 7
SKLADOM

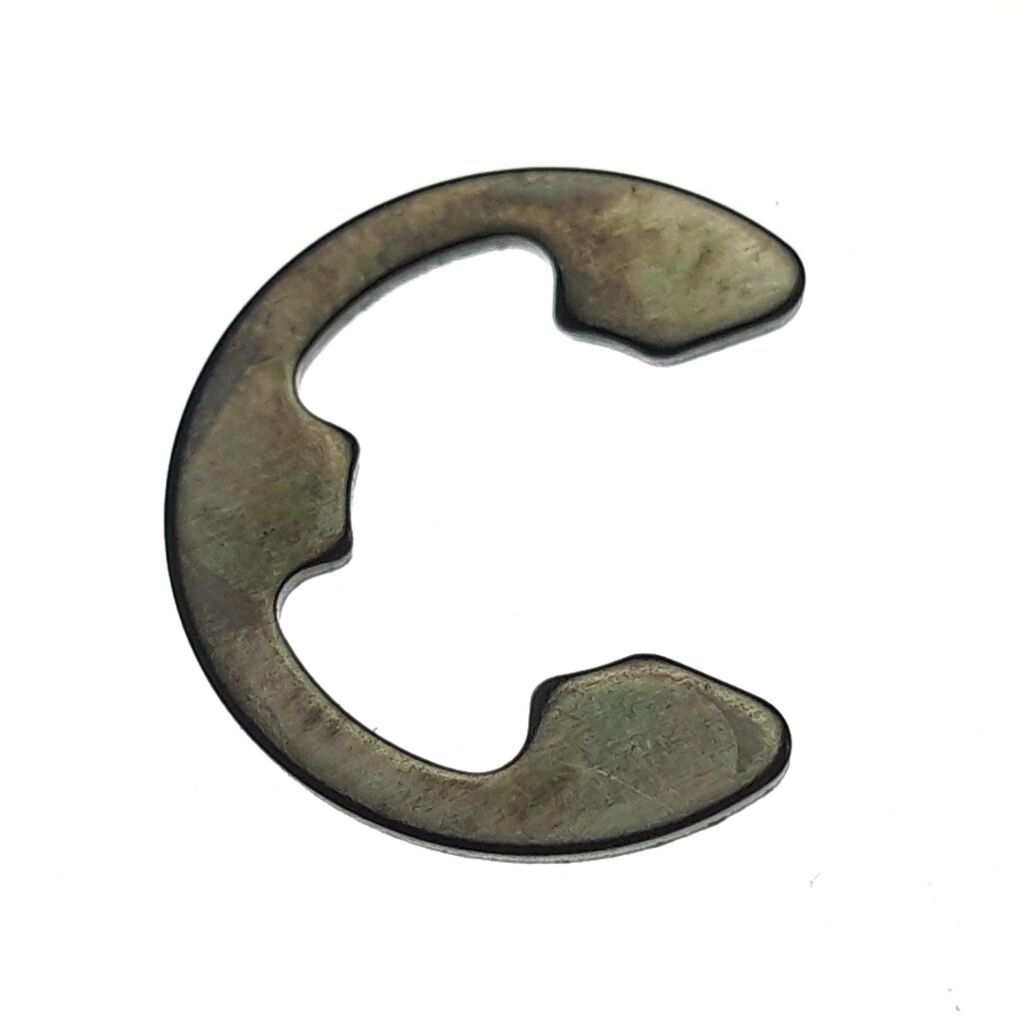

15 E-RING, water pump (Ref. č 15) 93410-ETW8 E-RING, water pump  1 € 2,48 € 3
NA DOPYT

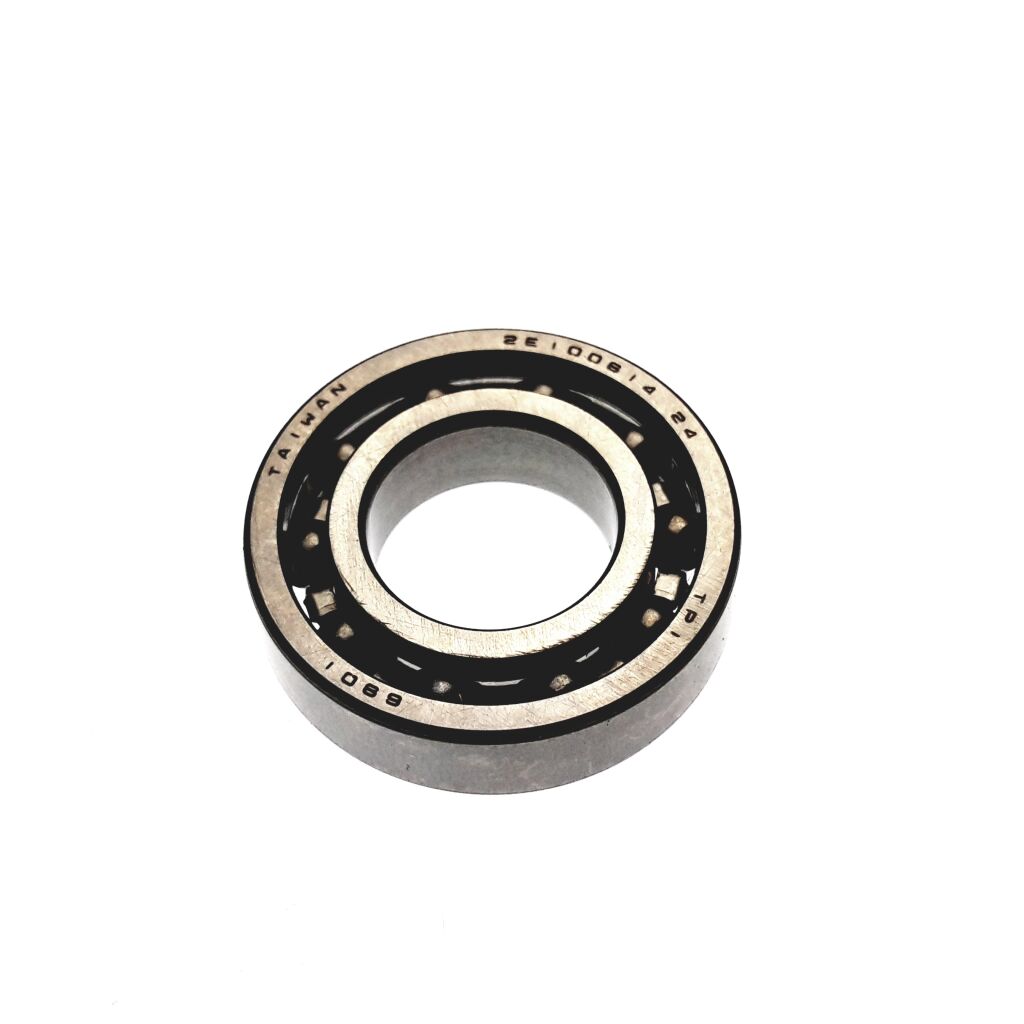

14 Bearing, Ball (Ref. č 14) 95100-T6901 Bearing, Ball  2 € 8,26 € 10
SKLADOM
13 SEAL, crank shaft oil rh (Ref. č 13) 96100-122407-1 SEAL, crank shaft oil rh  1 € 5,79 € 7
SKLADOM
12 SEAL, mechanical (Ref. č 12) 15220-E12-100 SEAL, mechanical  1 € 43,14 € 53
SKLADOM
11 15217-E12-100 SHAFT, water pump  1 € 15,95 € 20
NA DOPYT
10 15213-E12-100 IMPELLER, water pump  1
NA DOPYT
Detail
9 WASHER, impeller rock (Ref. č 9) 93106-06313-09 WASHER, impeller rock  1 € 2,48 € 3
NA DOPYT
8 97411-138-08 Clip  2 € 1,90 € 2
NA DOPYT
7 15233-E12-100 HOSE, thermostat bypass  1 € 15,62 € 19
NA DOPYT
6 GASKET, water drain bolt (Ref. č 6) 93101-06513-12-1 GASKET, water drain bolt  1 € 2,48 € 3
SKLADOM
5 BOLT, water drain (Ref. č 5) 91700-06010-10Z BOLT, water drain  2 € 2,48 € 3
NA DOPYT
4 91700-06060-08Z BOLT, water pump case  1 € 1,90 € 2
NA DOPYT
3 91700-06025-08Z Hex. Bolt, Flange  3
NA DOPYT
Detail
2 O-RING, water pump case (Ref. č 2) 15218-E12-100 O-RING, water pump case  1 € 2,48 € 3
SKLADOM
19 Cir Clip (Ref. č 19) 93406-STW10 Cir Clip  1 € 2,48 € 3
SKLADOM
Kód produktu ACCESSS_1_114_WARRIOR_450
typ rozkresu: ENGINE PARTS
ZNACKA: ACCESS
TYP: ACCESS Warrior
MODEL: warrior 450
