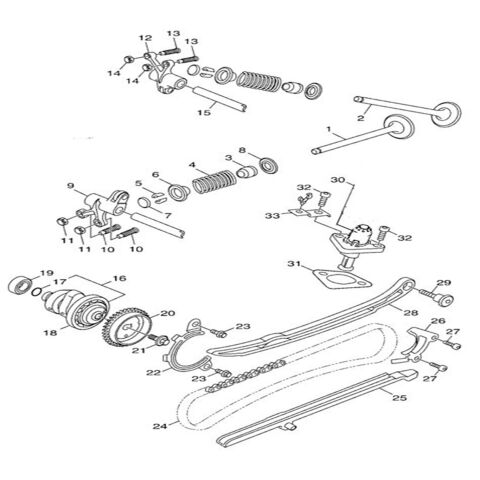

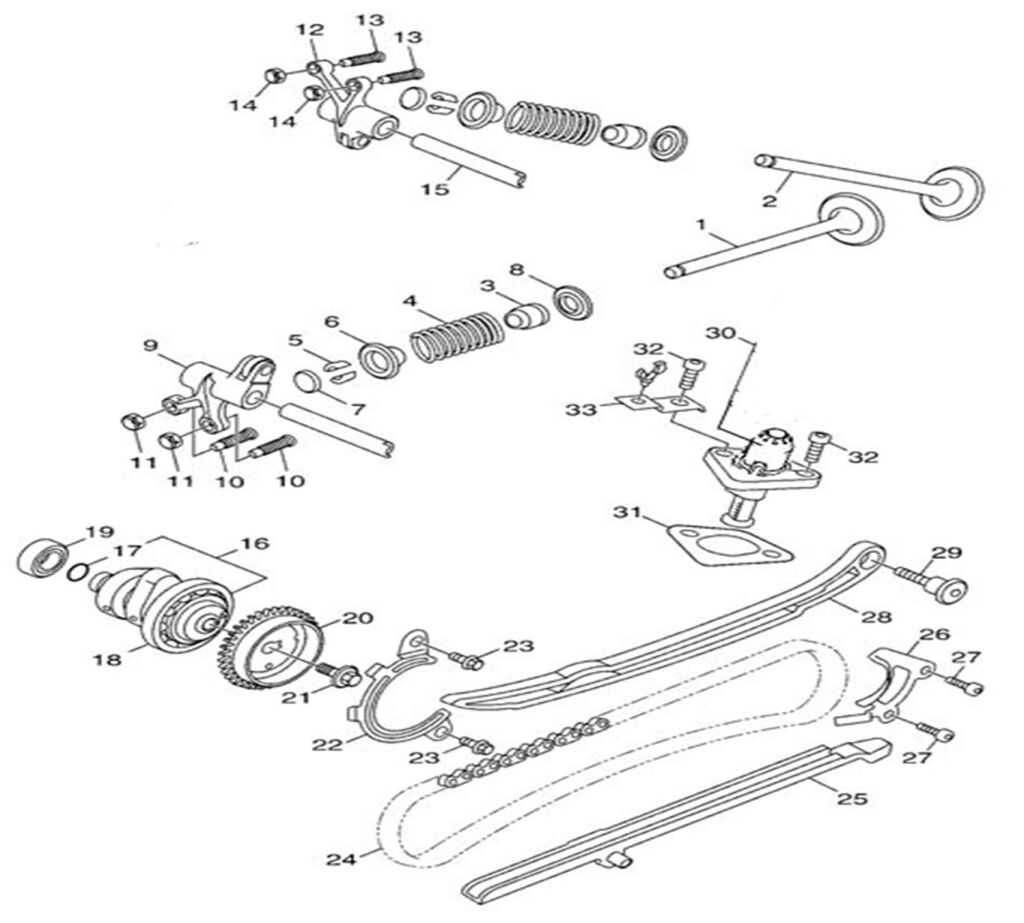

VALVE, CAMSHAFT AND CHAIN

LINHAI
  • Výrobca  LINHAI
  • Kód produktu  LINHAI_1_122_BUCK-125
MODEL:
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost

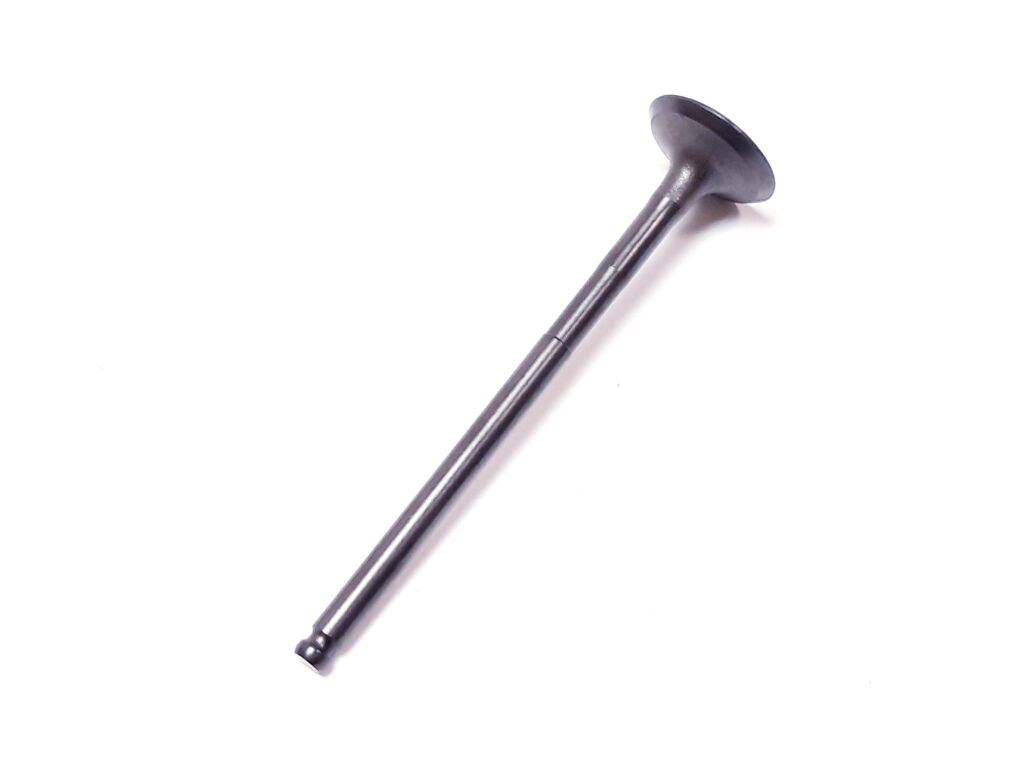

1 VALVE, EXHAUST (Ref. č 1) M20306 VALVE, EXHAUST  2 € 4,88 € 6
SKLADOM ZA 17 dní

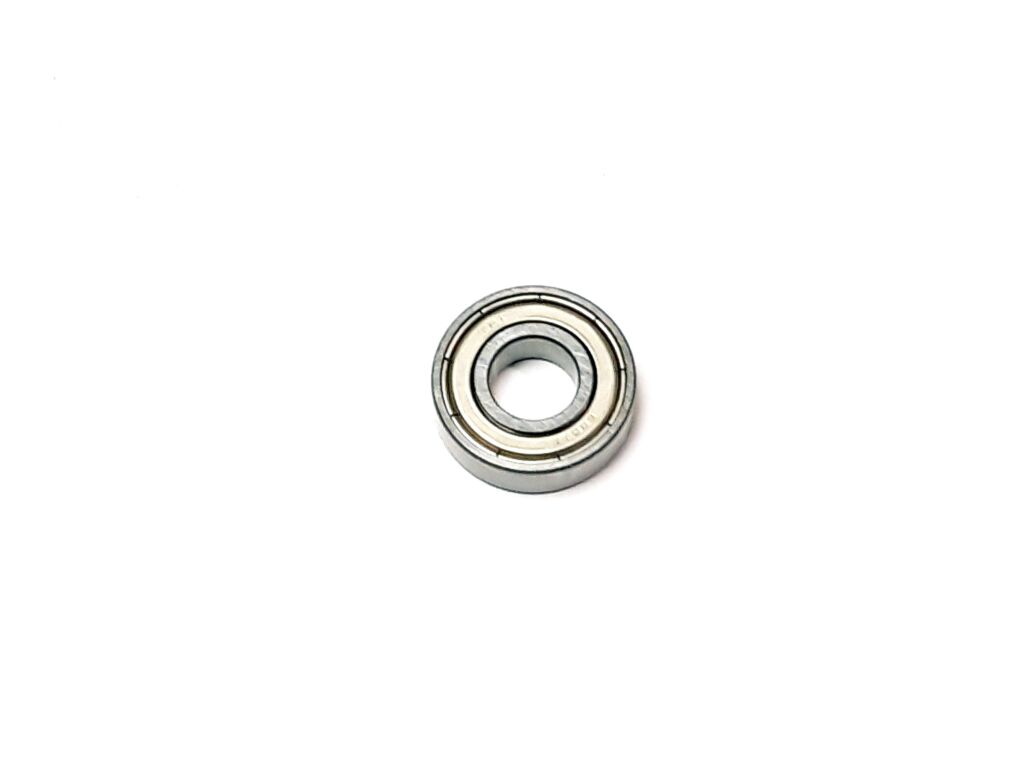

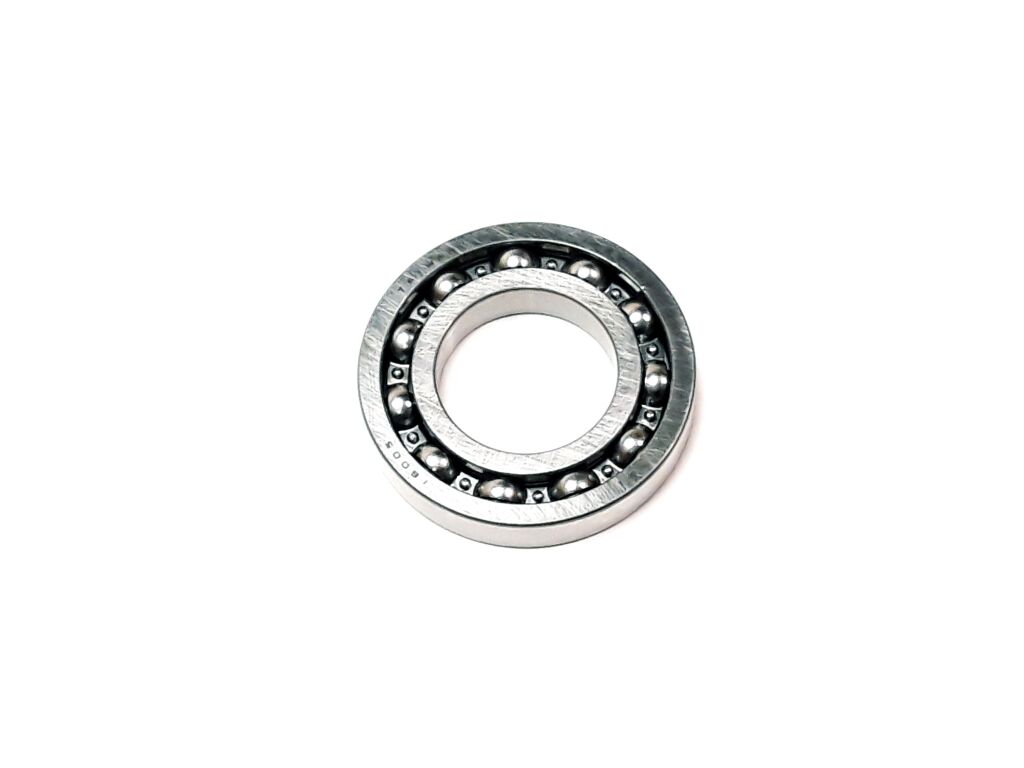

19 BEARING (Ref. č 19) M90200 BEARING  1 € 2,89 € 4
SKLADOM

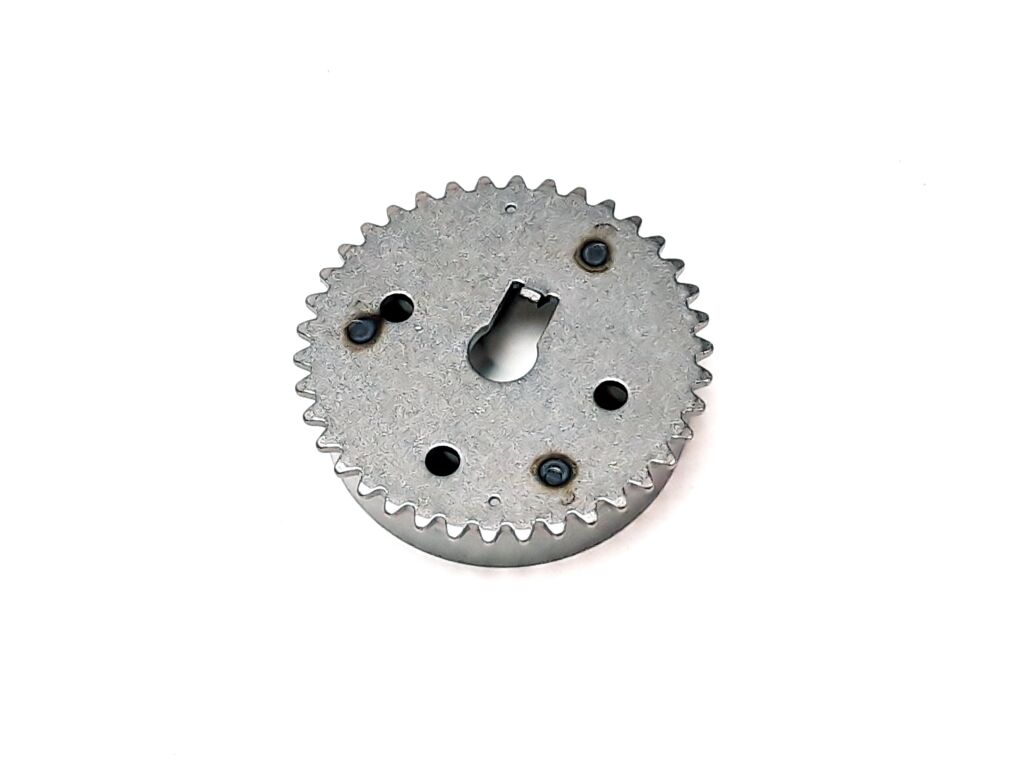

20 SPROCKET, CAM CHAIN (Ref. č 20) M20296 SPROCKET, CAM CHAIN  1 € 4,79 € 6
SKLADOM

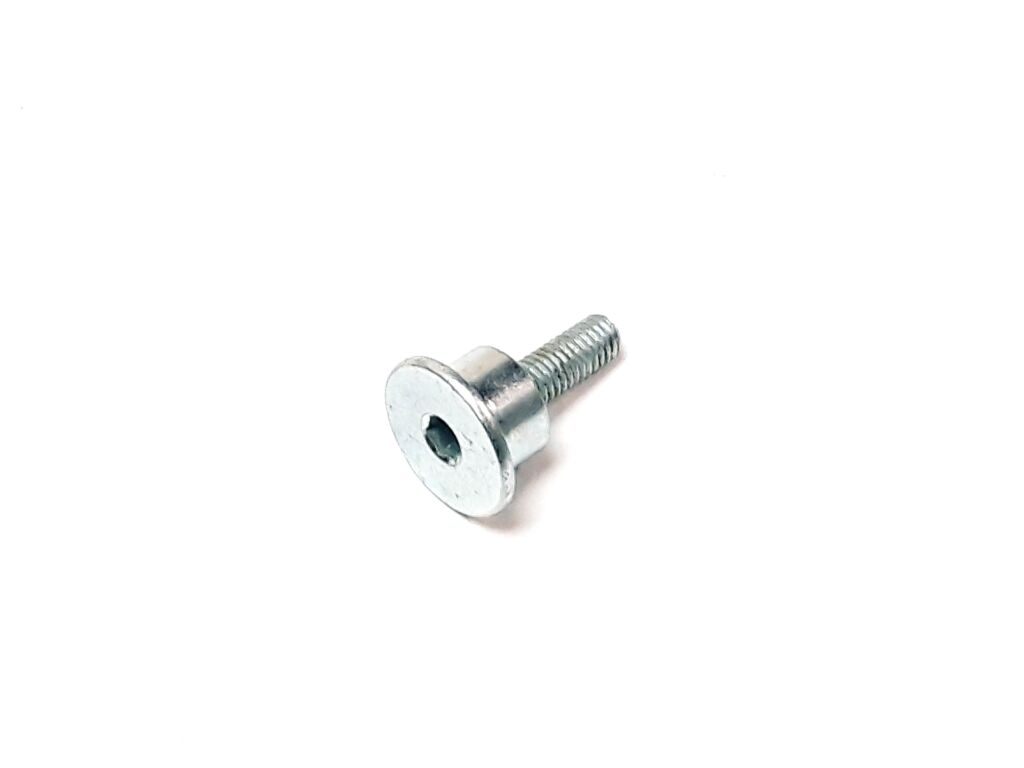

21 BOLT (Ref. č 21) M20310 BOLT  1 € 2,23 € 3
SKLADOM

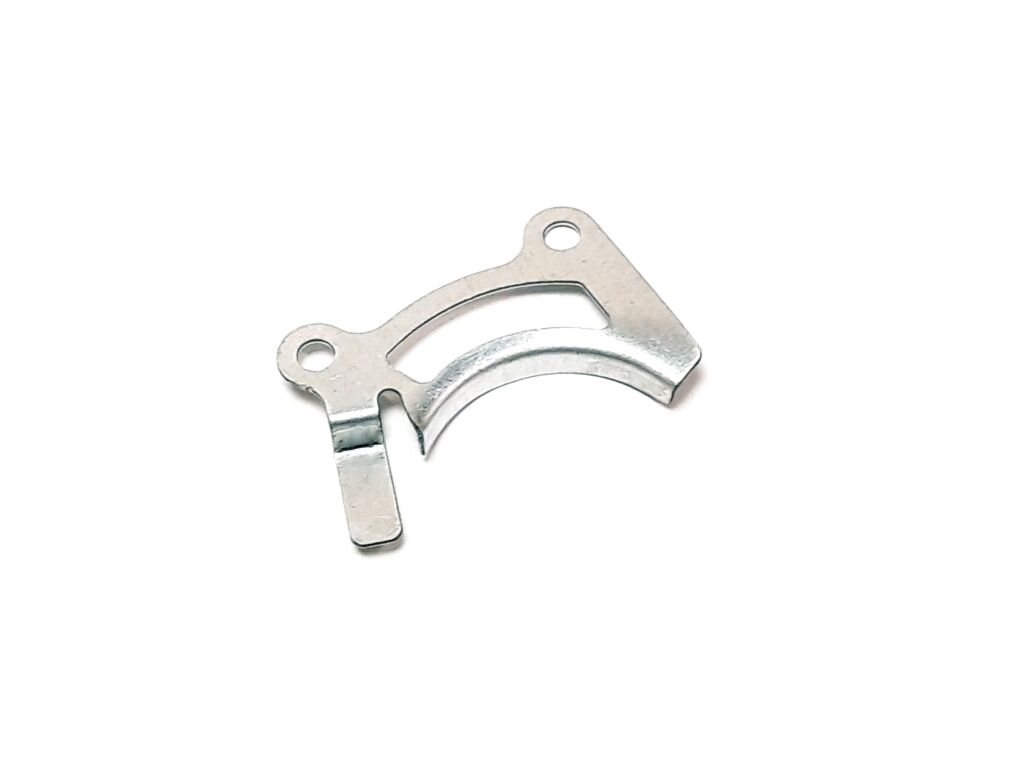

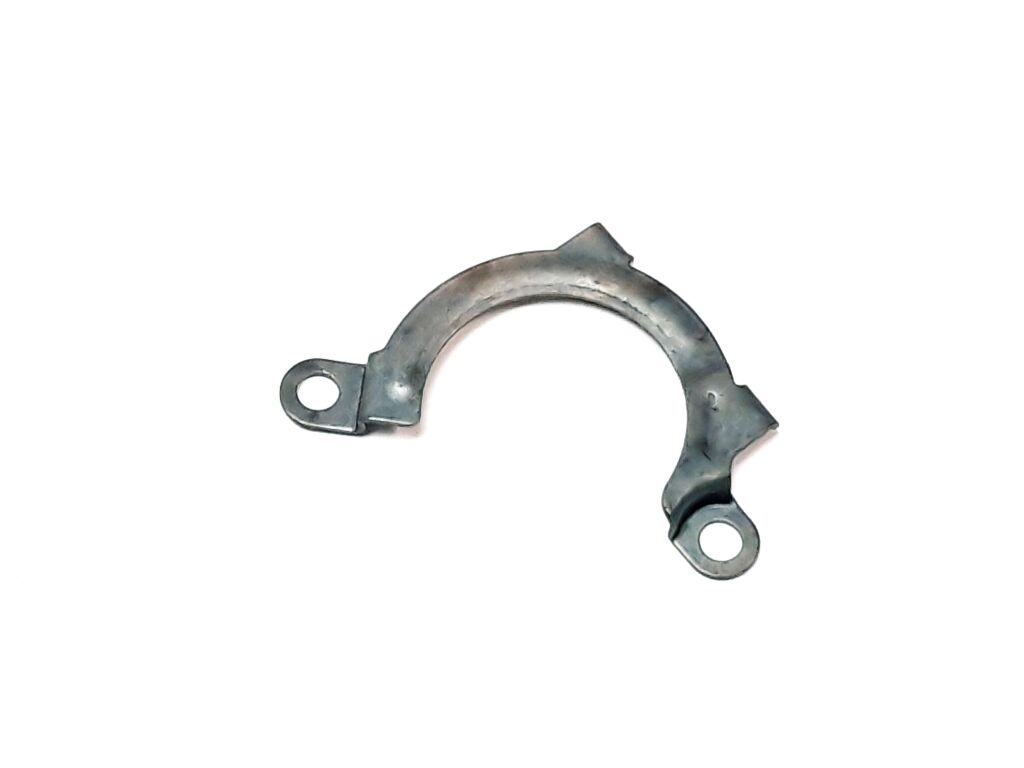

22 PLATE, BREATHER (Ref. č 22) M20283 PLATE, BREATHER  1 € 2,23 € 3
SKLADOM
23 BOLT (Ref. č 23) M90218 BOLT  2 € 2,23 € 3
SKLADOM

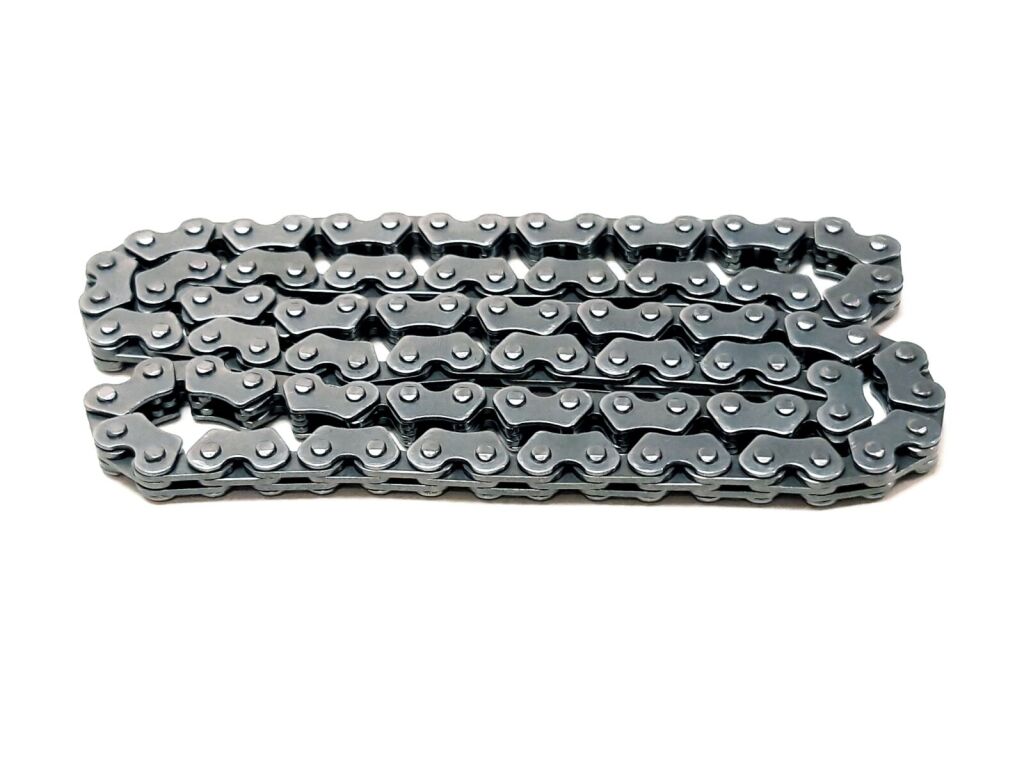

24 CHAIN (Ref. č 24) M90216 CHAIN  1 € 13,22 € 16
SKLADOM

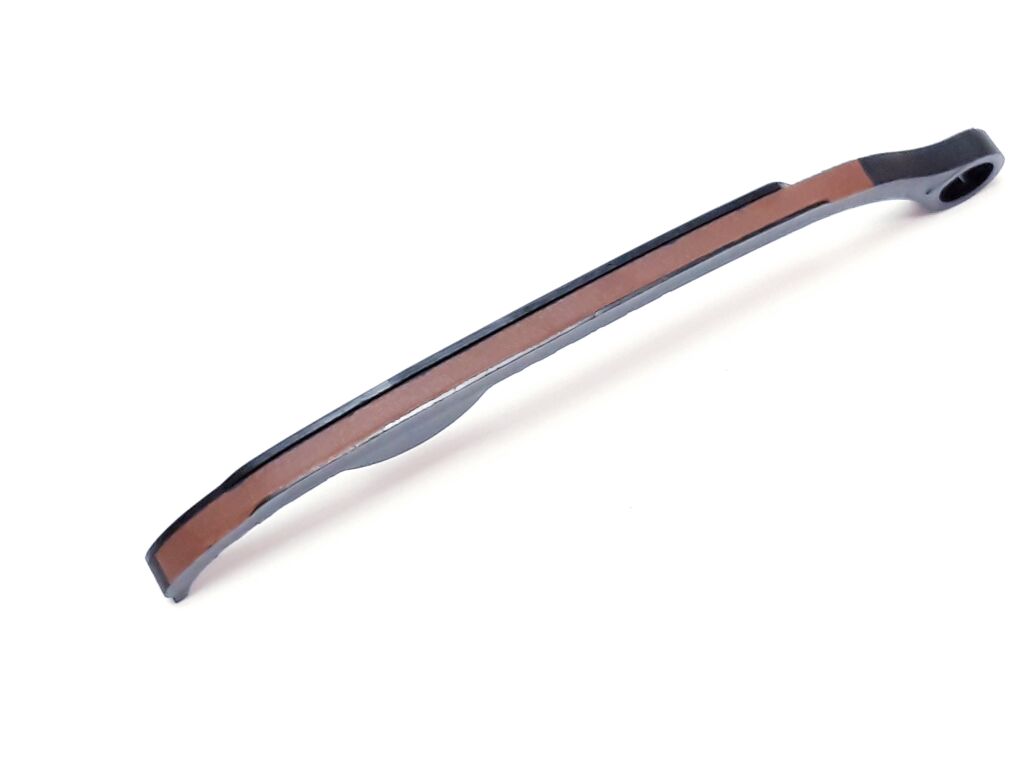

25 DAMPER, CHAIN 2 (Ref. č 25) M20319 DAMPER, CHAIN 2  1 € 6,61 € 8
SKLADOM

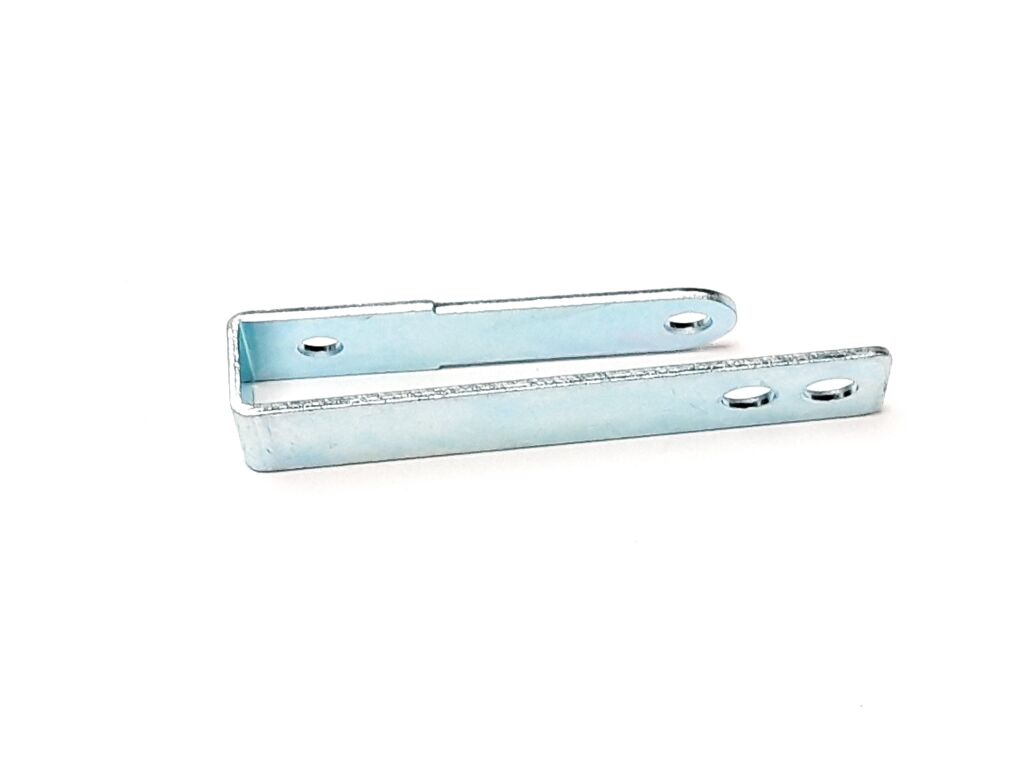

26 GUIDE PLATE (Ref. č 26) M20318 GUIDE PLATE  1 € 2,23 € 3
SKLADOM
27 BOLT, HEXAGON SOCKET HEAD (Ref. č 27) M90077 BOLT, HEXAGON SOCKET HEAD  2 € 2,23 € 3
SKLADOM
28 DAMPER, CHAIN 1 (Ref. č 28) M20317 DAMPER, CHAIN 1  1 € 3,06 € 4
SKLADOM
29 BOLT (Ref. č 29) M20316 BOLT  1 € 2,23 € 3
SKLADOM

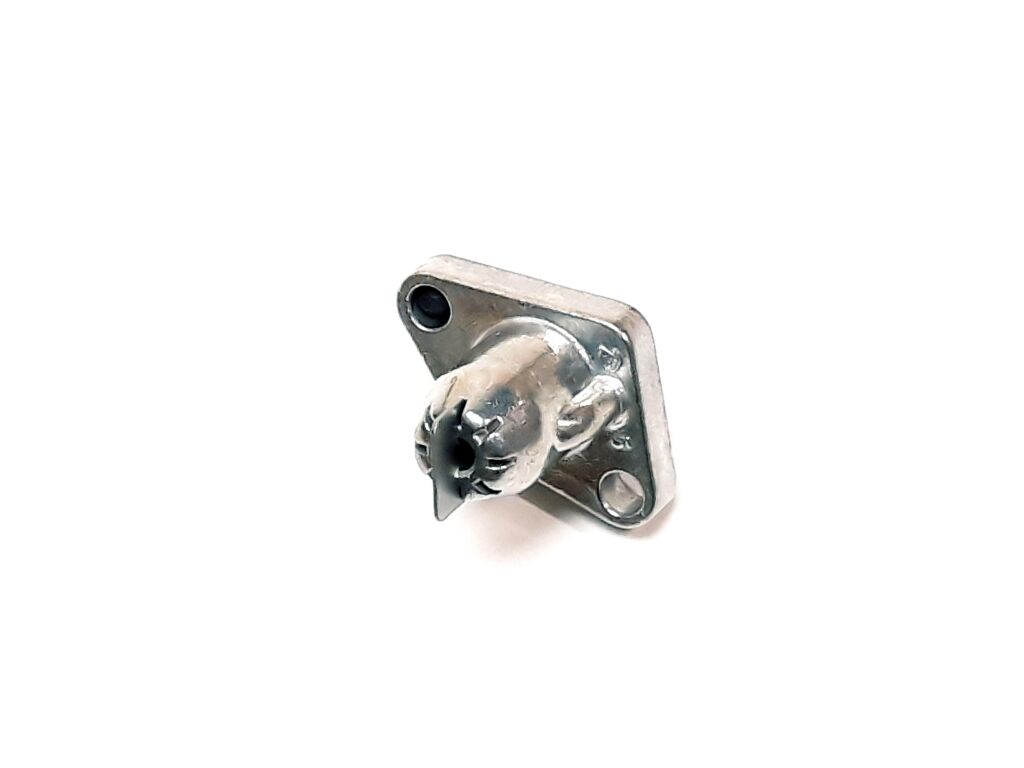

30 TENSIONER ASSY, CAM CHAIN (Ref. č 30) M20315 TENSIONER ASSY, CAM CHAIN  1 € 6,12 € 8
SKLADOM

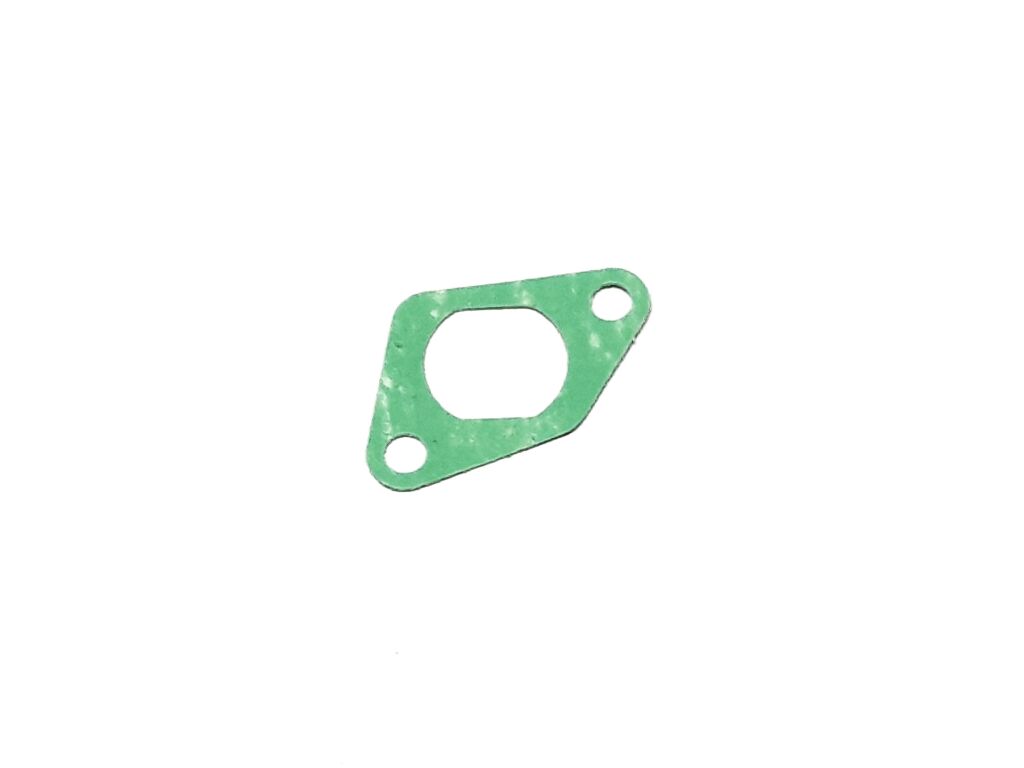

31 GASKET, TENSIONER CASE (Ref. č 31) M50007 GASKET, TENSIONER CASE  1 € 2,23 € 3
SKLADOM
32 M90183 BOLT, HEXAGON SOCKET HEAD  2 € 2,23 € 3
NA DOPYT
18 BEARING (Ref. č 18) M90201 BEARING  1 € 5,70 € 7
SKLADOM
17 O-RING (Ref. č 17) M90193 O-RING  1 € 2,23 € 3
SKLADOM

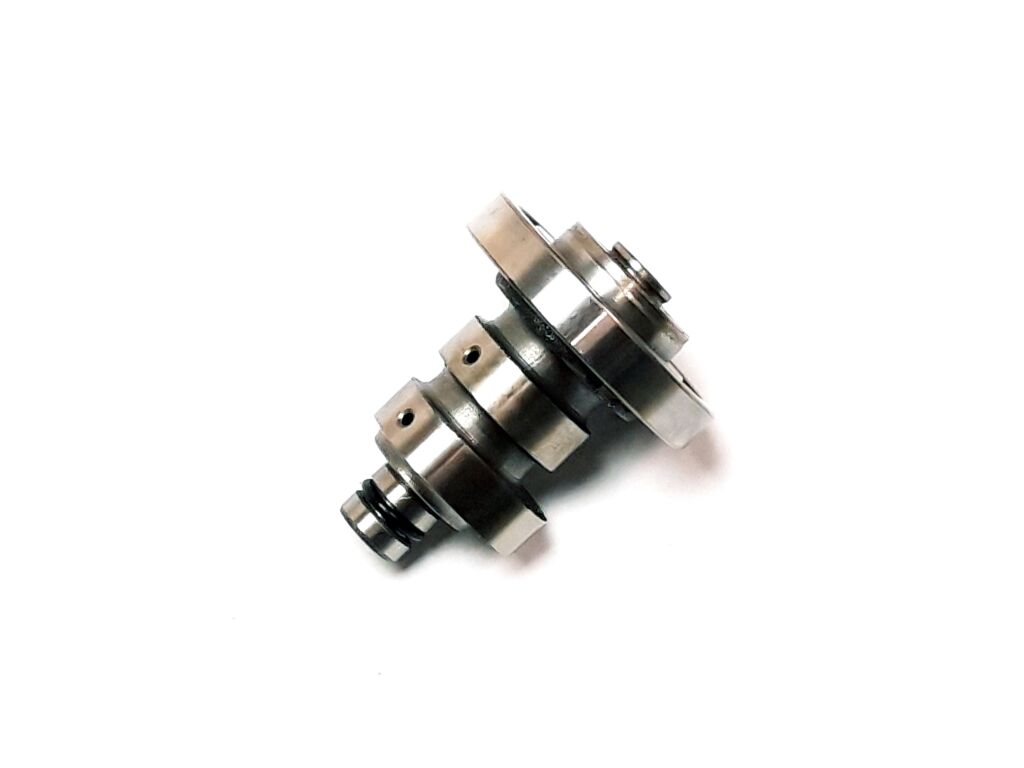

16 CAMSHAFT ASSY (Ref. č 16) M20314 CAMSHAFT ASSY  1 € 12,31 € 15
SKLADOM
2 VALVE, INTAKE (Ref. č 2) M20301 VALVE, INTAKE  2 € 3,22 € 4
SKLADOM ZA 17 dní

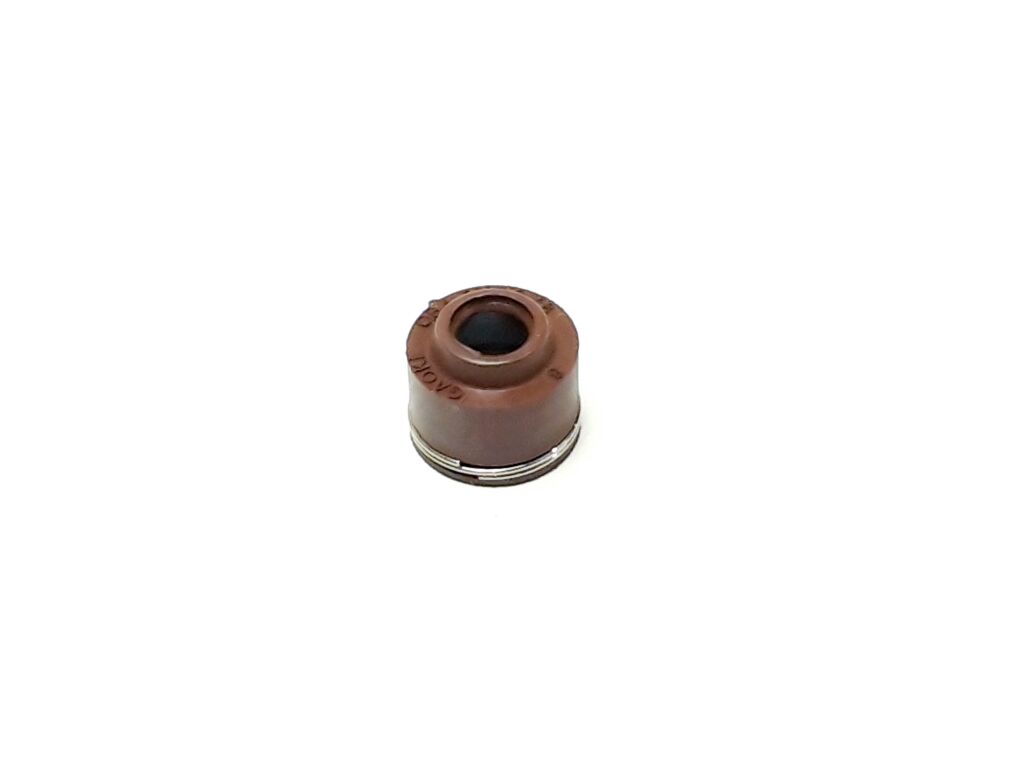

3 SEAL, VALVE STEM (Ref. č 3) M20305 SEAL, VALVE STEM  4 € 2,23 € 3
SKLADOM ZA 19 dní

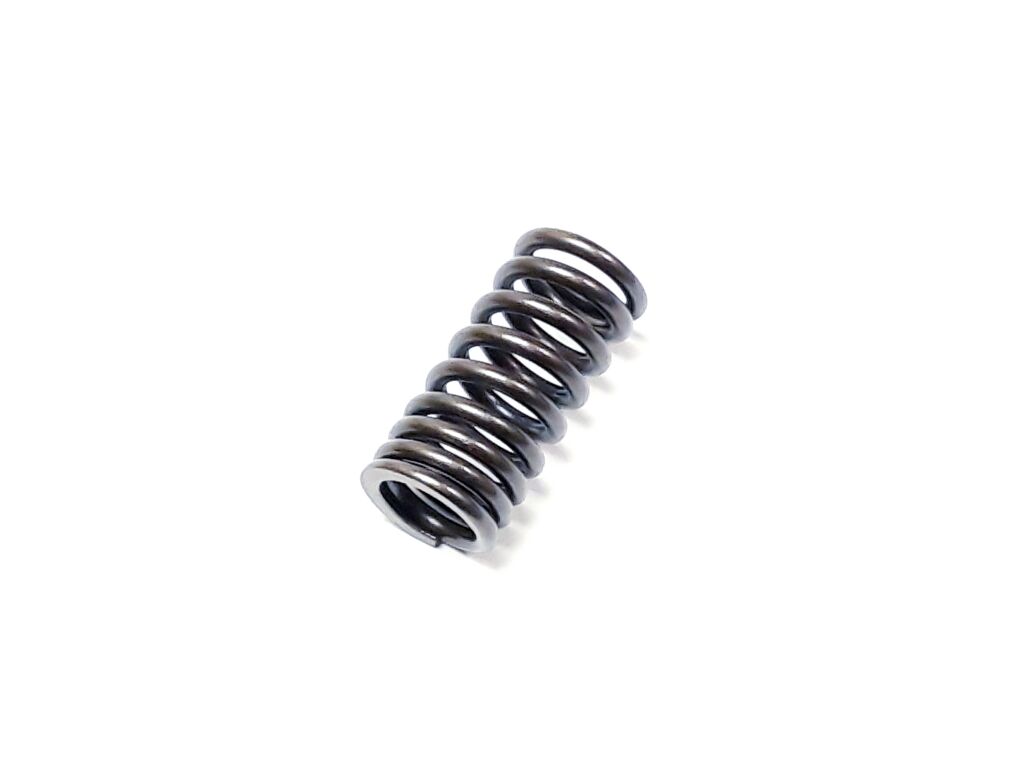

4 SPRING, VALVE INNER (Ref. č 4) M20302 SPRING, VALVE INNER  4 € 2,23 € 3
SKLADOM
5 LOCK, VALVE SPRING RETAINER (Ref. č 5) M20304 LOCK, VALVE SPRING RETAINER  8 € 2,23 € 3
SKLADOM
6 RETAINER, VALVE SPRING (Ref. č 6) M20303 RETAINER, VALVE SPRING  4 € 2,23 € 3
SKLADOM
7 PAD, VALVE (Ref. č 7) M20313 PAD, VALVE  4 € 2,23 € 3
SKLADOM
8 SEAT, VALVE SPRING (Ref. č 8) M20307 SEAT, VALVE SPRING  4 € 2,23 € 3
SKLADOM

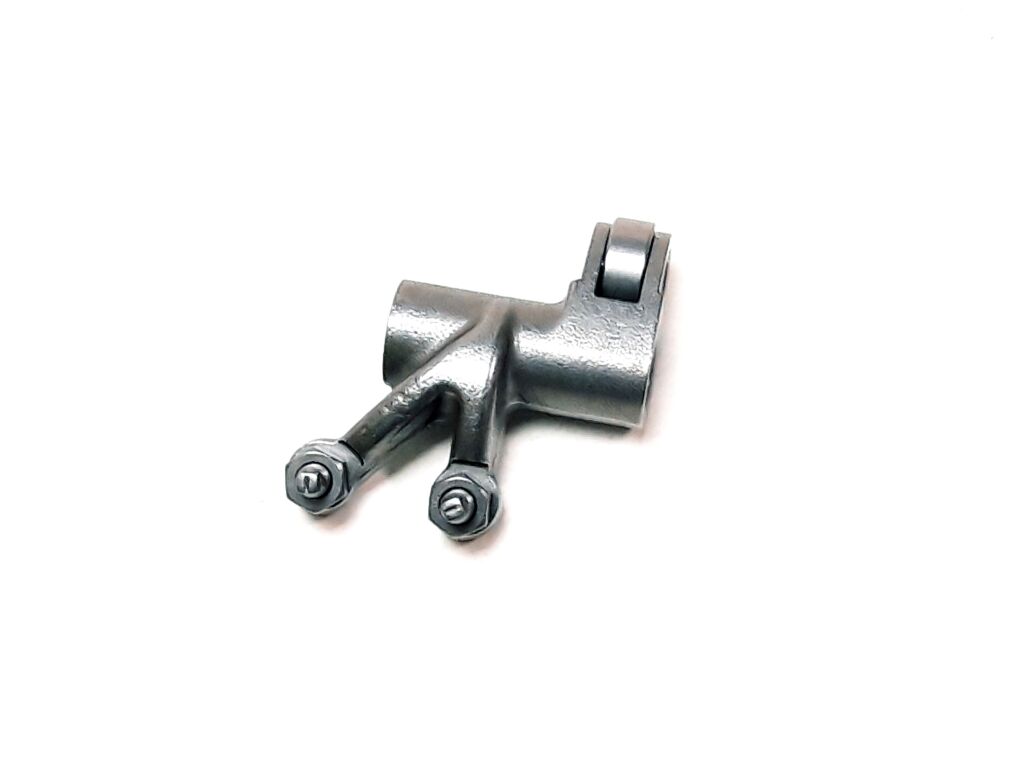

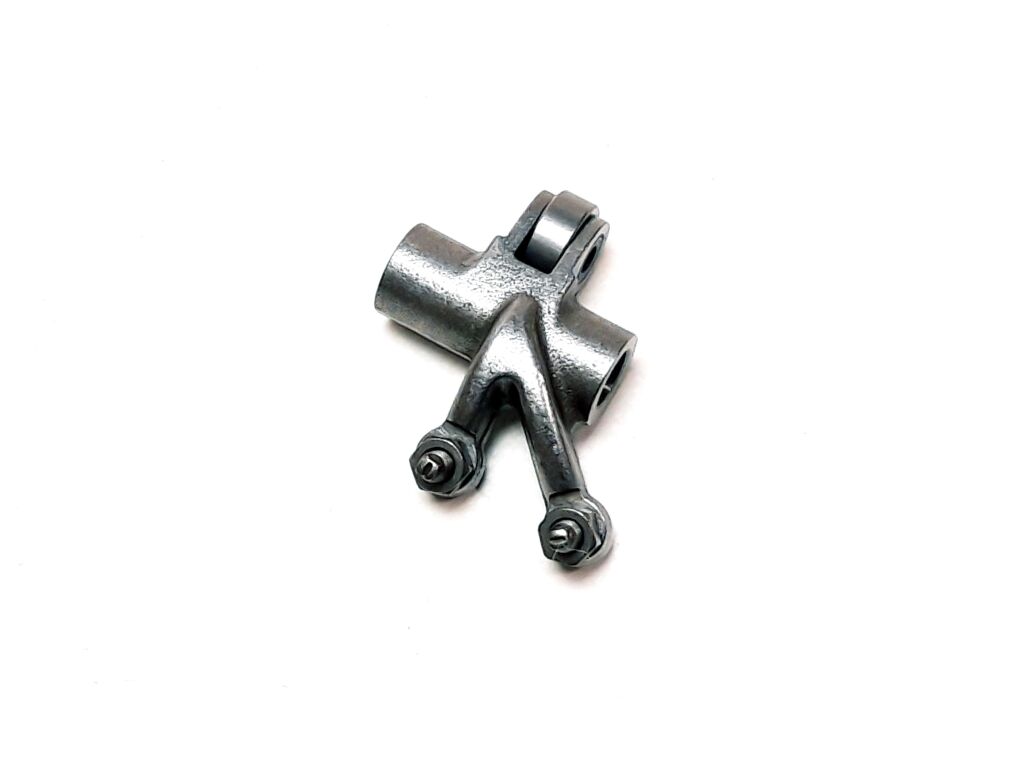

9 ARM, VALVE ROCKER 2 (Ref. č 9) M20312 ARM, VALVE ROCKER 2  1 € 13,64 € 17
SKLADOM
10 SCREW, VALVE ADJUSTING (Ref. č 10) M20311 SCREW, VALVE ADJUSTING  2 € 2,23 € 3
SKLADOM
11 NUT (Ref. č 11) M90154 NUT  2 € 2,23 € 3
SKLADOM
12 ARM, VALVE ROCKER 1 (Ref. č 12) M20308 ARM, VALVE ROCKER 1  1 € 13,64 € 17
SKLADOM
15 SHAFT, ROCKER (Ref. č 15) M20309 SHAFT, ROCKER  2 € 2,23 € 3
SKLADOM
33 CLIP (Ref. č 33) M33099 CLIP  1 € 2,23 € 3
SKLADOM
Kód produktu LINHAI_1_122_BUCK-125
typ rozkresu: ENGINE PARTS
ZNACKA: LINHAI
TYP: LINHAI Scooter Buck 125
MODEL: Buck 125 E5
