Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
1 FRONT ARM TUBE (Ref. č 1) U01D11002001 FRONT ARM TUBE  2 € 2,15 € 3
SKLADOM
7.2 RED UPPER WELD ARM FR (Ref. č 7-2) A01D13002001 RED UPPER WELD ARM FR  1 € 98,26 € 121
NA CESTE
7.1 PEAK GREEN UPPER WELD ARM FR (Ref. č 7-1) A01D13001001 PEAK GREEN UPPER WELD ARM FR  1 € 98,26 € 121
SKLADOM
6 Straight pressure oil cup (Ref. č 6) GBT001152001 Straight pressure oil cup  2 € 5,04 € 6
SKLADOM
5 MAIN PIN,UPPER (Ref. č 5) A01D11010001 MAIN PIN,UPPER  1 € 22,73 € 28
SKLADOM
4 A-RING,SNAP (Ref. č 4) GBT000894004 A-RING,SNAP  1 € 2,15 € 3
SKLADOM
3.5 BLUE UPPER WELD ARM FR (Ref. č 3-5) A01D13104001 BLUE UPPER WELD ARM FR  1 € 98,26 € 121
SKLADOM
3.3 RED UPPER WELD ARM FR (Ref. č 3-3) A01D13102001 RED UPPER WELD ARM FR  1 € 98,26 € 121
SKLADOM
3.2 PEAK GREEN UPPER WELD ARM FR (Ref. č 3-2) A01D13101001 PEAK GREEN UPPER WELD ARM FR  1 € 40,63 € 50
SKLADOM
2 FRONT ARM TUBE (Ref. č 2) U01D11001001 FRONT ARM TUBE  4 € 5,95 € 7
SKLADOM
7.3 BLUE UPPER WELD ARM FR (Ref. č 7-3) A01D13004001 BLUE UPPER WELD ARM FR  1 € 161,24 € 198
NA DOPYT
Kód produktu SGW_2_254_ATV570F-A2

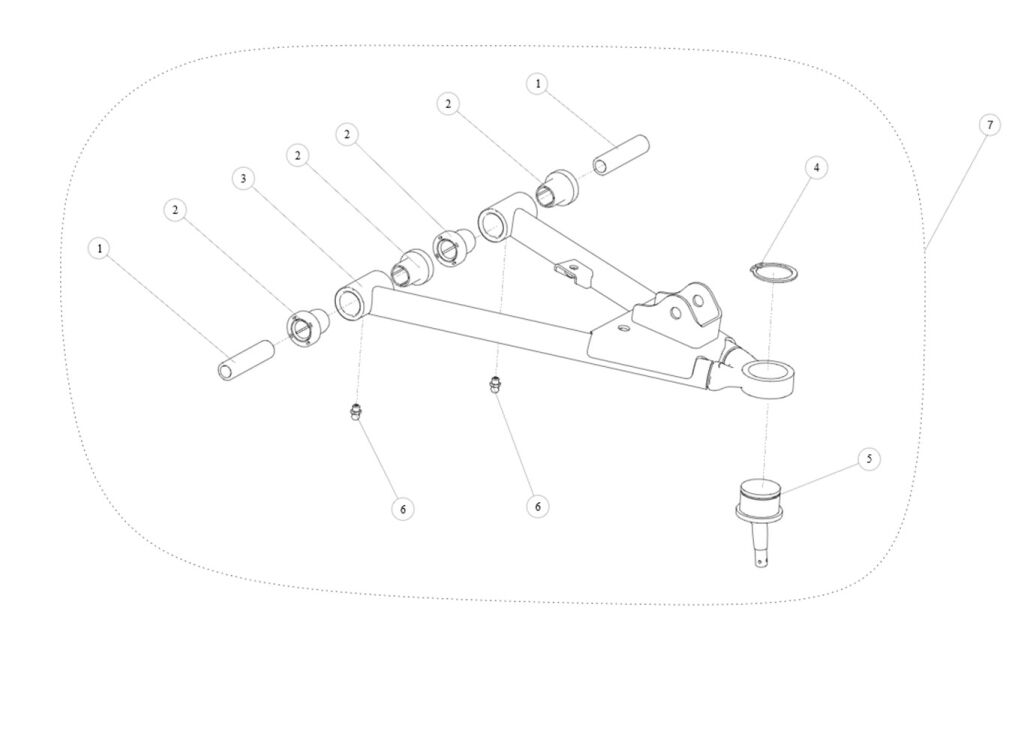

typ rozkresu: FRAME PARTS
ZNACKA: SEGWAY
TYP: AT6
MODEL: Snarler AT6 S T3b, Snarler AT6 L T3b, Snarler AT6 S E5, Snarler AT6 L E5
