Upper and lower crankcase sub-assembly

SEGWAY
  • Výrobca  SEGWAY
  • Kód produktu  SEGWAY_1_107_UTV1000F-S3-23
MODEL:
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
1 QIL PIPE BANJO BOLT (Ref. č 1) F02C15000001 QIL PIPE BANJO BOLT  1 € 11,90 € 15
SKLADOM
16 BALANCE SHAFT BEARING COMPENENT(BLUE) (Ref. č 16) F02C10003007 BALANCE SHAFT BEARING COMPENENT(BLUE)  2 € 6,12 € 8
SKLADOM
16 BALANCE SHAFT BEARING COMPENENT(RED) (Ref. č 16) F02C10003008 BALANCE SHAFT BEARING COMPENENT(RED)  2 € 6,12 € 8
SKLADOM
16 BALANCE SHAFT BEARING COMPENENT(BLACK) (Ref. č 16) E02-C100030-000-06 BALANCE SHAFT BEARING COMPENENT(BLACK)  2 € 12,40 € 15
SKLADOM

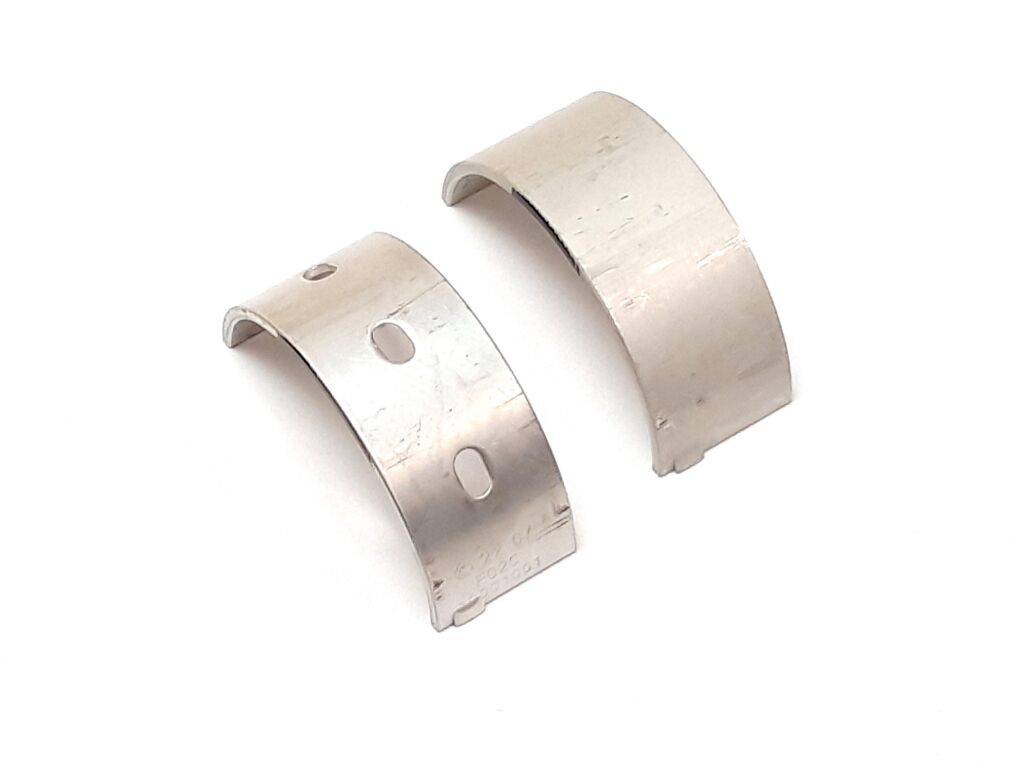

17 CRANKCASE CRANKSHAFT BUSHING COMPENENT(BLUE) (Ref. č 17) F02C10002006 CRANKCASE CRANKSHAFT BUSHING COMPENENT(BLUE)  4 € 14,71 € 18
SKLADOM
17 CRANKCASE CRANKSHAFT BUSHING COMPENENT(WHITE) (Ref. č 17) F02C10002007 CRANKCASE CRANKSHAFT BUSHING COMPENENT(WHITE)  4 € 14,71 € 18
SKLADOM
17 CRANKCASE CRANKSHAFT BUSHING COMPENENT(RED) (Ref. č 17) F02C10002008 CRANKCASE CRANKSHAFT BUSHING COMPENENT(RED)  4 € 14,71 € 18
SKLADOM
17 CRANKCASE CRANKSHAFT BUSHING (BLACK) (Ref. č 17) E02-C100020-000-06 CRANKCASE CRANKSHAFT BUSHING (BLACK)  4 € 13,72 € 17
SKLADOM

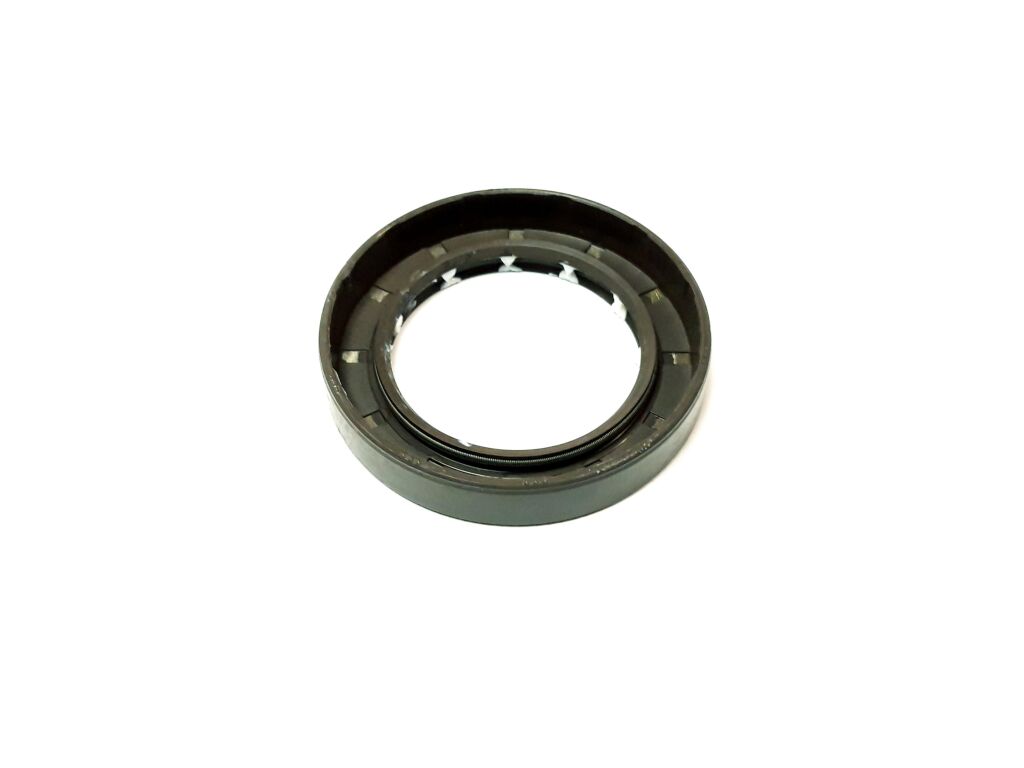

18 OIL SEAL 47X70X12 (Ref. č 18) F02C14000001 OIL SEAL 47X70X12  1 € 8,10 € 10
SKLADOM
19 BOLT M10×1.25×110 (Ref. č 19) F02C11010001 BOLT M10×1.25×110  8 € 2,40 € 3
SKLADOM
20 BOLT M8×90 (Ref. č 20) F02C11004001 BOLT M8×90  4 € 2,48 € 3
NA DOPYT
21 OIL REGULATOR VALVE UNIT (Ref. č 21) E02-G003000-000-00 OIL REGULATOR VALVE UNIT  1 € 15,95 € 20
SKLADOM
22 NUT M10X1.25 (Ref. č 22) E02C00002001 NUT M10X1.25  4 € 2,48 € 3
NA DOPYT
23 DOUBLE-ENDED STUD M10X1.25X60 (Ref. č 23) E02C00001001 DOUBLE-ENDED STUD M10X1.25X60  4 € 2,48 € 3
SKLADOM
15 O-RING SEAL 18X1.9 (Ref. č 15) F02C10007001 O-RING SEAL 18X1.9  1 € 2,48 € 3
SKLADOM
14 OIL FILTER COMBINATION (Ref. č 14) F02C12000001 OIL FILTER COMBINATION  1 € 10,08 € 12
NA DOPYT
2 PISTON OIL NOZZLE (Ref. č 2) F02C16000001 PISTON OIL NOZZLE  1 € 22,07 € 27
SKLADOM
2,1 PISTON COOLING NOZZLE (Ref. č 2,1) E02-C160000-000-01 PISTON COOLING NOZZLE  1 € 14,30 € 18
SKLADOM
3 BOLT M6×35 (Ref. č 3) F01000007001 BOLT M6×35  11 € 2,48 € 3
SKLADOM
4 DOWEL PIN 6×10 (Ref. č 4) GBT001192001 DOWEL PIN 6×10  10 € 2,48 € 3
SKLADOM
5 BOLT M8×40 (Ref. č 5) F01000017001 BOLT M8×40  2 € 2,48 € 3
SKLADOM
6 BOLT M6×75 (Ref. č 6) F02C11003001 BOLT M6×75  1 € 2,48 € 3
SKLADOM
7 BOLT M6×16 (Ref. č 7) F01000002001 BOLT M6×16  4 € 2,48 € 3
SKLADOM
8 O-Ring 13.8×2.5 (Ref. č 8) F01G00005001 O-Ring 13.8×2.5  4 € 2,48 € 3
SKLADOM
9 OIL PASSAGE ASSEMBLY (Ref. č 9) F02C13000001 OIL PASSAGE ASSEMBLY  1 € 6,12 € 8
SKLADOM

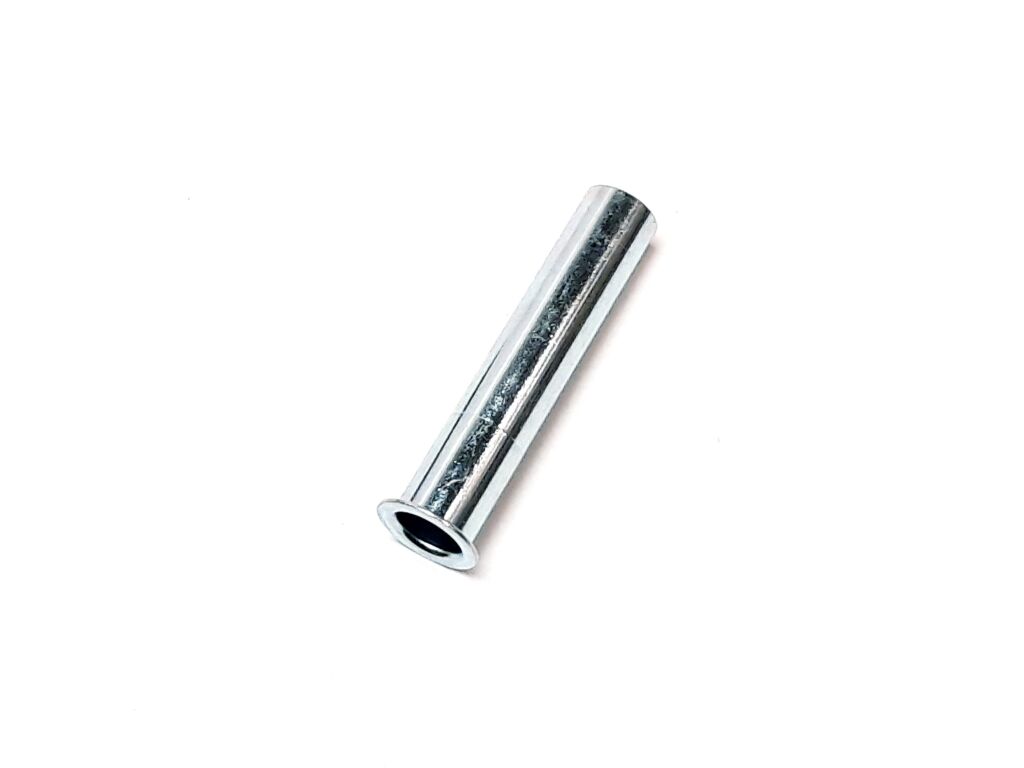

10 OUTLET PIPE (Ref. č 10) F02C10010001 OUTLET PIPE  1 € 2,48 € 3
SKLADOM
11 PLUG M14 (Ref. č 11) F02C10008001 PLUG M14  1 € 2,73 € 3
NA DOPYT
12 SCREW PLUG M24 (Ref. č 12) F02C10005001 SCREW PLUG M24  1 € 2,48 € 3
SKLADOM
13 O-RING SEAL 23X2.65 (Ref. č 13) F02C10006001 O-RING SEAL 23X2.65  1 € 2,48 € 3
NA DOPYT
24 LABYRINTH RUBBER PLUG (Ref. č 24) E02-C110006-000-01 LABYRINTH RUBBER PLUG  1 € 5,54 € 7
SKLADOM
Kód produktu SEGWAY_1_107_UTV1000F-S3-23
typ rozkresu: ENGINE PARTS
ZNACKA: SEGWAY
TYP: Villain SxS
MODEL: Villain SX10 (2023-xxxx)
