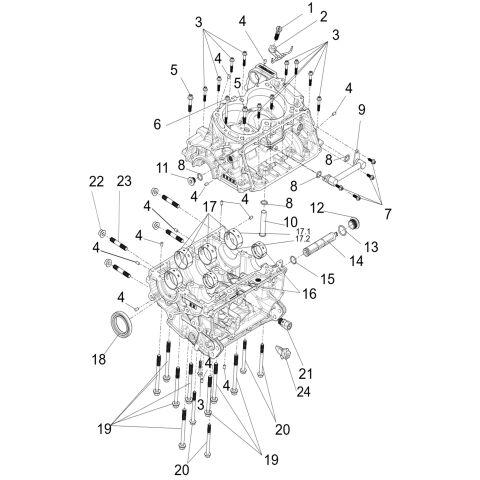

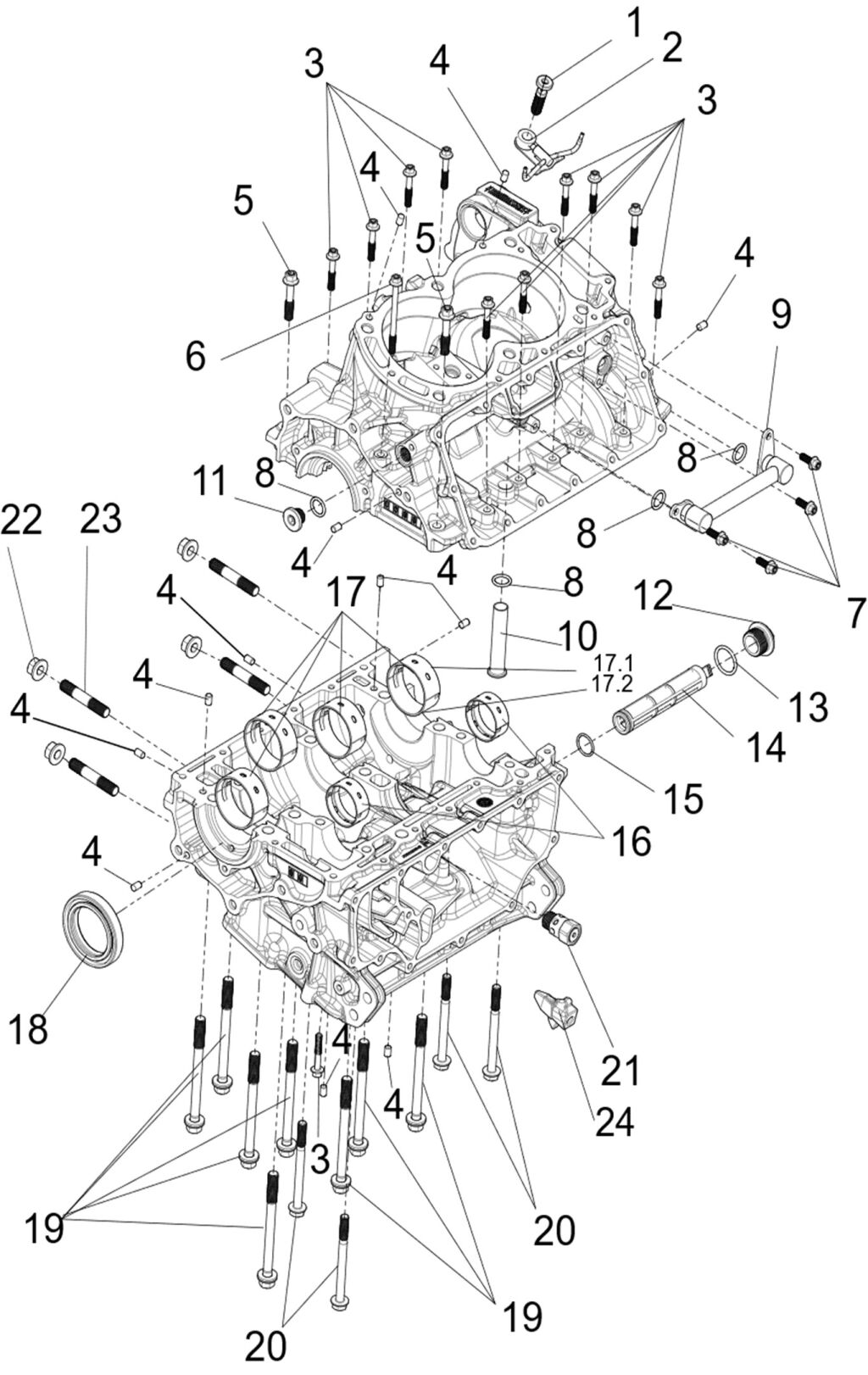

Upper and lower crankcase sub-assembly

SEGWAY
Výrobca: SEGWAY
Kód produktu: SEGWAY_1_107_UTV1000
MODEL:
Fugleman UT10 Fugleman UT10
Ref. č Obr. Kód p. Popis p. ks Cena Dostupnost
1 F02C15000001 QIL PIPE BANJO BOLT  1 € 11,63 € 14,07
NA CESTE
16 BALANCE SHAFT BEARING COMPENENT(BLACK) (Ref. č 16) E02-C100030-000-05 BALANCE SHAFT BEARING COMPENENT(BLACK)  2 € 5,79 € 7
NA DOPYT
16 BALANCE SHAFT BEARING COMPENENT(RED) (Ref. č 16) F02C10003004 BALANCE SHAFT BEARING COMPENENT(RED)  2 € 5,87 € 7,10
NA DOPYT
17 CRANKCASE CRANKSHAFT BUSHING COMPENENT(BLUE) (Ref. č 17) F02C10002006 CRANKCASE CRANKSHAFT BUSHING COMPENENT(BLUE)  4 € 14,29 € 17,29
SKLADOM
17 CRANKCASE CRANKSHAFT BUSHING COMPENENT(WHITE) (Ref. č 17) F02C10002007 CRANKCASE CRANKSHAFT BUSHING COMPENENT(WHITE)  4 € 14,29 € 17,29
SKLADOM
17 CRANKCASE CRANKSHAFT BUSHING COMPENENT(RED) (Ref. č 17) F02C10002008 CRANKCASE CRANKSHAFT BUSHING COMPENENT(RED)  4 € 14,29 € 17,29
SKLADOM
17,1 UPPER CRANKCASE CRANKSHAFT BUSHING(BLACK) (Ref. č 17,1) E02-C100010-000-05 UPPER CRANKCASE CRANKSHAFT BUSHING(BLACK)  4 € 6,94 € 8,40
NA DOPYT
17,2 LOWER CRANKCASE CRANKSHAFT BUSHING(BLACK) (Ref. č 17,2) E02-C100020-000-05 LOWER CRANKCASE CRANKSHAFT BUSHING(BLACK)  4 € 6,94 € 8,40
NA DOPYT
18 OIL SEAL 47X70X12 (Ref. č 18) F02C14000001 OIL SEAL 47X70X12  1 € 7,90 € 9,56
SKLADOM
20 BOLT M8×90 (Ref. č 20) F02C11004001 BOLT M8×90  4 € 2,44 € 2,95
SKLADOM
21 OIL REGULATOR VALVE UNIT (Ref. č 21) E02-G003000-000-00 OIL REGULATOR VALVE UNIT  1 € 14,88 € 18
SKLADOM
22 NUT M10X1.25 (Ref. č 22) E02C00002001 NUT M10X1.25  4 € 2,44 € 2,95
SKLADOM
23 DOUBLE-ENDED STUD M10X1.25X60 (Ref. č 23) E02C00001001 DOUBLE-ENDED STUD M10X1.25X60  4 € 2,44 € 2,95
SKLADOM
16 BALANCE SHAFT BEARING COMPENENT(BLUE) (Ref. č 16) F02C10003007 BALANCE SHAFT BEARING COMPENENT(BLUE)  2 € 5,98 € 7,24
SKLADOM
15 O-RING SEAL 18X1.9 (Ref. č 15) F02C10007001 O-RING SEAL 18X1.9  1 € 2,44 € 2,95
SKLADOM
14 OIL FILTER COMBINATION (Ref. č 14) F02C12000001 OIL FILTER COMBINATION  1 € 9,79 € 11,84
SKLADOM
2 PISTON OIL NOZZLE (Ref. č 2) F02C16000001 PISTON OIL NOZZLE  1 € 21,49 € 26
SKLADOM
2,1 PISTON COOLING NOZZLE (Ref. č 2,1) E02-C160000-000-01 PISTON COOLING NOZZLE  1 € 13,31 € 16,10
NA DOPYT
3 BOLT M6×35 (Ref. č 3) F01000007001 BOLT M6×35  11 € 2,44 € 2,95
SKLADOM
4 DOWEL PIN 6×10 (Ref. č 4) GBT001192001 DOWEL PIN 6×10  10 € 2,44 € 2,95
SKLADOM
5 BOLT M8×40 (Ref. č 5) F01000017001 BOLT M8×40  2 € 2,44 € 2,95
SKLADOM
6 BOLT M6×75 (Ref. č 6) F02C11003001 BOLT M6×75  1 € 2,44 € 2,95
SKLADOM
7 BOLT M6×16 (Ref. č 7) F01000002001 BOLT M6×16  4 € 2,44 € 2,95
SKLADOM
8 O-Ring 13.8×2.5 (Ref. č 8) F01G00005001 O-Ring 13.8×2.5  4 € 2,44 € 2,95
SKLADOM
9 OIL PASSAGE ASSEMBLY (Ref. č 9) F02C13000001 OIL PASSAGE ASSEMBLY  1 € 5,94 € 7,19
SKLADOM
10 OUTLET PIPE (Ref. č 10) F02C10010001 OUTLET PIPE  1 € 2,44 € 2,95
SKLADOM
11 PLUG M14 (Ref. č 11) F02C10008001 PLUG M14  1 € 2,66 € 3,22
SKLADOM
12 SCREW PLUG M24 (Ref. č 12) F02C10005001 SCREW PLUG M24  1 € 2,44 € 2,95
SKLADOM
13 O-RING SEAL 23X2.65 (Ref. č 13) F02C10006001 O-RING SEAL 23X2.65  1 € 2,44 € 2,95
SKLADOM
24 LABYRINTH RUBBER PLUG (Ref. č 24) E02-C110006-000-01 LABYRINTH RUBBER PLUG  1 € 5,21 € 6,30
NA CESTE
