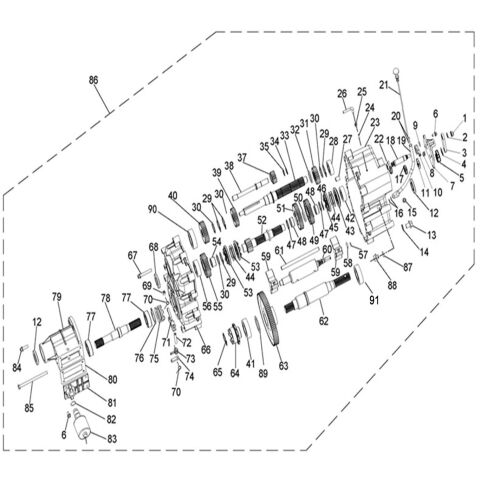

TRANSMISSION Ver.24

LINHAI
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
47 37762 Washer 25.5B  2 € 2,15 € 3
NA DOPYT
60 84051 Drum, Fork Shift  1 € 111,65 € 137
NA DOPYT
61 Guide Shaft, Shift Fork (Ref. č 61) 84053 Guide Shaft, Shift Fork  1 € 16,69 € 21
SKLADOM
62 84040 Output Shaft  1 € 97,52 € 120
NA DOPYT
63 86349 Gear, Output  1 € 149,09 € 183
NA DOPYT
64 84009 Engagement B, Front Drive  1 € 52,89 € 65
NA DOPYT
65 10164 Cirlip 24  1 € 7,19 € 9
NA DOPYT

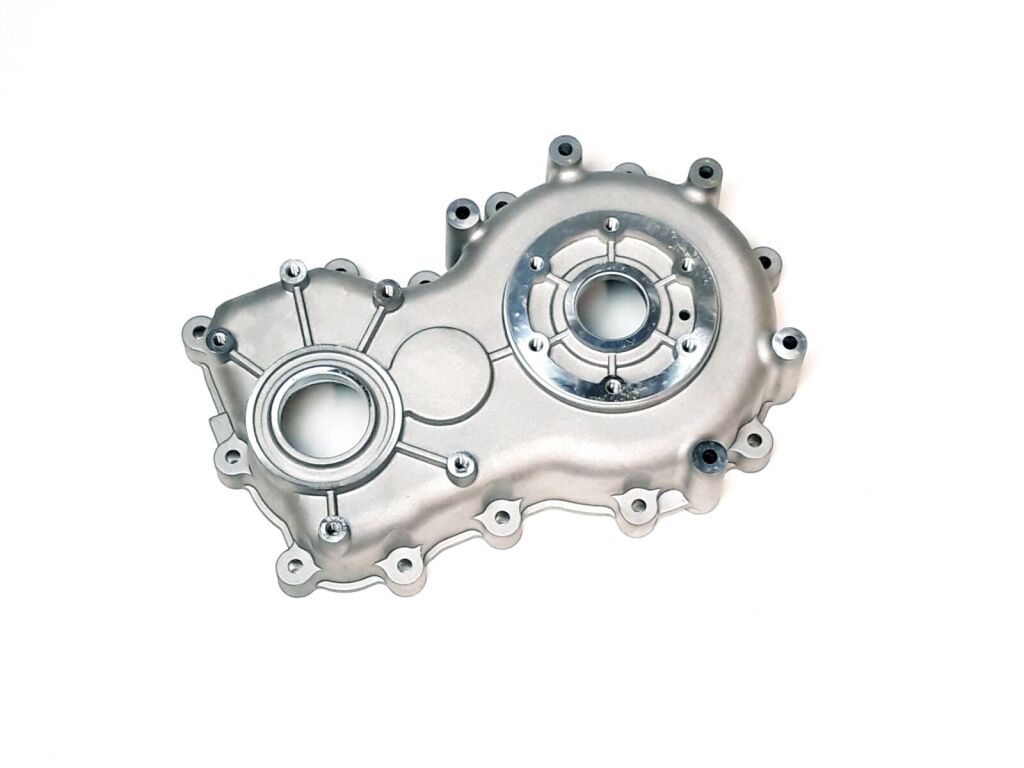

66 Cover, Gear Box Case (Ref. č 66) 86350 Cover, Gear Box Case  1 € 105,54 € 130
NA DOPYT
67 11464 Bolt M8X50  12 € 2,40 € 3
NA DOPYT
68 OIL SEAL 30X50X8 (Ref. č 68) 73508 OIL SEAL 30X50X8  1 € 10,50 € 13
NA DOPYT
69 84010 Plug Pin, Fork Shift Shaft  1 € 2,56 € 3
NA DOPYT
59 Shift Fork (Ref. č 59) 84020 Shift Fork  2 € 42,15 € 52
NA DOPYT
58 84052 O-Ring 14.5X3  1 € 7,19 € 9
NA CESTE
48 Bearing 25X29X13 (Ref. č 48) 84038 Bearing 25X29X13  2 € 6,69 € 8
SKLADOM
49 Driven Gear, Reverse (Ref. č 49) 84039 Driven Gear, Reverse  1 € 48,43 € 60
SKLADOM
50 84034 Washer 25.5A  1 € 2,56 € 3
NA DOPYT
51 Driven Gear, Low Speed (Ref. č 51) 84037 Driven Gear, Low Speed  1 € 54,71 € 67
NA DOPYT
52 Side Shaft (Ref. č 52) 86348 Side Shaft  1 € 154,71 € 190
SKLADOM
53 Engagement C (Ref. č 53) 84032 Engagement C  2 € 33,14 € 41
NA DOPYT
54 84036 Bearing 28X33X17  1 € 7,69 € 9
NA DOPYT
55 Driven Gear, High Speed (Ref. č 55) 84035 Driven Gear, High Speed  1 € 47,52 € 58
SKLADOM
56 BEARING 6025C3 (Ref. č 56) 10061 BEARING 6025C3  1 € 7,77 € 10
NA DOPYT
57 O-RING (Ref. č 57) 21615 O-RING  1 € 2,40 € 3
SKLADOM
70 84011 Spring  2 € 9,34 € 11
NA DOPYT
71 84012 Fork Shift Comp.  1 € 20,83 € 26
NA DOPYT
83 DIFF SOLENOID (Ref. č 83) 71978 DIFF SOLENOID  1 € 135,45 € 167
NA DOPYT
84 10739 BOLT M8×25  4 € 8,02 € 10
NA DOPYT
85 10871 Bolt M8X120  1 € 2,81 € 3
NA DOPYT
86 86351 Transmission Assy  1 € 1 196,69 € 1 472
NA DOPYT
86 86618 Transmission Assy (with spline) (match Driven Pulley Comp. with spline P/NO. 86615 or 86616)

←

1 € 1 239,83 € 1 525
NA DOPYT
87 O-RING 18X2.65 (Ref. č 87) 10122 O-RING 18X2.65  1 € 2,40 € 3
Naskladňujeme
88 70235 Cover,Oil  1 € 2,23 € 3
NA DOPYT
89 84314 Washer 40  1 € 4,55 € 6
NA DOPYT
90 BEARING 5206 C3 (Ref. č 90) 10731 BEARING 5206 C3  1 € 128,60 € 158
SKLADOM
90 BEARING 5206C3 (Ref. č 90) 10860 BEARING 5206C3  1 € 115,62 € 142
NA CESTE
82 O-Ring (Ref. č 82) 73013 O-Ring  1 € 2,56 € 3
SKLADOM
81 84046 Cover  1 € 7,44 € 9
NA DOPYT
72 84013 Shaft, Fork Shift  1 € 10,41 € 13
NA DOPYT
73 84014 Srping, Lever Of Fork Shift  1 € 3,64 € 4
NA DOPYT
74 84015 Lever, Fork Shift  1 € 5,45 € 7
NA DOPYT
75 84016 Engagement A, Front Drive  1 € 38,51 € 47
NA DOPYT
76 10885 Circlip 52  1 € 10,50 € 13
NA DOPYT

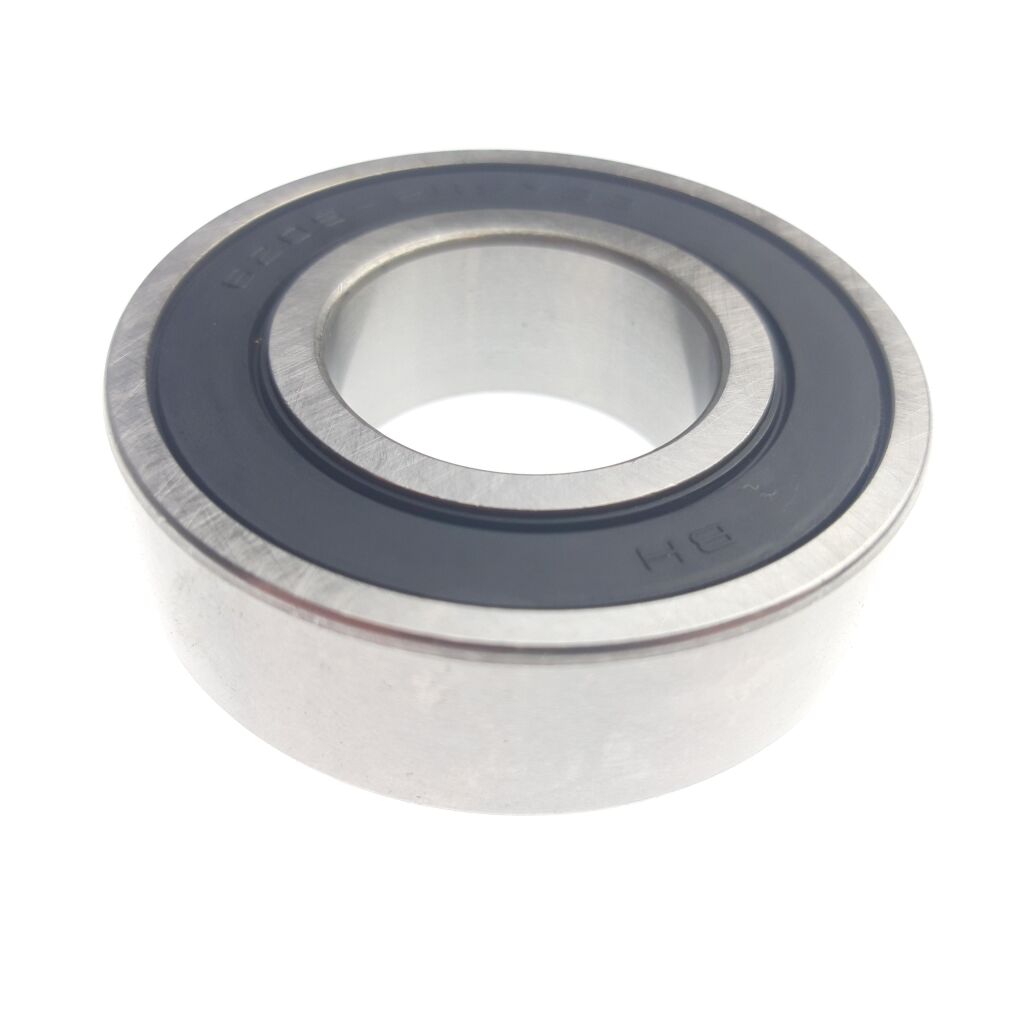

77 Ball Bearing 6205-2RS (Ref. č 77) 10778 Ball Bearing 6205-2RS  2 € 9,42 € 12
SKLADOM
78 84021 Shaft, Front Drive  1 € 54,96 € 68
NA DOPYT
79 84044 Case, Front Drive  1 € 52,64 € 65
NA DOPYT
79 84624 Case, Front Drive

←

1 € 39,92 € 49
NA DOPYT

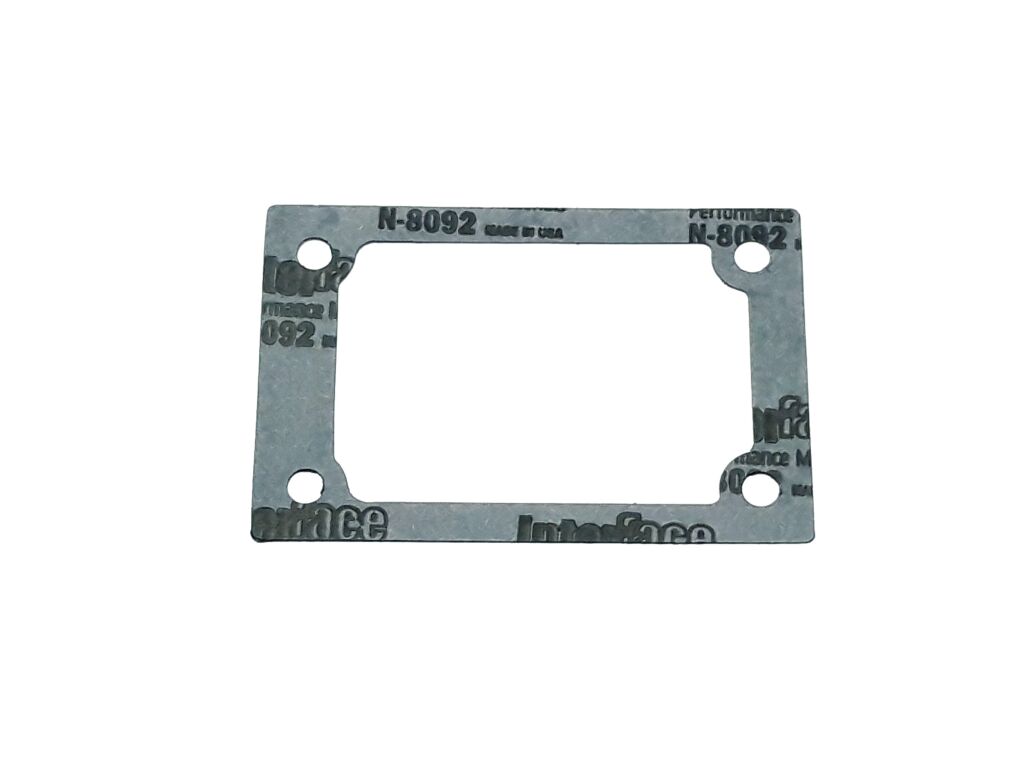

80 Gasket (Ref. č 80) 84047 Gasket  1 € 3,14 € 4
SKLADOM
91 BEARING 206 (Ref. č 91) 10808 BEARING 206  1 € 15,21 € 19
NA CESTE
47 THRUST WASHER (Ref. č 47) 21219 THRUST WASHER  2 € 2,40 € 3
SKLADOM
1 11502 Nut M8  1 € 2,40 € 3
NA DOPYT
12 SEAL 25X47X8 (Ref. č 12) 21201 SEAL 25X47X8  1 € 2,40 € 3
SKLADOM

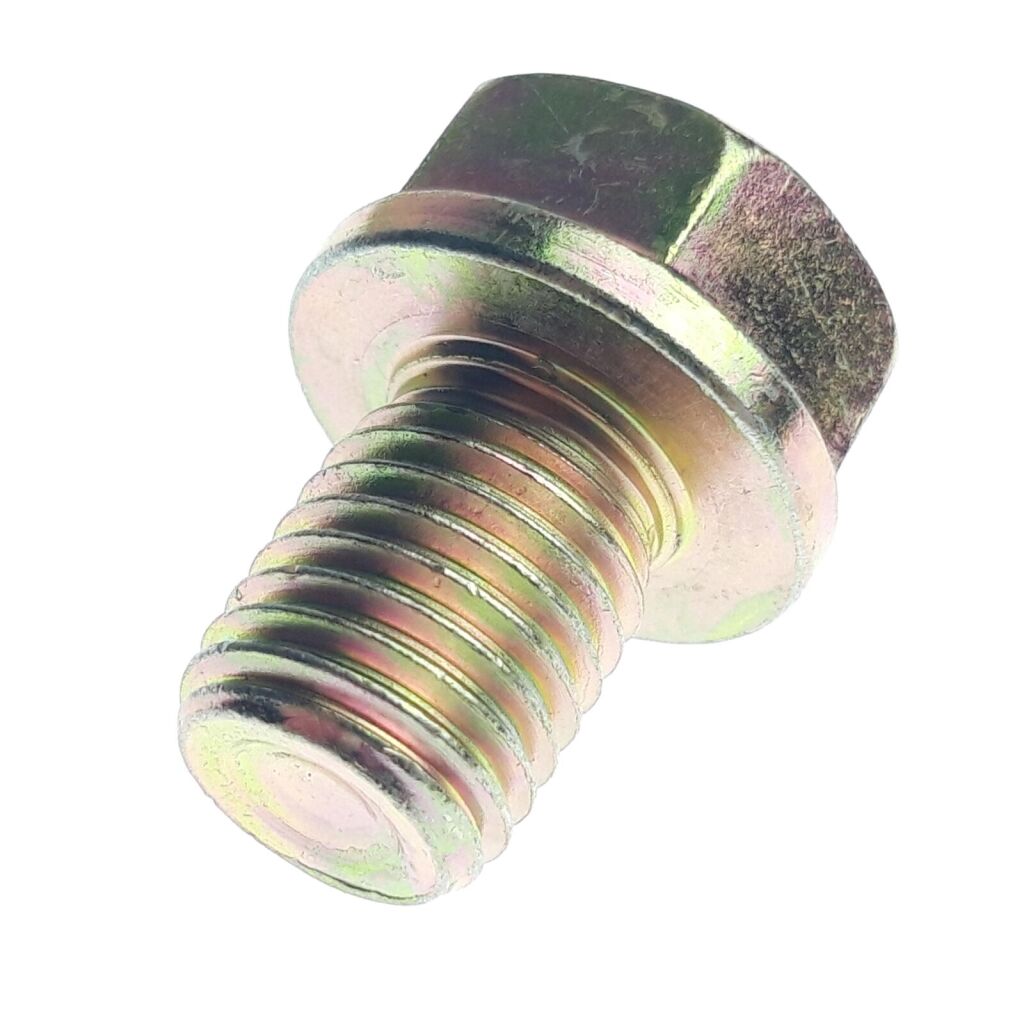

13 DRAIN BOLT M12X1.5 (Ref. č 13) 50105 DRAIN BOLT M12X1.5  1 € 2,40 € 3
SKLADOM
14 WASHER 12 (Ref. č 14) 1309283 WASHER 12  1 € 2,40 € 3
SKLADOM
15 11448 Bolt M6×12  1 € 2,40 € 3
NA DOPYT
16 O-Ring 10X1.8 (Ref. č 16) 10291 O-Ring 10X1.8  2 € 8,02 € 10
SKLADOM

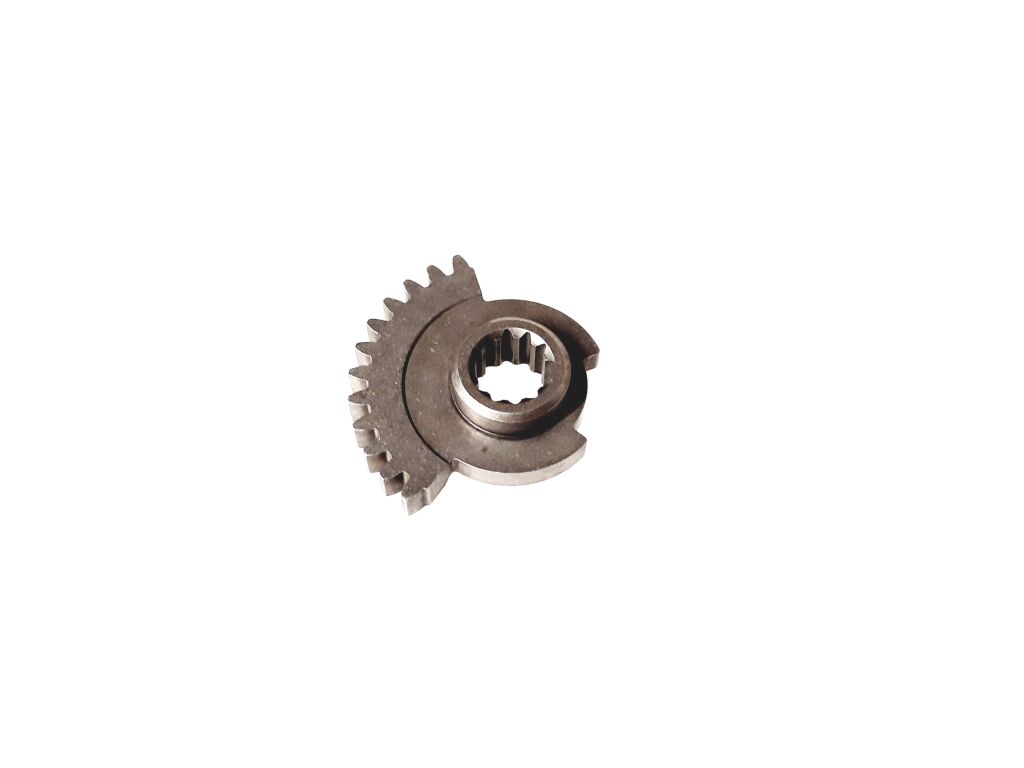

17 Driven Gear, Gear Shift (Ref. č 17) 84006 Driven Gear, Gear Shift  1 € 10,91 € 13
NA DOPYT
18 Shaft, Gear Shift (Ref. č 18) 84007 Shaft, Gear Shift  1 € 37,52 € 46
SKLADOM
19 46089 Guide Tube, Oil Dip-Stick  1 € 37,52 € 46
NA DOPYT
20 O-Ring 6.4X1.8 (Ref. č 20) 84019 O-Ring 6.4X1.8  2 € 7,19 € 9
SKLADOM
21 46090 Oil Dip-Stick Component  1 € 6,86 € 8
NA DOPYT
11 84623 Camshaft, Gear Shift (NEW MODEL) (MATCH WITH Gear Shift Component of NEW MODEL P/NO. 84622)

←

1 € 8,51 € 10
NA DOPYT
11 Camshaft, Gear Shift (Ref. č 11) 84005 Camshaft, Gear Shift  1 € 13,64 € 17
SKLADOM
2 11489 Plain Washer 8  1 € 2,40 € 3
NA DOPYT
3 Shift Bracket (Ref. č 3) 84001 Shift Bracket  1 € 18,76 € 23
SKLADOM
4 RING 11 (Ref. č 4) 10767 RING 11  1 € 8,43 € 10
SKLADOM
5 Gear Shift Component (Ref. č 5) 84050 Gear Shift Component  1 € 64,63 € 79
SKLADOM
5 84622 Gear Shift Component (NEW MODEL) (MATCH Camshaft, Gear Shift of NEW MODEL P/NO. 84623)

←

1 € 45,04 € 55
NA DOPYT
6 BOLT M6X16 (Ref. č 6) 10183W BOLT M6X16  9 € 8,76 € 11
SKLADOM
7 Cover (Ref. č 7) 84002 Cover  1 € 24,96 € 31
SKLADOM
8 Spring (Ref. č 8) 84003 Spring  1 € 10,17 € 13
SKLADOM
9 O-Ring 13.2X1.8 (Ref. č 9) 10887 O-Ring 13.2X1.8  1 € 7,19 € 9
SKLADOM

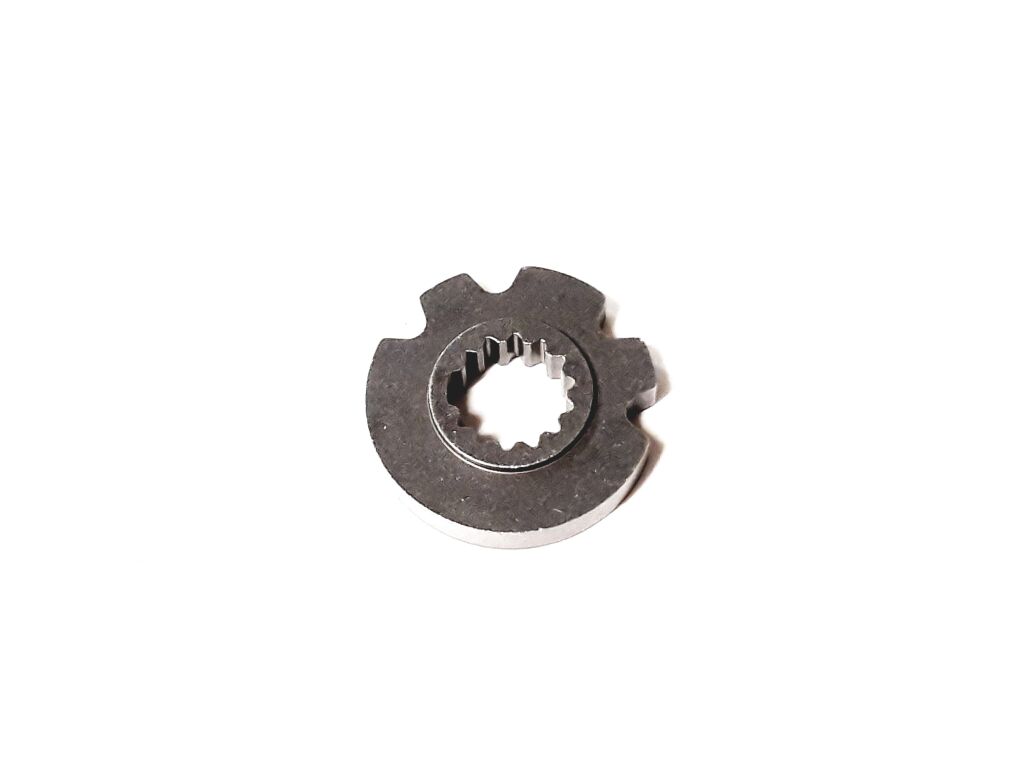

10 Stop Swing Lever, Gear Shift (Ref. č 10) 84004 Stop Swing Lever, Gear Shift  1 € 11,49 € 14
SKLADOM
22 Drive Gear, Gear Shift (Ref. č 22) 84008 Drive Gear, Gear Shift  1 € 13,72 € 17
SKLADOM ZA 3 dní
23 Case, Gear Box (Ref. č 23) 84042 Case, Gear Box  1 € 137,44 € 169
SKLADOM
35 84028 Washer 15.5  1 € 7,19 € 9
NA DOPYT
37 84525 Gear Counter Assy, Reverse  1 € 22,98 € 28
NA DOPYT
38 84029 Shaft Counter, Reverse  1 € 24,38 € 30
NA DOPYT
39 Drive Gear, Low Speed (Ref. č 39) 84024 Drive Gear, Low Speed  1 € 29,75 € 37
SKLADOM
40 Drive Gear, High Speed (Ref. č 40) 84022 Drive Gear, High Speed  1 € 41,07 € 51
SKLADOM
42 Bearing 6303 (Ref. č 42) 26013 Bearing 6303  1 € 12,81 € 16
SKLADOM
43 Engagement B (Ref. č 43) 84031 Engagement B  1 € 22,56 € 28
SKLADOM
44 Spring Washer (Ref. č 44) 84027 Spring Washer  2 € 16,28 € 20
SKLADOM
45 Engagement A (Ref. č 45) 84030 Engagement A  1 € 30,91 € 38
SKLADOM
34 10768 RING 15  1 € 7,19 € 9
NA DOPYT
33 Shaft (with spline) (match Driven Pulley Comp. with spline P/NO. 86615 or 86616) (Ref. č 33) 86617 Shaft (with spline) (match Driven Pulley Comp. with spline P/NO. 86615 or 86616)

←

1 € 101,98 € 125
NA DOPYT
24 VENT TUBE FITTING (Ref. č 24) 21340 VENT TUBE FITTING  1 € 2,40 € 3
SKLADOM
25 29530 Spring Clip  1 € 8,51 € 10
NA DOPYT
26 21339 Vent Tube  1 € 2,23 € 3
NA DOPYT
27 DOWEL PIN (Ref. č 27) 21104 DOWEL PIN  2 € 2,40 € 3
SKLADOM
28 BEARING 6204 (Ref. č 28) 10062 BEARING 6204  1 € 7,36 € 9
SKLADOM
29 10769 RING 28  4 € 8,43 € 10
NA DOPYT
30 84023 Washer 28.5A  4 € 10,17 € 13
NA DOPYT
31 84026 Drive Gear, Reverse  1 € 29,59 € 36
NA DOPYT
32 84025 Washer 28.5B  1 € 10,17 € 13
NA DOPYT

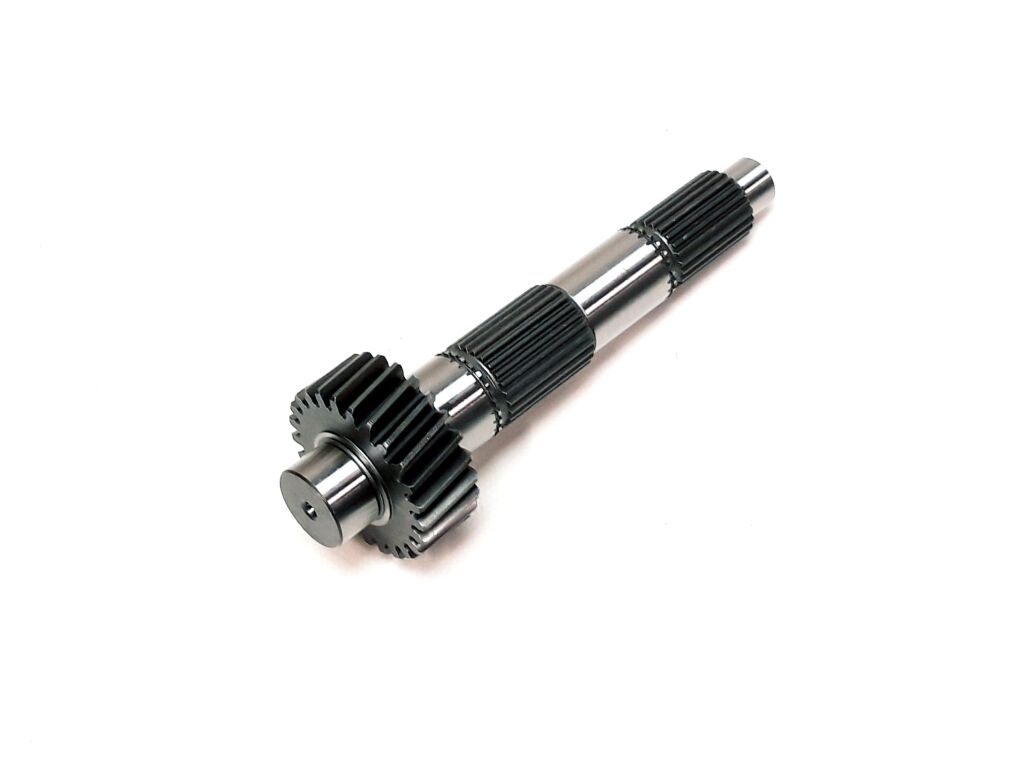

33 Shaft (Ref. č 33) 86347 Shaft  1 € 146,28 € 180
SKLADOM

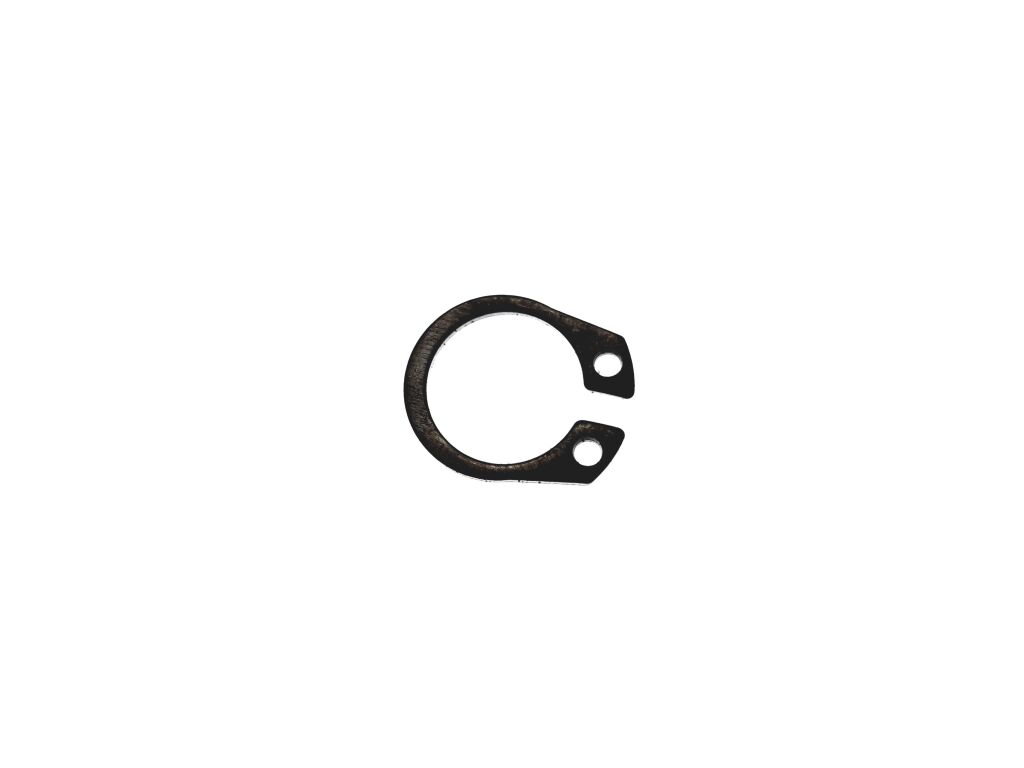

46 Circlip 25 (Ref. č 46) 11505 Circlip 25  1 € 2,40 € 3
SKLADOM
Kód produktu LINHAI_1_131_LH1100U-24
typ rozkresu: ENGINE PARTS
ZNACKA: LINHAI
MODEL: T-BOSS LH1100U D T1b (EPS)
TYP: LINHAI UTV 1100 Diesel
