Transmission components（with diff）

SEGWAY
  • Výrobca  SEGWAY
  • Kód produktu  SEGWAY_1_116_UT10_CREW_U3
MODEL:
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost

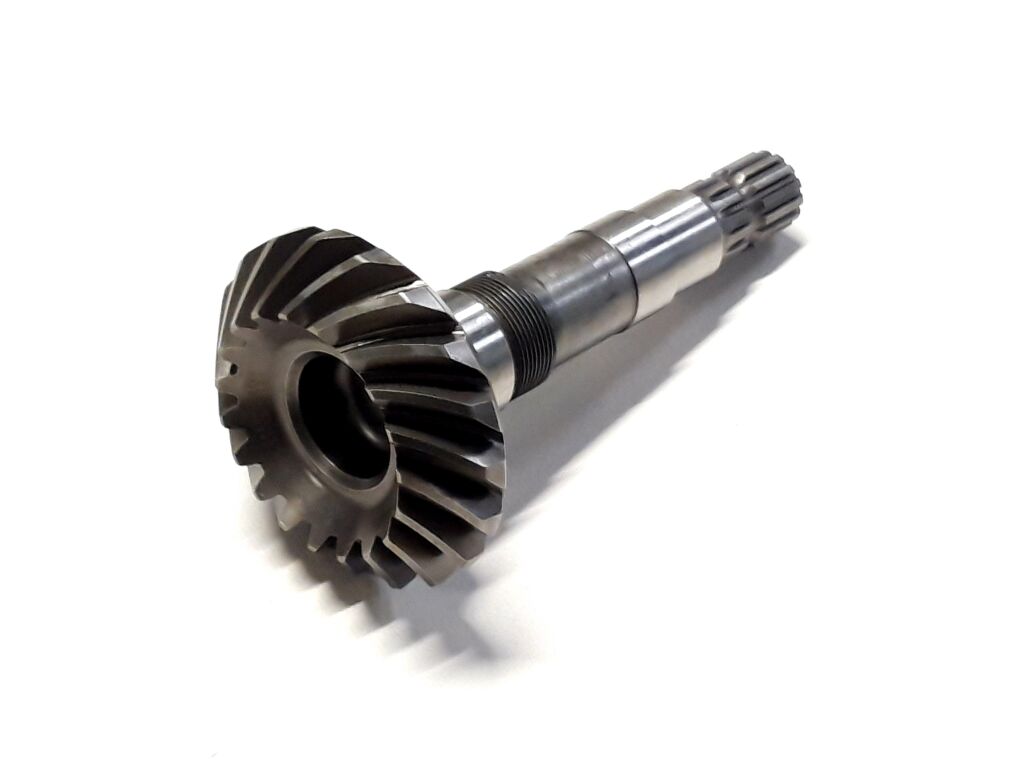

52 E02F26001002 DRIVEN BEVEL GEAR SHAFT  1 € 90,74 € 112
NA DOPYT
37 CIRCLIP 35×2.5 (Ref. č 37) D01P21207001 CIRCLIP 35×2.5  1 € 2,48 € 3
SKLADOM

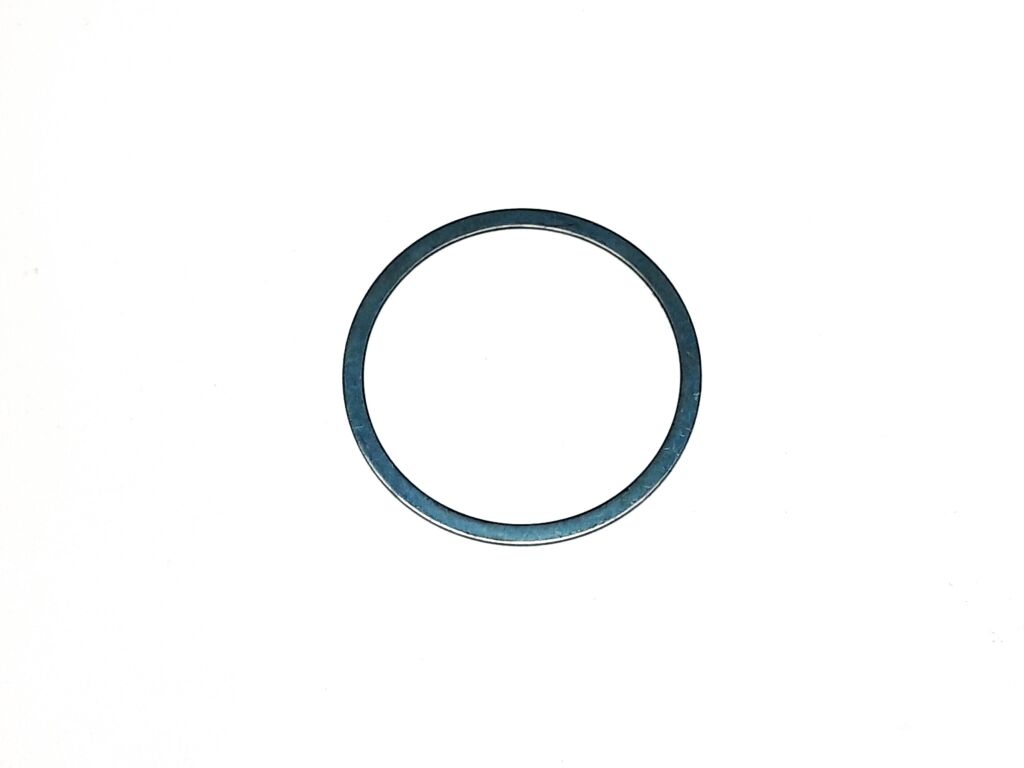

36 SPACER 35×46×1.5 (Ref. č 36) E02F22009001 SPACER 35×46×1.5  1 € 2,48 € 3
SKLADOM
35 R GEAR DRIVEN BEVEL (Ref. č 35) E02F22004001 R GEAR DRIVEN BEVEL  1 € 19,34 € 24
SKLADOM
34 NEEDLE ROLLER BEARING K35×40×13 (Ref. č 34) E02F22011001 NEEDLE ROLLER BEARING K35×40×13  1 € 3,22 € 4
SKLADOM
33 COUNTERSHAFT (Ref. č 33) E02F22001001 COUNTERSHAFT  1 € 52,81 € 65
SKLADOM
32 H GEAR ENGAGEMENT SLEEVE (Ref. č 32) E02F22007001 H GEAR ENGAGEMENT SLEEVE  1 € 11,40 € 14
SKLADOM
31 WASHER 28×40×2.5 (Ref. č 31) E02F22008002 WASHER 28×40×2.5  3 € 2,48 € 3
SKLADOM
30 NEEDLE ROLLER BEARING K28×33×17 (Ref. č 30) E02F22013002 NEEDLE ROLLER BEARING K28×33×17  2 € 2,73 € 3
SKLADOM
29 H GEAR DRIVEN GEAR (Ref. č 29) E02F22002002 H GEAR DRIVEN GEAR  1 € 20,17 € 25
SKLADOM
28 PARKING GEAR (Ref. č 28) E02F22005001 PARKING GEAR  1 € 13,14 € 16
NA DOPYT
38 R/L GEAR COUPLING SLEEVE (Ref. č 38) E02F22006001 R/L GEAR COUPLING SLEEVE  2 € 11,82 € 15
NA DOPYT
39 L GEAR DRIVEN BEVEL (Ref. č 39) E02F22003001 L GEAR DRIVEN BEVEL  1 € 16,94 € 21
SKLADOM
40 CIRCLIP 28×2.5 (Ref. č 40) E02F22012002 CIRCLIP 28×2.5  1 € 2,48 € 3
SKLADOM
51 BEARING 6206 (Ref. č 51) GBT000276009 BEARING 6206  1 € 32,07 € 39
SKLADOM
50 DRIVEN BEVEL GEAR SHAFT ENCLOSURE (Ref. č 50) E02F26003001 DRIVEN BEVEL GEAR SHAFT ENCLOSURE  1 € 2,48 € 3
SKLADOM
49 BEARING 6207 (Ref. č 49) GBT000276010 BEARING 6207  1 € 35,95 € 44
SKLADOM
48 DRIVEN BEVEL GEAR SHAFT ADJUSTMENT PAD 35×48×0.5 (Ref. č 48) E02F26002003 DRIVEN BEVEL GEAR SHAFT ADJUSTMENT PAD 35×48×0.5  1 € 2,48 € 3
SKLADOM
47 NUT M30×1.5-LH (Ref. č 47) E02F24006001 NUT M30×1.5-LH  1 € 2,73 € 3
SKLADOM
46 BEARING 6305 (Ref. č 46) GBT000276020 BEARING 6305  1 € 32,64 € 40
SKLADOM
45 E02F26001003 DRIVE AND DRIVEN BEVEL GEAR COMBINATION  1 € 114,21 € 140
NA DOPYT
44 DRIVE BEVEL GEAR SHAFT ADJUSTMENT PAD 42×48×0.6 (Ref. č 44) E02F24004003 DRIVE BEVEL GEAR SHAFT ADJUSTMENT PAD 42×48×0.6  1 € 2,48 € 3
SKLADOM
42 Four-axis assembly (Ref. č 42) E02F24005001 Four-axis assembly  1 € 77,44 € 95
SKLADOM
41 NUT M30×1.5 (Ref. č 41) E02F24007001 NUT M30×1.5  1 € 2,73 € 3
SKLADOM
27 NUT M22×1 (Ref. č 27) F01F20403001 NUT M22×1  1 € 4,05 € 5
SKLADOM
26 MAIN SHAFT(UTV) (Ref. č 26) E02F21000002 MAIN SHAFT(UTV)  1 € 56,86 € 70
NA DOPYT
25 Three-axis assembly (Ref. č 25) E02F23000001 Three-axis assembly  1 € 62,40 € 77
NA DOPYT
11 Planetary gear liner (unavailable) (Ref. č 11) Q01R31700003 Planetary gear liner (unavailable)  2 € 2,48 € 3
NA DOPYT
10 E02F25006001 REAR OUTPUT FORK  1 € 17,77 € 22
NA DOPYT
9 E02F25008001 RETURN TORSION SPRING  1 € 2,40 € 3
NA DOPYT

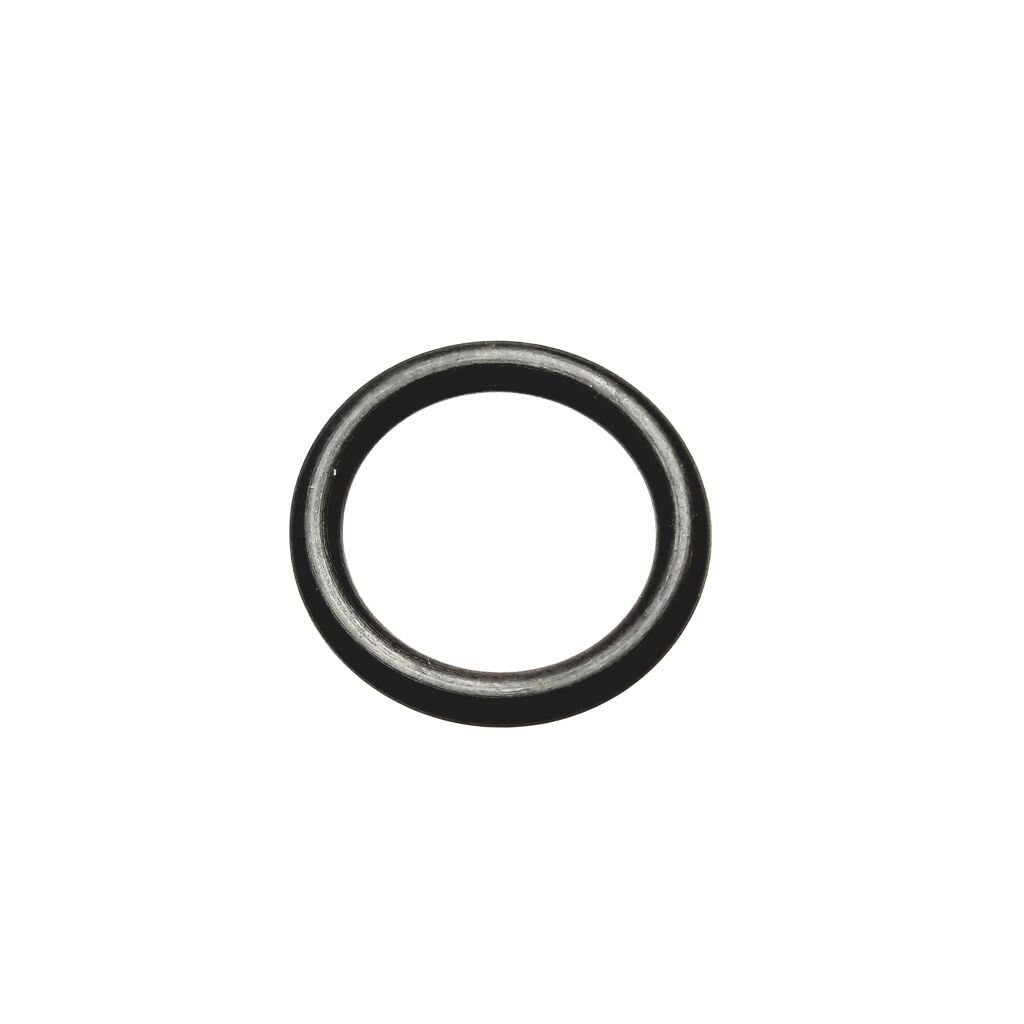

8 O-Ring 13.8×2.5 (Ref. č 8) F01G00005001 O-Ring 13.8×2.5  1 € 2,48 € 3
SKLADOM
7 E02F25007001 FORK SHAFT  1 € 15,54 € 19
NA DOPYT
6 E02F25002001 REAR OUTPUT DIFFERENTIAL HOUSING  1 € 74,55 € 92
NA DOPYT
5 E02F25003001 REAR DIFFERENTIAL OUTPUT SLEEVE  1 € 13,55 € 17
NA DOPYT
4 E02F25202001 CAPPING  2 € 2,40 € 3
NA DOPYT
3 E02F25201001 LEFT REAR HALF SHAFT BEVEL GEAR  1 € 32,98 € 41
NA DOPYT
2 E02F25004001 ADJUSTING SHIM OF REAR AXLE BEVEL GEAR  2 € 2,40 € 3
NA DOPYT
12 E02F25102001 PLANETARY GEAR  2 € 6,36 € 8
NA DOPYT
13 E02F25005001 REAR OUTPUT PLANETARY GEAR SHAFT  1 € 7,69 € 9
NA DOPYT
14 GBT008791003 ELASTIC CYLINDRICAL PIN 5 × TWENTY-EIGHT  1 € 2,40 € 3
NA DOPYT
24 NEEDLE ROLLER P4×29.8 (Ref. č 24) GBT000309003 NEEDLE ROLLER P4×29.8  1 € 2,48 € 3
SKLADOM
23 NUT M33×1.5 (Ref. č 23) E02F23003001 NUT M33×1.5  2 € 2,89 € 4
SKLADOM
22 WASHER 26×44×3 (Ref. č 22) E02F27003001 WASHER 26×44×3  1 € 2,48 € 3
SKLADOM
21 REVERSE GEAR IDLER (Ref. č 21) E02F27002001 REVERSE GEAR IDLER  1 € 16,94 € 21
SKLADOM
20 NEEDLE BEARING K30×35×17 (Ref. č 20) E02F22010001 NEEDLE BEARING K30×35×17  1 € 2,89 € 4
SKLADOM
19 REVERSE GEAR IDLER SHAFT (Ref. č 19) E02F27001001 REVERSE GEAR IDLER SHAFT  1 € 14,55 € 18
SKLADOM
18 DOWEL PIN 6×10 (Ref. č 18) GBT001192001 DOWEL PIN 6×10  1 € 2,48 € 3
SKLADOM
17 E02F25101001 RIGHT REAR HALF SHAFT BEVEL GEAR  1 € 28,26 € 35
NA DOPYT
16 Q03F30800001 HEXAGON FLANGE BOLT M10×1.0×18  1 € 2,48 € 3
NA DOPYT

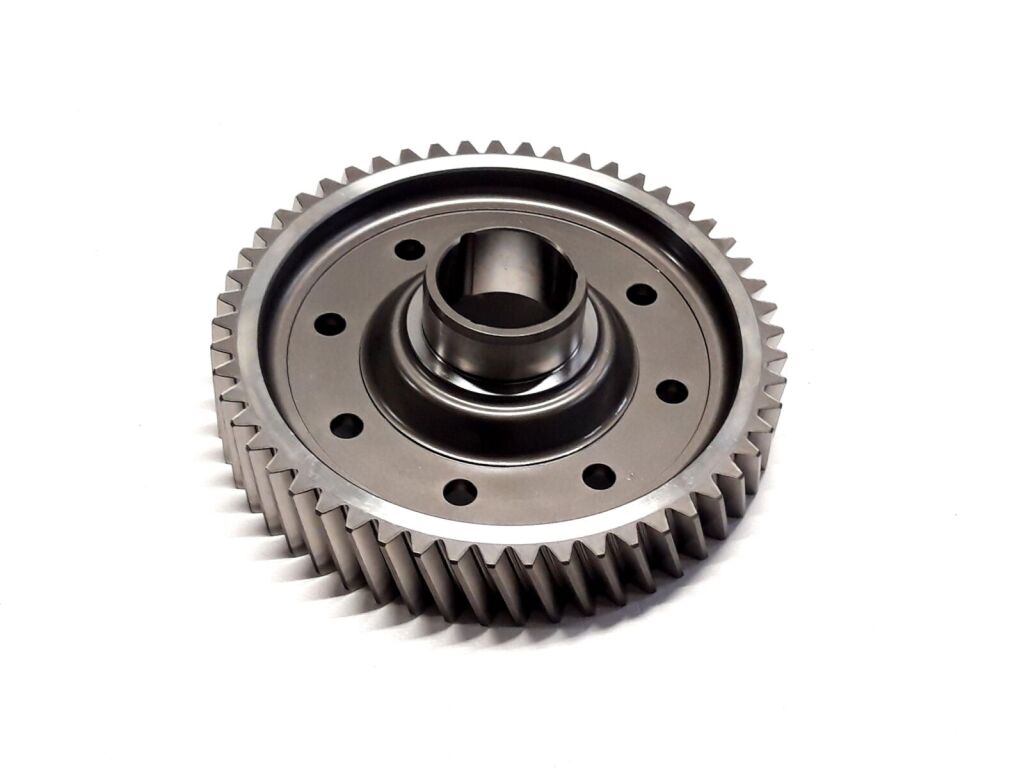

15 E02F25001002 REAR AXLE OUTPUT GEAR (DIFFERENTIAL)  1 € 125,45 € 154
NA DOPYT
Kód produktu SEGWAY_1_116_UT10_CREW_U3
typ rozkresu: ENGINE PARTS
ZNACKA: SEGWAY
TYP: Fugleman UTV
MODEL: Fugleman UT10 Crew U3
