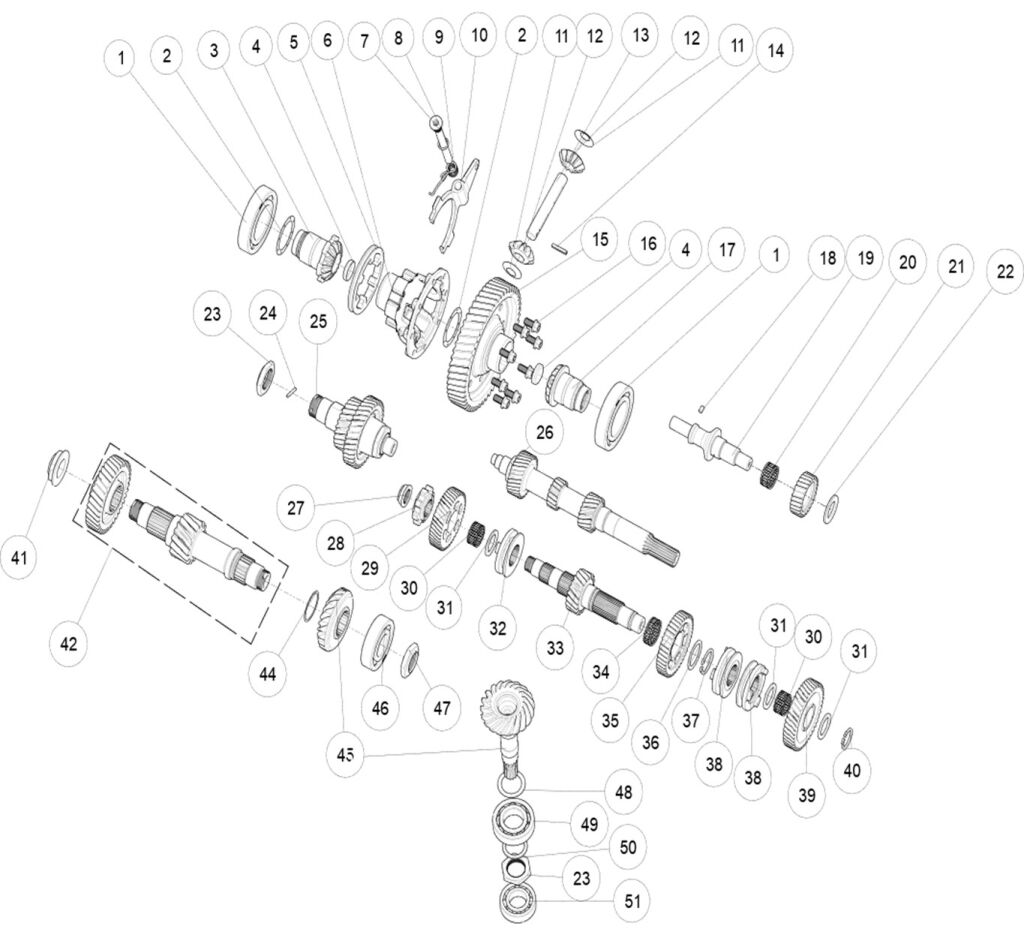

Transmission components（with diff）

SEGWAY
Výrobca: SEGWAY
Kód produktu: SEGWAY_1_117_UTV1000
MODEL:
Fugleman UT10 Fugleman UT10
Ref. č Obr. Kód p. Popis p. ks Cena Dostupnost
52 DRIVEN BEVEL GEAR SHAFT (Ref. č 52) E02F26001002 DRIVEN BEVEL GEAR SHAFT  1 € 84,63 € 102,40
NA DOPYT
37 CIRCLIP 35×2.5 (Ref. č 37) D01P21207001 CIRCLIP 35×2.5  1 € 2,44 € 2,95
SKLADOM
36 SPACER 35×46×1.5 (Ref. č 36) E02F22009001 SPACER 35×46×1.5  1 € 2,44 € 2,95
SKLADOM
28 PARKING GEAR (Ref. č 28) E02F22005001 PARKING GEAR  1 € 12,74 € 15,41
SKLADOM
38 R/L GEAR COUPLING SLEEVE (Ref. č 38) E02F22006001 R/L GEAR COUPLING SLEEVE  2 € 11,49 € 13,90
SKLADOM
39 L GEAR DRIVEN BEVEL (Ref. č 39) E02F22003001 L GEAR DRIVEN BEVEL  1 € 16,47 € 19,93
SKLADOM
40 CIRCLIP 28×2.5 (Ref. č 40) E02F22012002 CIRCLIP 28×2.5  1 € 2,44 € 2,95
SKLADOM
51 BEARING 6206 (Ref. č 51) GBT000276009 BEARING 6206  1 € 31,24 € 37,80
SKLADOM
50 DRIVEN BEVEL GEAR SHAFT ENCLOSURE (Ref. č 50) E02F26003001 DRIVEN BEVEL GEAR SHAFT ENCLOSURE  1 € 2,44 € 2,95
SKLADOM
49 BEARING 6207 (Ref. č 49) GBT000276010 BEARING 6207  1 € 35,01 € 42,36
SKLADOM
48 DRIVEN BEVEL GEAR SHAFT ADJUSTMENT PAD 35×48×0.5 (Ref. č 48) E02F26002003 DRIVEN BEVEL GEAR SHAFT ADJUSTMENT PAD 35×48×0.5  1 € 2,44 € 2,95
SKLADOM
47 NUT M30×1.5-LH (Ref. č 47) E02F24006001 NUT M30×1.5-LH  1 € 2,48 € 3
SKLADOM
46 BEARING 6305 (Ref. č 46) GBT000276020 BEARING 6305  1 € 31,72 € 38,38
SKLADOM
45 DRIVE AND DRIVEN BEVEL GEAR COMBINATION (Ref. č 45) E02F26001003 DRIVE AND DRIVEN BEVEL GEAR COMBINATION  1 € 106,53 € 128,90
NA DOPYT
44 DRIVE BEVEL GEAR SHAFT ADJUSTMENT PAD 42×48×0.6 (Ref. č 44) E02F24004003 DRIVE BEVEL GEAR SHAFT ADJUSTMENT PAD 42×48×0.6  1 € 2,44 € 2,95
SKLADOM
42 Four-axis assembly (Ref. č 42) E02F24005001 Four-axis assembly  1 € 73,55 € 89
SKLADOM
41 NUT M30×1.5 (Ref. č 41) E02F24007001 NUT M30×1.5  1 € 2,48 € 3
SKLADOM
1 NUT M30×1.5 (Ref. č 1) E02F24007001 NUT M30×1.5  1 € 2,48 € 3
SKLADOM
35 R GEAR DRIVEN BEVEL (Ref. č 35) E02F22004001 R GEAR DRIVEN BEVEL  1 € 18,83 € 22,79
SKLADOM
34 NEEDLE ROLLER BEARING K35×40×13 (Ref. č 34) E02F22011001 NEEDLE ROLLER BEARING K35×40×13  1 € 3,31 € 4
SKLADOM
33 COUNTERSHAFT (Ref. č 33) E02F22001001 COUNTERSHAFT  1 € 51,40 € 62,20
SKLADOM
32 H GEAR ENGAGEMENT SLEEVE (Ref. č 32) E02F22007001 H GEAR ENGAGEMENT SLEEVE  1 € 11,04 € 13,36
SKLADOM
31 WASHER 28×40×2.5 (Ref. č 31) E02F22008002 WASHER 28×40×2.5  3 € 2,44 € 2,95
SKLADOM
30 NEEDLE ROLLER BEARING K28×33×17 (Ref. č 30) E02F22013002 NEEDLE ROLLER BEARING K28×33×17  2 € 2,48 € 3
SKLADOM
29 H GEAR DRIVEN GEAR (Ref. č 29) E02F22002002 H GEAR DRIVEN GEAR  1 € 19,64 € 23,77
SKLADOM
27 NUT M22×1 (Ref. č 27) F01F20403001 NUT M22×1  1 € 3,92 € 4,74
SKLADOM
26 MAIN SHAFT(UTV) (Ref. č 26) E02F21000002 MAIN SHAFT(UTV)  1 € 54,13 € 65,50
SKLADOM
25 Three-axis assembly (Ref. č 25) E02F23000001 Three-axis assembly  1 € 59,42 € 71,90
SKLADOM
11 Q01R31700003 Planetary gear liner (unavailable)  2 € 2,44 € 2,95
NA CESTE
10 REAR OUTPUT FORK (Ref. č 10) E02F25006001 REAR OUTPUT FORK  1 € 16,53 € 20
NA DOPYT
9 RETURN TORSION SPRING (Ref. č 9) E02F25008001 RETURN TORSION SPRING  1 € 2,23 € 2,70
NA DOPYT
8 O-Ring 13.8×2.5 (Ref. č 8) F01G00005001 O-Ring 13.8×2.5  1 € 2,44 € 2,95
SKLADOM
7 FORK SHAFT (Ref. č 7) E02F25007001 FORK SHAFT  1 € 14,46 € 17,50
NA DOPYT
6 REAR OUTPUT DIFFERENTIAL HOUSING (Ref. č 6) E02F25002001 REAR OUTPUT DIFFERENTIAL HOUSING  1 € 69,50 € 84,10
NA DOPYT
5 REAR DIFFERENTIAL OUTPUT SLEEVE (Ref. č 5) E02F25003001 REAR DIFFERENTIAL OUTPUT SLEEVE  1 € 12,64 € 15,30
NA DOPYT
4 CAPPING (Ref. č 4) E02F25202001 CAPPING  2 € 2,23 € 2,70
NA DOPYT
3 LEFT REAR HALF SHAFT BEVEL GEAR (Ref. č 3) E02F25201001 LEFT REAR HALF SHAFT BEVEL GEAR  1 € 30,74 € 37,20
NA DOPYT
2 ADJUSTING SHIM OF REAR AXLE BEVEL GEAR (Ref. č 2) E02F25004001 ADJUSTING SHIM OF REAR AXLE BEVEL GEAR  2 € 2,23 € 2,70
NA DOPYT
12 PLANETARY GEAR (Ref. č 12) E02F25102001 PLANETARY GEAR  2 € 5,95 € 7,20
NA DOPYT
13 REAR OUTPUT PLANETARY GEAR SHAFT (Ref. č 13) E02F25005001 REAR OUTPUT PLANETARY GEAR SHAFT  1 € 7,19 € 8,70
NA DOPYT
14 ELASTIC CYLINDRICAL PIN 5 × TWENTY-EIGHT (Ref. č 14) GBT008791003 ELASTIC CYLINDRICAL PIN 5 × TWENTY-EIGHT  1 € 2,23 € 2,70
NA DOPYT
24 NEEDLE ROLLER P4×29.8 (Ref. č 24) GBT000309003 NEEDLE ROLLER P4×29.8  1 € 2,44 € 2,95
SKLADOM
23 NUT M33×1.5 (Ref. č 23) E02F23003001 NUT M33×1.5  2 € 2,81 € 3,40
SKLADOM
22 WASHER 26×44×3 (Ref. č 22) E02F27003001 WASHER 26×44×3  1 € 2,44 € 2,95
SKLADOM
21 REVERSE GEAR IDLER (Ref. č 21) E02F27002001 REVERSE GEAR IDLER  1 € 16,47 € 19,93
SKLADOM
20 NEEDLE BEARING K30×35×17 (Ref. č 20) E02F22010001 NEEDLE BEARING K30×35×17  1 € 2,81 € 3,40
SKLADOM
19 REVERSE GEAR IDLER SHAFT (Ref. č 19) E02F27001001 REVERSE GEAR IDLER SHAFT  1 € 14,14 € 17,11
SKLADOM
18 DOWEL PIN 6×10 (Ref. č 18) GBT001192001 DOWEL PIN 6×10  1 € 2,44 € 2,95
SKLADOM
17 RIGHT REAR HALF SHAFT BEVEL GEAR (Ref. č 17) E02F25101001 RIGHT REAR HALF SHAFT BEVEL GEAR  1 € 26,36 € 31,90
NA DOPYT
16 Q03F30800001 HEXAGON FLANGE BOLT M10×1.0×18  1 € 2,44 € 2,95
NA DOPYT
15 REAR AXLE OUTPUT GEAR (DIFFERENTIAL) (Ref. č 15) E02F25001002 REAR AXLE OUTPUT GEAR (DIFFERENTIAL)  1 € 117,02 € 141,60
NA DOPYT
