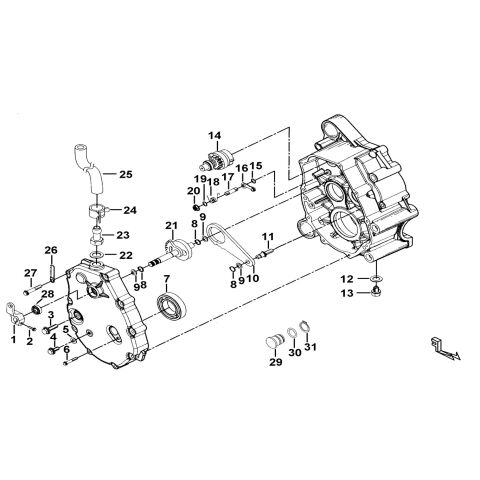

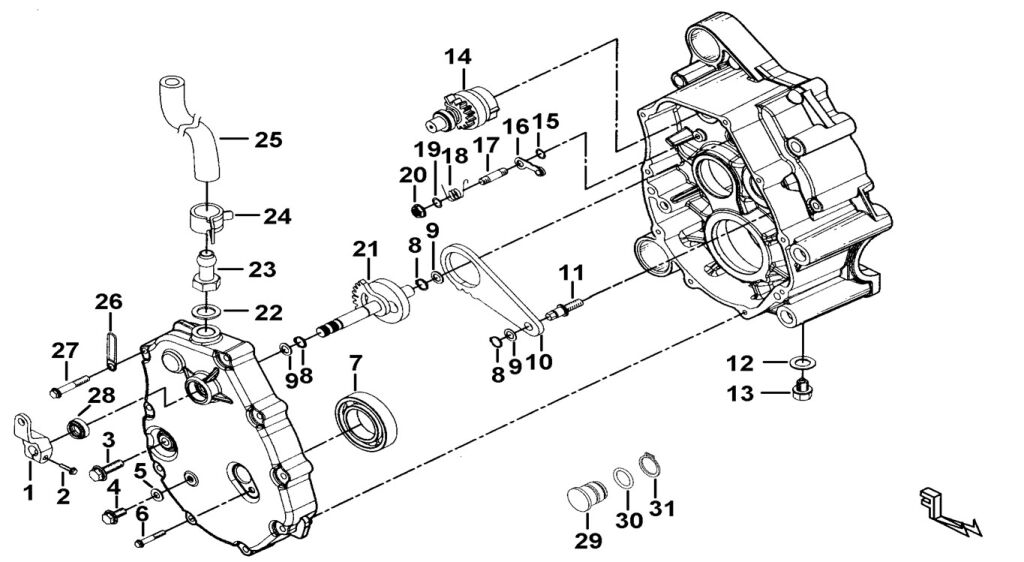

TRANSMISSION 2

TGB
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
01 ARM, GEAR POSITION (Ref. č 01) 924764 ARM, GEAR POSITION  1 € 19,50 € 24
SKLADOM
18 SPRING (Ref. č 18) 924232 SPRING  1 € 2,40 € 3
SKLADOM
19 WASHER, SPRING ABATEMENT (Ref. č 19) W99617 WASHER, SPRING ABATEMENT  1 € 2,40 € 3
SKLADOM
20 NUT, FLANGE 6mm (Ref. č 20) N10601 NUT, FLANGE 6mm  1 € 2,40 € 3
SKLADOM
21 SECONDARY DIAL POLE (Ref. č 21) 910559 SECONDARY DIAL POLE  1 € 17,36 € 21
SKLADOM
22 WASHER (Ref. č 22) W99639 WASHER  1 € 1,98 € 2
SKLADOM
23 HOSE CONNECTOR (Ref. č 23) 910216 HOSE CONNECTOR  1 € 13,72 € 17
SKLADOM
24 CLIP (Ref. č 24) R40501 CLIP  1 € 2,15 € 3
SKLADOM
25 BREATH HOSE (Ref. č 25) 910538 BREATH HOSE  1 € 17,93 € 22
SKLADOM
26 CLAMP (Ref. č 26) 514410 CLAMP  3 € 2,40 € 3
SKLADOM
27 BOLT, FLANGE M6*1*45L (Ref. č 27) S24632 BOLT, FLANGE M6*1*45L  9 € 2,40 € 3
NA DOPYT
28 OIL SEAL ?12X?22X9 (Ref. č 28) 924240 OIL SEAL ?12X?22X9  1 € 2,40 € 3
SKLADOM
29 911675 OIL PLUG

FOR ABS

1
NA DOPYT
Detail
30 O-RING ?2.4X?14.8 (Ref. č 30) 924074 O-RING ?2.4X?14.8

FOR ABS

1 € 2,40 € 3
SKLADOM
17 SET SCREW ,GEAR CAM STOP DOG (Ref. č 17) 924233 SET SCREW ,GEAR CAM STOP DOG  1 € 2,40 € 3
SKLADOM
16 STOPPER, GEAR SHAFT CAM (Ref. č 16) 924231 STOPPER, GEAR SHAFT CAM  1 € 4,13 € 5
NA DOPYT
15 GASKET (Ref. č 15) W99616 GASKET  1 € 2,40 € 3
SKLADOM
02 BOLT, FLANGE M6X1.0X20L (Ref. č 02) S21604 BOLT, FLANGE M6X1.0X20L  1 € 2,15 € 3
SKLADOM
03 BOLT, FLANGE M8X45 (Ref. č 03) S20822 BOLT, FLANGE M8X45  1 € 3,64 € 4
SKLADOM
04 BOLT, FLANGE (Ref. č 04) S21605 BOLT, FLANGE  1 € 2,40 € 3
SKLADOM
05 WASHER ?6.5X?13.2X1.3t (Ref. č 05) W99621 WASHER ?6.5X?13.2X1.3t  1 € 2,40 € 3
SKLADOM
06 BOLT, FLANGE M6x16 (Ref. č 06) S24603 BOLT, FLANGE M6x16  1 € 2,40 € 3
SKLADOM
07 BEARING ?20X?52X15 (Ref. č 07) 924184 BEARING ?20X?52X15  1 € 15,62 € 19
SKLADOM
08 "C" RING (Ref. č 08) R00703 "C" RING  3 € 2,40 € 3
SKLADOM
09 WASHER (Ref. č 09) W99218 WASHER  3 € 2,40 € 3
SKLADOM
10 GEAR STOPPER (Ref. č 10) 910410 GEAR STOPPER  1 € 16,03 € 20
SKLADOM
11 PIN, GEAR STOPPER (Ref. č 11) 925737 PIN, GEAR STOPPER  1 € 18,35 € 23
SKLADOM
13 DRAIN BOLT (Ref. č 13) 911541 DRAIN BOLT  1 € 11,90 € 15
SKLADOM
14 SHIFT CAMSHAFT COMP (Ref. č 14) 925690 SHIFT CAMSHAFT COMP  1 € 54,63 € 67
SKLADOM
31 “C” CLIP (Ref. č 31) R00501 “C” CLIP

FOR ABS

1 € 2,40 € 3
SKLADOM
Kód produktu TGB_1_111_ETT-JJ
typ rozkresu: ENGINE PARTS
ZNACKA: TGB
TYP: BLADE 1000LTX
MODEL: BLADE 1000LTX MAX T3b
