Top beam assembly

SEGWAY
  • Výrobca  SEGWAY
  • Kód produktu  SEGWAY_2_237_UTV1000
MODEL:
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
1 U01C15000003 U01 TOP BEAM LOWER RIGHT WELD ASSY-RED  1 € 165,37 € 203
NA DOPYT
11 U01C13000004 U01 A-PILLAR CONNECTION WELD ASSY-GREEN  1 € 84,55 € 104
NA DOPYT
11 U01C13000003 U01 A-PILLAR CONNECTION WELD ASSY-RED  1 € 84,55 € 104
SKLADOM
10 SCREWS M10×1.25×35 (Ref. č 10) GBT000701005 SCREWS M10×1.25×35  4 € 2,48 € 3
SKLADOM
9 U05C00002005 U05 A-PILLAR LOWER LEFT SOLEPLATE-BLACK  1 € 67,11 € 83
NA DOPYT
9 U05C00002004 U05 A-PILLAR LOWER LEFT SOLEPLATE-GREEN  1 € 67,11 € 83
NA DOPYT
9 U05C00002003 U05 A-PILLAR LOWER LEFT SOLEPLATE-RED  1 € 67,11 € 83
NA DOPYT
8 U05C00001005 U05 A-PILLAR LOWER RIGNT SOLEPLATE-BLACK  1 € 71,49 € 88
NA DOPYT
8 U05C00001004 U05 A-PILLAR LOWER RIGNT SOLEPLATE-GREEN  1 € 71,49 € 88
NA DOPYT
11 U01 A-PILLAR CONNECTION WELD ASSY-BLACK (Ref. č 11) U01C13000005 U01 A-PILLAR CONNECTION WELD ASSY-BLACK  1 € 84,55 € 104
SKLADOM
12 U01C10001002 U01 TOP BAR REAR LOWER SUPPORT PIPE  2 € 16,53 € 20
NA DOPYT
19 U01-C014380-DB0-00 B-PILLAR LOWER CONNECTING PIPE  1 € 53,39 € 66
NA DOPYT
19 U01C14380002 U01 B-PILLAR LOWER CONNECTING PIPE (BLACK)  1 € 54,30 € 67
NA DOPYT
18 NUT M10×1.25 (Ref. č 18) GBT061852001 NUT M10×1.25  12 € 2,18 € 3
SKLADOM
17 BOLT M10×1.25×35 (Ref. č 17) GBT005789028 BOLT M10×1.25×35  12 € 2,18 € 3
SKLADOM
16 SCREW M8×25 (Ref. č 16) GBT000701019 SCREW M8×25  2 € 2,18 € 3
SKLADOM
15 U01 PASSENGER HANDLE ASSY (Ref. č 15) U01C10010001 U01 PASSENGER HANDLE ASSY  1 € 15,87 € 20
SKLADOM
14 2-non-metallic insert hexagon flange bolt M10×1.25 (Ref. č 14) GBT061832001 2-non-metallic insert hexagon flange bolt M10×1.25  8 € 2,18 € 3
SKLADOM
13 HEXAGON FLANGE BOLT M10×1.25×20 (Ref. č 13) GBT005789025 HEXAGON FLANGE BOLT M10×1.25×20  8 € 2,18 € 3
SKLADOM
8 U05C00001003 U05 A-PILLAR LOWER RIGNT SOLEPLATE-RED  1 € 71,49 € 88
NA DOPYT
7 U01-C140000-FB0-00 TOP BEAM REAR WELD ASSY-BLACK  1 € 458,43 € 564
NA DOPYT

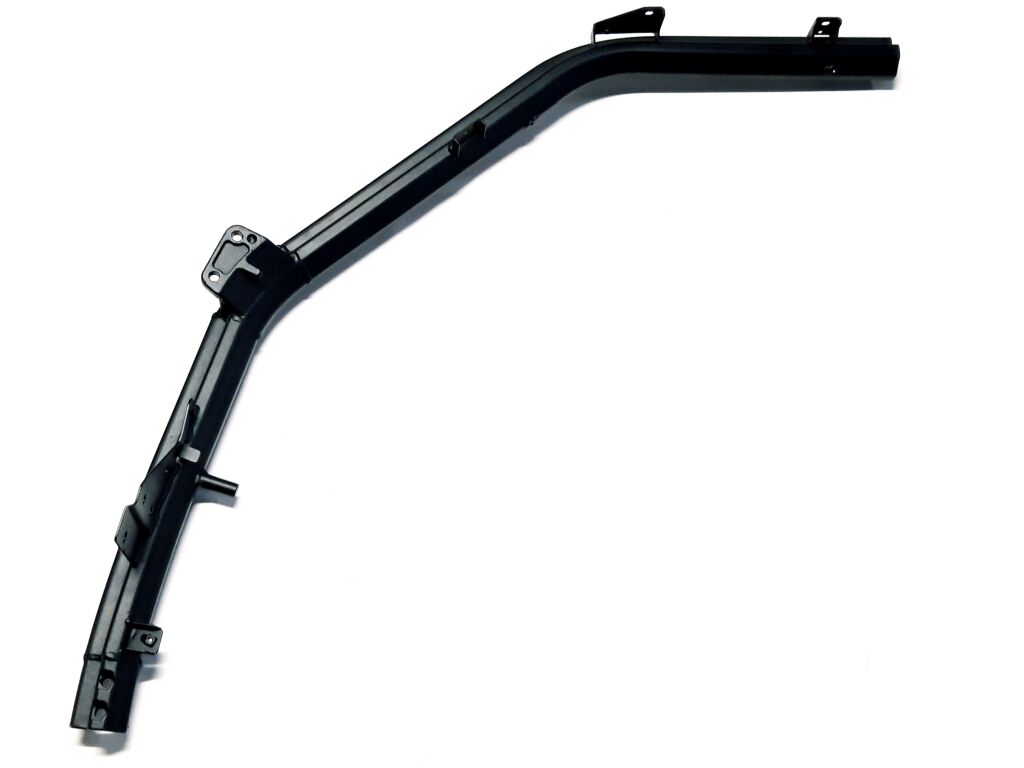

5 U01C11000003 U01 LEFT A-PILLAR WELD ASSY-RED  1 € 122,48 € 151
NA DOPYT
4 HEXAGON FLANGE BOLT M10×1.25×40 (Ref. č 4) GBT005789029 HEXAGON FLANGE BOLT M10×1.25×40  4 € 2,48 € 3
SKLADOM
3 BOLT M8×20 (Ref. č 3) GBT005789015 BOLT M8×20  4 € 2,18 € 3
SKLADOM
2 U01C16000005 U01 TOP BEAM LOWER RIGHT WELD ASSY-BLACK  1 € 165,37 € 203
SKLADOM
2 U01C16000004 U01 TOP BEAM LOWER RIGHT WELD ASSY-GREEN  1 € 165,37 € 203
NA DOPYT
2 U01C16000003 U01 TOP BEAM LOWER RIGHT WELD ASSY-RED  1 € 165,37 € 203
SKLADOM
1 U01C15000005 U01 TOP BEAM LOWER RIGHT WELD ASSY-BLACK  1 € 165,37 € 203
SKLADOM
1 U01C15000004 U01 TOP BEAM LOWER RIGHT WELD ASSY-GREEN  1 € 165,37 € 203
NA DOPYT
5 U01C11000004 U01 LEFT A-PILLAR WELD ASSY-GREEN  1 € 122,48 € 151
SKLADOM
5 U01 LEFT A-PILLAR WELD ASSY-BLACK (Ref. č 5) U01C11000005 U01 LEFT A-PILLAR WELD ASSY-BLACK  1 € 122,48 € 151
SKLADOM
7 U01-C140000-FG0-00 TOP BEAM REAR WELD ASSY-GREEN  1 € 458,43 € 564
NA DOPYT
7 U01-C140000-FR0-00 TOP BEAM REAR WELD ASSY-RED  1 € 458,43 € 564
SKLADOM
7 U01C14000005 U01 TOP BEAM REAR WELD ASSY-BLACK  1 € 401,32 € 494
SKLADOM
7 U01C14000004 U01 TOP BEAM REAR WELD ASSY-GREEN  1 € 401,32 € 494
NA DOPYT
7 U01C14000003 U01 TOP BEAM REAR WELD ASSY-RED  1 € 401,32 € 494
SKLADOM
6 U01C12000005 U01 RIGHT A-PILLAR WELD ASSY-BLACK  1 € 122,48 € 151
SKLADOM
6 U01C12000004 U01 RIGHT A-PILLAR WELD ASSY-GREEN  1 € 122,48 € 151
SKLADOM
6 U01C12000003 U01 RIGHT A-PILLAR WELD ASSY-RED  1 € 122,48 € 151
NA DOPYT
20 HEXAGON FLANGE BOLT M10×1.25×30 (Ref. č 20) GBT005789027 HEXAGON FLANGE BOLT M10×1.25×30  4 € 2,48 € 3
SKLADOM
Kód produktu SEGWAY_2_237_UTV1000
typ rozkresu: FRAME PARTS
ZNACKA: SEGWAY
TYP: Fugleman UTV
MODEL: Fugleman UT10
