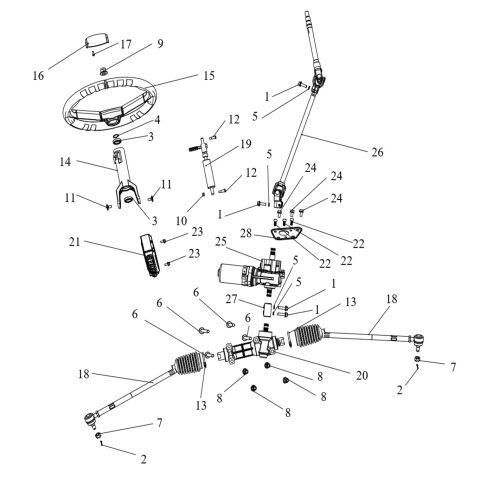

STEERING SYSTEM.

SEGWAY
  • Výrobca  SEGWAY
  • Kód produktu  SEGWAY_2_226_UT6
MODEL:
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
1 WASHER 8 (Ref. č 1) GB0000093004 WASHER 8  4 € 2,18 € 3
SKLADOM
17 SCREW ST4.2×16 (Ref. č 17) GBT000845010 SCREW ST4.2×16  1 € 2,18 € 3
SKLADOM
20 STEERING GEAR ASSY (Ref. č 20) U09-F110001-000-00 STEERING GEAR ASSY  1 € 119,59 € 147
SKLADOM
21 EPS CONTROLLER (Ref. č 21) U09M06100002 EPS CONTROLLER  1 € 616,61 € 758
SKLADOM
22 SCREW M8×16 (Ref. č 22) GBT000701014 SCREW M8×16  3 € 2,48 € 3
SKLADOM
23 Bolt M6×12 (Ref. č 23) GBT005789006 Bolt M6×12  2 € 2,18 € 3
SKLADOM
24 Bolt M8×16 (Ref. č 24) GBT005789014 Bolt M8×16  3 € 2,18 € 3
SKLADOM
25 U01_EPS MOTOR (Ref. č 25) U01F13100001 U01_EPS MOTOR  1 € 604,21 € 743
NA DOPYT
27 U05_LOWER CONNECTION SLEEVE FOR EPS (Ref. č 27) U05F13001001 U05_LOWER CONNECTION SLEEVE FOR EPS  1 € 19,17 € 24
SKLADOM
28 U05F13002002 U05_MOUNTING PLATE FOR EPS  1 € 14,79 € 18
NA DOPYT
29 U01 INTEGRATED SWITCH EPA (Ref. č 29) U01M51000001 U01 INTEGRATED SWITCH EPA  1 € 50,41 € 62
SKLADOM
18 U06-F112001-000-00 STEERING ROD ASSEMBLY  2 € 49,61 € 61
NA DOPYT
19 U06-F171001-000-00 GAS SPRING ASSEMBLY  1 € 25,61 € 32
NA DOPYT
16 U01_STEERING WHEEL UPPER COVER (Ref. č 16) U01F16001001 U01_STEERING WHEEL UPPER COVER  1 € 5,21 € 6
SKLADOM
15 U01 STEERING WHEEL (Ref. č 15) U01F16100001 U01 STEERING WHEEL  1 € 50,83 € 63
SKLADOM
14 U01_STEERING COLUMN_MATTE BLACK (Ref. č 14) U01F15001001 U01_STEERING COLUMN_MATTE BLACK  1 € 28,26 € 35
NA DOPYT
2 GBT000091008 COTTER 3.2×25  2 € 2,48 € 3
NA DOPYT
3 BEARING 61804-2RS (Ref. č 3) GBT000276001 BEARING 61804-2RS  2 € 6,12 € 8
SKLADOM
4 Ring,Snap 20 (Ref. č 4) GBT000894008 Ring,Snap 20  1 € 2,48 € 3
SKLADOM
5 HEXAGON FLANGE BOLT M8×30 (Ref. č 5) GBT005789017 HEXAGON FLANGE BOLT M8×30  4 € 2,15 € 3
SKLADOM
6 BOLT M10×1.25×95 (Ref. č 6) GBT005789037 BOLT M10×1.25×95  4 € 2,40 € 3
NA DOPYT
7 GBT009459002 HEXAGON SLOTTED THIN NUT M12  2 € 2,48 € 3
NA DOPYT
8 2-non-metallic insert hexagon flange bolt M10×1.25 (Ref. č 8) GBT061832001 2-non-metallic insert hexagon flange bolt M10×1.25  4 € 2,18 € 3
SKLADOM
9 GBT061832006 2-NON-METALLIC HF NUT M14×1.5  1 € 2,18 € 3
NA DOPYT
10 All metal hexagonal flange lock nut M6 (Ref. č 10) GBT061871002 All metal hexagonal flange lock nut M6  1 € 2,07 € 3
SKLADOM
11 BOLT M8 (Ref. č 11) S01F10002001 BOLT M8  2 € 2,48 € 3
SKLADOM
12 STEP BOLT M6×24 (Ref. č 12) T03000005004 STEP BOLT M6×24  2 € 2,48 € 3
SKLADOM
13 R/B T05000001006 RIBBON 5×250 (Ref. č 13) T05000001012 R/B T05000001006 RIBBON 5×250  2 € 2,18 € 3
SKLADOM
26 UNIVERSAL JOINT EPS (Ref. č 26) U01F13200002 UNIVERSAL JOINT EPS  1 € 89,25 € 110
SKLADOM
Kód produktu SEGWAY_2_226_UT6
typ rozkresu: FRAME PARTS
ZNACKA: SEGWAY
TYP: Fugleman UTV
MODEL: Fugleman UT6
