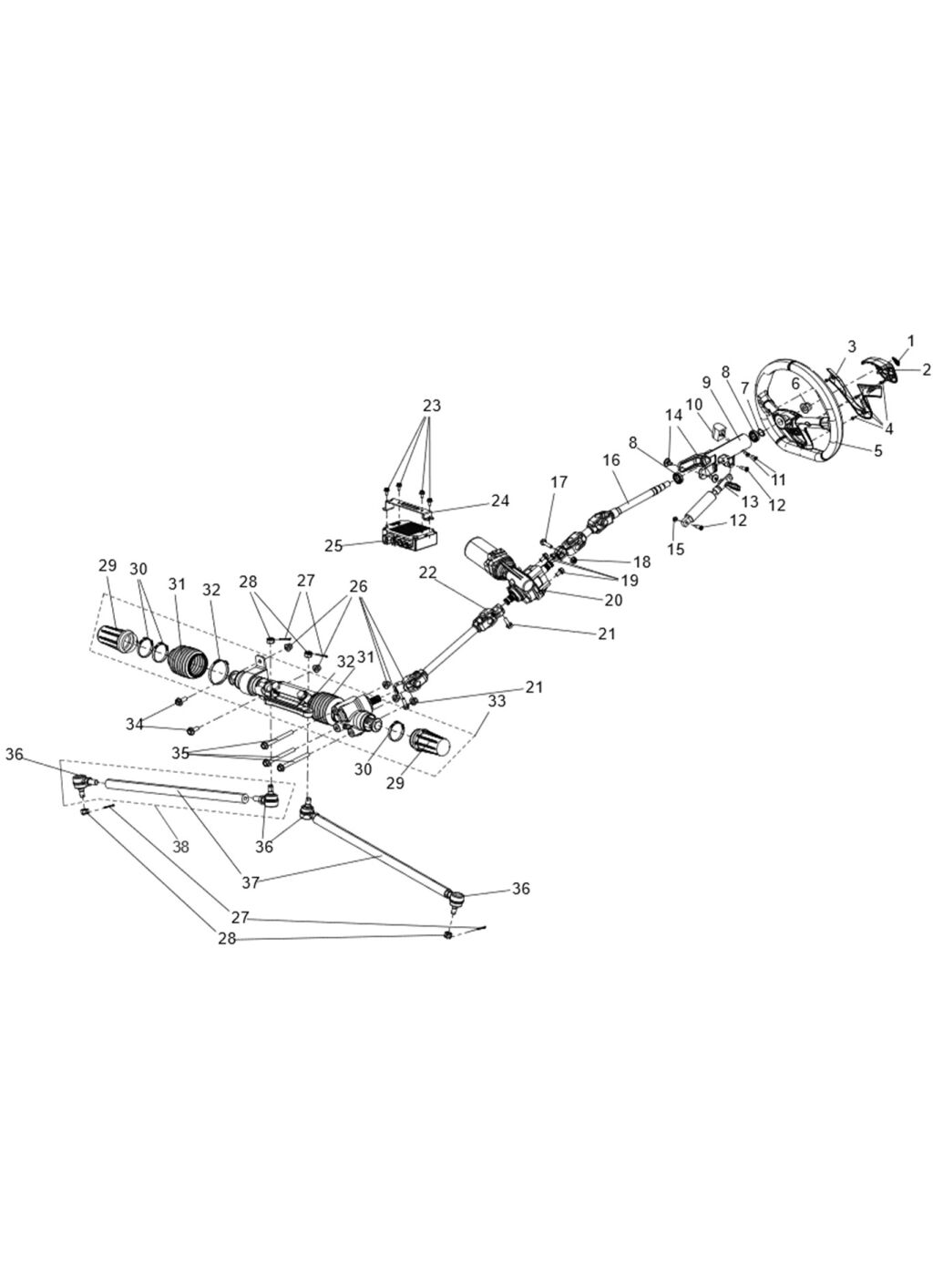

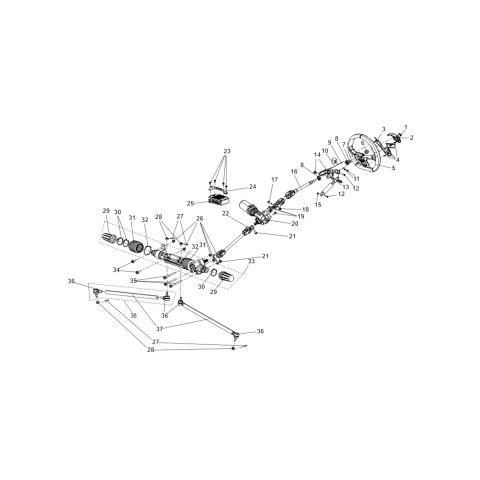

STEERING SYSTEM (NARROW VEHICLE VERSION)

SEGWAY
  • Výrobca  SEGWAY
  • Kód produktu  SEGWAY_2_236_UTV1000F-S3
MODEL:
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
1 LOGO OF STEERING WHEEL SMALL (AL) (Ref. č 1) A01L10025001 LOGO OF STEERING WHEEL SMALL (AL)  1 € 4,55 € 6
SKLADOM
21 Hexagon flange bolt M8×25 (Ref. č 21) GBT005789016 Hexagon flange bolt M8×25  2 € 2,18 € 3
SKLADOM
22 S01F10500001 STEERING LOWER SHAFT ASSEMBLY  1 € 71,57 € 88
NA DOPYT
23 Bolt M6×12 (Ref. č 23) GBT005789006 Bolt M6×12  4 € 2,18 € 3
SKLADOM
24 S01C00806002 STEERING CONTROLLER BRACKET  1 € 11,57 € 14
NA DOPYT
25 S05M06100001 R/B S05M06100002 EPS CONTROLLER  1 € 356,61 € 439
NA DOPYT
26 2-non-metallic insert hexagon flange bolt M10×1.25 (Ref. č 26) GBT061832001 2-non-metallic insert hexagon flange bolt M10×1.25  5 € 2,18 € 3
SKLADOM
27 GBT000091008 COTTER 3.2×25  4 € 2,48 € 3
NA DOPYT
28 GBT009459002 HEXAGON SLOTTED THIN NUT M12  4 € 2,48 € 3
NA DOPYT
29 S01F10110001 DUST COVER  2 € 13,97 € 17
NA DOPYT
30 S01F10140001 EARLESS SLAMP 0.6×7-40~63  3 € 7,02 € 9
NA DOPYT
31 CORRUGATED SLEEVE (Ref. č 31) S01F10170001 CORRUGATED SLEEVE  2 € 16,20 € 20
SKLADOM ZA 21 dní
32 S01F10180001 EARLESS SLAMP 0.6×7-52~76  2 € 10,50 € 13
NA DOPYT
33 S01F10100001 STEERING MACHINE ASSEMBLY  1 € 315,87 € 389
NA DOPYT
34 Hexagon flange bolt M10×1.25×25 (Ref. č 34) GBT005789026 Hexagon flange bolt M10×1.25×25  2 € 2,48 € 3
SKLADOM
35 HEX FLANGE BOLT M10×1.25×105 (Ref. č 35) GBT005789092 HEX FLANGE BOLT M10×1.25×105  3 € 2,48 € 3
SKLADOM
36 S01F10210001 BALL PIN ASSEMBLY (unavailable)  4 € 29,09 € 36
NA CESTE
37 S01F10220001 NARROW STEERING ROD  2 € 7,02 € 9
NA CESTE
20 U01_EPS MOTOR (Ref. č 20) U01F13100001 U01_EPS MOTOR  1 € 604,21 € 743
NA DOPYT
19 Bolt M8×16 (Ref. č 19) GBT005789014 Bolt M8×16  3 € 2,18 € 3
SKLADOM
18 HEXAGON FLANGE FACE LOCKING NUT WITH NON-METALLICINSERT M8 (Ref. č 18) GBT061831003 HEXAGON FLANGE FACE LOCKING NUT WITH NON-METALLICINSERT M8  1 € 2,18 € 3
SKLADOM
2 STEERING WHEEL LOGO COVER (Ref. č 2) S01F10702002 STEERING WHEEL LOGO COVER  1 € 20,67 € 25
SKLADOM
3 S01F10701002 STEERING WHEEL DECORATIVE COVER（SHINY SILVER GRAY）  1 € 5,81 € 7
NA DOPYT
3 S01F10701003 STEERING WHEEL DECORATIVE COVER（DARK SILVER GRAY）  1 € 23,22 € 29
NA DOPYT
4 SCREW ST4.2×13 (Ref. č 4) GBT000845009 SCREW ST4.2×13  4 € 2,48 € 3
SKLADOM
5 S01F10703001 R/B S01-F107031-000-00, STEERING WHEEL  1 € 75,37 € 93
NA DOPYT
6 GBT061832006 2-NON-METALLIC HF NUT M14×1.5  1 € 2,18 € 3
NA DOPYT
7 Ring,Snap 20 (Ref. č 7) GBT000894008 Ring,Snap 20  1 € 2,48 € 3
SKLADOM
8 BEARING 61804-2RS (Ref. č 8) GBT000276001 BEARING 61804-2RS  2 € 6,12 € 8
SKLADOM
9 S01F15001001 DIRECTION STRING  1 € 31,07 € 38
NA DOPYT
10 U01M57200001 DIRECTION LOCK  1 € 5,21 € 6
NA DOPYT
11 GBT008191004 SCREW M6×14  2 € 2,48 € 3
NA DOPYT
12 STEP BOLT M6×24 (Ref. č 12) T03000005004 STEP BOLT M6×24  2 € 2,48 € 3
SKLADOM
13 U01 AIR SPRING ASSSY (Ref. č 13) U01F17100001 U01 AIR SPRING ASSSY  1 € 28,26 € 35
SKLADOM
14 BOLT M8 (Ref. č 14) S01F10002001 BOLT M8  2 € 2,48 € 3
SKLADOM
15 All metal hexagonal flange lock nut M6 (Ref. č 15) GBT061871002 All metal hexagonal flange lock nut M6  1 € 2,07 € 3
SKLADOM
16 S01F10400001 STEERING UPPER SHAFT ASSEMBLY  1 € 79,17 € 97
NA DOPYT
17 HEXAGON FLANGE BOLT M8×35 (Ref. č 17) GBT005789018 HEXAGON FLANGE BOLT M8×35  1 € 2,48 € 3
SKLADOM
38 STEERING TRACK ROD (Ref. č 38) S01F10200001 STEERING TRACK ROD  2 € 53,55 € 66
SKLADOM
Kód produktu SEGWAY_2_236_UTV1000F-S3
typ rozkresu: FRAME PARTS
ZNACKA: SEGWAY
TYP: Villain SxS
MODEL: Villain SX10 (xxxx-2022)
