Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
01 HANDLEBAR (Ref. č 01) A03F16600001 HANDLEBAR  2 € 31,40 € 39
SKLADOM
_15 STEERING ARM GASKET (Ref. č _15) T02000004001 STEERING ARM GASKET  1 € 2,64 € 3
SKLADOM
_14 STEERING ARM (Ref. č _14) A03F11001001 STEERING ARM  1 € 32,07 € 39
SKLADOM
_13 Cotter pin 2.5 x 25 (Ref. č _13) GBT000091006 Cotter pin 2.5 x 25  1 € 2,48 € 3
SKLADOM
_12 R/B A02F13100004 EPS (BRUSHLESS) (Ref. č _12) A02F13100002 R/B A02F13100004 EPS (BRUSHLESS)  1 € 956,61 € 1 177
NA DOPYT
_11 R/B A03-F140001-000-00, STEERING KNUCKLE COMPONENT (Ref. č _11) A03F14100001 R/B A03-F140001-000-00, STEERING KNUCKLE COMPONENT  1 € 101,65 € 125
NA DOPYT
_10 HEXAGON FLANGE BOLT M8×30 (Ref. č _10) GBT005789017 HEXAGON FLANGE BOLT M8×30  3 € 2,15 € 3
SKLADOM
09 LOCKING PLATE SPHERE (Ref. č 09) A03F16100001 LOCKING PLATE SPHERE  1 € 3,39 € 4
SKLADOM
08 Bolt M8×16 (Ref. č 08) GBT005789014 Bolt M8×16  2 € 2,18 € 3
SKLADOM
07 R/B A01-F162001-000-00 STEERING SPHERE (Ref. č 07) A03F16200001 R/B A01-F162001-000-00 STEERING SPHERE  2 € 12,40 € 15
NA DOPYT
06 R/B A03-F140001-000-00 EPS STEERING SHAFT (Ref. č 06) A03F14000001 R/B A03-F140001-000-00 EPS STEERING SHAFT  1 € 83,14 € 102
NA DOPYT
05 COVER HANDLEBAR LOWER (Ref. č 05) A03F16400001 COVER HANDLEBAR LOWER  1 € 22,31 € 27
SKLADOM ZA 10 dní
04 COVER HANDLEBAR UPPER (Ref. č 04) A03F16300001 COVER HANDLEBAR UPPER  1 € 22,31 € 27
SKLADOM
03 HEXAGON SOCKET HEAD CAP SCREW M8×45 (Ref. č 03) GBT000701024 HEXAGON SOCKET HEAD CAP SCREW M8×45  4 € 2,48 € 3
SKLADOM
02 R/B A03F16500003 TUBE-HANDLEBAR (Ref. č 02) A03F16500001 R/B A03F16500003 TUBE-HANDLEBAR  1 € 58,10 € 71
NA DOPYT
_16 1-Hexagon slotted nut M10 (Ref. č _16) GBT009457001 1-Hexagon slotted nut M10  1 € 2,48 € 3
SKLADOM
Kód produktu SGW_2_238_ATV570F-A2

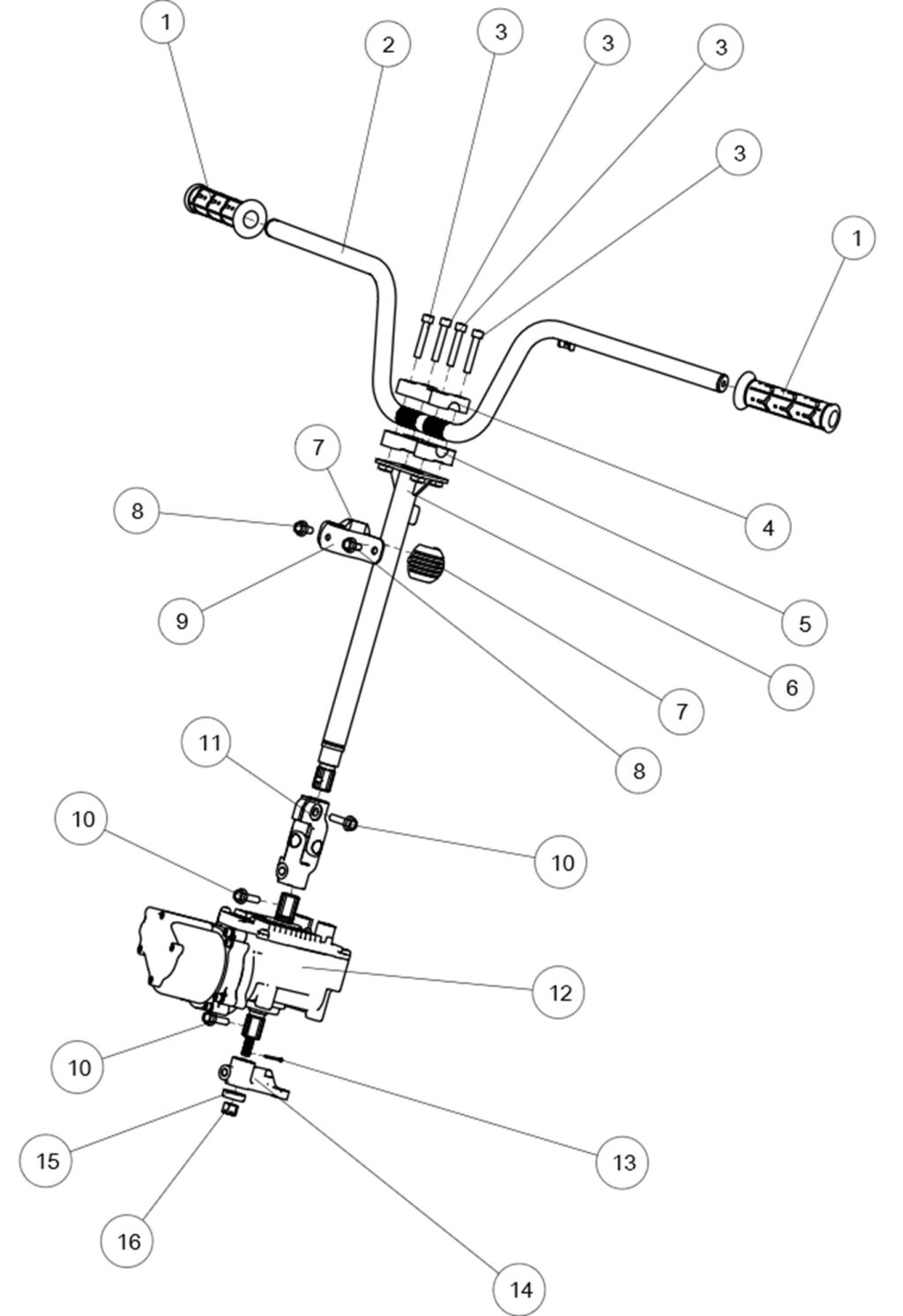

typ rozkresu: FRAME PARTS
ZNACKA: SEGWAY
TYP: AT6
MODEL: Snarler AT6 S T3b, Snarler AT6 L T3b, Snarler AT6 S E5, Snarler AT6 L E5
