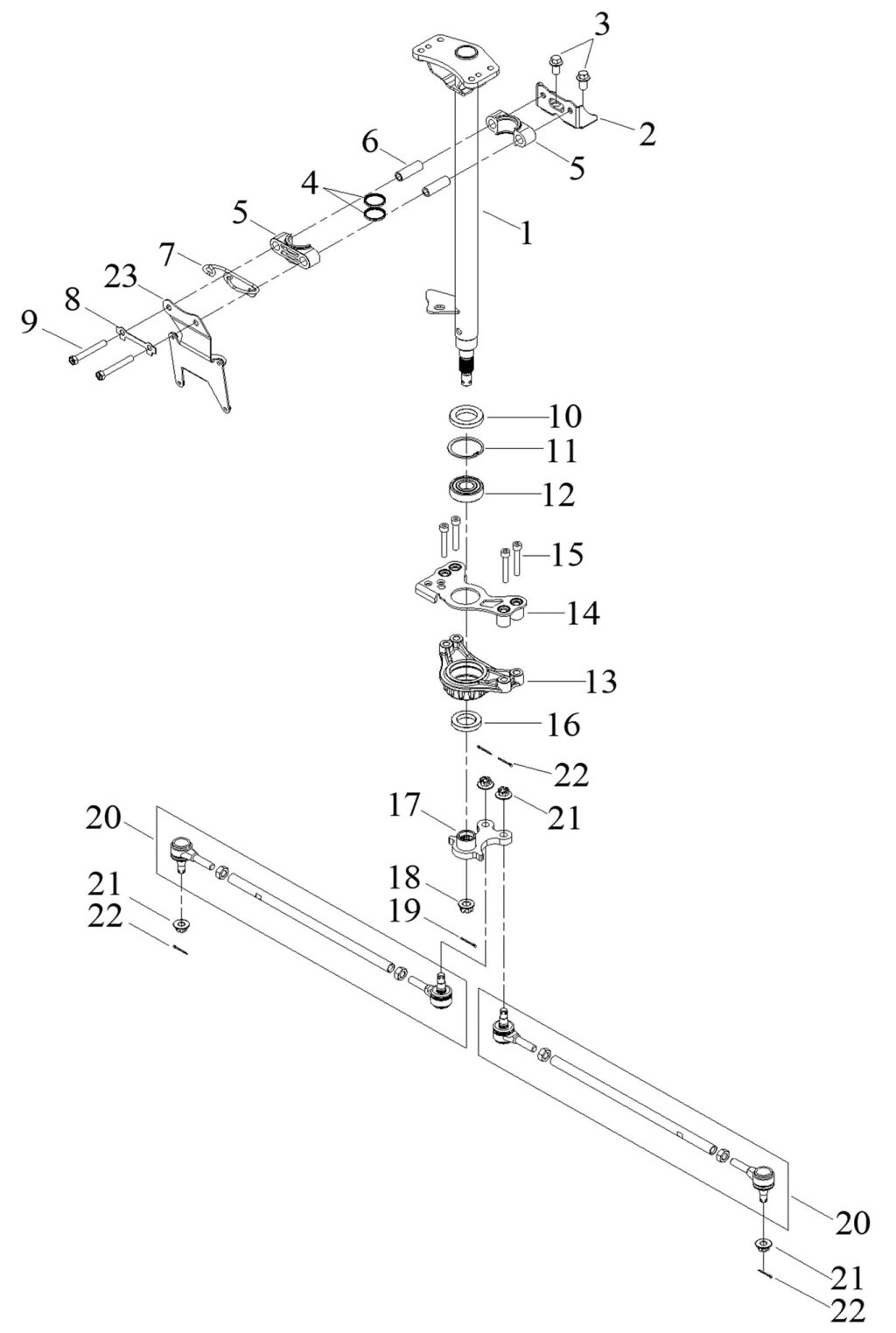

STEERING, SHAFT, LINK

Ref. č Obr. Kód p. Popis p. ks Cena Dostupnost
1 52205-A36-000 Steering Shaft Assembly  1 € 78,51 € 95
NA DOPYT
14 Bracket, Steering Lower (Ref. č 14) 52121-A27-000 Bracket, Steering Lower  1 € 20,66 € 25
NA DOPYT
15 91760-08050-06G Bolt, Hexagon, Socker  4 € 1,90 € 2,30
NA DOPYT
16 Seal, Oil (Ref. č 16) 96100-274207 Seal, Oil  1 € 9,92 € 12
SKLADOM
17 ARM, PITMAN (Ref. č 17) 52209-A13-001 ARM, PITMAN  1 € 33,88 € 41
SKLADOM
18 Nut, Insert Lock (Ref. č 18) 92141-14-21G Nut, Insert Lock  1 € 2,48 € 3
NA DOPYT
19 Cotter pin (Ref. č 19) 94000-03032 Cotter pin  1 € 2,48 € 3
NA DOPYT
20 Link Ass'y (Ref. č 20) 52300-A13-000 Link Ass'y  2 € 29,75 € 36
SKLADOM
21 Cross Thread Nut (Ref. č 21) 92141-10-14G Cross Thread Nut  4 € 2,48 € 3
SKLADOM
22 Cotter pin (Ref. č 22) 94000-02525 Cotter pin  4 € 2,48 € 3
SKLADOM
13 SUPPORT,SREERING COLUMN (Ref. č 13) 52207-A13-000 SUPPORT,SREERING COLUMN  1 € 37,19 € 45
SKLADOM
12 Bearing, Ball (Ref. č 12) 95100-6204LLU Bearing, Ball  1 € 11,57 € 14
SKLADOM
11 Clip, Inner (Ref. č 11) 93405-RTW47 Clip, Inner  1 € 2,48 € 3
SKLADOM
2 52206-A13-000 SUPPORT,SREERING COLUMN  1
NA DOPYT
Detail
3 91710-10016-14G Hex. Bolt, Flange  2 € 1,90 € 2,30
NA DOPYT
4 Oil Seal (Ref. č 4) 96100-323804 Oil Seal  2 € 2,48 € 3
SKLADOM
5 Shaft Holder, Steering (Ref. č 5) 52120-A13-000 Shaft Holder, Steering  2 € 2,48 € 3
NA DOPYT
6 93300-0914-42 Spacer tube  2 € 3,31 € 4
NA DOPYT
7 52210-A13-000 Bracket,Steering Lower  1
NA DOPYT
Detail
8 52211-A13-000 Washer,Lock  1
NA DOPYT
Detail
9 91770-08060-12G Bolt, Hex  2 € 1,90 € 2,30
NA DOPYT
10 Oil Seal TC (Ref. č 10) 96100-304707 Oil Seal TC  1 € 2,48 € 3
SKLADOM
23 83157-A27-100 ECU Holder  1 € 11,90 € 14,40
NA DOPYT
