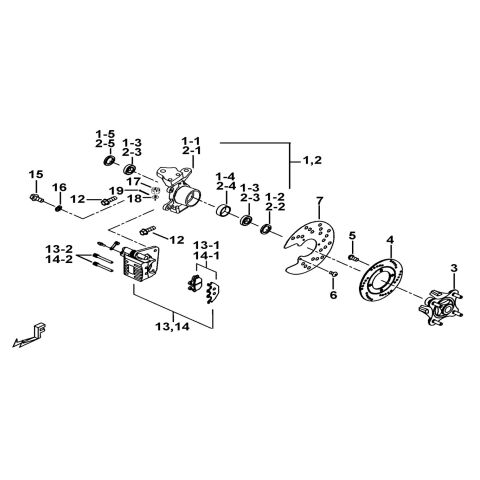

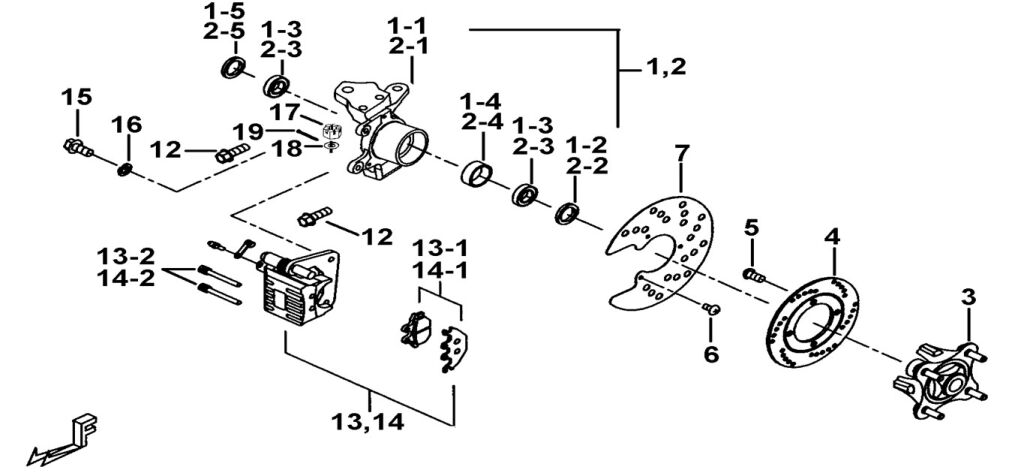

STEERING KNUCKLE

TGB
  • Výrobca  TGB
  • Kód produktu  TGB_2_212_FBG-DLE
MODEL:
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
01 516344A KNUCKLE, STEERING, LH

←005085

1 € 189,26 € 233
NA DOPYT
05 SCREW, SOCKET (Ref. č 05) S72005 SCREW, SOCKET  8 € 3,06 € 4
SKLADOM
06 SCREW, AN HEAD (Ref. č 06) GA555SC02 SCREW, AN HEAD  6 € 2,40 € 3
SKLADOM
07 PROTECTIVE COVER (Ref. č 07) 512944 PROTECTIVE COVER  2 € 7,77 € 10
SKLADOM
12 S20050 BOLT

←005085

4 € 4,96 € 6
NA DOPYT
13 CALIPER ASSY, FRONT, LH (Ref. č 13) 513562 CALIPER ASSY, FRONT, LH  1 € 165,29 € 203
NA DOPYT
13.1 BRAKE PAD TGB front Blade 550 LT, 550 EFI LT, 550 EFI LT FL (Ref. č 13-1) 515401 BRAKE PAD TGB front Blade 550 LT, 550 EFI LT, 550 EFI LT FL  1 € 38,68 € 48
SKLADOM
13.2 PLATE, SPRING (Ref. č 13-2) 515172 PLATE, SPRING  2 € 7,19 € 9
NA DOPYT
14 CALIPER ASSY, FRONT, RH (Ref. č 14) 513563 CALIPER ASSY, FRONT, RH  1 € 165,29 € 203
SKLADOM
15 BOLT (Ref. č 15) S21809 BOLT  4 € 2,40 € 3
Naskladňujeme
16 SPRING WASHER (Ref. č 16) GA556WS04 SPRING WASHER  4 € 2,40 € 3
SKLADOM
17 NUT M12X1.25 (Ref. č 17) N13202 NUT M12X1.25

005086→

4 € 3,31 € 4
SKLADOM
18 WASHER 2T (Ref. č 18) W99229 WASHER 2T

005086→

4 € 2,15 € 3
SKLADOM
04 DISC, BRAKE 230mm (Ref. č 04) 513451Y DISC, BRAKE 230mm  2 € 47,27 € 58
NA DOPYT
03 HUB, FRONT WHEEL (Ref. č 03) 512971 HUB, FRONT WHEEL  2 € 76,45 € 94
NA DOPYT
02A R/B 516389YA KNUCKLE, STEERING, RH. ASSY. (Ref. č 02A) 516389A R/B 516389YA KNUCKLE, STEERING, RH. ASSY.

005086→

1 € 188,93 € 232
NA CESTE
01.1 516344 KNUCKLE, STEERING, LH

←005085

1 € 162,98 € 200
NA DOPYT
01.1A KNUCKLE, STEERING, LH. (Ref. č 01-1A) 516388 KNUCKLE, STEERING, LH.

005086→

1 € 142,31 € 175
SKLADOM
01.2 OIL SEAL, OUTER (Ref. č 01-2) 513325 OIL SEAL, OUTER  1 € 3,22 € 4
NA DOPYT
01.3 BEARING (Ref. č 01-3) 513350 BEARING  2 € 26,69 € 33
SKLADOM
01.4 SPACER (Ref. č 01-4) 513324 SPACER  1 € 2,40 € 3
SKLADOM
01.5 Oil Seal Inner (Ref. č 01-5) 513367 Oil Seal Inner  1 € 4,63 € 6
NA DOPYT
01A KNUCKLE, STEERING, LH. ASSY. (Ref. č 01A) 516388A KNUCKLE, STEERING, LH. ASSY.

005086→

1 € 198,43 € 244
SKLADOM
02 516345A KNUCKLE, STEERING, RH

←005085

1 € 176,94 € 218
NA DOPYT
02.1 KNUCKLE, STEERING, RH (Ref. č 02-1) 516345 KNUCKLE, STEERING, RH

←005085

1 € 149,67 € 184
SKLADOM
02.1A R/B 516389Y KNUCKLE, STEERING, RH. (Ref. č 02-1A) 516389 R/B 516389Y KNUCKLE, STEERING, RH.

005086→

1 € 134,30 € 165
SKLADOM
19 PIN, COTTER 2,5 (Ref. č 19) GA551PN04 PIN, COTTER 2,5

005086→

4 € 2,40 € 3
SKLADOM
Kód produktu TGB_2_212_FBG-DLE
typ rozkresu: FRAME PARTS
TYP: BLADE 550
ZNACKA: TGB
MODEL: BLADE 550EFI LT
