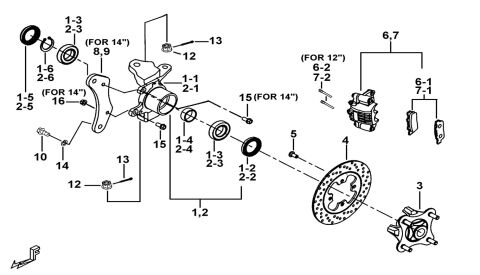

STEERING KNUCKLE

TGB
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
01 KNUCKLE, STEERING, LH. (Ref. č 01) 511115YA KNUCKLE, STEERING, LH.  1 € 244,30 € 300
SKLADOM
06.1B BRAKE PAD TGB front Blade 425 up to VIN 016182, 550 EFI, Target 550 EFI, Blade 1000i (Ref. č 06-1B) 515402 BRAKE PAD TGB front Blade 425 up to VIN 016182, 550 EFI, Target 550 EFI, Blade 1000i

FOR 12＂

1 € 46,45 € 57
NA CESTE
06.2B PLATE, SPRING (Ref. č 06-2B) 515172 PLATE, SPRING

FOR 12＂

2 € 7,19 € 9
NA CESTE

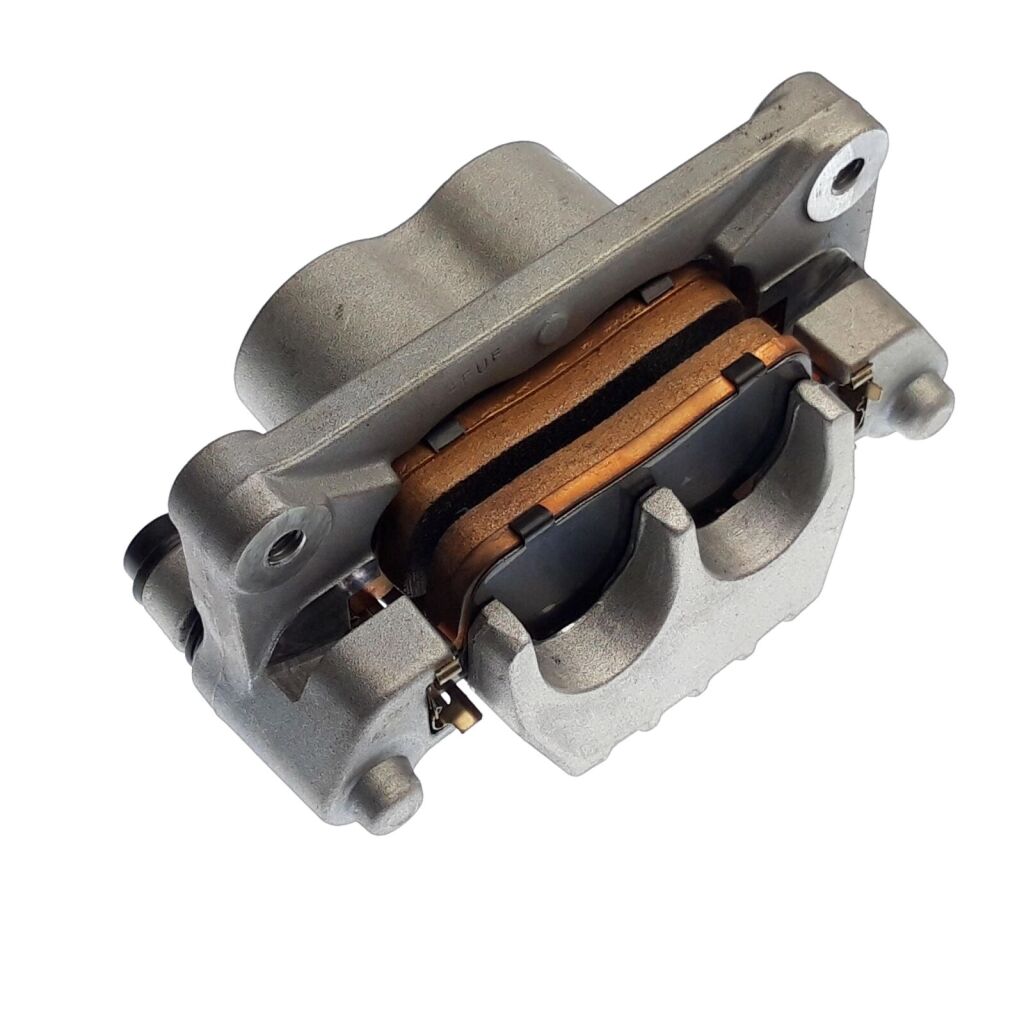

06A CALIPER ASSY., FRONT, LH (Ref. č 06A) 511209AR CALIPER ASSY., FRONT, LH

FOR 14＂

1 € 209,26 € 257
Naskladňujeme
06B CALIPER ASSY., FRONT, LH. (Ref. č 06B) 511207 CALIPER ASSY., FRONT, LH.

FOR 12＂

1 € 189,59 € 233
Naskladňujeme

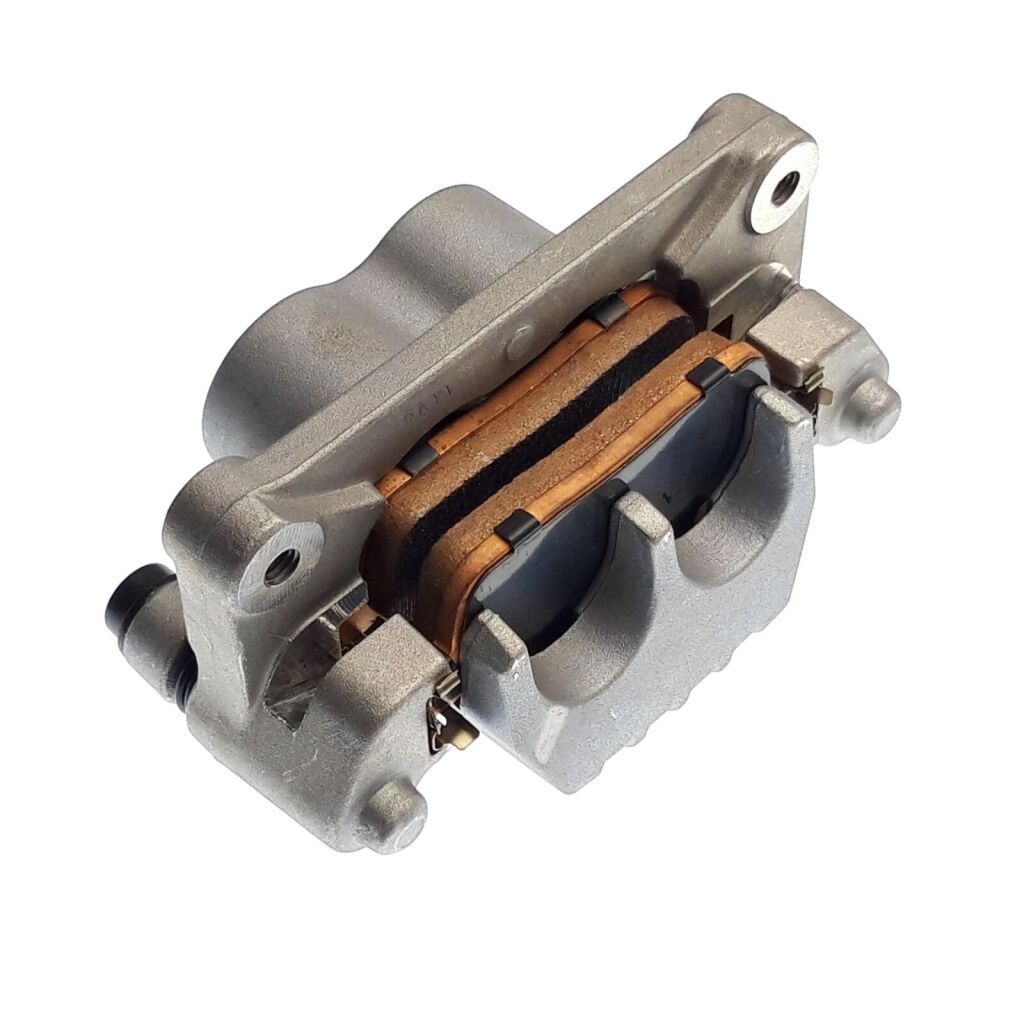

07 CALIPER ASSY., FRONT, RH (Ref. č 07) 511201 CALIPER ASSY., FRONT, RH

FOR 14＂

1 € 151,49 € 186
SKLADOM
07.1 BRAKE PAD TGB FRONT BLADE 1000 LT EVO, 1000 LTX (Ref. č 07-1) 511231 BRAKE PAD TGB FRONT BLADE 1000 LT EVO, 1000 LTX

FOR 14＂

1 € 72,15 € 89
NA CESTE
07A CALIPER ASSY., FRONT, RH(RED) (Ref. č 07A) 511201AR CALIPER ASSY., FRONT, RH(RED)

FOR 14＂

1 € 211,40 € 260
Naskladňujeme
07B CALIPER ASSY., FRONT, RH. (Ref. č 07B) 511208 CALIPER ASSY., FRONT, RH.

FOR 12＂

1 € 189,59 € 233
Naskladňujeme

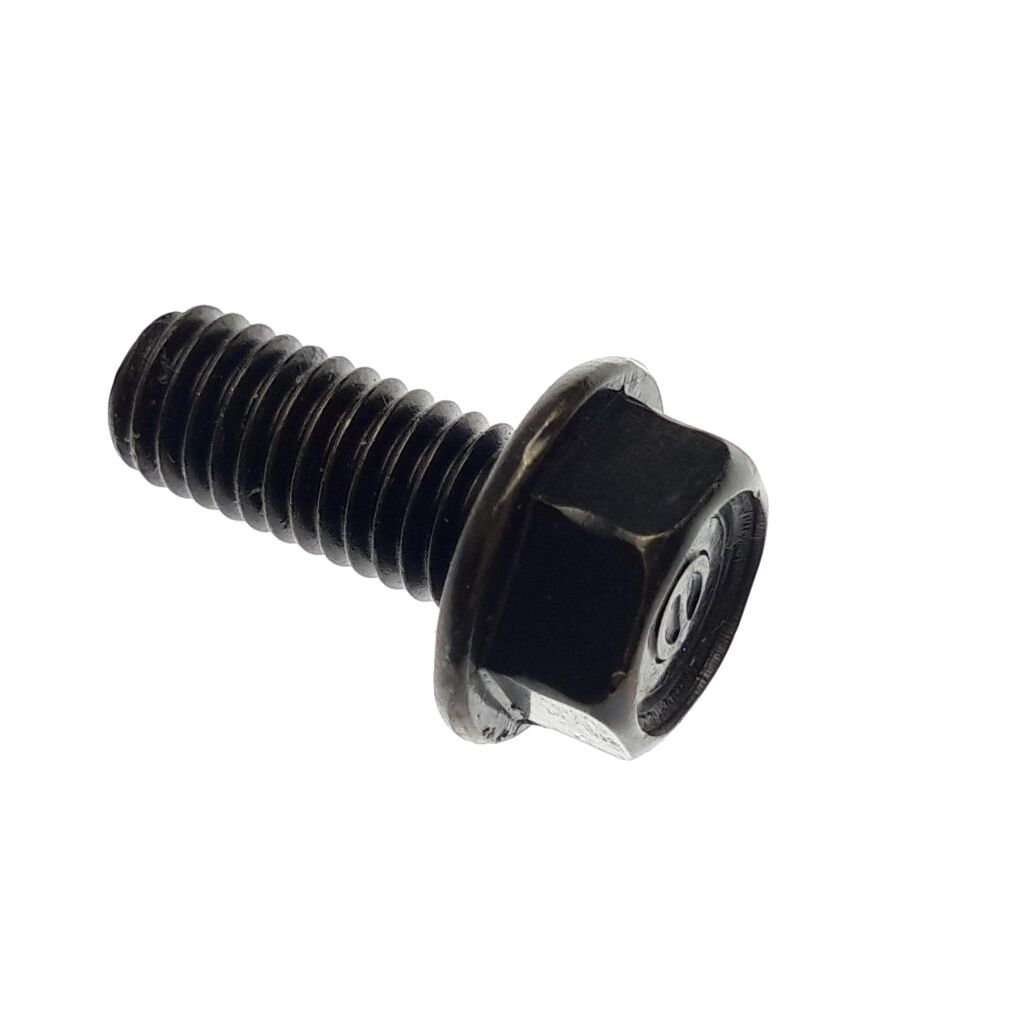

10 BOLT (Ref. č 10) S21809 BOLT  4 € 2,40 € 3
SKLADOM

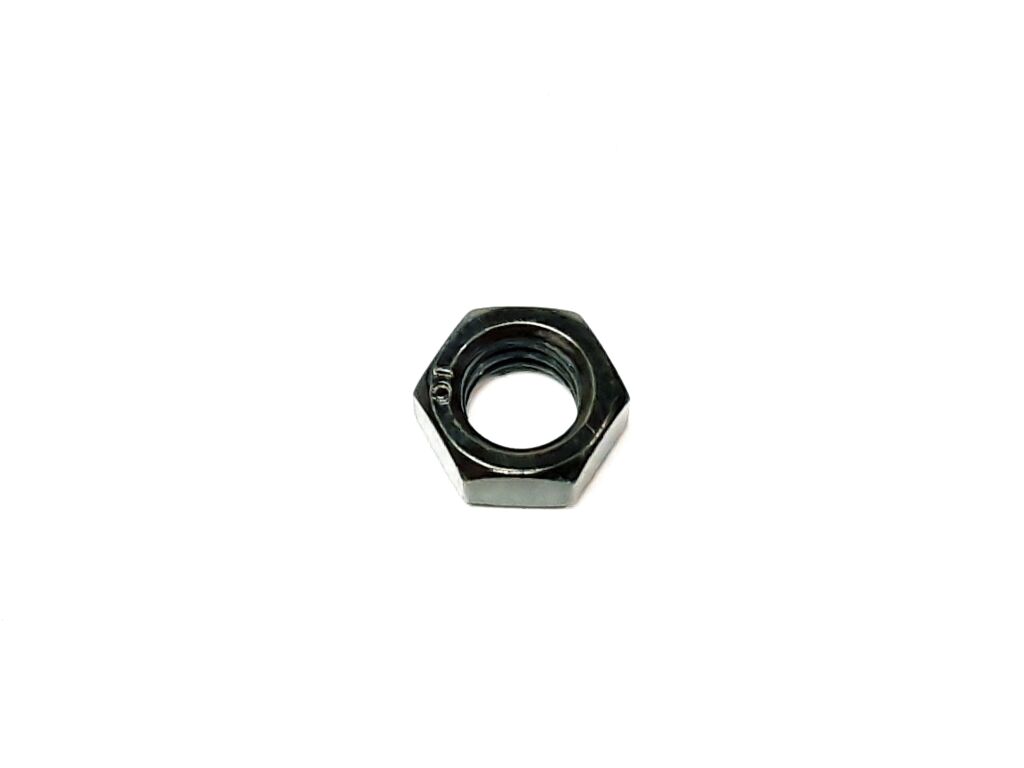

12 NUT (Ref. č 12) N13203 NUT  4 € 3,80 € 5
Naskladňujeme

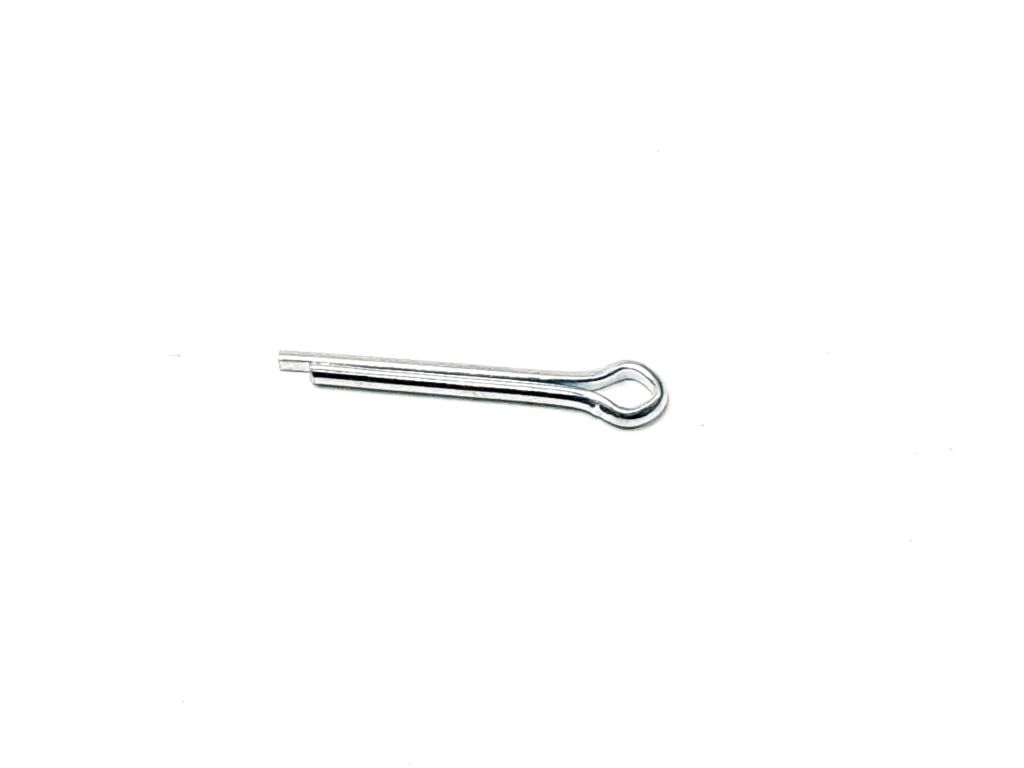

13 PIN, COTTER 2,5 (Ref. č 13) GA551PN04 PIN, COTTER 2,5  4 € 2,40 € 3
SKLADOM
14 SPRING WASHER (Ref. č 14) GA556WS04 SPRING WASHER  4 € 2,40 € 3
SKLADOM
16 NUT, HEX HEAD M8 (Ref. č 16) GA551NT04 NUT, HEX HEAD M8

FOR 14"

4 € 2,40 € 3
SKLADOM

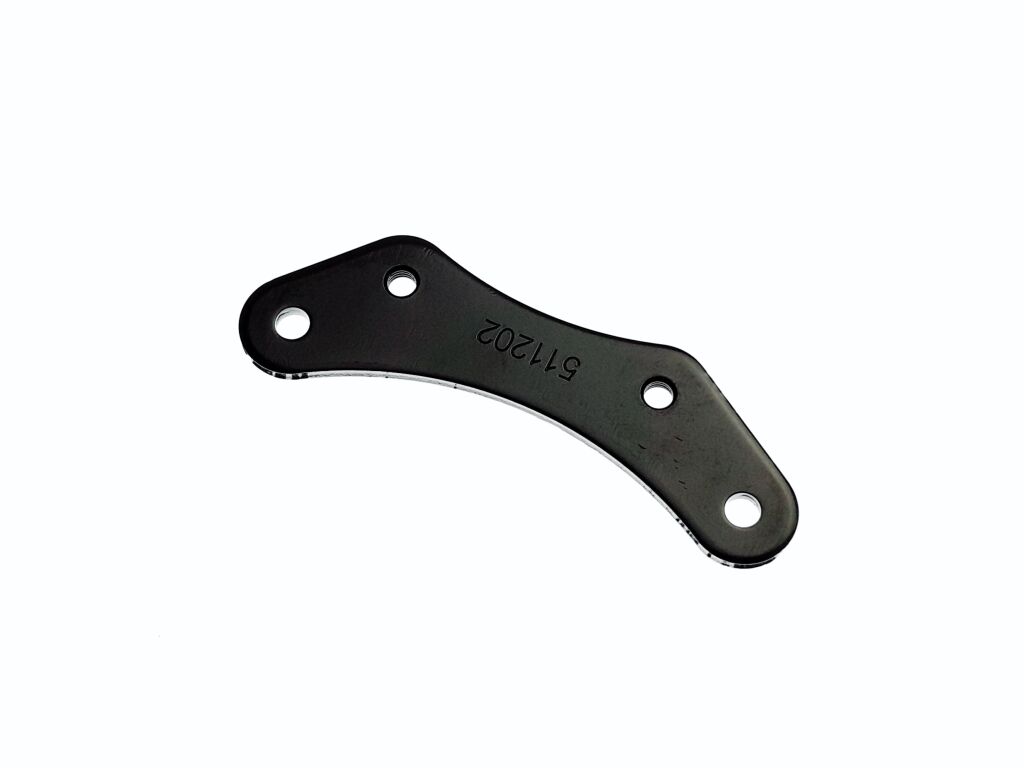

08 BRACKET,CALIPER,LH (Ref. č 08) 511202 BRACKET,CALIPER,LH

FOR 14＂

1 € 10,33 € 13
SKLADOM
09 BRACKET,CALIPER,RH (Ref. č 09) 511203 BRACKET,CALIPER,RH

FOR 14＂

1 € 10,33 € 13
NA DOPYT
06 CALIPER ASSY., FRONT, LH (Ref. č 06) 511209 CALIPER ASSY., FRONT, LH

FOR 14＂

1 € 195,29 € 240
NA DOPYT
01.1 KNUCKLE, STEERING, LH. (Ref. č 01-1) 511115 KNUCKLE, STEERING, LH.  1 € 169,26 € 208
NA DOPYT

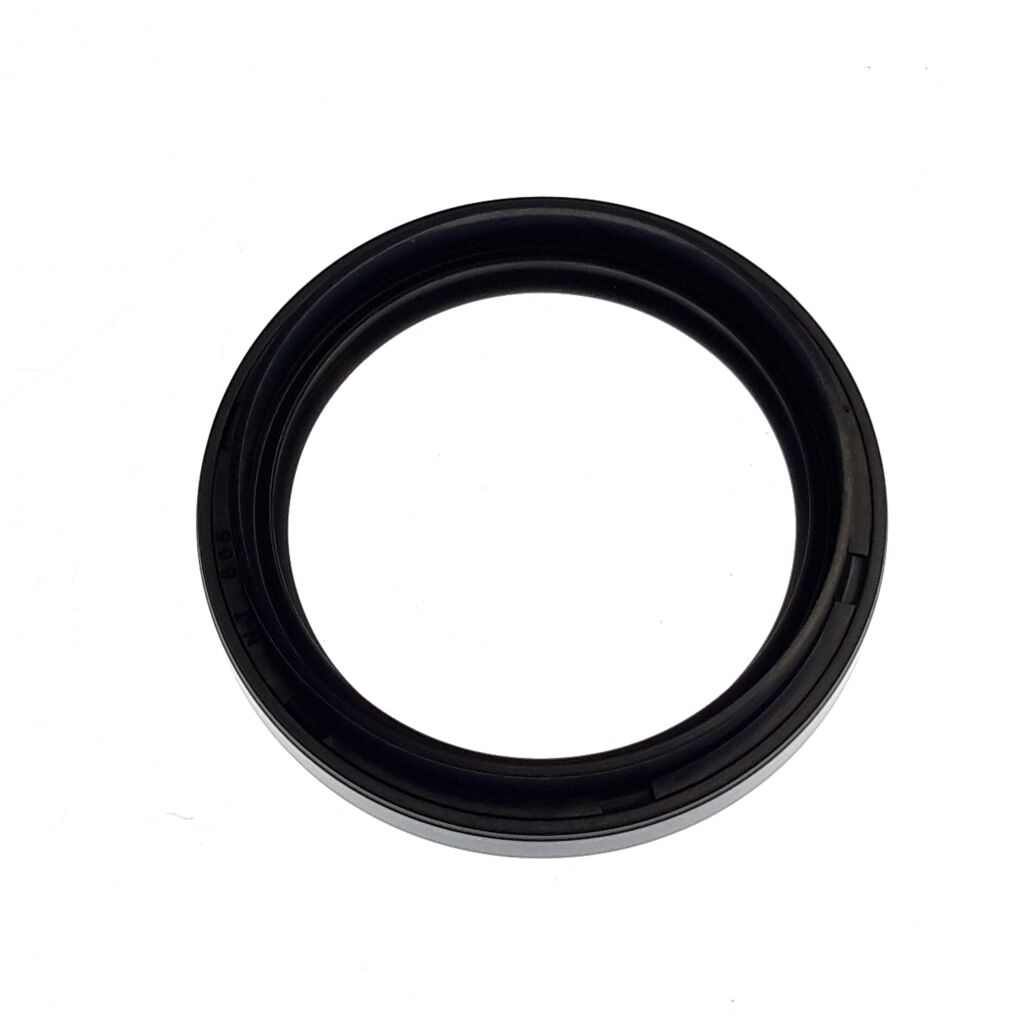

01.2 R/B 512862K OIL SEAL (OUTSIDE) (Ref. č 01-2) 512862 R/B 512862K OIL SEAL (OUTSIDE)  1 € 10 € 12
NA DOPYT
01.3 BEARING (Ref. č 01-3) 925001 BEARING  2 € 47,02 € 58
Naskladňujeme
01.4 SPACER (Ref. č 01-4) 517820 SPACER  1 € 19,67 € 24
Naskladňujeme
01.5 R/B 512860K OIL SEAL, INNER (Ref. č 01-5) 512860 R/B 512860K OIL SEAL, INNER  1 € 8,60 € 11
NA DOPYT
01.6 C CLIP (Ref. č 01-6) R01601 C CLIP  1 € 6,03 € 7
SKLADOM
02 KNUCKLE, STEERING, RH. (Ref. č 02) 511116YA KNUCKLE, STEERING, RH.  1 € 205,45 € 253
NA DOPYT
02.1 KNUCKLE, STEERING, RH. (Ref. č 02-1) 511116 KNUCKLE, STEERING, RH.  1 € 164,71 € 203
NA DOPYT
03 HUB, FRONT WHEEL (Ref. č 03) 518604 HUB, FRONT WHEEL  2 € 91,90 € 113
NA DOPYT

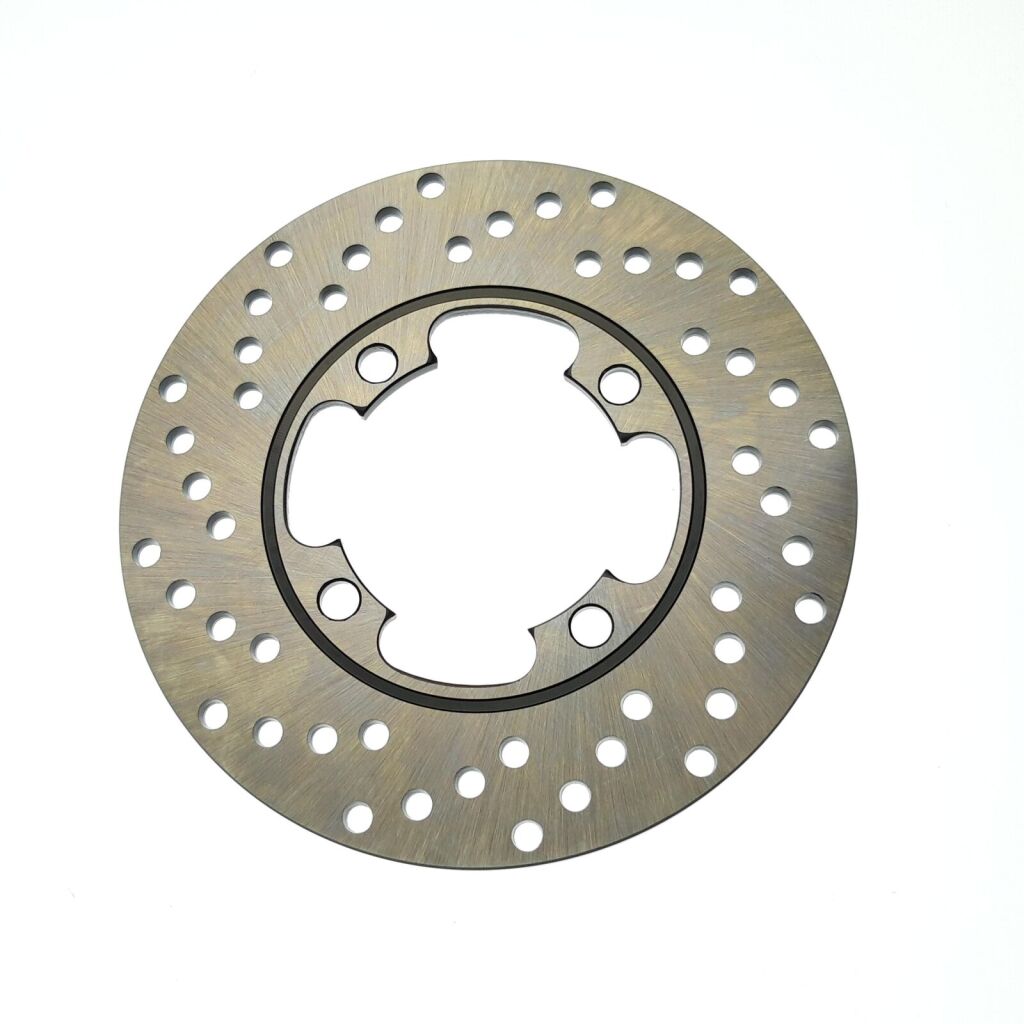

04 DISC,BRAKE(230mm) (Ref. č 04) 513480Y DISC,BRAKE(230mm)

FOR 14＂

2 € 46,61 € 57
Naskladňujeme
04A DISC, BRAKE 200mm (Ref. č 04A) 513484Y DISC, BRAKE 200mm

FOR 12＂

2 € 40,83 € 50
SKLADOM

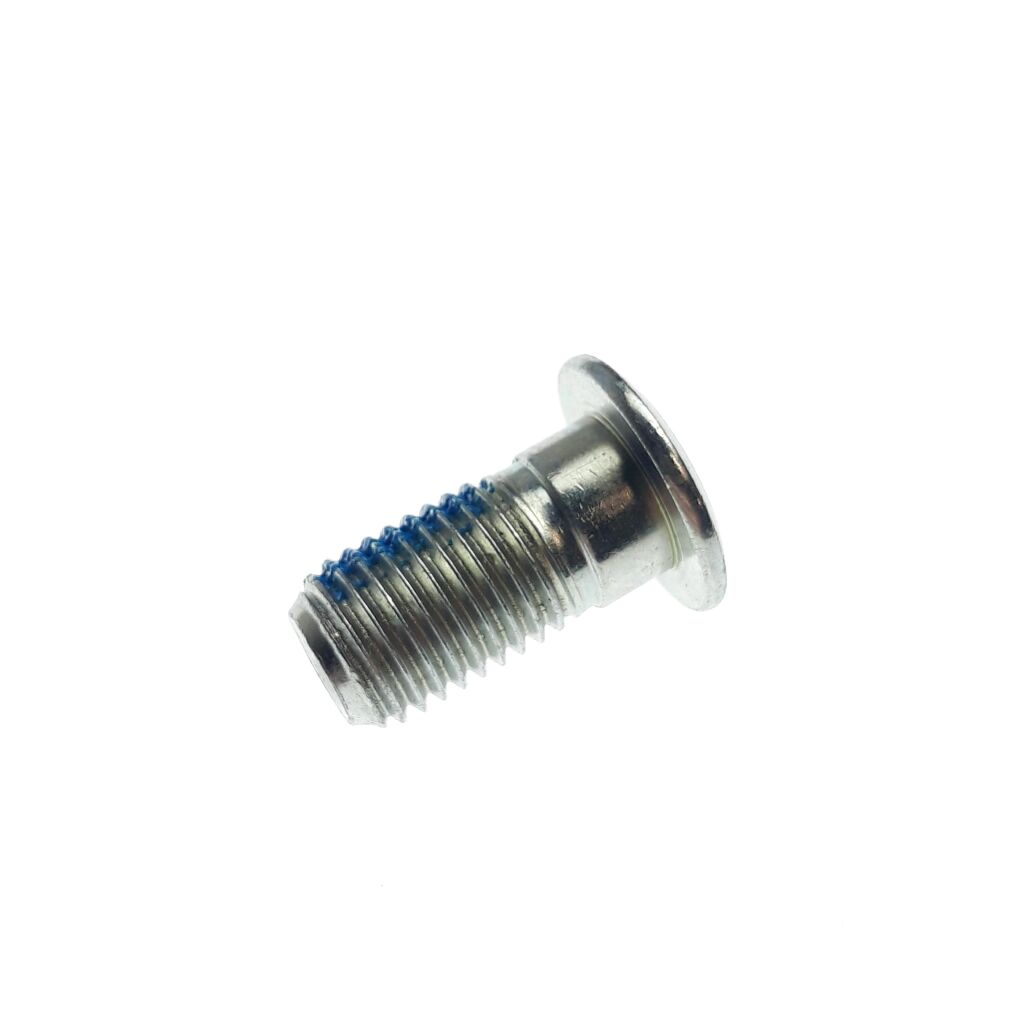

05 SCREW, SOCKET (Ref. č 05) S72005 SCREW, SOCKET  8 € 3,06 € 4
SKLADOM
15 S99812 BOLT M8X21L

FOR 14＂

4 € 1,98 € 2
NA DOPYT
Kód produktu TGB_2_212_ETT-J
typ rozkresu: FRAME PARTS
ZNACKA: TGB
MODEL: BLADE 1000LTX T3b
TYP: BLADE 1000LTX
