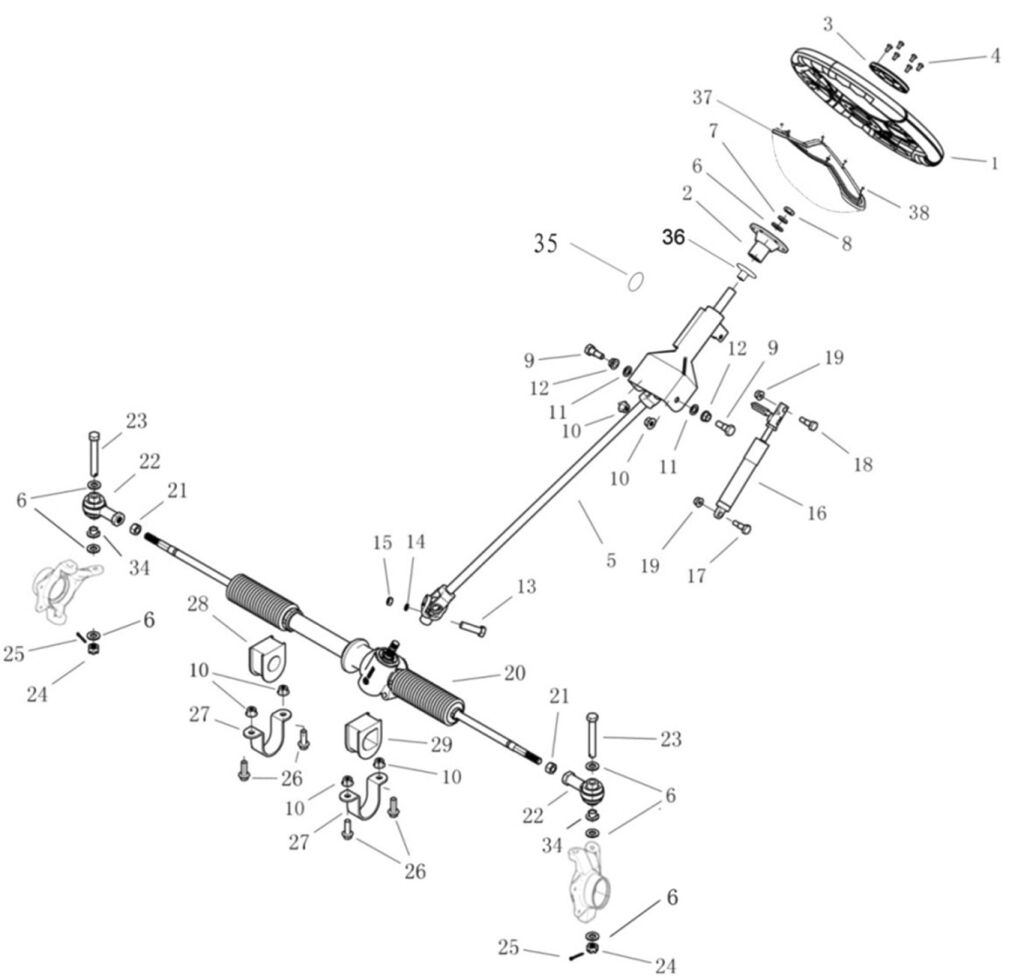

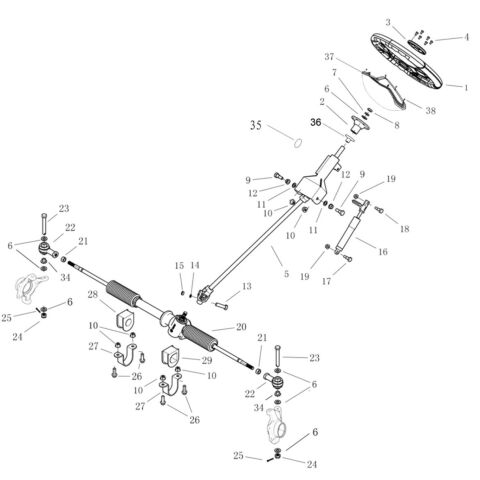

STEERING ASSY Ver.24

LINHAI
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
1 26925 Steering Wheel  1 € 77,19 € 95
NA DOPYT
19 NUT M 8 (Ref. č 19) 10776 NUT M 8  2 € 9,59 € 12
SKLADOM

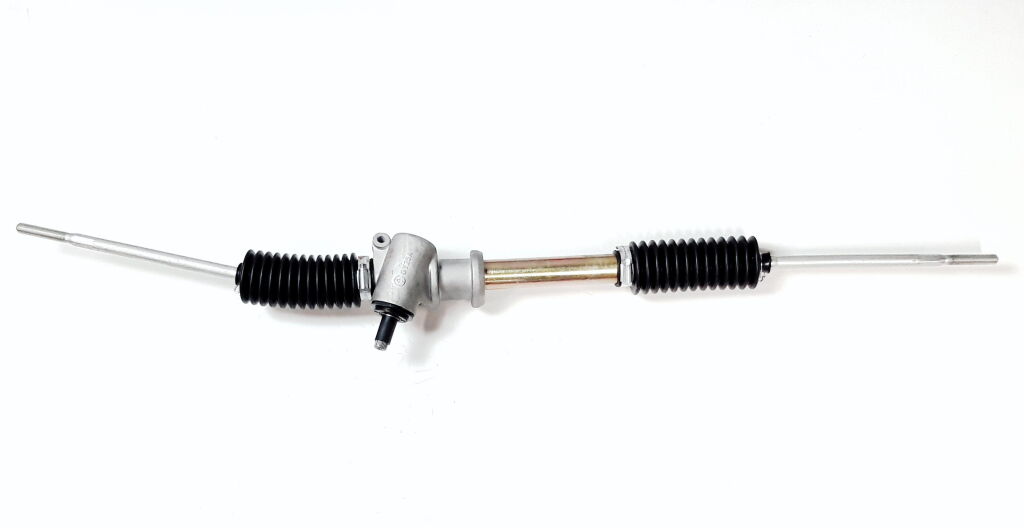

20 STEERING ASSY (Ref. č 20) 73123 STEERING ASSY  1 € 315,12 € 388
NA CESTE
21 Hexagon Nut Fine Pitch M12×1.25 (Ref. č 21) 10799 Hexagon Nut Fine Pitch M12×1.25  2 € 13,64 € 17
SKLADOM
22 TIE ROD END (Ref. č 22) 73050 TIE ROD END  2 € 75,87 € 93
SKLADOM

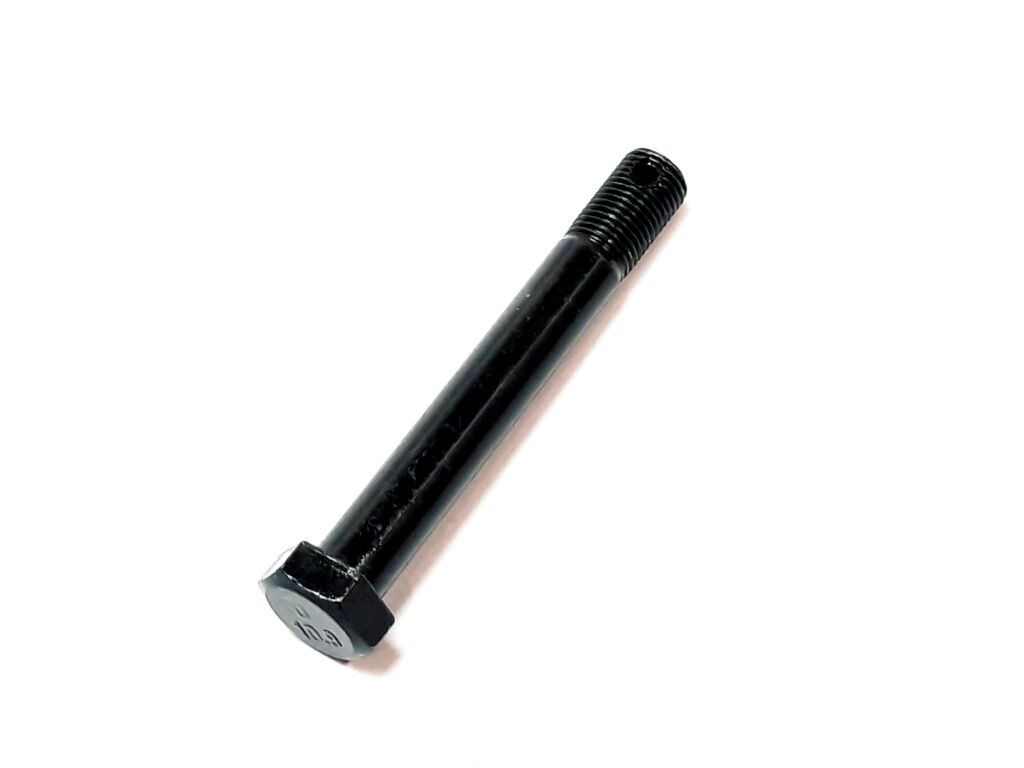

23 Hex Bolts With Split Pin Hole M12×1.25×87 (Ref. č 23) 73124 Hex Bolts With Split Pin Hole M12×1.25×87  2 € 2,81 € 3
SKLADOM
24 70679 NUT，CASTLE  2 € 2,31 € 3
NA DOPYT
25 10772 PIN 3.2X22  2 € 7,19 € 9
NA DOPYT
26 10784 Hexagon Flange Bolt M10×1.25×30 8.8  4 € 2,40 € 3
NA DOPYT
27 Bracket For Steering Gear (Ref. č 27) 26935 Bracket For Steering Gear  2 € 4,05 € 5
SKLADOM
28 RUBBER BUSH A FOR STEERING GEAR (Ref. č 28) 26936 RUBBER BUSH A FOR STEERING GEAR  1 € 7,60 € 9
SKLADOM
29 RUBBER BUSH B FOR STEERING GEAR (Ref. č 29) 26937 RUBBER BUSH B FOR STEERING GEAR  1 € 7,36 € 9
SKLADOM
34 Bushing (Ref. č 34) 73121 Bushing  2 € 3,22 € 4
SKLADOM
35 84427 Circular sticker  1 € 2,40 € 3
NA DOPYT
36 84523 Rubber cover  1 € 3,64 € 4
NA DOPYT
37 84524 Wind holster  1 € 34,30 € 42
NA DOPYT
18 73119 Shoulder Bolt M8×1.25×30  1 € 2,23 € 3
NA DOPYT
17 73120 Shoulder Bolt M8×1.25×26  1 € 4,30 € 5
NA DOPYT
2 26932 Steering Wheel Holder  1 € 25,87 € 32
NA DOPYT
3 26934 Steering Cover  1 € 5,37 € 7
NA DOPYT
4 73072 Cross Recessed Pan Head Screw m5×10  6 € 7,19 € 9
NA DOPYT

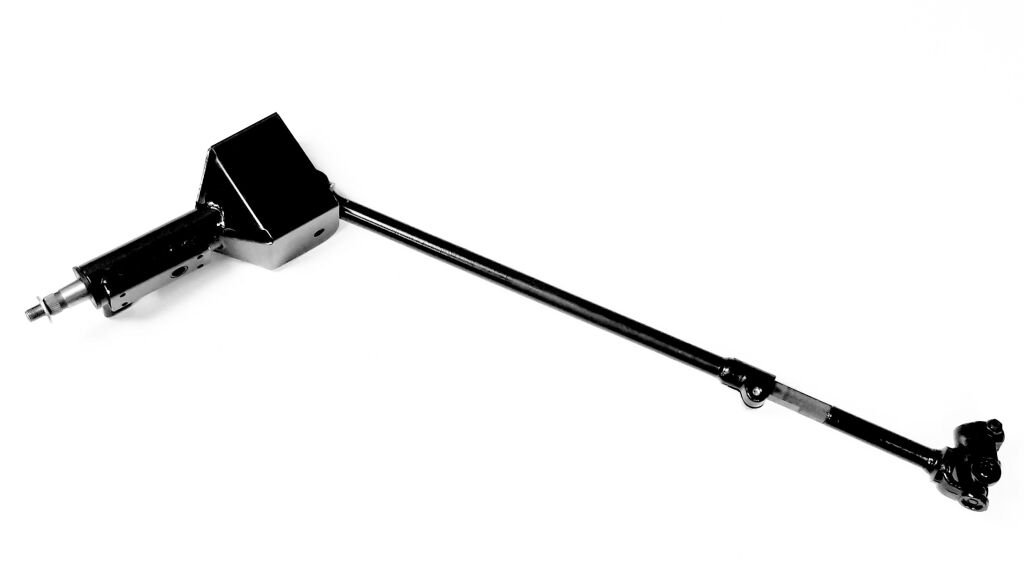

5 STEERING COLUMN (Ref. č 5) 73142 STEERING COLUMN  1 € 229,83 € 283
NA DOPYT
6 Washer 12 (Ref. č 6) 11488 Washer 12  7 € 2,40 € 3
SKLADOM
7 WASHER 12 (Ref. č 7) 10054 WASHER 12  1 € 2,40 € 3
SKLADOM
8 26257 Hexagon Thin Nut M12×1.25  1 € 13,64 € 17
NA DOPYT
9 73143 Shoulder Bolt M10×1.25×30  2 € 2,23 € 3
NA DOPYT
10 Prevailing Torque Hexagon Nut With Flange M10×1.25 (Ref. č 10) 10795 Prevailing Torque Hexagon Nut With Flange M10×1.25  6 € 9,59 € 12
SKLADOM
11 10803 Washer 13×20×2  2 € 7,19 € 9
NA DOPYT
12 73125 Bushing For Adjustable Steering Wheel  2 € 2,89 € 4
NA DOPYT
13 26255 Hexagon Head Bolt M8×1.25×40  1 € 8,02 € 10
NA DOPYT
14 11490 Spring Lock Washer 8  1 € 2,40 € 3
NA DOPYT
15 SELF-LOCKING NUT M8 (Ref. č 15) 10099 SELF-LOCKING NUT M8  1 € 2,40 € 3
NA DOPYT

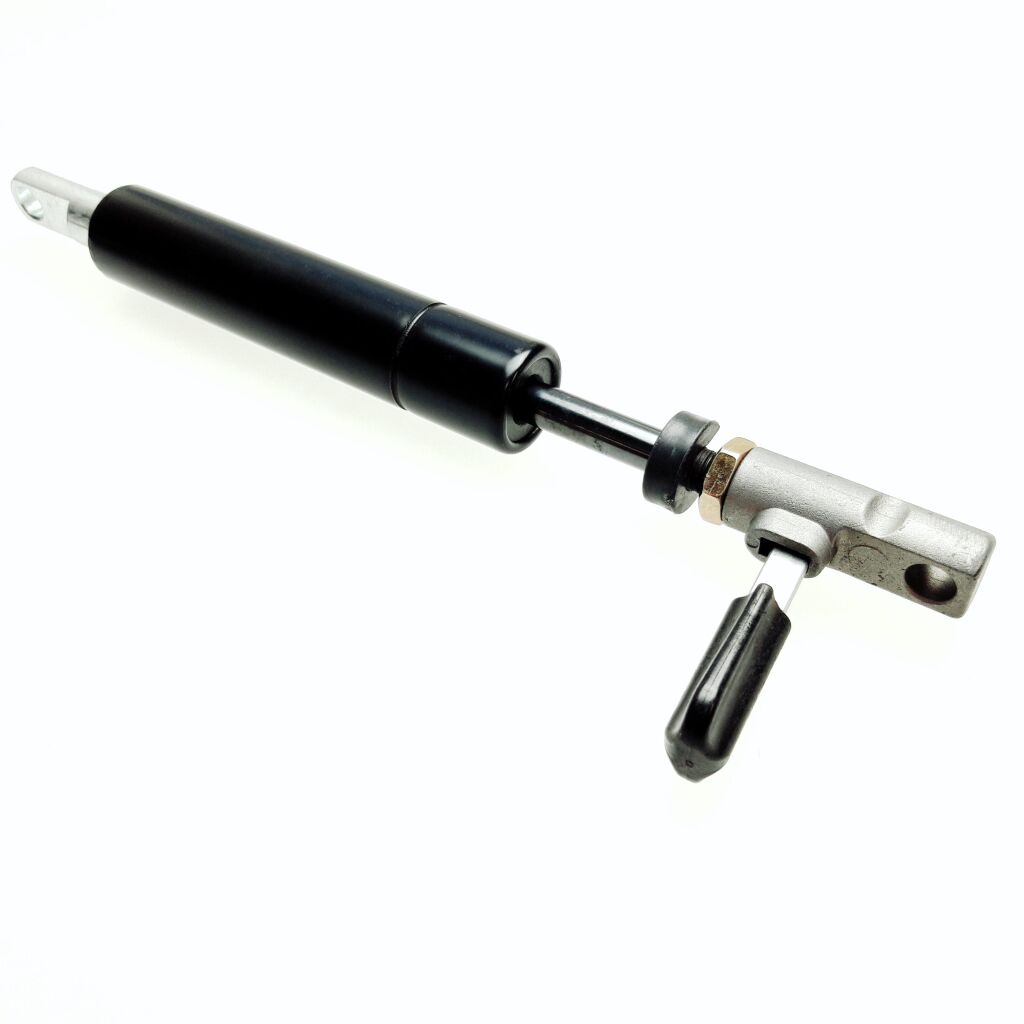

16 ADJUSTMENT CYLINDER (Ref. č 16) 73118 ADJUSTMENT CYLINDER  1 € 65,21 € 80
SKLADOM
38 Cross Recessed Pan Head Tapping Screw ST4.8×16 (Ref. č 38) 11468 Cross Recessed Pan Head Tapping Screw ST4.8×16  6 € 2,40 € 3
SKLADOM
Kód produktu LINHAI_2_201_LH1100U-24
typ rozkresu: FRAME PARTS
ZNACKA: LINHAI
MODEL: T-BOSS LH1100U D T1b (EPS)
TYP: LINHAI UTV 1100 Diesel
