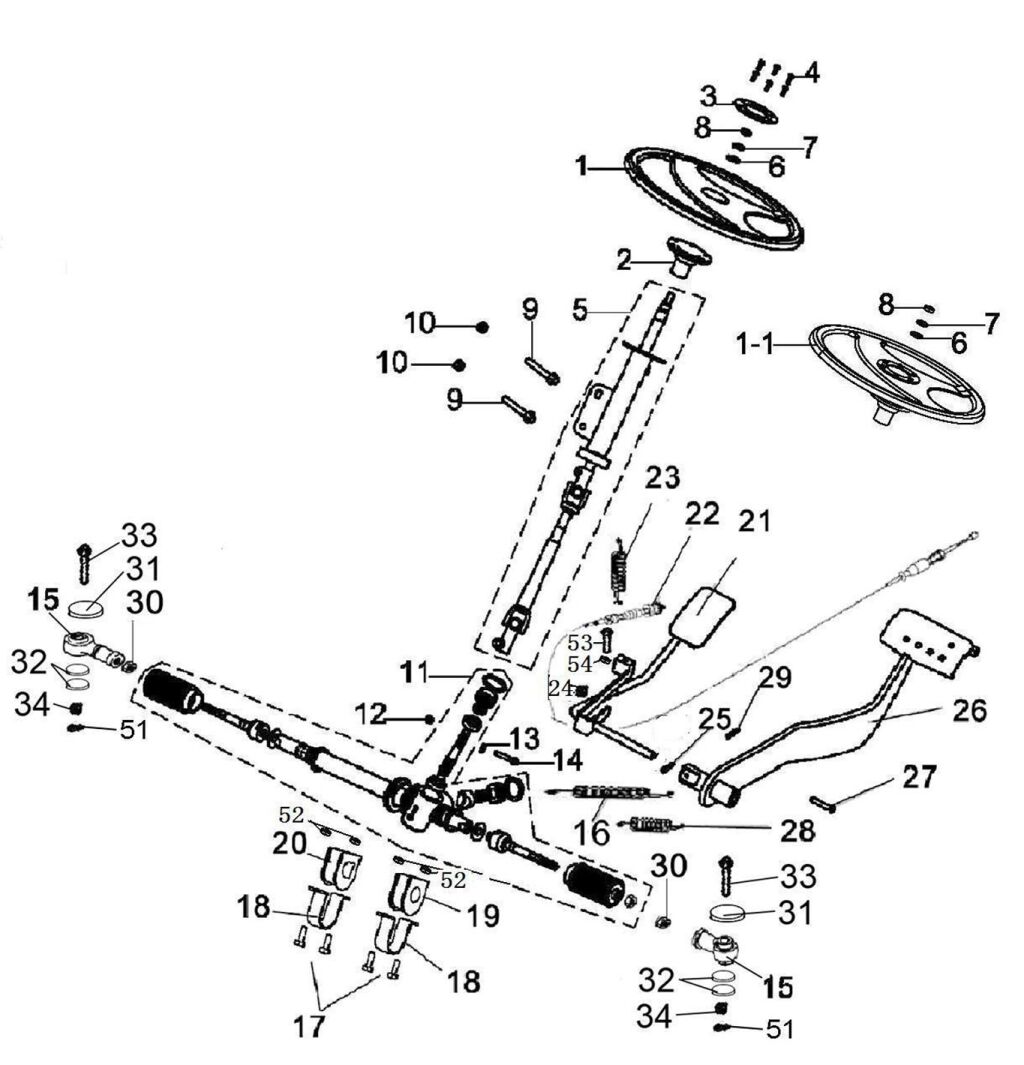

STEERING ASSY

Ref. č Obr. Kód p. Popis p. ks Cena Dostupnost
1 26925 Steering Wheel  1 € 77,19 € 93,40
NA DOPYT
22 CABLE,THROTTLE (Ref. č 22) 26451 CABLE,THROTTLE  1 € 32,40 € 39,20
NA DOPYT
31 BIG WASHER 10 (Ref. č 31) 11035 BIG WASHER 10  2 € 2,40 € 2,90
SKLADOM
32 WASHER 10 (Ref. č 32) 10019 WASHER 10  4 € 2,40 € 2,90
SKLADOM
33 BOLT M10x1.25x55 (Ref. č 33) 10708 BOLT M10x1.25x55  2 € 2,40 € 2,90
SKLADOM
34 NUT M10x1.25 (Ref. č 34) 10020 NUT M10x1.25  2 € 2,40 € 2,90
SKLADOM
51 10094 Cotter Pin 2×20  2 € 7,02 € 8,50
NA DOPYT
52 Prevailing Torque Hexagon Nut With Flange M10×1.25 (Ref. č 52) 10795 Prevailing Torque Hexagon Nut With Flange M10×1.25  4 € 9,59 € 11,60
NA DOPYT
10 Prevailing Torque Hexagon Nut With Flange M10×1.25 (Ref. č 10) 10795 Prevailing Torque Hexagon Nut With Flange M10×1.25  2 € 9,59 € 11,60
NA DOPYT
53 10965 BOLTS M8X35  1 € 7,19 € 8,70
NA DOPYT
54 SELF-LOCKING NUT M8 (Ref. č 54) 10099 SELF-LOCKING NUT M8  1 € 2,40 € 2,90
NA DOPYT
12 SELF-LOCKING NUT M8 (Ref. č 12) 10099 SELF-LOCKING NUT M8  1 € 2,40 € 2,90
NA DOPYT
23 26938 SPRING,THROTTLE  1 € 2,40 € 2,90
NA DOPYT
24 26375 LIMITING BUFFER RUBBER  1 € 3,64 € 4,40
NA DOPYT
25 PIN 1.5X20 (Ref. č 25) 10021 PIN 1.5X20  1 € 2,40 € 2,90
SKLADOM
26 PEDAL,BRAKE (Ref. č 26) 26931 PEDAL,BRAKE  1 € 32,15 € 38,90
SKLADOM
27 26940 PIN  1 € 8,93 € 10,80
NA DOPYT
28 26941 SPRING A,BRAKE PADEL  1 € 3,22 € 3,90
NA DOPYT
29 26267 PIN 4X32  1 € 7,19 € 8,70
NA DOPYT
30 10524 NUT M12X1.25  2 € 13,64 € 16,50
NA DOPYT
21 26412 PADEL,THROTTLE  1 € 19,75 € 23,90
NA DOPYT
20 RUBBER BUSH B FOR STEERING GEAR (Ref. č 20) 26937 RUBBER BUSH B FOR STEERING GEAR  1 € 7,36 € 8,90
SKLADOM
2 26932 Steering Wheel Holder  1 € 25,87 € 31,30
NA DOPYT
3 26934 Steering Cover  1 € 5,37 € 6,50
NA DOPYT
4 73072 Cross Recessed Pan Head Screw m5×10  6 € 7,19 € 8,70
NA DOPYT
5 COLUMN, STEERING (Ref. č 5) 26926 COLUMN, STEERING  1 € 189,17 € 228,90
NA DOPYT
7 WASHER 12 (Ref. č 7) 10054 WASHER 12  1 € 2,40 € 2,90
SKLADOM
8 26257 Hexagon Thin Nut M12×1.25  1 € 13,64 € 16,50
NA DOPYT
9 26241 BOLT M12X1.25X30  2 € 9,01 € 10,90
NA DOPYT
11 STEERING ASSY (Ref. č 11) 26927 STEERING ASSY  1 € 279,83 € 338,60
SKLADOM
13 WASHER 8 (Ref. č 13) 10106 WASHER 8  1 € 2,40 € 2,90
SKLADOM
14 26255 Hexagon Head Bolt M8×1.25×40  1 € 8,02 € 9,70
NA DOPYT
15 TIE ROD END B (Ref. č 15) 26928 TIE ROD END B  2 € 19,83 € 24
SKLADOM
16 26933 SPRING B,BRAKE PADEL  1 € 2,89 € 3,50
NA DOPYT
17 10784 Hexagon Flange Bolt M10×1.25×30 8.8  4 € 2,40 € 2,90
NA DOPYT
18 Bracket For Steering Gear (Ref. č 18) 26935 Bracket For Steering Gear  2 € 4,05 € 4,90
SKLADOM
19 RUBBER BUSH A FOR STEERING GEAR (Ref. č 19) 26936 RUBBER BUSH A FOR STEERING GEAR  1 € 7,60 € 9,20
SKLADOM
6 WASHER 12 (Ref. č 6) 10032 WASHER 12  1 € 9,59 € 11,60
SKLADOM
