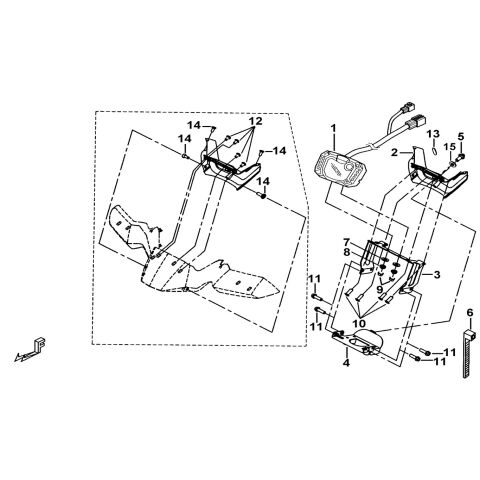

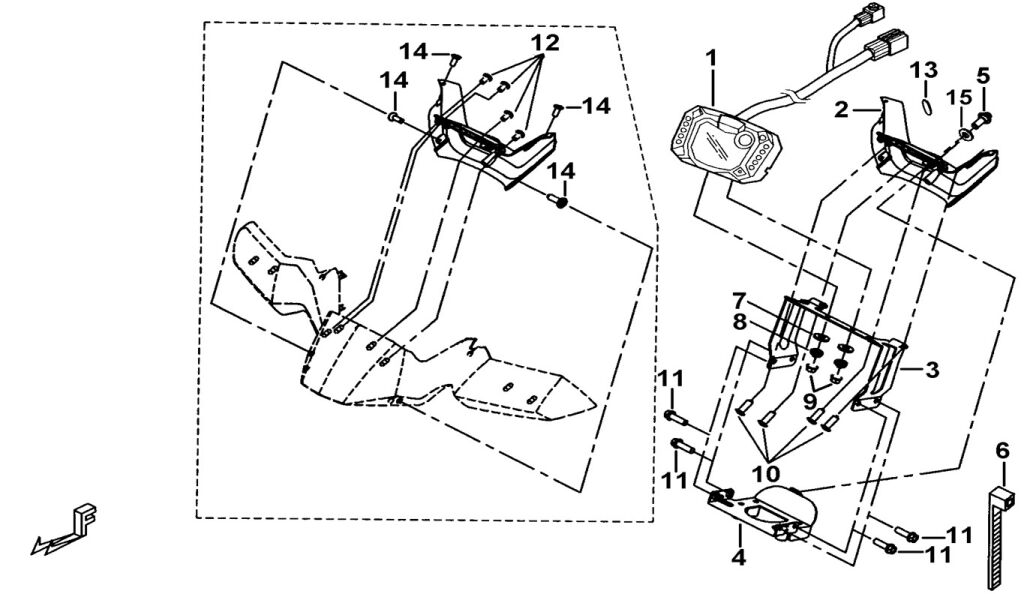

SPEEDOMETER

TGB
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
06 CLAMP L200 (Ref. č 06) 518739 CLAMP L200  4 € 3,06 € 4
SKLADOM
04 BRACKET, BOTTOM (Ref. č 04) 513094 BRACKET, BOTTOM  1 € 28,26 € 35
NA DOPYT
03 BRACKET ASSY., UPPER (Ref. č 03) 512668 BRACKET ASSY., UPPER  1 € 23,64 € 29
SKLADOM
02B REAR HANDLE GUARDS (BROACH) (Ref. č 02B) 519001-M3 REAR HANDLE GUARDS (BROACH)

003161→

1 € 21,82 € 27
NA DOPYT
02A HANDLE GUARDS (REAR) (Ref. č 02A) 519001 HANDLE GUARDS (REAR)  1 € 22,81 € 28
SKLADOM

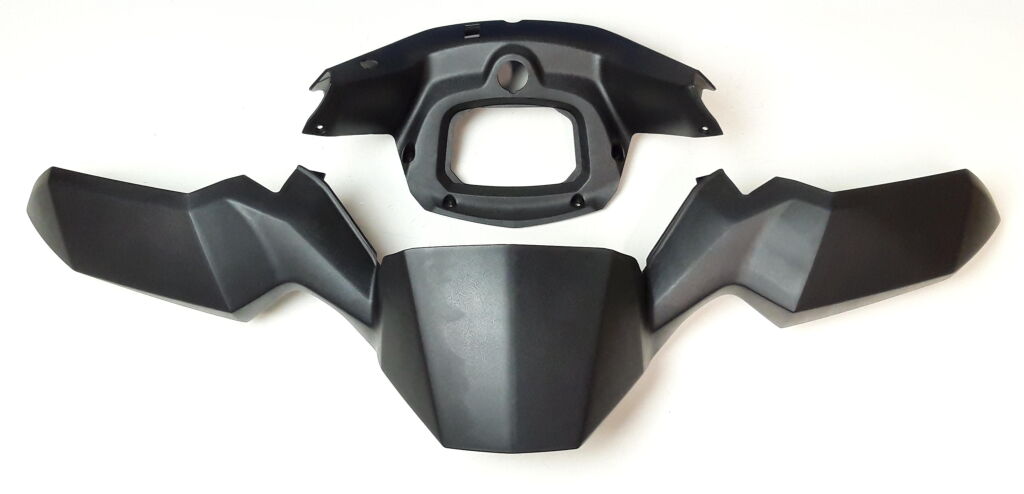

02 REAR HANDLE GUARDS (CONTAIN FRONT COVER) (Ref. č 02) 519001-S REAR HANDLE GUARDS (CONTAIN FRONT COVER)

←002066

1 € 43,14 € 53
SKLADOM
01 Speedometer Assy for EPS (Ref. č 01) 910898 Speedometer Assy for EPS  1 € 256,03 € 315
SKLADOM
14 SCREW TAPPING M4X12 (Ref. č 14) S50401 SCREW TAPPING M4X12  4 € 2,40 € 3
SKLADOM
13 RUBBER PLUG (Ref. č 13) 513128 RUBBER PLUG  1 € 3,14 € 4
SKLADOM
12 SCREW, TAPPING M4X16 (Ref. č 12) GA552SC11 SCREW, TAPPING M4X16  4 € 2,40 € 3
SKLADOM
11 BOLT, FLANGE M6X16 (Ref. č 11) GA555SC05 BOLT, FLANGE M6X16  4 € 2,40 € 3
SKLADOM
10 SCREW, OVAL HEAD, TAPPING M5X14 (Ref. č 10) S57501 SCREW, OVAL HEAD, TAPPING M5X14  4 € 2,40 € 3
SKLADOM
09 NUT, FLANGE M5 (Ref. č 09) GA552NT05 NUT, FLANGE M5  2 € 2,40 € 3
SKLADOM
08 WASHER, SPRING (Ref. č 08) W10501 WASHER, SPRING  2 € 2,40 € 3
SKLADOM
07 WASHER (Ref. č 07) GA552WS05 WASHER  2 € 2,40 € 3
SKLADOM
05 SCREW, SOCKET HEAD M6X16 (Ref. č 05) S70609 SCREW, SOCKET HEAD M6X16  1 € 2,40 € 3
SKLADOM
Kód produktu TGB_5_201_EST
MODEL: BLADE 1000LT E4
ZNACKA: TGB
typ rozkresu: OTHER PARTS
TYP: BLADE 1000
