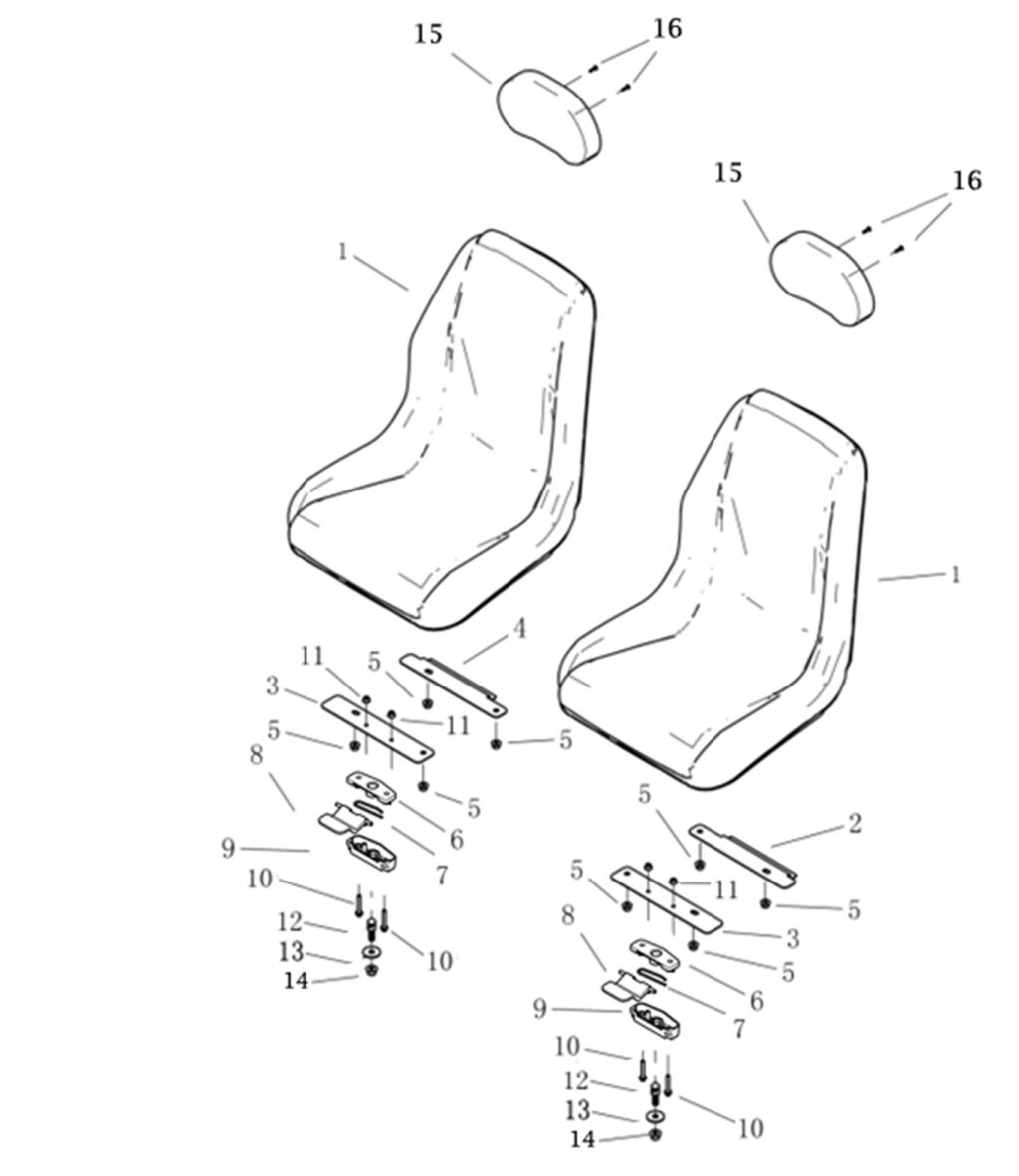

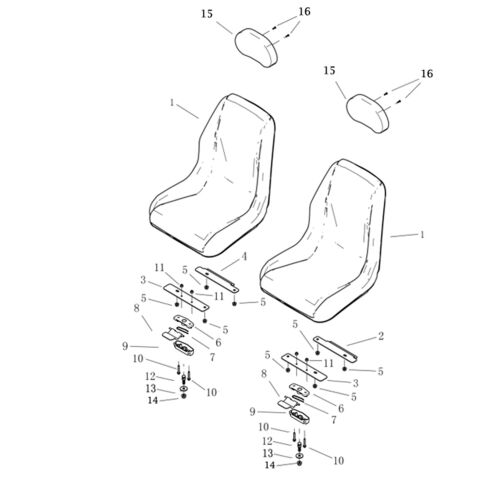

Seat

LINHAI
  • Výrobca  LINHAI
  • Kód produktu  LINHAI_4_417_LH800U-2D
MODEL:
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
1 73156 SINGLE SEAT ASSY  2 € 254,30 € 313
SKLADOM
15 Head Rest (Ref. č 15) 26966 Head Rest  2 € 28,93 € 36
Naskladňujeme
14 Prevailing Torque Hexagon Nut With Flange M10×1.25 (Ref. č 14) 10795 Prevailing Torque Hexagon Nut With Flange M10×1.25  2 € 9,59 € 12
SKLADOM
13 10864 Washer 10 (11×34×3)  2 € 7,19 € 9
NA DOPYT
12 SEAT LOCK PIN (Ref. č 12) 73157 SEAT LOCK PIN  2 € 2,15 € 3
NA DOPYT
11 PREVAILING TORQUE TYPE ALL-METAL HEXAGON NUT M6 (Ref. č 11) 10793 PREVAILING TORQUE TYPE ALL-METAL HEXAGON NUT M6  4 € 2,40 € 3
SKLADOM
10 BOLT M6X40 (Ref. č 10) 10177B BOLT M6X40  4 € 2,40 € 3
SKLADOM
9 73429 Lwr Shell,Seat Lock  2 € 7,02 € 9
NA DOPYT
8 73428 Lever,Seat Lock  2 € 7,02 € 9
NA DOPYT
7 73427 Spring,Seat Lock  2 € 2,81 € 3
NA DOPYT
6 73426 Upper Shell,Seat Lock  2 € 19,75 € 24
NA DOPYT
5 PREVAILING TORQUE TYPE AII - METAL HEXAGON NUT M8 (Ref. č 5) 10794 PREVAILING TORQUE TYPE AII - METAL HEXAGON NUT M8  8 € 40,66 € 50
SKLADOM ZA 25 dní
4 73160 SEAT MOUNTING BRACKET REAR RIGHT  1 € 9,26 € 11
NA DOPYT
3 73159 SEAT MOUNTING BRACKET FRONT  2 € 8,26 € 10
NA DOPYT
2 73158 SEAT MOUNTING BRACKET REAR LEFT  1 € 9,26 € 11
NA DOPYT
1 84170 Single Seat Assy（800U-D）  2 € 895,04 € 1 101
NA DOPYT
16 R/B 11028 Screw M6×16 (Ref. č 16) 73054 R/B 11028 Screw M6×16  4 € 2,40 € 3
SKLADOM
Kód produktu LINHAI_4_417_LH800U-2D
ZNACKA: LINHAI
typ rozkresu: BODY PARTS
TYP: LINHAI UTV 800
MODEL: LH800U 2D
