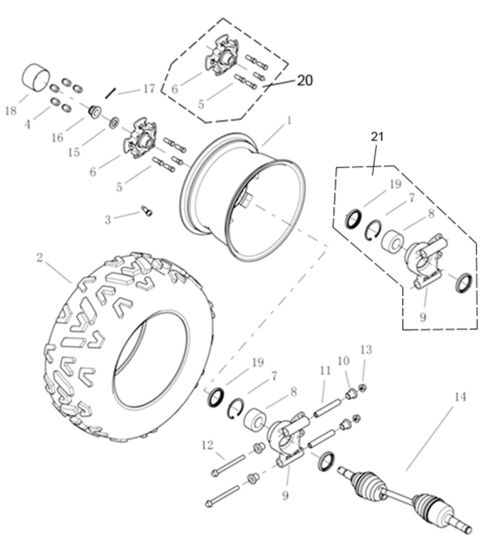

Rear Wheel RH Side

LINHAI
  • Výrobca  LINHAI
  • Kód produktu  LINHAI_2_215_LH800U-2D
MODEL:
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
1 84177 Rim Rear 14×8 Steel ，Silvery  1 € 182,07 € 224
NA DOPYT
13 NUT M12X1.25 (Ref. č 13) 10136 NUT M12X1.25  2 € 2,40 € 3
SKLADOM
14 SHAFT HALF A (One Splien) (Ref. č 14) 73179 SHAFT HALF A (One Splien)  1 € 260,33 € 320
SKLADOM
15 Washer 23×40×3 (Ref. č 15) 73060 Washer 23×40×3  1 € 3,64 € 4
SKLADOM
16 Nut M22×1.5 (Ref. č 16) 73336 Nut M22×1.5  1 € 2,64 € 3
SKLADOM
17 Cotter Pin 4×35 (Ref. č 17) 10791 Cotter Pin 4×35  1 € 7,19 € 9
NA DOPYT
18 Cap For Steel Wheel (Ref. č 18) 84060 Cap For Steel Wheel  1 € 20,25 € 25
SKLADOM
19 Oil Seal 54×72×6.5_10 (Ref. č 19) 73182 Oil Seal 54×72×6.5_10  2 € 3,97 € 5
SKLADOM
20 84241 Hub For Steel Wheel ASSY.  1
NA DOPYT
Detail
12 73334 Hexagon Flange Bolt M12×1.25×140 10.9  2 € 5,87 € 7
NA DOPYT
11 SHAFT PIVOT 114.5MM (Ref. č 11) 73049 SHAFT PIVOT 114.5MM  2 € 5,87 € 7
NA CESTE
10 BUSHING ARM (Ref. č 10) 73063 BUSHING ARM  4 € 4,71 € 6
NA CESTE
2 73183 Tire Rear 26×11-14  1 € 226,94 € 279
NA DOPYT
3 VALVE.RIM (Ref. č 3) 20807a VALVE.RIM  1 € 2,40 € 3
SKLADOM
4 NUT M12X1.25 FOR RIM (Ref. č 4) 73337 NUT M12X1.25 FOR RIM  5 € 3,80 € 5
NA CESTE
5 STUD M12X1.25X25 (Ref. č 5) 73335 STUD M12X1.25X25  5 € 2,40 € 3
SKLADOM
6 Hub For Steel Wheel (Ref. č 6) 84095 Hub For Steel Wheel  1 € 80,58 € 99
SKLADOM
7 Ring Retainer 72 (Ref. č 7) 10807 Ring Retainer 72  1 € 2,98 € 4
NA DOPYT
8 BEARING 39X72X37 (Ref. č 8) 73339 BEARING 39X72X37  1 € 62,48 € 77
SKLADOM
9 CARRIER BEARING WHEEL REAR RH (Ref. č 9) 73425 CARRIER BEARING WHEEL REAR RH  1 € 132,64 € 163
SKLADOM
21 84244 Carrier Bearing Wheel Rear Rh ASSY.  1
NA DOPYT
Detail
Kód produktu LINHAI_2_215_LH800U-2D
typ rozkresu: FRAME PARTS
ZNACKA: LINHAI
TYP: LINHAI UTV 800
MODEL: LH800U 2D
