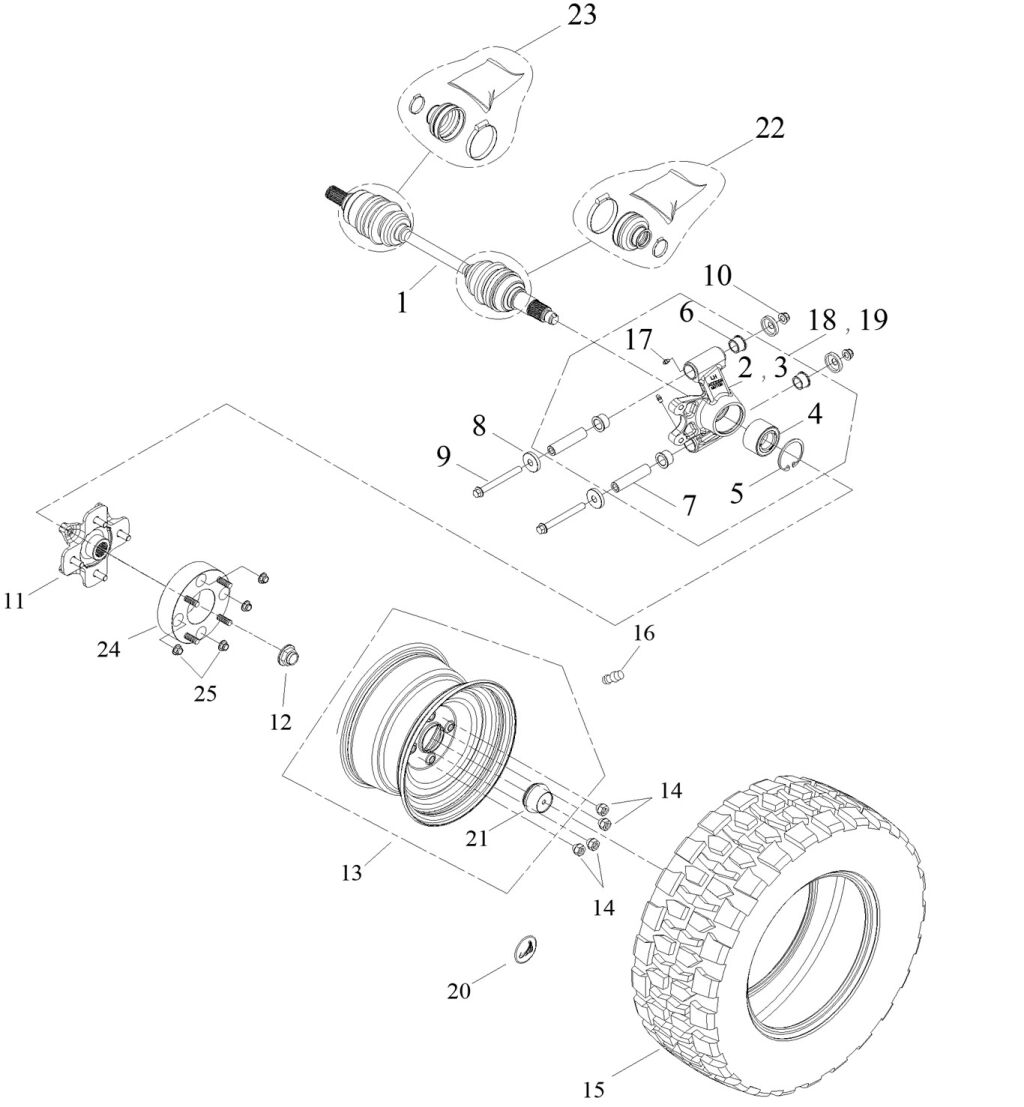

REAR WHEEL

Ref. č Obr. Kód p. Popis p. ks Cena Dostupnost
1 23200-A27-003 R/B 23200-A40-000 Rear Transmission Ass'y  2 € 273,55 € 331
NA DOPYT
15 24115-A06-010 Off-Road Tire, Rear, K573  2 € 336,86 € 407,60
NA DOPYT
16 Valve, Tire (Ref. č 16) 24106-A01-010 Valve, Tire  2 € 2,48 € 3
SKLADOM
17 Grease Valve (Ref. č 17) 91805-A01-000 Grease Valve  4 € 2,48 € 3
SKLADOM

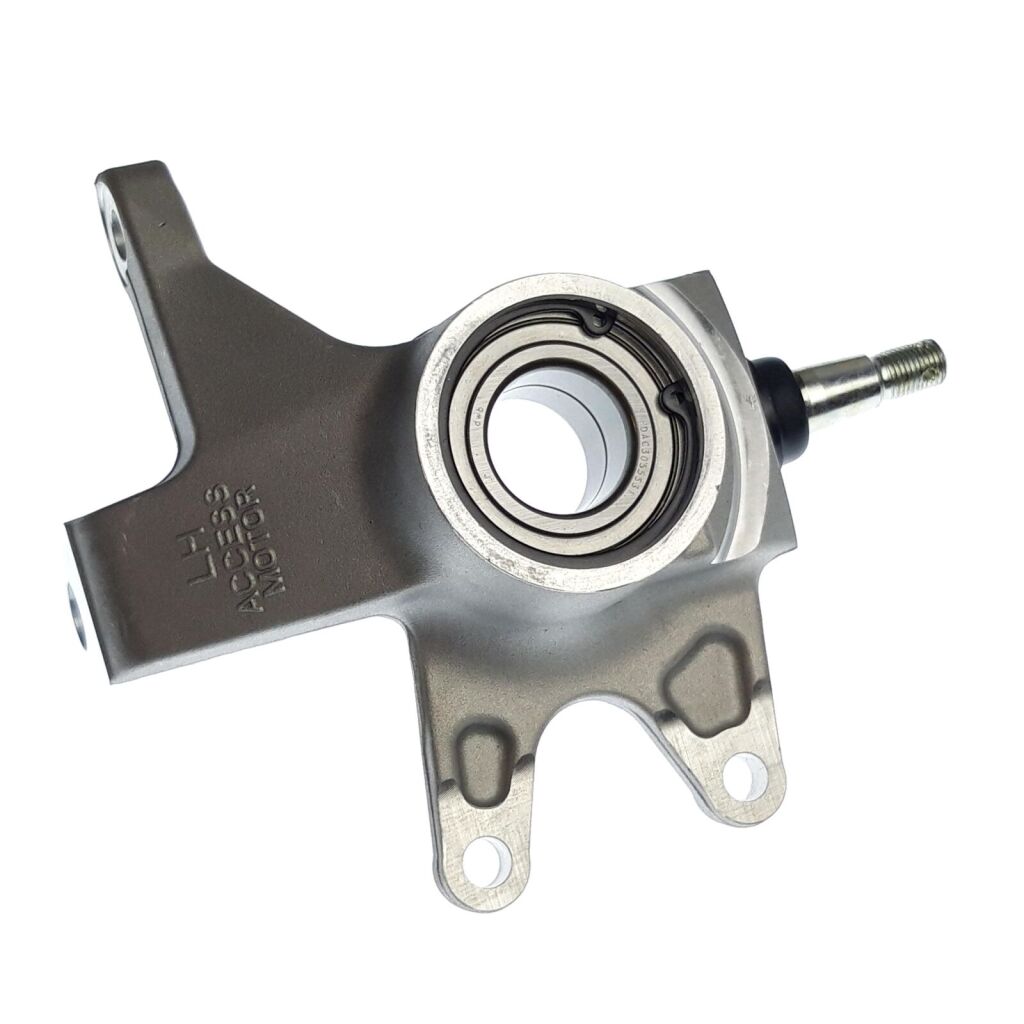

18 Rear Knuckle Assy, L. (Ref. č 18) 52340-A13-200 Rear Knuckle Assy, L.  1 € 181,82 € 220
NA DOPYT
19 R/B 52345-A27-000 Rear Knuckle Assy, R. (Ref. č 19) 52345-A13-200 R/B 52345-A27-000 Rear Knuckle Assy, R.  1 € 193,39 € 234
NA DOPYT
20 Poly Sticker (Ref. č 20) 72118-A40-000 Poly Sticker  2 € 4,13 € 5
SKLADOM
21 Cap (Ref. č 21) 93615-A40-000 Cap  2 € 14,88 € 18
SKLADOM
22 BJ Boot Kit (Ref. č 22) 23243-A13-000 BJ Boot Kit  2 € 28,93 € 35
SKLADOM
23 DOJ Boot, manžeta KIT (Ref. č 23) 23244-A13-000 DOJ Boot, manžeta KIT  2 € 31,40 € 38
SKLADOM
24 24300-A40-010 Spacer, Wheel  2 € 109,42 € 132,40
NA DOPYT
14 Tire Nut, Steel Rim (Ref. č 14) 24190-A03-100 Tire Nut, Steel Rim  8 € 2,48 € 3
NA DOPYT
13 24206-A40-000 R/B: 24206-A40-001 Access Steel Rear Rim (AX650)  2 € 103,31 € 125
NA DOPYT

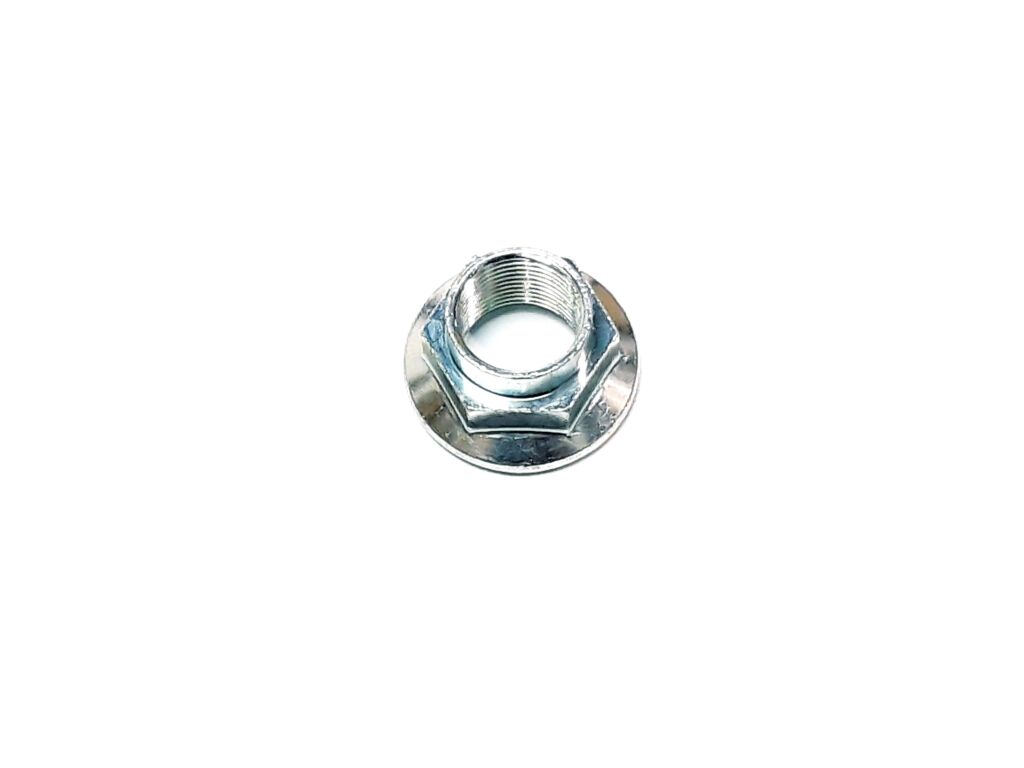

12 Nut Lock (Ref. č 12) 92205-A13-000 Nut Lock  2 € 3,31 € 4
SKLADOM

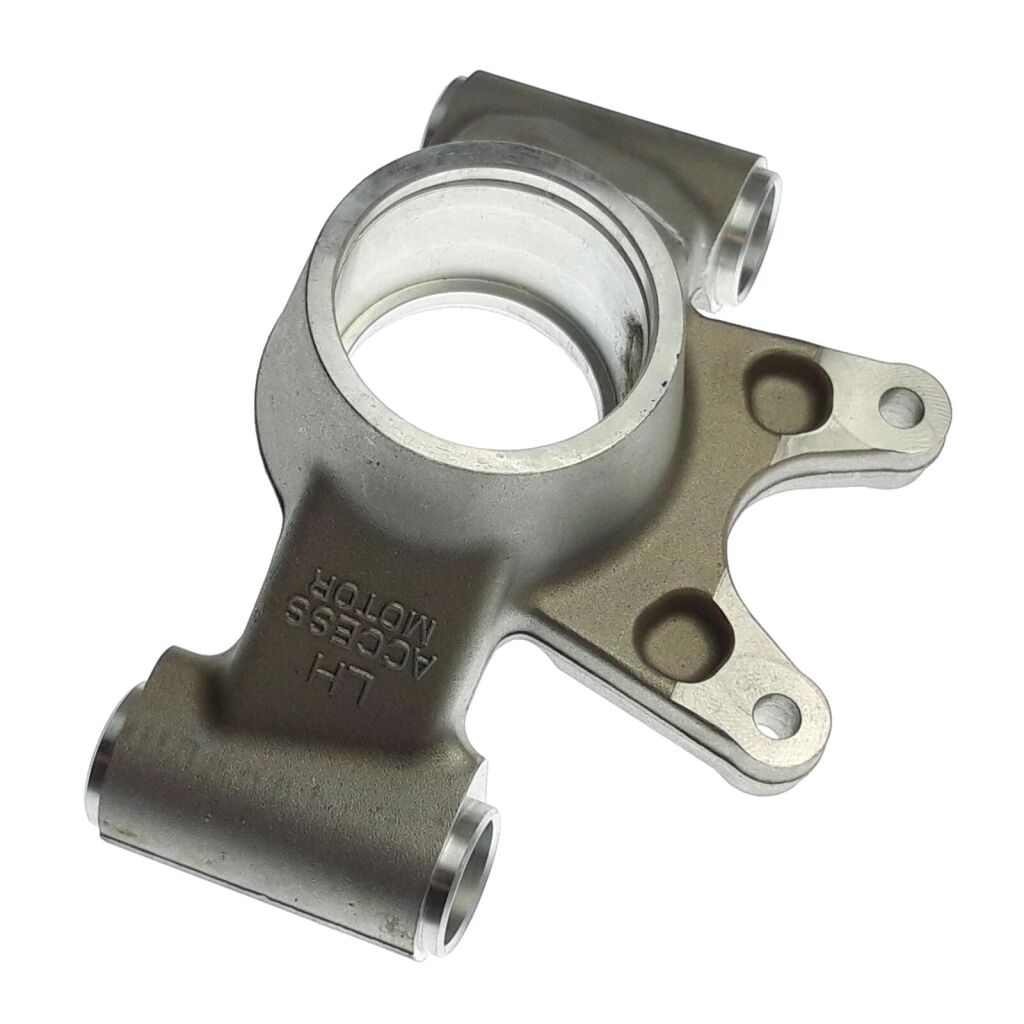

2 Knuckle, L. (Ref. č 2) 52340-A13-200-1 Knuckle, L.  1 € 136,36 € 165
NA DOPYT
3 52345-A13-200-1 Knuckle, R.  1
NA DOPYT
Detail
4 bearing (Ref. č 4) 95250-DAC3055ECS bearing  2 € 38,84 € 47
NA DOPYT
5 Clip, Inner - RTW-55 (Ref. č 5) 93405-RTW55 Clip, Inner - RTW-55  2 € 4,13 € 5
SKLADOM
6 Bushing, Contain Oil, A-arm (Ref. č 6) 95310-A13-010 Bushing, Contain Oil, A-arm  8 € 2,48 € 3
SKLADOM
7 Spacer tube (Ref. č 7) 93300-1018-76 Spacer tube  4 € 8,26 € 10
SKLADOM
8 Cover,Pivot Dust (Ref. č 8) 93609-A03-110 Cover,Pivot Dust  8 € 2,48 € 3
SKLADOM
9 Hex. Bolt, Flange (Ref. č 9) 91700-10095-14G Hex. Bolt, Flange  4 € 3,31 € 4
SKLADOM
10 92130-10S-14G-1 Nut, Insert Lock  4
NA DOPYT
Detail
25 92130-10S-14G-1 Nut, Insert Lock  8
NA DOPYT
Detail
11 23100-A13-010 Wheel Hub Ass'y R/B 23105-A40-000  2 € 144,63 € 175
NA DOPYT
