REAR SUSPENSION

TGB
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost

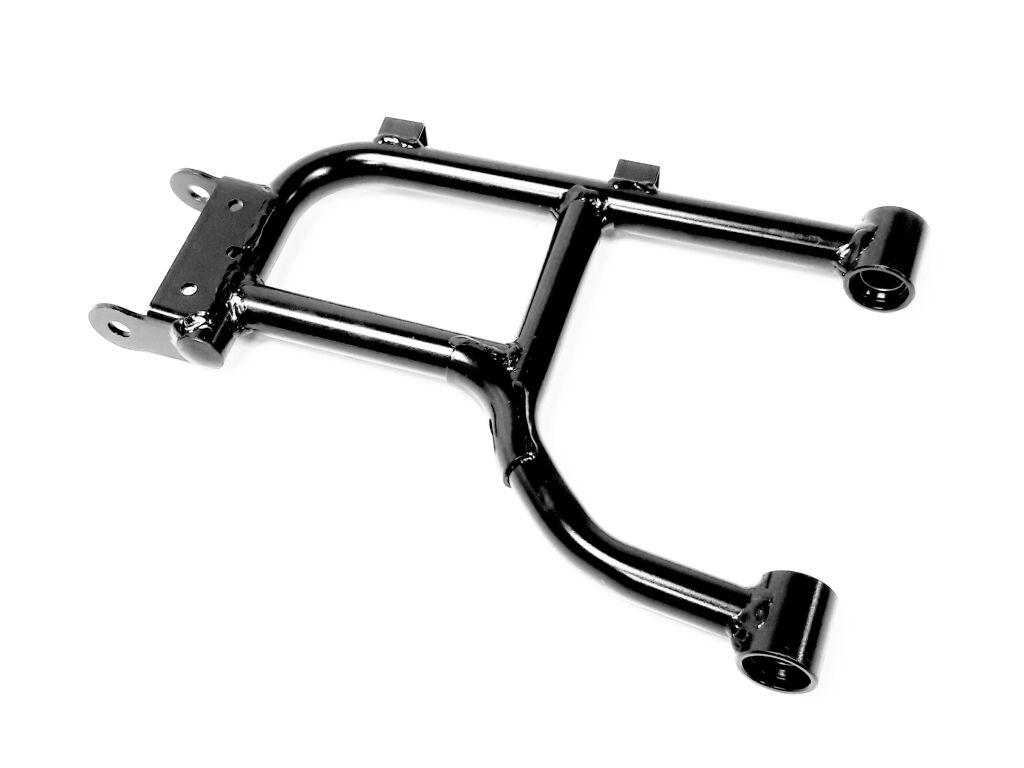

01 ARM SET, UPPER, LH. (REAR) (Ref. č 01) 511475 ARM SET, UPPER, LH. (REAR)  1 € 88,60 € 109
NA DOPYT
17 UNIVERSAL ROD RR, LH. (Ref. č 17) 511432 UNIVERSAL ROD RR, LH.  1 € 58,26 € 72
SKLADOM
18 UNIVERSAL ROD RR. RH (Ref. č 18) 511441 UNIVERSAL ROD RR. RH  1 € 58,26 € 72
SKLADOM
19 FIX BRACKET, TORSION BAR (Ref. č 19) 511674 FIX BRACKET, TORSION BAR  2 € 7,93 € 10
SKLADOM
20 SPRING WASHER (Ref. č 20) GA556WS04 SPRING WASHER  4 € 2,40 € 3
SKLADOM
21 CLAMP (LH.) (Ref. č 21) 513329 CLAMP (LH.)  2 € 2,81 € 3
SKLADOM
22 CLAMP (RH.) (Ref. č 22) 513330 CLAMP (RH.)  2 € 2,73 € 3
SKLADOM
23 WASHER (Ref. č 23) W99010 WASHER  2 € 2,40 € 3
SKLADOM
24 RUBBER (Ref. č 24) 511672 RUBBER  2 € 8,18 € 10
SKLADOM
27 WASHER (Ref. č 27) GA555WS02 WASHER

OPTION

4 € 2,40 € 3
SKLADOM
28 SCREW, FLANGE, HEX HEAD (Ref. č 28) S20603 SCREW, FLANGE, HEX HEAD

OPTION

4 € 2,40 € 3
SKLADOM
29 CLAMP L200 (Ref. č 29) 518739 CLAMP L200  1 € 3,06 € 4
SKLADOM
30 R/B 518712B ARM SET MAINTENANCE PACKAGE (CONTAIN SPACER, O RING, BUSH) (Ref. č 30) 518712A R/B 518712B ARM SET MAINTENANCE PACKAGE (CONTAIN SPACER, O RING, BUSH)  1 € 14,13 € 17
NA DOPYT
25 PROTECTOR, COVER(LH.)(AL) (Ref. č 25) 511466 PROTECTOR, COVER(LH.)(AL)

OPTION

1 € 29,34 € 36
SKLADOM
16 TONSION BAR (Ref. č 16) 511450 TONSION BAR  1 € 124,63 € 153
NA DOPYT
15 BOLT (Ref. č 15) S21809 BOLT  4 € 2,40 € 3
SKLADOM
14 BOLT, FLANGE M10X1.25X123L (Ref. č 14) S20038 BOLT, FLANGE M10X1.25X123L  2 € 6,94 € 9
Naskladňujeme
02 511476 R/B 511476Y ARM SET, UPPER, RH. (REAR)  1 € 88,60 € 109
NA DOPYT
03 ARM SET, LOWER, LH. (REAR) (Ref. č 03) 511471 ARM SET, LOWER, LH. (REAR)  1 € 176,94 € 218
SKLADOM
04 ARM SET, LOWER, RH. (REAR) (Ref. č 04) 511472 ARM SET, LOWER, RH. (REAR)  1 € 131,49 € 162
NA DOPYT
05 511409 SHOCK ABSORBER ASSY, REAR

OPTION

2 € 509,59 € 627
NA DOPYT
05A SHOCK ABSORBER, REAR (Ref. č 05A) 511447 SHOCK ABSORBER, REAR

OPTION

2 € 243,64 € 300
SKLADOM
06 NUT, SELF LOCK (Ref. č 06) GA551NT01 NUT, SELF LOCK  18 € 2,40 € 3
Naskladňujeme
07 BOLT, FLANGE (Ref. č 07) S20017 BOLT, FLANGE  8 € 2,40 € 3
SKLADOM
08 BOLT, FLANGE M10X1.25X100L (Ref. č 08) S20039 BOLT, FLANGE M10X1.25X100L  2 € 5,04 € 6
SKLADOM
09 BOLT, FLANGE (Ref. č 09) S07601 BOLT, FLANGE

OPTION

4 € 2,40 € 3
SKLADOM
10 BOLT, FLANGE (Ref. č 10) S21605 BOLT, FLANGE  4 € 2,40 € 3
SKLADOM
11 PROTECTOR, COVER (LH.) (Ref. č 11) 516371 PROTECTOR, COVER (LH.)

OPTION

1 € 9,17 € 11
SKLADOM
12 PROTECTOR, COVER (RH.) (Ref. č 12) 516372 PROTECTOR, COVER (RH.)

OPTION

1 € 12,31 € 15
Naskladňujeme
13 BOLT, FLANGE, HEX HEAD M10X1,25x48L (Ref. č 13) S20009 BOLT, FLANGE, HEX HEAD M10X1,25x48L  4 € 5,54 € 7
Naskladňujeme
26 PROTECTOR, COVER(RH.)(AL) (Ref. č 26) 511467 PROTECTOR, COVER(RH.)(AL)

OPTION

1 € 29,34 € 36
SKLADOM
Kód produktu TGB_2_205_ETT
typ rozkresu: FRAME PARTS
MODEL: BLADE 1000LT T3b
ZNACKA: TGB
TYP: BLADE 1000
