Rear suspension assembly

SEGWAY
  • Výrobca  SEGWAY
  • Kód produktu  SEGWAY_2_242_UTV1000
MODEL:
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
32 90° Connector pressure filling cup (Ref. č 32) T07000001007 90° Connector pressure filling cup  8 € 2,18 € 3
SKLADOM
23 BOLT M12×1.25×145 (Ref. č 23) GBT005789106 BOLT M12×1.25×145  2 € 2,48 € 3
SKLADOM
22 U09_REAR ROCER ARM LINERⅢ (Ref. č 22) U09D20005001 U09_REAR ROCER ARM LINERⅢ  2 € 3,31 € 4
NA DOPYT
21 U09 REAR RIGHT UPPER ROCKER ARM ASSY (MATTE BLACK) (Ref. č 21) U09D22100005 U09 REAR RIGHT UPPER ROCKER ARM ASSY (MATTE BLACK)  1 € 87,44 € 108
SKLADOM
21 U09 REAR RIGHT UPPER ROCKER ARM ASSY (GREEN) (Ref. č 21) U09D22100004 U09 REAR RIGHT UPPER ROCKER ARM ASSY (GREEN)  1 € 87,44 € 108
SKLADOM
21 U09 REAR RIGHT UPPER ROCKER ARM ASSY (RED) (Ref. č 21) U09D22100003 U09 REAR RIGHT UPPER ROCKER ARM ASSY (RED)  1 € 87,44 € 108
NA DOPYT
20 U12_RL UPPER ROCKER ARM ASSY-MATTE BLACK (Ref. č 20) U09D21100005 U12_RL UPPER ROCKER ARM ASSY-MATTE BLACK  1 € 87,44 € 108
SKLADOM
20 U11_RL UPPER ROCKER ARM ASSY-GREEN (Ref. č 20) U09D21100004 U11_RL UPPER ROCKER ARM ASSY-GREEN  1 € 87,44 € 108
SKLADOM
20 U10_RL UPPER ROCKER ARM ASSY-RED (Ref. č 20) U09D21100003 U10_RL UPPER ROCKER ARM ASSY-RED  1 € 87,44 € 108
SKLADOM
19 BOLT M12×1.25×120 (Ref. č 19) GBT005789105 BOLT M12×1.25×120  4 € 2,48 € 3
SKLADOM
24 U09_ROCEKER ARM BUFFER SLEEVEⅢ (Ref. č 24) U09D20007001 U09_ROCEKER ARM BUFFER SLEEVEⅢ  8 € 2,48 € 3
SKLADOM
25 U09_REAR ROCER ARM LINERⅡ (Ref. č 25) U09D20004001 U09_REAR ROCER ARM LINERⅡ  2 € 4,13 € 5
SKLADOM
26 BOLT M12×1.25×170 (Ref. č 26) GBT005789107 BOLT M12×1.25×170  2 € 2,64 € 3
SKLADOM
31 NUT M8 (Ref. č 31) GBT008892004 NUT M8  4 € 2,48 € 3
SKLADOM
30 Inner hexagon screws M6×1.6 (Ref. č 30) T03000007002 Inner hexagon screws M6×1.6  6 € 2,18 € 3
SKLADOM
29 U09_REAR BRAKE DISC FLAP_BLACK PAINT (Ref. č 29) U09D20001002 U09_REAR BRAKE DISC FLAP_BLACK PAINT  2 € 18,35 € 23
SKLADOM
28a U09_RR HUB BODY (Ref. č 28a) U09D20021001 U09_RR HUB BODY  1 € 66,53 € 82
SKLADOM
28 U09_RR WHEEL AXLE SUPPORT ASSY (Ref. č 28) U09D20020001 U09_RR WHEEL AXLE SUPPORT ASSY  1 € 93,97 € 116
SKLADOM
27c CIRCLIP 72 (Ref. č 27c) GBT000893006 CIRCLIP 72  1 € 2,48 € 3
SKLADOM
27b BEARING DAC407237-2RS (Ref. č 27b) JBT010238004 BEARING DAC407237-2RS  1 € 35,12 € 43
SKLADOM
27a U09_RL HUB BODY (Ref. č 27a) U09D20011001 U09_RL HUB BODY  1 € 66,53 € 82
SKLADOM
27 U09_RL WHEEL AXLE SUPPORT ASSY (Ref. č 27) U09D20010001 U09_RL WHEEL AXLE SUPPORT ASSY  1 € 93,97 € 116
SKLADOM
18 U09 REAR ROCKER ARM LINER 1 (Ref. č 18) U09D20003001 U09 REAR ROCKER ARM LINER 1  4 € 2,56 € 3
SKLADOM
17 BOLT M12×1.25×90 (Ref. č 17) GBT005789103 BOLT M12×1.25×90  2 € 2,18 € 3
NA DOPYT
9 U01 REAR SHOCK ABSORBER GREEN (Ref. č 9) U01D25000002 U01 REAR SHOCK ABSORBER GREEN  2 € 182,64 € 225
SKLADOM
9 U01 REAR SHOCK ABSORBER RED (Ref. č 9) U01D25000001 U01 REAR SHOCK ABSORBER RED  2 € 182,64 € 225
SKLADOM
8 Straight pressure oil cup (Ref. č 8) GBT001152001 Straight pressure oil cup  4 € 5,04 € 6
SKLADOM
7 HEXAGON FLANGE BOLT M8×30 (Ref. č 7) GBT005789017 HEXAGON FLANGE BOLT M8×30  2 € 2,15 € 3
SKLADOM
6 NUT M12×1.25 (Ref. č 6) GBT061832010 NUT M12×1.25  2 € 2,18 € 3
SKLADOM
5 LEFT STABILIZER BALL JOINT (Ref. č 5) S01D10810001 LEFT STABILIZER BALL JOINT  1 € 29,59 € 36
SKLADOM
4 RIGHT STABILIZER BALL JOINT (Ref. č 4) S01D10820001 RIGHT STABILIZER BALL JOINT  1 € 29,67 € 36
SKLADOM
3 U01 REAR BALANCE BAR BUFFER BLOCK (Ref. č 3) U01D26001001 U01 REAR BALANCE BAR BUFFER BLOCK  4 € 2,48 € 3
SKLADOM

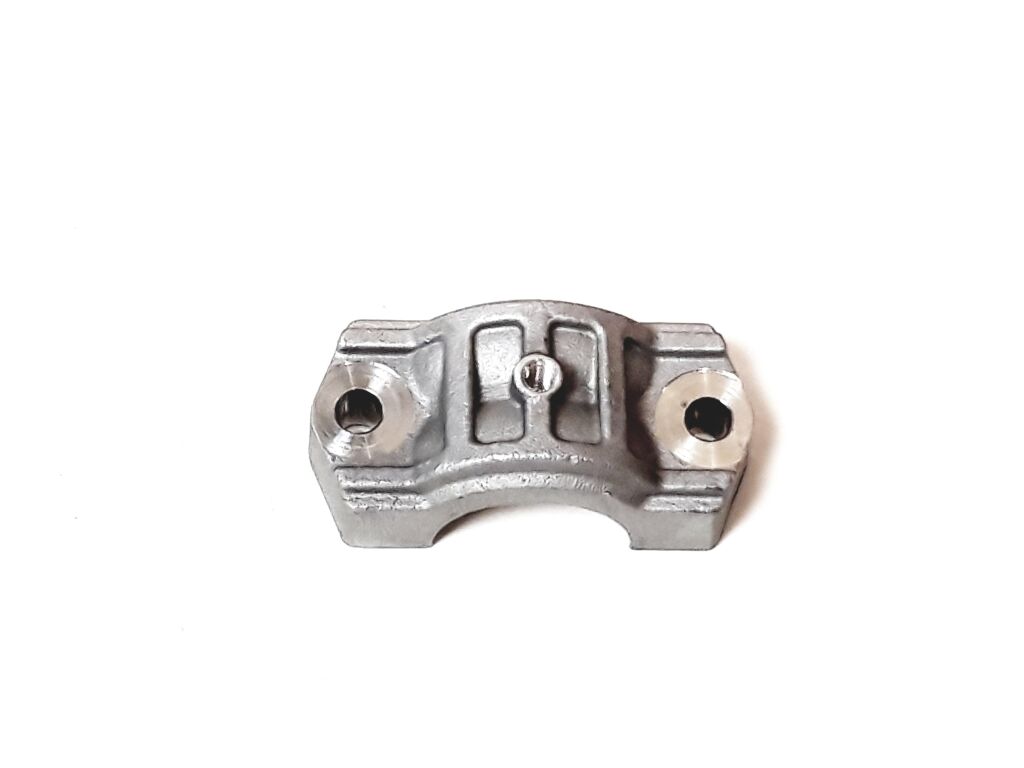

2 Rear balance bar mounting seat (Ref. č 2) U01D26002001 Rear balance bar mounting seat  2 € 10,50 € 13
SKLADOM
9 U01 REAR SHOCK ABSORBER BLACK (Ref. č 9) U01D25000003 U01 REAR SHOCK ABSORBER BLACK  2 € 182,64 € 225
NA DOPYT
10 Hexagon flange bolt M10×1.25×55 (Ref. č 10) GBT005789032 Hexagon flange bolt M10×1.25×55  4 € 2,48 € 3
SKLADOM
11 U09 REAR LEFT LOWER ROCKER ARM ASSY (RED) (Ref. č 11) U09D23100003 U09 REAR LEFT LOWER ROCKER ARM ASSY (RED)  1 € 114,46 € 141
SKLADOM
16 U09 FRONT ROCKER ARM LINER (Ref. č 16) U09D10001001 U09 FRONT ROCKER ARM LINER  2 € 2,48 € 3
SKLADOM
15 U09 REAR ROCKER ARM LINER Ⅱ (Ref. č 15) U09D20006001 U09 REAR ROCKER ARM LINER Ⅱ  12 € 2,48 € 3
SKLADOM
14 U09 ROCKER ARM DUST COVER 304 (Ref. č 14) U09D20008001 U09 ROCKER ARM DUST COVER 304  20 € 2,48 € 3
SKLADOM
12 U09 REAR RIGHT LOWER ROCKER ARM ASSY (MATTE BLACK) (Ref. č 12) U09D24100005 U09 REAR RIGHT LOWER ROCKER ARM ASSY (MATTE BLACK)  1 € 114,46 € 141
SKLADOM
12 U09 REAR RIGHT LOWER ROCKER ARM ASSY (GREEN) (Ref. č 12) U09D24100004 U09 REAR RIGHT LOWER ROCKER ARM ASSY (GREEN)  1 € 114,46 € 141
SKLADOM
12 U09 REAR RIGHT LOWER ROCKER ARM ASSY (RED) (Ref. č 12) U09D24100003 U09 REAR RIGHT LOWER ROCKER ARM ASSY (RED)  1 € 114,46 € 141
SKLADOM
11 U09 REAR LEFT LOWER ROCKER ARM ASSY (MATTE BLACK) (Ref. č 11) U09D23100005 U09 REAR LEFT LOWER ROCKER ARM ASSY (MATTE BLACK)  1 € 114,46 € 141
SKLADOM
11 U09 REAR LEFT LOWER ROCKER ARM ASSY (GREEN) (Ref. č 11) U09D23100004 U09 REAR LEFT LOWER ROCKER ARM ASSY (GREEN)  1 € 114,46 € 141
NA DOPYT

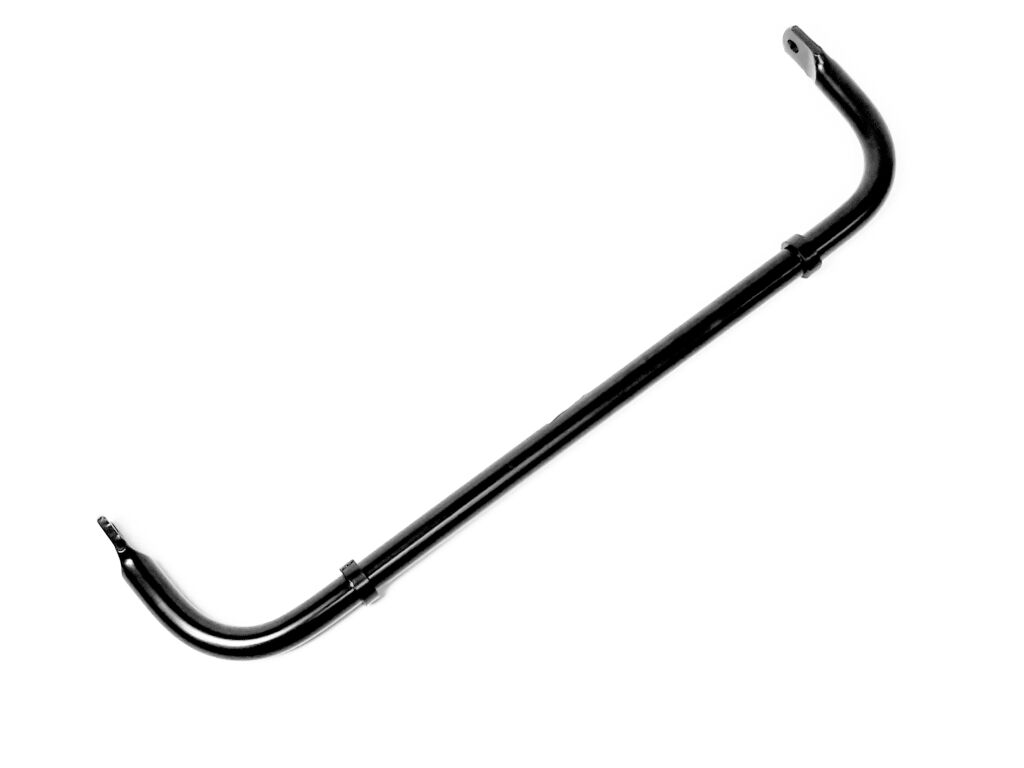

1 U01 REAR BALANCE BAR ASSY (SOLID PIECE) (Ref. č 1) U01D26100002 U01 REAR BALANCE BAR ASSY (SOLID PIECE)  1 € 37,11 € 46
SKLADOM
Kód produktu SEGWAY_2_242_UTV1000
typ rozkresu: FRAME PARTS
ZNACKA: SEGWAY
TYP: Fugleman UTV
MODEL: Fugleman UT10
