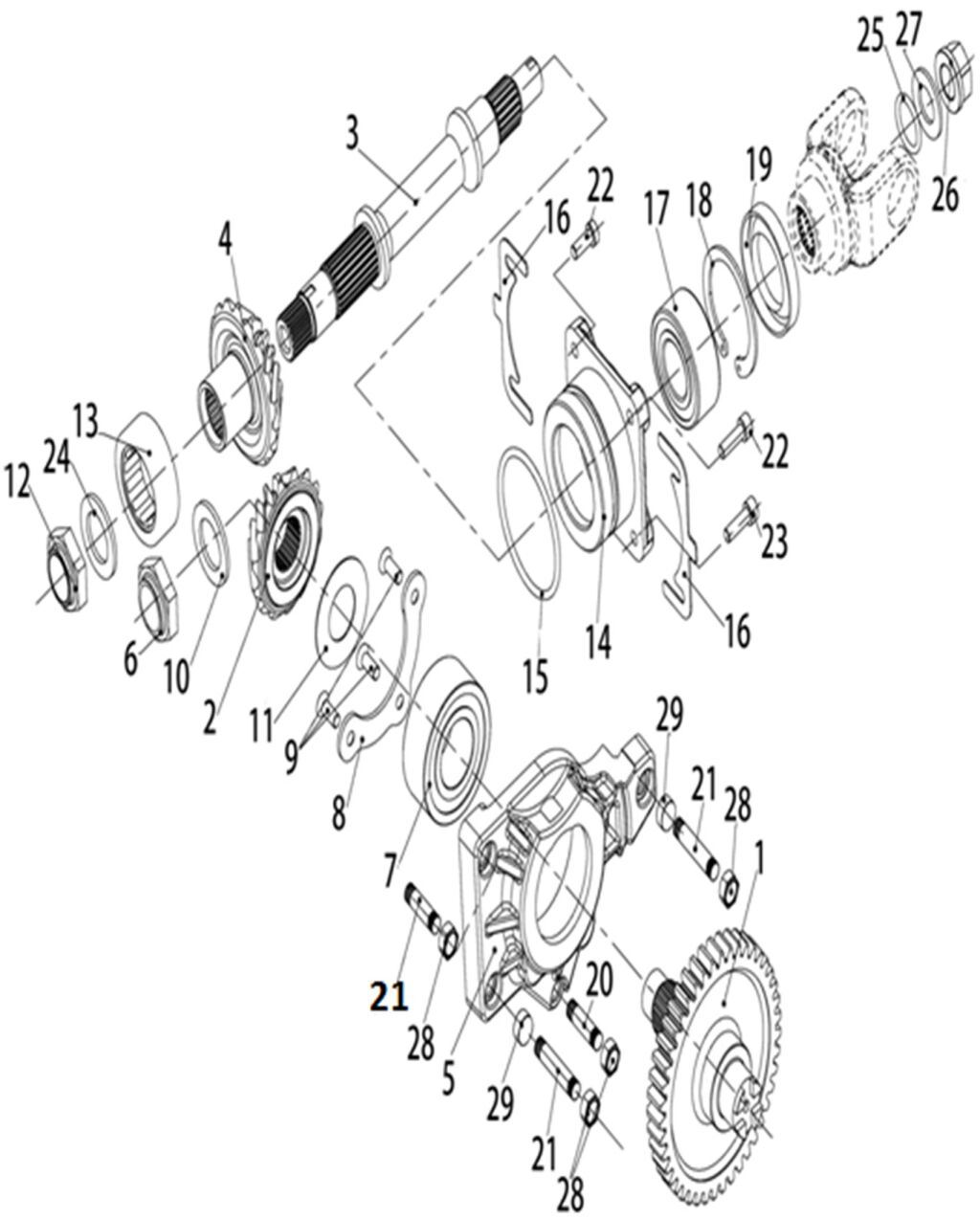

REAR OUTPUT ASSY

LINHAI
  • Výrobca  LINHAI
  • Kód produktu  LINHAI_1_148_M750L T3b
MODEL:
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost

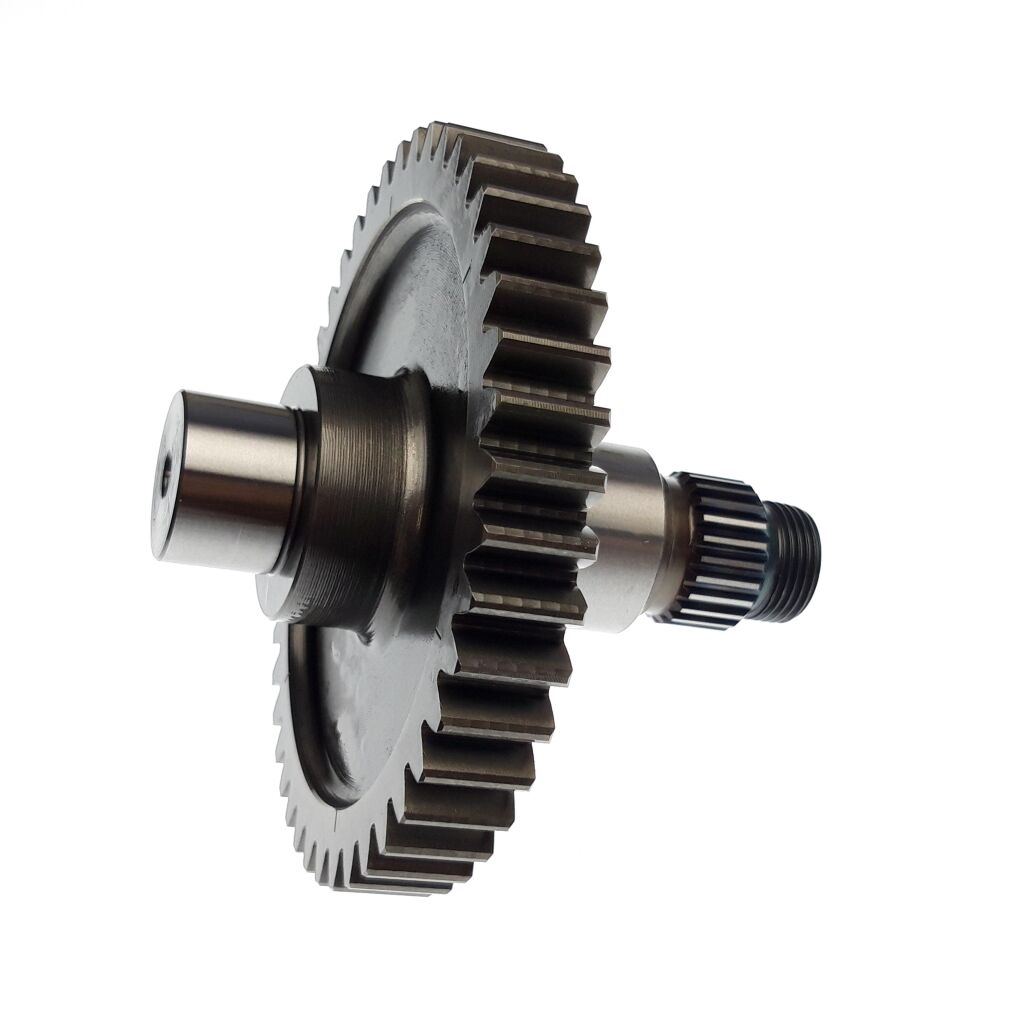

1 IDLER WHEEL 2 (Ref. č 1) 71761 IDLER WHEEL 2  1 € 105,95 € 130
SKLADOM
18 10766 WASHER 52  1 € 12,81 € 16
NA DOPYT
19 SEAL OIL 35x54x8 (Ref. č 19) 71760 SEAL OIL 35x54x8  1 € 3,88 € 5
SKLADOM
20 72255 STUD BOLTS M10X1.25X39  2 € 11,98 € 15
NA DOPYT
20 72256 STUD BOLTS M10X1.25X45  1 € 11,98 € 15
NA DOPYT

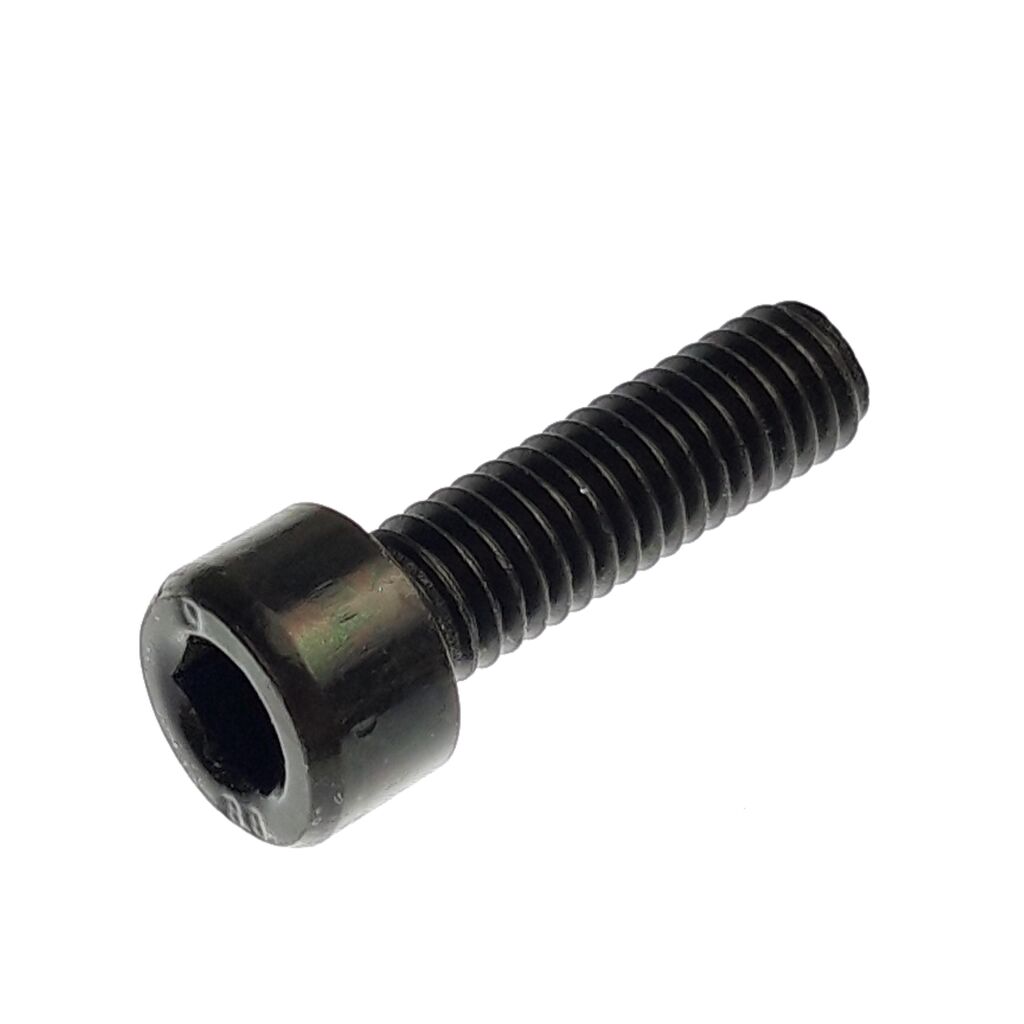

22 SOCKET HEAD CAP SCREWS (Ref. č 22) 10008G SOCKET HEAD CAP SCREWS  3 € 2,40 € 3
NA DOPYT
23 10746 SOCKET HEAD SCREW M6X16  1 € 7,19 € 9
NA DOPYT
24 WASHER 22 (Ref. č 24) 40413 WASHER 22  1 € 11,98 € 15
SKLADOM
25 O-RING 20X3 (Ref. č 25) 70295 O-RING 20X3  1 € 7,19 € 9
NA DOPYT

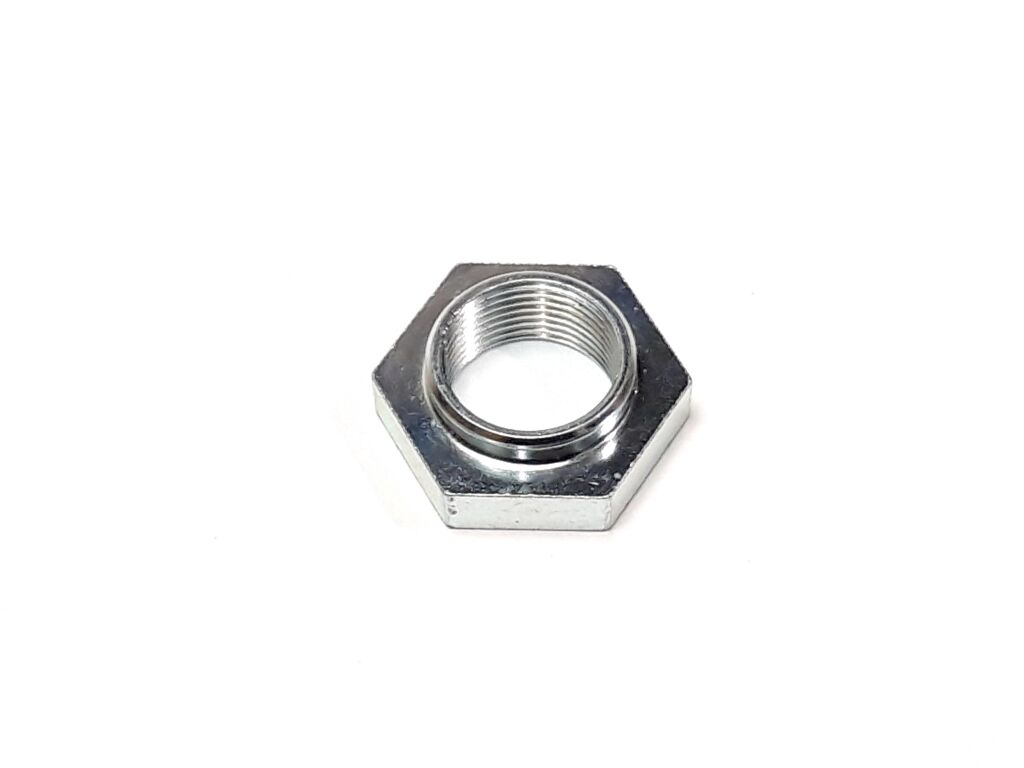

26 NUT M16X1.5 (Ref. č 26) 71688 NUT M16X1.5  1 € 1,98 € 2
SKLADOM
27 WASHER 16.5 (Ref. č 27) 71689 WASHER 16.5  1 € 2,40 € 3
NA DOPYT
28 11254 NUT M 10  4 € 8,02 € 10
NA DOPYT
29 72257 PIN DOWEL 13X14  2 € 7,19 € 9
NA DOPYT
17 BEARING 5205 (Ref. č 17) 10732 BEARING 5205  1 € 130,33 € 160
SKLADOM

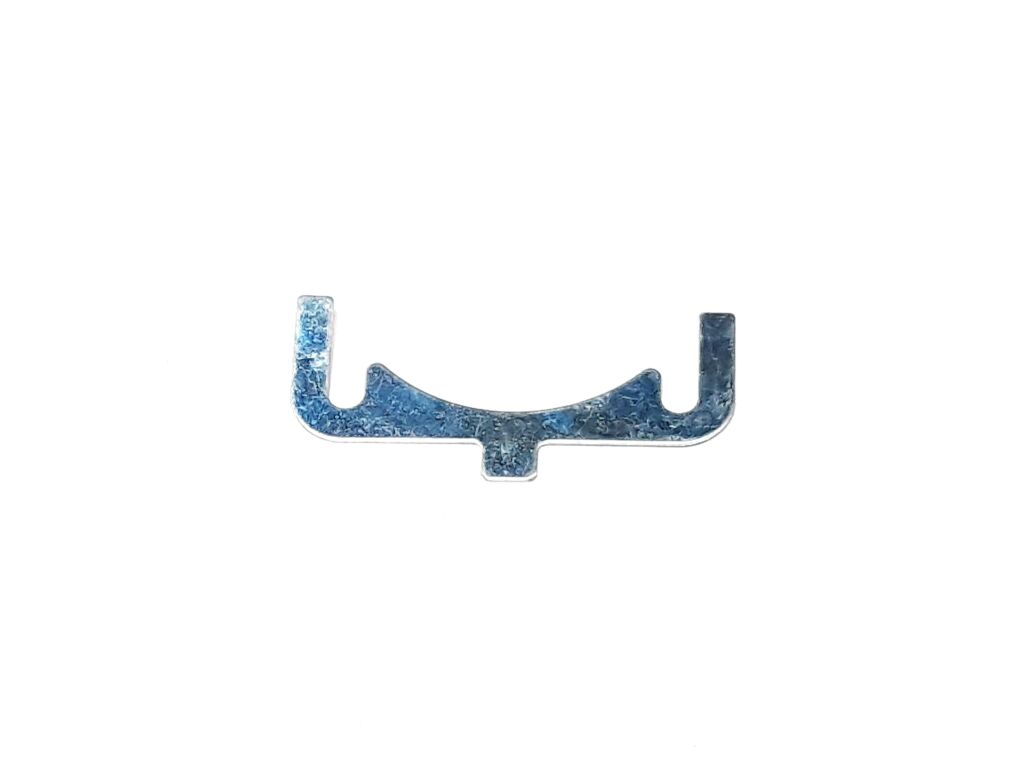

16 SHIM (OPTIONAL) (Ref. č 16) 71765 SHIM (OPTIONAL)  2 € 2,40 € 3
SKLADOM

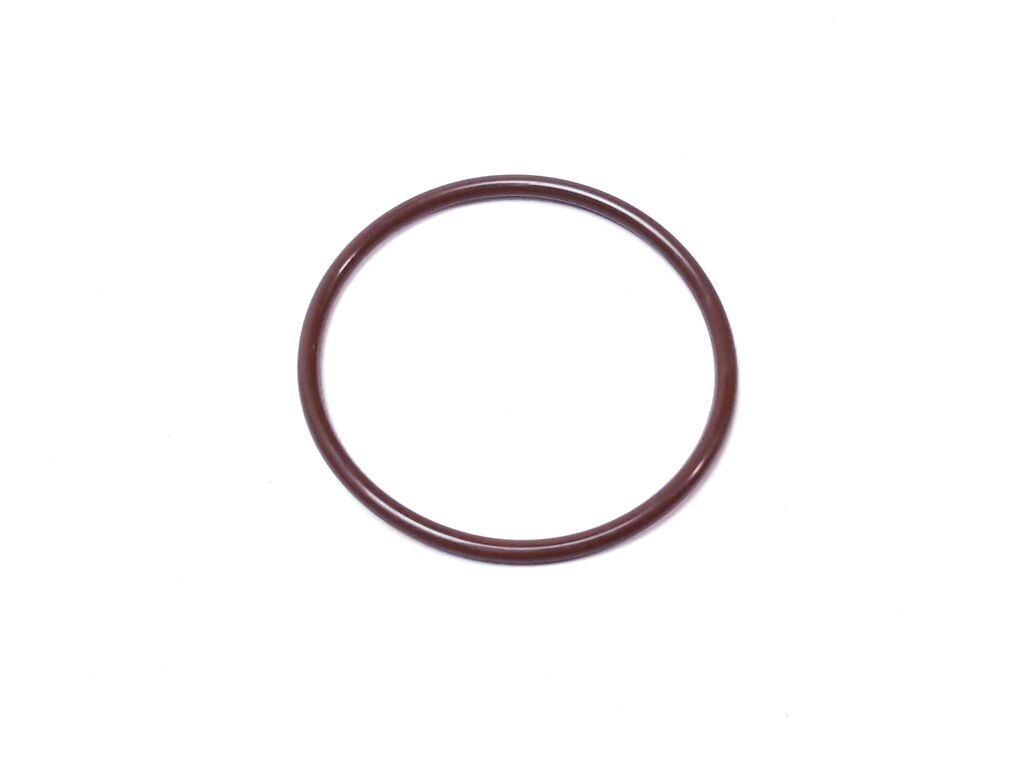

15 O-RING 59.6X3.5 (Ref. č 15) 71764 O-RING 59.6X3.5  1 € 2,89 € 4
SKLADOM
2 DRIVEN BELL GEAR (Ref. č 2) 71769 DRIVEN BELL GEAR  1 € 80,83 € 99
SKLADOM
3 REAR OUTPUT SHAFT (NEW MODEL) (Ref. č 3) 71770a REAR OUTPUT SHAFT (NEW MODEL)  1 € 50,33 € 62
NA CESTE

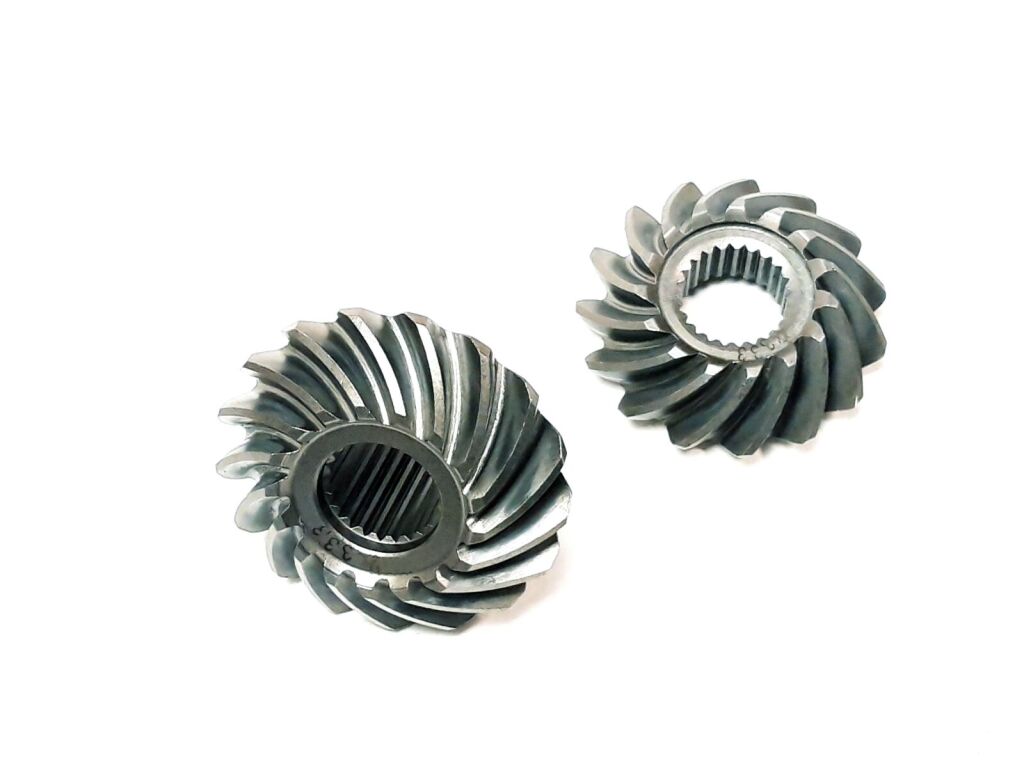

4 DRIVEN BEVEL GEAR (Ref. č 4) 71771 DRIVEN BEVEL GEAR  1 € 115,04 € 142
SKLADOM

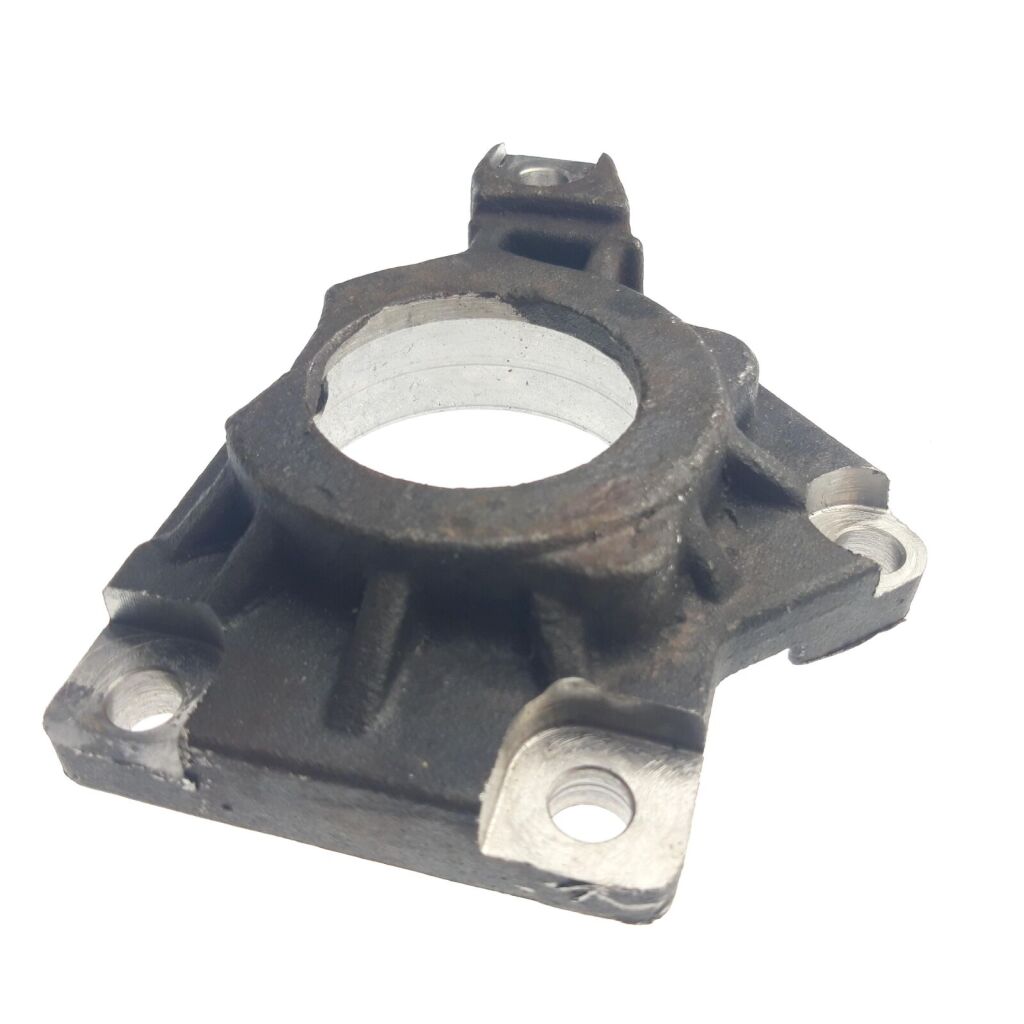

5 BEARING BARCKET (Ref. č 5) 71772 BEARING BARCKET  1 € 40,99 € 50
SKLADOM
6 LOCKING NUT M20X1.5 (Ref. č 6) 71773 LOCKING NUT M20X1.5  1 € 4,79 € 6
SKLADOM

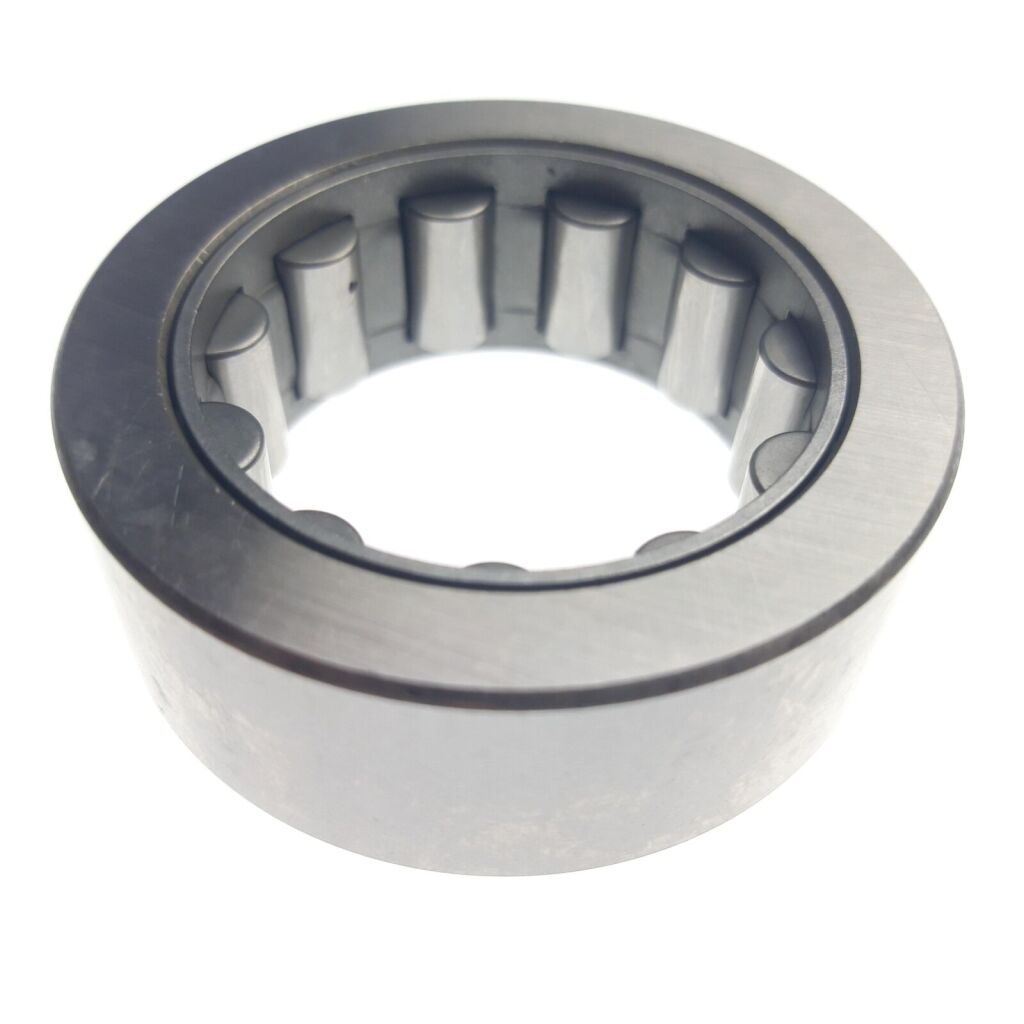

7 BEARING 5206 C3 (Ref. č 7) 10731 BEARING 5206 C3  1 € 128,60 € 158
SKLADOM
8 71774 BEARING PLATE  1 € 2,23 € 3
NA DOPYT
9 PHILLIPS HEAD SCREWS M6X14 (Ref. č 9) 10757 PHILLIPS HEAD SCREWS M6X14  3 € 8,76 € 11
SKLADOM
10 WASHER 1 (Ref. č 10) 71775 WASHER 1  1 € 2,40 € 3
SKLADOM
11 71777 SHIM 2 （OPTIONAL) (unavailable)  1 € 8,76 € 11
NA DOPYT
12 LOCKING NUT M22X1.5 (unavailable) (Ref. č 12) 71762 LOCKING NUT M22X1.5 (unavailable)  1 € 4,55 € 6
SKLADOM
13 NEEDLE BEARING 32NQ5419 (Ref. č 13) 71759 NEEDLE BEARING 32NQ5419  1 € 34,38 € 42
SKLADOM
14 BEARING BRAKET,REAR OUTPUT SHAFT (Ref. č 14) 71763 BEARING BRAKET,REAR OUTPUT SHAFT  1 € 20,25 € 25
NA DOPYT
21 72296 STUD BOLTS M10X1.25X50  3 € 2,40 € 3
NA DOPYT
Kód produktu LINHAI_1_148_M750L T3b
typ rozkresu: ENGINE PARTS
ZNACKA: LINHAI
MODEL: M750L T3b
TYP: LINHAI M750
