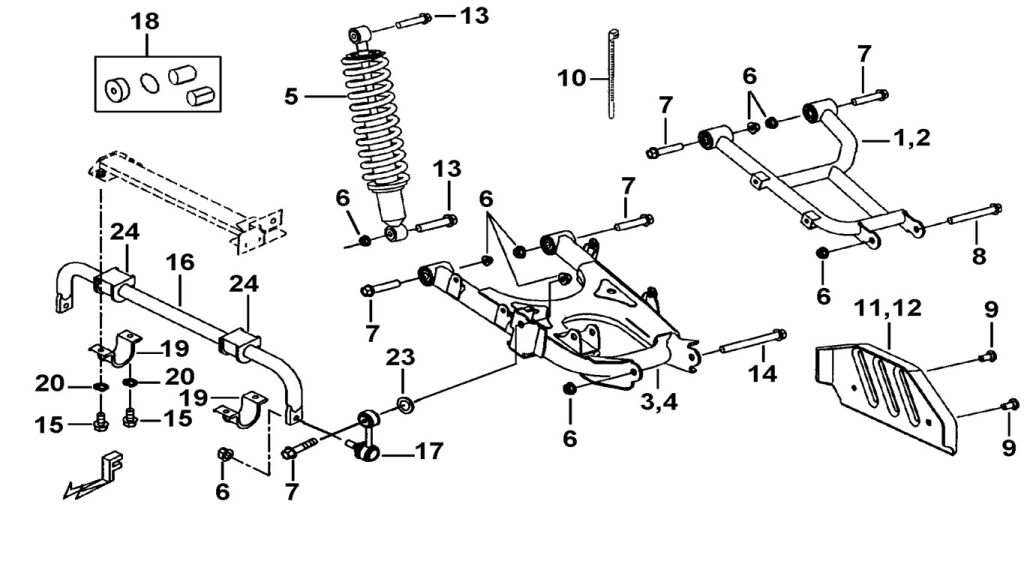

REAR FORK

TGB
Výrobca: TGB
Kód produktu: TGB_2_205_VSH-DE
Ref. č Obr. Kód p. Popis p. ks Cena Dostupnost
01 ARM SET, UPPER, LH. (REAR) (Ref. č 01) 511475Y ARM SET, UPPER, LH. (REAR)  1 € 104,30 € 126,20
SKLADOM
14 BOLT, FLANGE M10X1.25X123L (Ref. č 14) S20038 BOLT, FLANGE M10X1.25X123L  2 € 6,94 € 8,40
SKLADOM
15 BOLT (Ref. č 15) S21809 BOLT  4 € 2,40 € 2,90
SKLADOM
16 TORSION BAR (Ref. č 16) 511640 TORSION BAR  1 € 66,61 € 80,60
SKLADOM
17 UNIVERSAL ROD RR (Ref. č 17) 511684 UNIVERSAL ROD RR  2 € 65,45 € 79,20
SKLADOM
18 ARM SET MAINTENANCE PACKAGE (Ref. č 18) 518712B ARM SET MAINTENANCE PACKAGE

OPTION

4 € 19,30 € 23,35
SKLADOM
19 FIX BRACKET, TORSION BAR (Ref. č 19) 511642 FIX BRACKET, TORSION BAR  2 € 6,45 € 7,80
SKLADOM
20 SPRING WASHER (Ref. č 20) GA556WS04 SPRING WASHER  4 € 2,40 € 2,90
SKLADOM
23 WASHER (Ref. č 23) W99005 WASHER  2 € 2,40 € 2,90
SKLADOM
24 RUBBER (Ref. č 24) 511641 RUBBER  2 € 10,58 € 12,80
SKLADOM
13 BOLT, FLANGE, HEX HEAD M10X1,25x48L (Ref. č 13) S20009 BOLT, FLANGE, HEX HEAD M10X1,25x48L  4 € 5,54 € 6,70
SKLADOM
12 PROTECTOR, COVER (RH.) (Ref. č 12) 516372 PROTECTOR, COVER (RH.)

OPTION

1 € 12,31 € 14,90
NA DOPYT
11 PROTECTOR, COVER (LH.) (Ref. č 11) 516371 PROTECTOR, COVER (LH.)

OPTION

1 € 9,17 € 11,10
SKLADOM
02 ARM SET, UPPER, RH.(REAR) (Ref. č 02) 511476Y ARM SET, UPPER, RH.(REAR)  1 € 104,30 € 126,20
NA DOPYT
03 ARM SET, LOWER, LH. (REAR) (Ref. č 03) 511483 ARM SET, LOWER, LH. (REAR)  1 € 144,13 € 174,40
SKLADOM
04 ARM SET, LOWER, RH. (REAR) (Ref. č 04) 511484 ARM SET, LOWER, RH. (REAR)  1 € 144,13 € 174,40
SKLADOM
05 SHOCK ABSORBER, REAR (Ref. č 05) 511482 SHOCK ABSORBER, REAR

OPTION

2 € 223,39 € 270,30
SKLADOM
06 NUT, SELF LOCK (Ref. č 06) GA551NT01 NUT, SELF LOCK  18 € 2,40 € 2,90
SKLADOM
07 BOLT, FLANGE (Ref. č 07) S20017 BOLT, FLANGE  10 € 2,40 € 2,90
NA CESTE
08 BOLT, FLANGE M10X1.25X100L (Ref. č 08) S20039 BOLT, FLANGE M10X1.25X100L  2 € 5,04 € 6,10
SKLADOM
09 BOLT, FLANGE (Ref. č 09) S07601 BOLT, FLANGE

OPTION

4 € 2,40 € 2,90
SKLADOM
10 CLAMP L200 (Ref. č 10) 518739 CLAMP L200  4 € 3,06 € 3,70
SKLADOM
05A SHOCK ABSORBER, REAR(FLO. YELLOW) (Ref. č 05A) 511482SY SHOCK ABSORBER, REAR(FLO. YELLOW)

OPTION

2 € 187,19 € 226,50
SKLADOM
