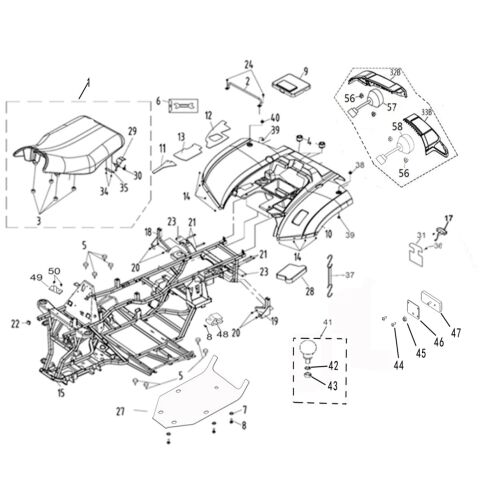

REAR FENDERS AND FRAME (T3 EFI)

  • Kód produktu  LINHAI_3_203_370_PROMAX_T3
MODEL:
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost

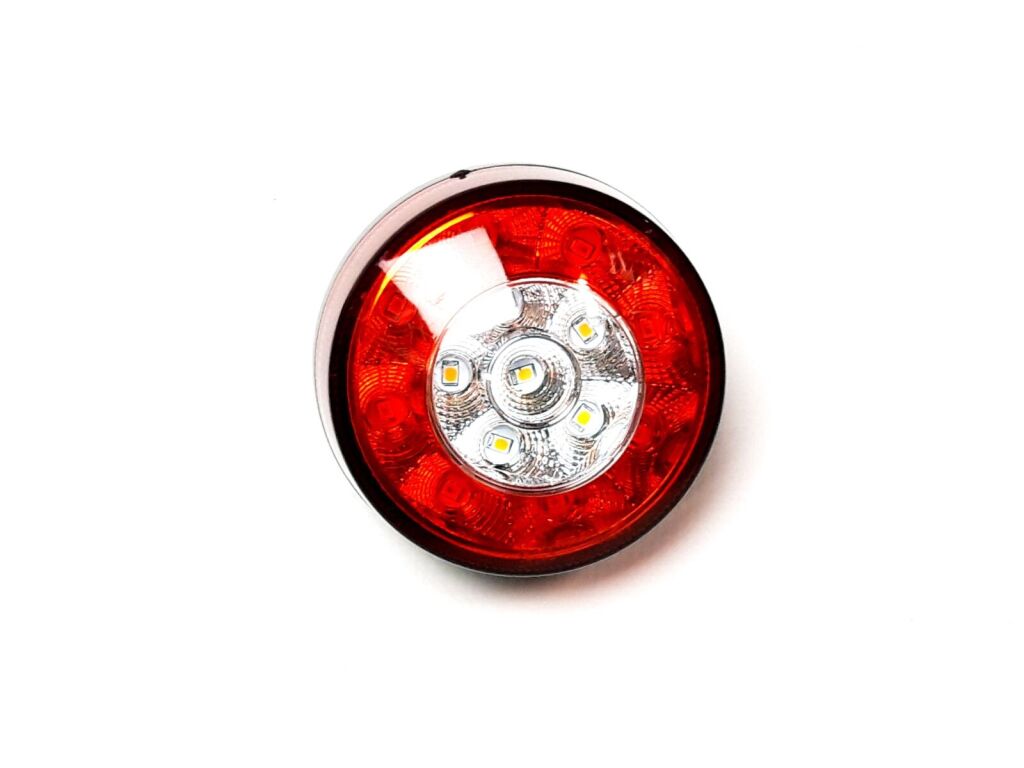

58 LEFT REAR COMBINATION LAMP (Ref. č 58) 25388 LEFT REAR COMBINATION LAMP  1 € 50,33 € 62
NA CESTE
39 Bushing (Ref. č 39) 70543 Bushing  2 € 3,55 € 4
Naskladňujeme
38 70449 MUDGUARD  2 € 2,98 € 4
Naskladňujeme
37 BATTERY BELL (Ref. č 37) 22018 BATTERY BELL  1 € 2,40 € 3
SKLADOM
36 BOLT M6X16 (Ref. č 36) 26370 BOLT M6X16  2 € 8,02 € 10
SKLADOM
35 BAFFLE.SEAT (Ref. č 35) 70803 BAFFLE.SEAT  1 € 11,74 € 14
SKLADOM
34 SCREW ST4.2X13 (Ref. č 34) 11222 SCREW ST4.2X13  8 € 8,02 € 10
NA DOPYT
33 TAILLIGHT COVER, L (Ref. č 33) 25371 TAILLIGHT COVER, L  1 € 29,75 € 37
NA CESTE
32 TAILLIGHT COVER, R (Ref. č 32) 25369 TAILLIGHT COVER, R  1 € 29,75 € 37
NA CESTE
31 BRACKET, LENS,LICENSE LIGHT (Ref. č 31) 27606 BRACKET, LENS,LICENSE LIGHT  1 € 41,57 € 51
SKLADOM
30 SPRING (Ref. č 30) 70802 SPRING  1 € 2,40 € 3
SKLADOM
29 HOOK BRACKER, SEAT LOCK (Ref. č 29) 70788 HOOK BRACKER, SEAT LOCK  1 € 6,69 € 8
NA DOPYT
28 BATTERY COVER (Ref. č 28) 35078 BATTERY COVER  1 € 2,40 € 3
SKLADOM
27 PLASTIC PLANT (Ref. č 27) 25704 PLASTIC PLANT  1 € 24,79 € 30
SKLADOM
26 11333 WASHER 6  16
NA DOPYT
41 TOWING BALL (OPTION) (Ref. č 41) 25294 TOWING BALL (OPTION)  1 € 33,97 € 42
NA DOPYT
42 25705 WASHER  1 € 1,40 € 2
NA DOPYT
43 25706 NUT  1 € 7,60 € 9
NA DOPYT
57 RIGHT REAR COMBINATION LAMP (Ref. č 57) 25387 RIGHT REAR COMBINATION LAMP  1 € 50,33 € 62
NA CESTE
56 11221 NUT  2 € 8,02 € 10
NA DOPYT
55 TAILLIGHT COVER/L (Ref. č 55) 25375 TAILLIGHT COVER/L  1 € 29,67 € 36
SKLADOM
54 25374 TAILLIGHT COVER BUSHING, L  1 € 1,65 € 2
NA DOPYT
52 25373 TAILLIGHT COVER BUSHING, R  1 € 1,65 € 2
NA DOPYT
51 TAILLIGHT COVER/R (Ref. č 51) 25372 TAILLIGHT COVER/R  1 € 29,67 € 36
NA DOPYT
50 10753 SCREW M4X16  2 € 8,76 € 11
NA DOPYT
49 72305 ELECTRONIC DUMP SWITCH CONNECTION PLATE  1 € 7,19 € 9
NA DOPYT
48 STARTER RELAY SHIELD (Ref. č 48) 35907 STARTER RELAY SHIELD  1 € 4,55 € 6
SKLADOM
47 REAR REFLECTOR (Ref. č 47) 36514 REAR REFLECTOR  2 € 4,30 € 5
SKLADOM
46 REAR REFLECTER PLATE (Ref. č 46) 35758 REAR REFLECTER PLATE  2 € 5,54 € 7
NA DOPYT
45 25707 NUT M5  2
NA DOPYT
24 11031 BOLT M6X12  2 € 2,40 € 3
NA DOPYT
23 36445 SLEEVE  4 € 18,02 € 22
NA DOPYT
10 357569B REAR FENDER (GREY)  1 € 102,40 € 126
SKLADOM
10 REAR FENDER (ORANGE) (Ref. č 10) 357564F REAR FENDER (ORANGE)  1 € 102,40 € 126
SKLADOM
10 REAR FENDER (RED) (Ref. č 10) 357562G REAR FENDER (RED)  1 € 102,40 € 126
NA CESTE
10 REAR FENDER (BLUE) (Ref. č 10) 357563J REAR FENDER (BLUE)  1 € 102,40 € 126
SKLADOM
10 357565B REAR FENDER (GREEN)  1 € 102,40 € 126
NA DOPYT
10 357567F REAR FENDER (CONCEAL CAMOUFLAGE)  1 € 370,08 € 455
NA DOPYT
9 TOOL BOX CAP(NEW MODEL,MUST BE MATCHED WITH 2014) (Ref. č 9) 25045a TOOL BOX CAP(NEW MODEL,MUST BE MATCHED WITH 2014)  1 € 7,36 € 9
SKLADOM
8 11194 BOLT M6X18  10 € 8,76 € 11
NA DOPYT
7 WASHER 6 (Ref. č 7) 20331 WASHER 6  8 € 2,40 € 3
NA DOPYT
6 25044 TOOL ATV200-D T3b  1 € 8,10 € 10
NA DOPYT
5 RUBBER PAD (Ref. č 5) 20316 RUBBER PAD  8 € 2,40 € 3
SKLADOM
4 RUBBER，SEAT (Ref. č 4) 70445 RUBBER，SEAT  2 € 9,34 € 11
SKLADOM
3 RUBBER,SEAT SETTING 1 (Ref. č 3) 25042 RUBBER,SEAT SETTING 1  6 € 2,40 € 3
SKLADOM
2 LATCH ASSEMBLY (Ref. č 2) 35836 LATCH ASSEMBLY  1 € 10,66 € 13
SKLADOM
10 357564P REAR FENDER (SAND)  1 € 102,40 € 126
SKLADOM
10 357561F REAR FENDER (BLACK)  1 € 102,40 € 126
SKLADOM
10 357566F REAR FENDER (white)  1 € 102,40 € 126
SKLADOM
22 RUBBER COVER (Ref. č 22) 70287 RUBBER COVER  4 € 3,22 € 4
NA DOPYT
21 NUT M 8 (Ref. č 21) 10776 NUT M 8  4 € 9,59 € 12
SKLADOM
20 25056 BOLT M8X70  2 € 9,59 € 12
NA DOPYT
19 TRESTLE LEFT (Ref. č 19) 25055 TRESTLE LEFT  1 € 11,74 € 14
SKLADOM
18 TRESTLE RIGHT (Ref. č 18) 25054 TRESTLE RIGHT  1 € 14,88 € 18
SKLADOM
17 LENS,LICENSE LIGHT (Ref. č 17) 83459 LENS,LICENSE LIGHT  1 € 6,94 € 9
SKLADOM ZA 5 dní
16 11099 SCREW M6X20  6 € 8,76 € 11
NA DOPYT
15 25703 R/B 25841 FRAME ASSY. (T3 EFI)  1 € 531,40 € 654
NA CESTE
13 REAR MUD ADIABATIC PELLICLE 2 (Ref. č 13) 25367 REAR MUD ADIABATIC PELLICLE 2  1 € 0,50 € 1
SKLADOM
12 REAR MUD ADIABATIC PELLICLE 1 (Ref. č 12) 25366 REAR MUD ADIABATIC PELLICLE 1  1 € 3,55 € 4
SKLADOM
11 FOOTREST RIGHT ADIABATIC PALLICLE (Ref. č 11) 25047 FOOTREST RIGHT ADIABATIC PALLICLE  1 € 5,87 € 7
SKLADOM
10 357567E REAR FENDER (REALITY CAMOUFLAGE)  1 € 370,08 € 455
NA DOPYT
10 357567C REAR FENDER (VISTA CAMOUFLAGE)  1 € 370,08 € 455
NA DOPYT
1 SEAT (Ref. č 1) 35835 SEAT  1 € 105,79 € 130
NA CESTE
Kód produktu LINHAI_3_203_370_PROMAX_T3
typ rozkresu: FRAME PARTS
ZNACKA: LINHAI
TYP: LINHAI 370
MODEL: 370 PROMAX T3b
