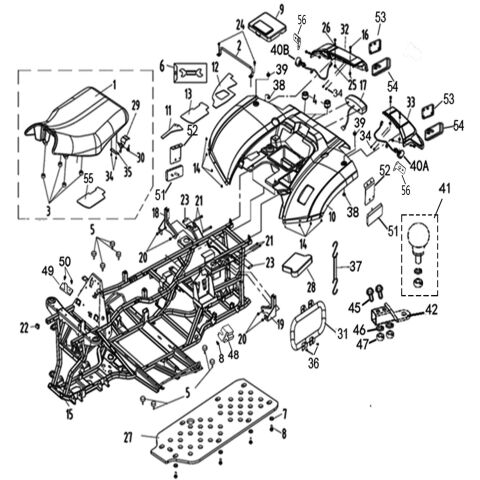

REAR FENDERS AND FRAME

LINHAI
Výrobca: LINHAI
Kód produktu: LINHAI_3_203_570_PROMAX_E4
MODEL:
570 PROMAX E5 570 PROMAX E5
Ref. č Obr. Kód p. Popis p. ks Cena Dostupnost
56 REAR INDICATION LIGHT BRACKET (Ref. č 56) 27362 REAR INDICATION LIGHT BRACKET  2 € 3,88 € 4,70
SKLADOM
38 70449 MUDGUARD  2 € 2,98 € 3,60
NA DOPYT
37 BATTERY BELL (Ref. č 37) 22018 BATTERY BELL  1 € 2,40 € 2,90
SKLADOM
36 BOLT FLANGE 6X18 (Ref. č 36) 10191 BOLT FLANGE 6X18  6 € 2,40 € 2,90
NA DOPYT
35 70803 BAFFLE.SEAT  1 € 11,74 € 14,20
NA DOPYT
34 SCREW ST4.2X13 (Ref. č 34) 10178 SCREW ST4.2X13  8 € 2,40 € 2,90
SKLADOM
33 27382 TAILLIGHT COVER, L  1 € 37,27 € 45,10
SKLADOM
32 TAILLIGHT COVER, R (Ref. č 32) 27383 TAILLIGHT COVER, R  1 € 31,98 € 38,70
SKLADOM
31 BRACKET, LENS,LICENSE LIGHT (Ref. č 31) 27606 BRACKET, LENS,LICENSE LIGHT  1 € 41,57 € 50,30
SKLADOM
30 SPRING (Ref. č 30) 70802 SPRING  1 € 2,40 € 2,90
SKLADOM
29 HOOK BRACKER, SEAT LOCK (Ref. č 29) 70788 HOOK BRACKER, SEAT LOCK  1 € 6,69 € 8,10
SKLADOM
28 35839 BATTERY COVER  1 € 4,30 € 5,20
NA DOPYT
28 BATTERY COVER (Ref. č 28) 35078 BATTERY COVER  1 € 2,40 € 2,90
NA CESTE
27 PLASTIC PLANT (Ref. č 27) 35497 PLASTIC PLANT  1 € 48,84 € 59,10
SKLADOM ZA 10 dní
26 NUT M10X1.25 (Ref. č 26) 10004 NUT M10X1.25  16 € 2,40 € 2,90
NA DOPYT
25 WASHER 6 (Ref. č 25) 10006 WASHER 6  2 € 2,40 € 2,90
SKLADOM
39 70543 Bushing  2 € 3,55 € 4,30
NA DOPYT
40A LEFT REAR INDICATION LIGHT (Ref. č 40A) 27367 LEFT REAR INDICATION LIGHT  1 € 30,25 € 36,60
SKLADOM
40B RIGHT REAR INDICATION LIGHT (Ref. č 40B) 27368 RIGHT REAR INDICATION LIGHT  1 € 22,73 € 27,50
SKLADOM
55 SEAT PELLICLE (Ref. č 55) 35762 SEAT PELLICLE  1 € 8,51 € 10,30
SKLADOM
54 REAR REFLECTOR (Ref. č 54) 70779 REAR REFLECTOR  2 € 6,78 € 8,20
NA DOPYT
53 REAR REFLECTER PLATE (Ref. č 53) 35758 REAR REFLECTER PLATE  2 € 5,54 € 6,70
NA DOPYT
52 SIDE REFLECTOR PLATE (Ref. č 52) 35759 SIDE REFLECTOR PLATE  2 € 6,61 € 8
SKLADOM
51 SIDE REFLECTOR (AMBER)(FOR EUROPE) (Ref. č 51) 35760 SIDE REFLECTOR (AMBER)(FOR EUROPE)  2 € 8,10 € 9,80
SKLADOM
50 10753 SCREW M4X16  2 € 8,76 € 10,60
NA DOPYT
49 72305 ELECTRONIC DUMP SWITCH CONNECTION PLATE  1
NA DOPYT
Detail
48 STARTER RELAY SHIELD (Ref. č 48) 35907 STARTER RELAY SHIELD  1 € 4,55 € 5,50
SKLADOM
47 NUT (Ref. č 47) 10874 NUT  2 € 2,40 € 2,90
SKLADOM
46 WASHER 16 (Ref. č 46) 11060 WASHER 16  2 € 2,40 € 2,90
SKLADOM
45 BOLT M16X95 (Ref. č 45) 10947 BOLT M16X95  2 € 5,70 € 6,90
SKLADOM
44 NUT W7/8"-14 (Ref. č 44) 11218 NUT W7/8"-14  1 € 12,81 € 15,50
SKLADOM
43 10816 Spring Lock Washer 22  1 € 8,43 € 10,20
NA DOPYT
42 TOWING BALL INSTALL WELDED COMPONENTS (OPTION) (Ref. č 42) 25295 TOWING BALL INSTALL WELDED COMPONENTS (OPTION)  1 € 92,89 € 112,40
SKLADOM
41 TOWING BALL (OPTION) (Ref. č 41) 25294 TOWING BALL (OPTION)  1 € 33,97 € 41,10
SKLADOM
24 BOLT M6X12 (Ref. č 24) 10140 BOLT M6X12  2 € 2,40 € 2,90
SKLADOM
23 35838 SPACER  4 € 18,02 € 21,80
NA DOPYT
10 357569B REAR FENDER (GREY)  1 € 102,40 € 123,90
SKLADOM
10 357564F REAR FENDER (ORANGE)  1 € 102,40 € 123,90
SKLADOM
10 357562G REAR FENDER (RED)  1 € 102,40 € 123,90
SKLADOM
10 357563J REAR FENDER (BLUE)  1 € 102,40 € 123,90
NA DOPYT
8 BOLT FLANGE 6X18 (Ref. č 8) 10191 BOLT FLANGE 6X18  10 € 2,40 € 2,90
NA DOPYT
10 357565B REAR FENDER (GREEN)  1 € 102,40 € 123,90
SKLADOM
10 357567F REAR FENDER (CONCEAL CAMOUFLAGE)  1 € 370,08 € 447,80
NA DOPYT
10 27381a REAR FENDER (prosím zvoľte farbu)  1 € 119,59 € 144,70
NA DOPYT
9 TOOL BOX CAP(NEW MODEL,MUST BE MATCHED WITH 2014) (Ref. č 9) 25045a TOOL BOX CAP(NEW MODEL,MUST BE MATCHED WITH 2014)  1 € 7,36 € 8,90
SKLADOM
7 WASHER 6 (Ref. č 7) 20331 WASHER 6  8 € 2,40 € 2,90
SKLADOM
6 25044 TOOL ATV200-D T3b  1
NA DOPYT
Detail
5 RUBBER PAD (Ref. č 5) 20316 RUBBER PAD  8 € 2,40 € 2,90
SKLADOM
4 RUBBER，SEAT (Ref. č 4) 70445 RUBBER，SEAT  2 € 9,34 € 11,30
SKLADOM
3 RUBBER,SEAT SETTING 1 (Ref. č 3) 25042 RUBBER,SEAT SETTING 1  6 € 2,40 € 2,90
SKLADOM
2 35915 LATCH ASSEMBLY  1
NA DOPYT
Detail
10 357564P REAR FENDER (SAND)  1 € 102,40 € 123,90
SKLADOM
10 357561F REAR FENDER (BLACK)  1 € 102,40 € 123,90
SKLADOM
10 357566F REAR FENDER (white)  1 € 102,40 € 123,90
SKLADOM
22 RUBBER COVER (Ref. č 22) 70287 RUBBER COVER  4 € 3,22 € 3,90
SKLADOM
21 NUT M 8 (Ref. č 21) 10776 NUT M 8  4 € 9,59 € 11,60
NA DOPYT
20 25056 BOLT M8X70  2 € 9,59 € 11,60
NA DOPYT
19 TRESTLE LEFT (Ref. č 19) 25055 TRESTLE LEFT  1 € 11,74 € 14,20
SKLADOM
18 TRESTLE RIGHT (Ref. č 18) 25054 TRESTLE RIGHT  1 € 14,88 € 18
SKLADOM
17 TAILLIGHT (Ref. č 17) 25053 TAILLIGHT  1 € 78,26 € 94,70
SKLADOM
16 11099 SCREW M6X20  6 € 8,76 € 10,60
NA DOPYT
15 35939 FRAME ASSY. (EURO 4, FOR ATV WITH EPS)  1
NA DOPYT
Detail
15 35916 FRAME ASSY. (EURO 4, FOR ATV WITHOUT EPS)  1
NA DOPYT
Detail
14 26370 BOLT M6X16  8 € 8,02 € 9,70
NA DOPYT
13 REAR MUD ADIABATIC PELLICLE 2 (Ref. č 13) 35002 REAR MUD ADIABATIC PELLICLE 2  1 € 2,40 € 2,90
SKLADOM
12 REAR MUD ADIABATIC PELLICLE 1 (Ref. č 12) 35001 REAR MUD ADIABATIC PELLICLE 1  1 € 7,60 € 9,20
SKLADOM
11 INSULATION COVER (Ref. č 11) 27567 INSULATION COVER  1 € 12,81 € 15,50
SKLADOM
10 357567E REAR FENDER (REALITY CAMOUFLAGE)  1 € 370,08 € 447,80
NA DOPYT
10 357567C REAR FENDER (VISTA CAMOUFLAGE)  1 € 370,08 € 447,80
NA DOPYT
1 35835 SEAT  1 € 105,79 € 128
NA CESTE
