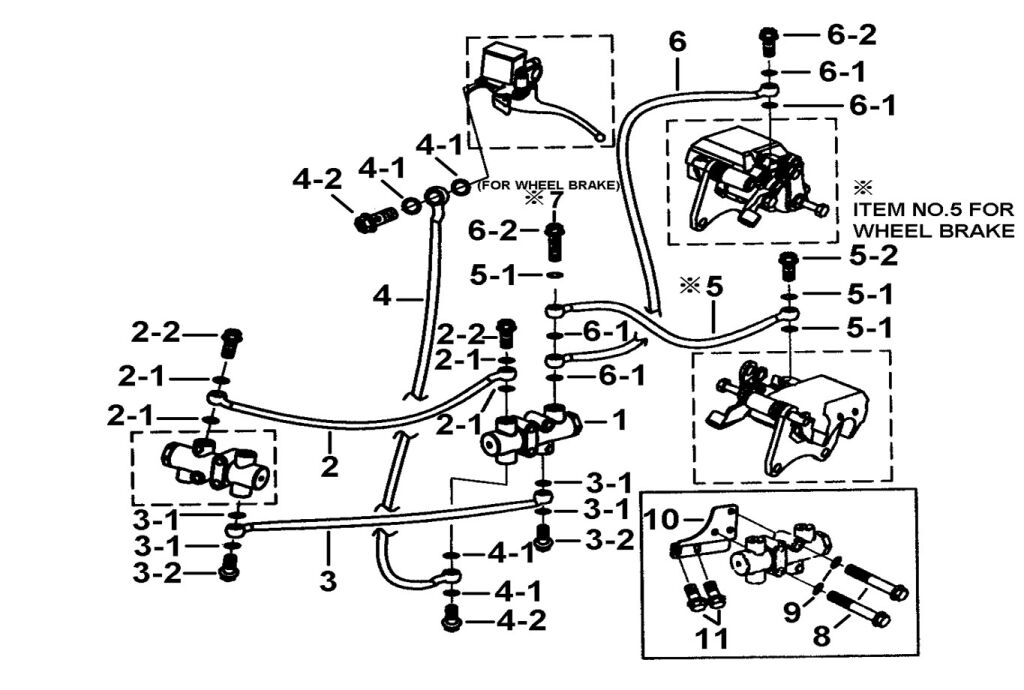

REAR DISTRIBUTOR

TGB
  • Výrobca  TGB
  • Kód produktu  TGB_2_217_FTH-JDLE
MODEL:
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
01 CALIPER ASSY., FRONT, RH. (Ref. č 01) 511226 CALIPER ASSY., FRONT, RH.  1 € 77,52 € 95
SKLADOM
06.2 OIL BOLT M10x1,25 (Ref. č 06-2) S21001 OIL BOLT M10x1,25  2 € 2,40 € 3
NA DOPYT
08 BOLT, FLANGE 6x40 (Ref. č 08) S24610 BOLT, FLANGE 6x40  2 € 2,40 € 3
SKLADOM
09 WASHER ?6.2*11.5*1.5t (Ref. č 09) W10601 WASHER ?6.2*11.5*1.5t  2 € 2,40 € 3
SKLADOM
11 BOLT, FLANGE (Ref. č 11) S21605 BOLT, FLANGE  2 € 2,40 € 3
SKLADOM
05 HOSE ASSY., BRAKE (Ref. č 05) 511026A HOSE ASSY., BRAKE

FOR WHEEL BRAKE

1 € 60,58 € 75
NA DOPYT
06 HOSE ASSY., BRAKE (Ref. č 06) 511029A HOSE ASSY., BRAKE

FOR SHAFT BRAKE

1 € 67,11 € 83
NA DOPYT
07 S21015 OIL BOLT M10*1.25

FOR WHEEL BRAKE

1 € 1,98 € 2
NA DOPYT
10 511358 BRACKET  1 € 6,45 € 8
NA DOPYT
06.1 WASHER, OIL BOLT M10x15x1,5t (Ref. č 06-1) GA559WS04 WASHER, OIL BOLT M10x15x1,5t  4 € 2,40 € 3
SKLADOM
02 HOSE ASSY., BRAKE (Ref. č 02) 511021A HOSE ASSY., BRAKE  1 € 75,54 € 93
NA DOPYT
03 HOSE ASSY., BRAKE (Ref. č 03) 511022A HOSE ASSY., BRAKE  1 € 74,79 € 92
SKLADOM
04 HOSE ASSY., BRAKE (Ref. č 04) 511234A HOSE ASSY., BRAKE  1 € 118,84 € 146
NA DOPYT
06A HOSE ASSY., BRAKE (Ref. č 06A) 511027A HOSE ASSY., BRAKE

FOR WHEEL BRAKE

1 € 58,60 € 72
NA DOPYT
Kód produktu TGB_2_217_FTH-JDLE
typ rozkresu: FRAME PARTS
ZNACKA: TGB
TYP: BLADE 600LTX
MODEL: BLADE 600LTX T3b
