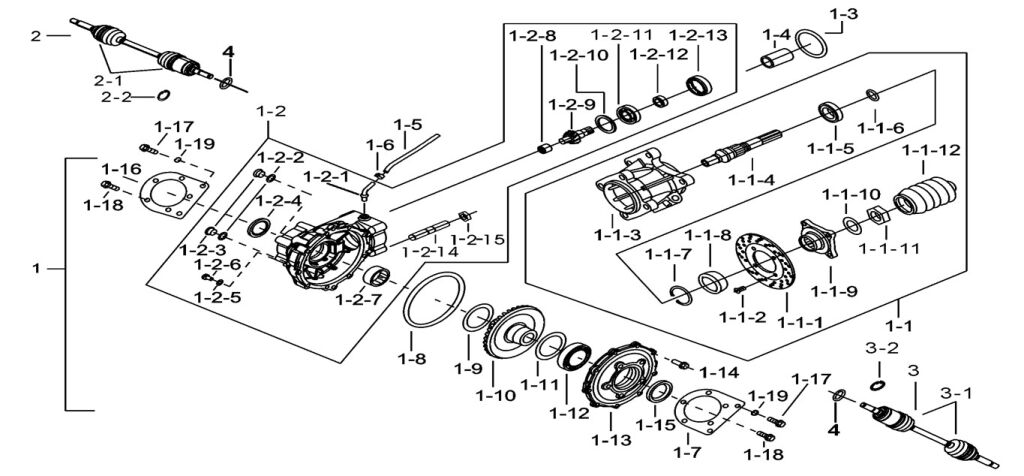

REAR DIFFERENTIAL ASSY.

TGB
  • Výrobca  TGB
  • Kód produktu  TGB_1_114_FBG-D
MODEL:
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
1.1.8 OIL-SEAL (Ref. č 1-1-8) 924969 OIL-SEAL  1 € 11,90 € 15
SKLADOM
1.1.7 C CLIP (Ref. č 1-1-7) R01802 C CLIP  1 € 9,50 € 12
SKLADOM
1.1.6 O-RING (Ref. č 1-1-6) 924968 O-RING  1 € 2,40 € 3
SKLADOM
1.1.5 BEARING (Ref. č 1-1-5) 925001 BEARING  1 € 47,02 € 58
SKLADOM
1.1.4 SHAFT, REAR FINAL DRIVE (Ref. č 1-1-4) 924964 SHAFT, REAR FINAL DRIVE  1 € 88,26 € 109
SKLADOM
1.1.3 HOUSING, RR FINAL DRIVE (Ref. č 1-1-3) 925792 HOUSING, RR FINAL DRIVE  1 € 113,39 € 139
SKLADOM
1.1.2 SCREW, SOCKET (Ref. č 1-1-2) S72005 SCREW, SOCKET  4 € 3,06 € 4
SKLADOM
1.1.12 DUST GUARD COVER (Ref. č 1-1-12) 925617 DUST GUARD COVER  1 € 19,75 € 24
NA DOPYT
1.1.11 NUT, HEX HEAD (Ref. č 1-1-11) N33701 NUT, HEX HEAD  1 € 15,54 € 19
NA DOPYT
1.1.10 WASHER 10,5x 22x2t (Ref. č 1-1-10) W99710 WASHER 10,5x 22x2t  1 € 2,31 € 3
NA DOPYT
1.1.1 DISC, BRAKE 180mm (Ref. č 1-1-1) 513426Y DISC, BRAKE 180mm  1 € 60,41 € 74
SKLADOM
04 O RING 3X30.2 (Ref. č 04) 925449 O RING 3X30.2  2 € 2,40 € 3
SKLADOM
03A 925444 R/B 925444Y REAR TRANSMISSION SHAFT (R)

011779→

1 € 395,21 € 486
NA DOPYT
1.1.9 SEAT, LOCK (Ref. č 1-1-9) 924965 SEAT, LOCK  1 € 98,93 € 122
SKLADOM
1.2 CASE SET, REAR FINAL GEAR (Ref. č 1-2) 925187A CASE SET, REAR FINAL GEAR  1 € 318,02 € 391
NA DOPYT
1.2.1 EXHAUST PIPE, BREATHE (Ref. č 1-2-1) 924261 EXHAUST PIPE, BREATHE  1 € 6,69 € 8
NA DOPYT
1.2.8 BEARING ?20x?28x23 (Ref. č 1-2-8) 924269 BEARING ?20x?28x23  1 € 31,57 € 39
SKLADOM
1.2.7 BEARING ?40X?50X20 (Ref. č 1-2-7) 924270 BEARING ?40X?50X20  1 € 41,24 € 51
SKLADOM
1.2.6 BOLT, FLANGE (Ref. č 1-2-6) S21605 BOLT, FLANGE  1 € 2,40 € 3
SKLADOM
1.2.5 WASHER ?6.5X?13.2X1.3t (Ref. č 1-2-5) W99621 WASHER ?6.5X?13.2X1.3t  1 € 2,40 € 3
SKLADOM
1.2.4 OIL SEAL ?38X?54X6 (Ref. č 1-2-4) 924274 OIL SEAL ?38X?54X6  1 € 3,72 € 5
SKLADOM
1.2.3 SCREW (Ref. č 1-2-3) 924339 SCREW  2 € 5,79 € 7
SKLADOM
1.2.2 WASHER, TDC ?16.2X?22.5X2t (Ref. č 1-2-2) W99620 WASHER, TDC ?16.2X?22.5X2t  2 € 2,40 € 3
SKLADOM
1.2.15 N10001 NUT  4 € 2,15 € 3
NA DOPYT
1.2.14 S95003 STUD  4 € 2,15 € 3
NA DOPYT
1.2.13 RING SNAP (Ref. č 1-2-13) 924254 RING SNAP  1 € 48,60 € 60
NA DOPYT
1.2.12 RING SNAP (Ref. č 1-2-12) 924255 RING SNAP  1 € 8,35 € 10
SKLADOM
1.2.11 BEARING 28x68x18 (Ref. č 1-2-11) 925355 BEARING 28x68x18  1 € 41,07 € 51
SKLADOM
1.2.10 SHIM ?63X?68X0.5t (Ref. č 1-2-10) W99622 SHIM ?63X?68X0.5t  2 € 5,62 € 7
SKLADOM
03.2 R/B 911607 C CLIP (Ref. č 03-2) 925250 R/B 911607 C CLIP  1 € 2,40 € 3
NA DOPYT
03.1 BOOT SET, TRANSMISSION SHAFT (UNAVAILABLE) (Ref. č 03-1) 925249 BOOT SET, TRANSMISSION SHAFT (UNAVAILABLE)  1 € 73,55 € 90
NA DOPYT
01.18 BOLT (Ref. č 01-18) S21010 BOLT  10 € 2,40 € 3
SKLADOM
01.17 BOLT, HEX HEAD (Ref. č 01-17) S21004 BOLT, HEX HEAD  4 € 2,40 € 3
SKLADOM
01.16 JOINT PLATE(L) (Ref. č 01-16) 924963 JOINT PLATE(L)  1 € 34,05 € 42
SKLADOM
01.15 OIL SEAL ?42x?62x9 (Ref. č 01-15) 924275 OIL SEAL ?42x?62x9  1 € 4,30 € 5
SKLADOM
01.14 SCREW (Ref. č 01-14) S21813 SCREW  9 € 2,40 € 3
SKLADOM
01.13 924262 R/B 925642 CASE, REAR FINAL DRIVEN RH  1 € 51,32 € 63
SKLADOM
01.12 BEARING ?45x?75x16 (Ref. č 01-12) 924268 BEARING ?45x?75x16  1 € 43,72 € 54
SKLADOM
01.11C SHIM ?45.5X?54X0.05t (Ref. č 01-11C) W99530 SHIM ?45.5X?54X0.05t  1 € 2,98 € 4
SKLADOM
01.11B SHIM ?45.5X?54X0.1t (Ref. č 01-11B) W99529 SHIM ?45.5X?54X0.1t  1 € 3,31 € 4
SKLADOM
01.11A SHIM ?45.5X?54X0.3t (Ref. č 01-11A) W99528 SHIM ?45.5X?54X0.3t  1 € 4,05 € 5
SKLADOM
01.11 SHIM ?45.5X?54X0.5t (Ref. č 01-11) W99531 SHIM ?45.5X?54X0.5t  1 € 3,39 € 4
SKLADOM
01.10 GEAR, FINAL DRIVEN BEVEL (Ref. č 01-10) 924877 GEAR, FINAL DRIVEN BEVEL  1 € 210,58 € 259
SKLADOM
01.1 HOUSING SET, RR FINAL DRIVE (Ref. č 01-1) 925792A HOUSING SET, RR FINAL DRIVE  1 € 144,38 € 178
SKLADOM
01.19 WASHER (Ref. č 01-19) W10203 WASHER  4 € 2,40 € 3
SKLADOM
01.3 O-RING ?3.175.4 (Ref. č 01-3) 924273 O-RING ?3.175.4  1 € 2,40 € 3
SKLADOM
01.4 JOINT, REAR FINAL DRIVE (Ref. č 01-4) 924252 JOINT, REAR FINAL DRIVE  1 € 18,84 € 23
NA DOPYT
03 924875A R/B 925444 - REAR TRANSMISSION SHAFT (R)

←011778

1 € 346,69 € 426
NA DOPYT
02A 925443 R/B 925443Y REAR TRANSMISSION SHAFT (L)

011779→

1 € 323,97 € 398
NA DOPYT
02 924874A R/B 925443 - REAR TRANSMISSION SHAFT (L)

←011778

1 € 256,28 € 315
NA DOPYT
01.9C SHIM ?40X?50X0.05T (Ref. č 01-9C) W99426 SHIM ?40X?50X0.05T  1 € 3,31 € 4
SKLADOM
01.9B SHIM ?40X?50X0.1T (Ref. č 01-9B) W99425 SHIM ?40X?50X0.1T  1 € 3,14 € 4
SKLADOM
01.9A SHIM ?40X?50X0.3T (Ref. č 01-9A) W99424 SHIM ?40X?50X0.3T  1 € 3,55 € 4
SKLADOM
01.9 SHIM ?40X?50X0.5T (Ref. č 01-9) W99427 SHIM ?40X?50X0.5T  1 € 3,47 € 4
SKLADOM
01.8 "O" RING ?2.3X?158.3 (Ref. č 01-8) 924271 "O" RING ?2.3X?158.3  1 € 2,40 € 3
SKLADOM
01.7 JOINT PLATE(R) (Ref. č 01-7) 924966 JOINT PLATE(R)  1 € 41,40 € 51
SKLADOM
01.6 CLAMP (Ref. č 01-6) R40002 CLAMP  1 € 2,40 € 3
SKLADOM
01.5 CASE, BREATHER (Ref. č 01-5) 924769 CASE, BREATHER  1 € 8,51 € 10
SKLADOM
01 925519A R/B 925700A REAR DIFFERENTIAL ASSY.  1 € 560,99 € 690
NA DOPYT
Kód produktu TGB_1_114_FBG-D
typ rozkresu: ENGINE PARTS
TYP: BLADE 550
ZNACKA: TGB
MODEL: BLADE 550
