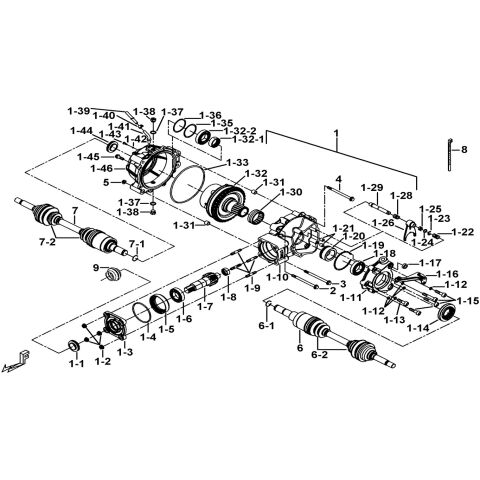

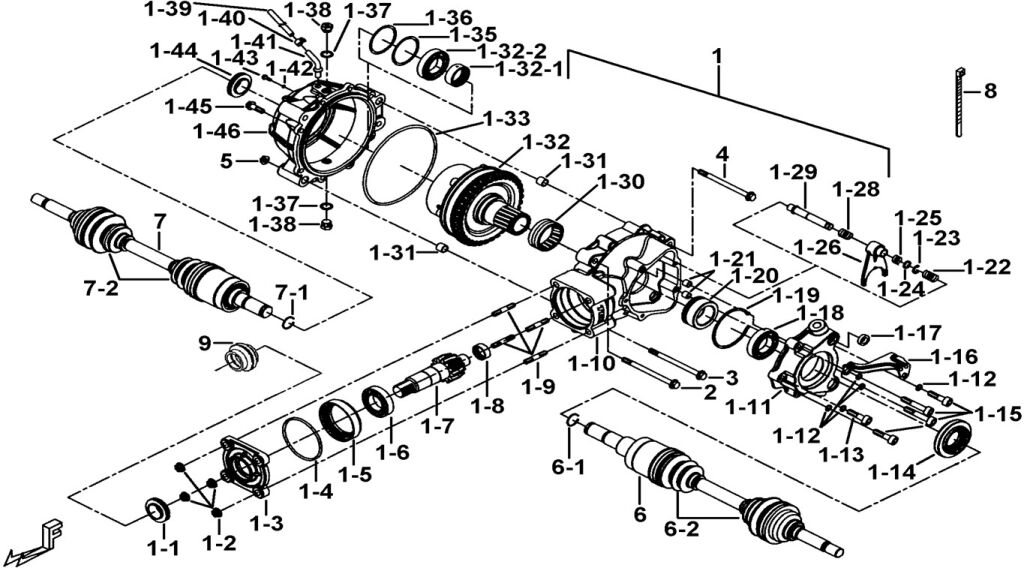

REAR DIFFERENTIAL ASSY.(FOR WHEEL BRAKE)

Ref. č Obr. Kód p. Popis p. ks Cena Dostupnost
09 DUST GUARD COVER (Ref. č 09) 910662 DUST GUARD COVER  1 € 7,02 € 8,50
SKLADOM
01.5 RING SNAP (Ref. č 01-5) 910212 RING SNAP  1 € 29,34 € 35,50
SKLADOM
01.46 910199 CASE, REAR FINAL DRIVEN  1 € 84,55 € 102,30
NA DOPYT
01.45 SCREW (Ref. č 01-45) S21813 SCREW  8 € 2,40 € 2,90
SKLADOM
01.43 BOLT, FLANGE (Ref. č 01-43) S21605 BOLT, FLANGE  1 € 2,40 € 2,90
SKLADOM
01.42 WASHER ?6.5X?13.2X1.3t (Ref. č 01-42) W99621 WASHER ?6.5X?13.2X1.3t  1 € 2,40 € 2,90
SKLADOM
01.41 EXHAUST PIPE, BREATHE (Ref. č 01-41) 924261 EXHAUST PIPE, BREATHE  1 € 6,69 € 8,10
NA DOPYT
01.40 CLAMP (Ref. č 01-40) R40002 CLAMP  1 € 2,40 € 2,90
SKLADOM
01.4 ORING (Ref. č 01-4) 910209 ORING  1 € 4,96 € 6
NA DOPYT
01.39 926171 PIPE, BREATHER  1 € 7,36 € 8,90
NA DOPYT
01.38 SCREW (Ref. č 01-38) 924339 SCREW  2 € 5,79 € 7
SKLADOM
01.37 WASHER (Ref. č 01-37) W99639 WASHER  2 € 1,98 € 2,40
SKLADOM
01.6 BEARING(63/32) (Ref. č 01-6) 910501 BEARING(63/32)  1 € 59,34 € 71,80
SKLADOM
01.7 SHAFT, REAR FINAL DRIVE (Ref. č 01-7) 910213 SHAFT, REAR FINAL DRIVE  1 € 122,23 € 147,90
SKLADOM
01.8 BEARING (Ref. č 01-8) 911592 BEARING  1 € 21,57 € 26,10
SKLADOM
08 CLAMP L200 (Ref. č 08) 518739 CLAMP L200  2 € 3,06 € 3,70
SKLADOM
07.2 BOOT SET,TRANSMISSION SHAFT (Ref. č 07-2) 910604Y BOOT SET,TRANSMISSION SHAFT  1 € 79,75 € 96,50
SKLADOM
06.2 BOOT SET,TRANSMISSION SHAFT (Ref. č 06-2) 910604Y BOOT SET,TRANSMISSION SHAFT  1 € 79,75 € 96,50
SKLADOM
07.1 ＂C＂ CLIP ∮29.5 (Ref. č 07-1) 911607B ＂C＂ CLIP ∮29.5  1 € 3,44 € 4,16
NA CESTE
06.1 ＂C＂ CLIP ∮29.5 (Ref. č 06-1) 911607B ＂C＂ CLIP ∮29.5  1 € 3,44 € 4,16
NA CESTE
07 REAR TRANSMISSION SHAFT (RH) (Ref. č 07) 911120Y REAR TRANSMISSION SHAFT (RH)  1 € 386,69 € 467,90
SKLADOM
06 911119Y R/B 911119Y-S REAR TRANSMISSION SHAFT (LH)  1 € 386,69 € 467,90
NA DOPYT
05 NUT, SELF LOCK (Ref. č 05) GA551NT01 NUT, SELF LOCK  4 € 2,40 € 2,90
SKLADOM
04 BOLT, FLANGE (Ref. č 04) S20057 BOLT, FLANGE  2 € 6,12 € 7,40
SKLADOM
03 S20055 BOLT, FLANGE  1 € 5,12 € 6,20
NA DOPYT
02 BOLT, FLANGE M10X1.25 (Ref. č 02) S20019 BOLT, FLANGE M10X1.25  1 € 3,22 € 3,90
SKLADOM
01.9 S95003 STUD  4 € 2,15 € 2,60
NA DOPYT
01.36 SHIM 0.3t (Ref. č 01-36) W99833 SHIM 0.3t  1 € 5,37 € 6,50
SKLADOM
01.35 SHIM 0.2t (Ref. č 01-35) W99832 SHIM 0.2t  1 € 5,21 € 6,30
SKLADOM
01.33 ORING (Ref. č 01-33) 910208 ORING  1 € 4,79 € 5,80
NA DOPYT
01.2 N10001 NUT  4 € 2,15 € 2,60
NA DOPYT
01.19 R01803 CCLIP  1 € 8,02 € 9,70
NA DOPYT
01.18 BEARING (Ref. č 01-18) 911591 BEARING  1 € 61,24 € 74,10
SKLADOM
01.32.2 BEARING (Ref. č 01-32-2) 911591 BEARING  1 € 61,24 € 74,10
SKLADOM
01.17 OIL SEAL?12X?20X5 (Ref. č 01-17) 924381 OIL SEAL?12X?20X5  1 € 2,40 € 2,90
SKLADOM
01.16 STEEL ROPE BRACKET (Ref. č 01-16) 910204 STEEL ROPE BRACKET  1 € 9,83 € 11,90
SKLADOM
01.15 SCREW, SOCKET HEAD M8X1.25X40L (Ref. č 01-15) S70809 SCREW, SOCKET HEAD M8X1.25X40L  4 € 2,40 € 2,90
SKLADOM
01.14 OIL SEAL (Ref. č 01-14) 910408 OIL SEAL  1 € 16,53 € 20
SKLADOM ZA 3 dní
01.13 S70810 SCREW, SOCKET HEAD M8X1.25X36L  1 € 2,15 € 2,60
NA DOPYT
01.12 SPRING WASHER (Ref. č 01-12) GA556WS04 SPRING WASHER  5 € 2,40 € 2,90
SKLADOM
01.11 HOUSING, FRONT DRIVE (Ref. č 01-11) 910521 HOUSING, FRONT DRIVE  1 € 49,26 € 59,60
SKLADOM
01.10 910200 GEAR BOX, REAR DIFFERENTIAL  1 € 114,21 € 138,20
NA DOPYT
01.1 OIL SEAL (Ref. č 01-1) 910586 OIL SEAL  1 € 16,78 € 20,30
SKLADOM
01.20 910182 LOCK SLEEVE  1 € 19,83 € 24
NA DOPYT
01.21 P40102 PIN, DOWEL  2 € 4,71 € 5,70
NA DOPYT
01.22 910492 SPRING  1 € 3,55 € 4,30
NA DOPYT
01.32.1 BEARING (Ref. č 01-32-1) 910500 BEARING  1 € 21,90 € 26,50
SKLADOM
01.32 PLANETARY GEAR COMP (Ref. č 01-32) 911684M-1 PLANETARY GEAR COMP  1 € 588,87 € 712,53
NA DOPYT
01.31 PIN, DOWEL (Ref. č 01-31) P40301 PIN, DOWEL  2 € 2,40 € 2,90
SKLADOM
01.30 BEARING (Ref. č 01-30) 910498 BEARING  1 € 67,11 € 81,20
SKLADOM
01.3 910203 HOUSING, REAR FINAL DRIVE  1 € 21,74 € 26,30
NA DOPYT
01.29 910181 ROD, SHIFT  1 € 15,79 € 19,10
NA DOPYT
01.28 912033 SPRING, SHIFT  1
NA DOPYT
Detail
01.26 910206 FORK, SHIFT  1 € 36,45 € 44,10
NA DOPYT
01.25 925353 SPRING  1 € 2,81 € 3,40
NA DOPYT
01.24 WASHER (Ref. č 01-24) W99218 WASHER  1 € 2,40 € 2,90
NA CESTE
01.23 R10702 E RING  1 € 2,15 € 2,60
NA DOPYT
01 REAR DIFFERENTIAL ASSY. (Ref. č 01) 910402A REAR DIFFERENTIAL ASSY.  1 € 894,79 € 1 082,70
NA DOPYT
