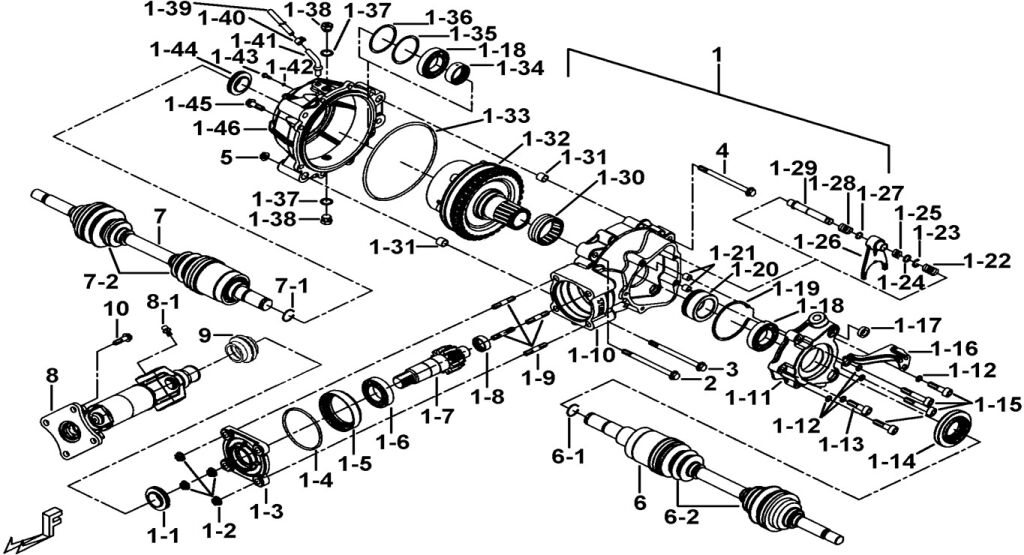

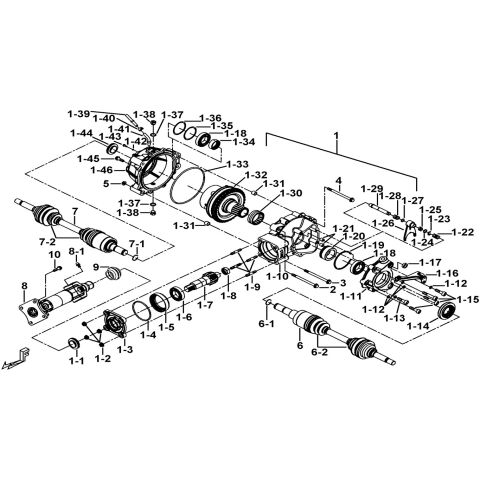

REAR DIFFERENTIAL ASSY.(FOR LOCK)

TGB
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
10 BOLT, MUF BODY SUPPORT RH (Ref. č 10) S21007 BOLT, MUF BODY SUPPORT RH  4 € 2,40 € 3
NA CESTE
01.45 SCREW (Ref. č 01-45) S21813 SCREW  8 € 2,40 € 3
SKLADOM
01.44 R/B 925010A OIL SEAL (Ref. č 01-44) 925010 R/B 925010A OIL SEAL  1 € 16,20 € 20
NA DOPYT
01.43 BOLT, FLANGE (Ref. č 01-43) S21605 BOLT, FLANGE  1 € 2,40 € 3
SKLADOM
01.42 WASHER ?6.5X?13.2X1.3t (Ref. č 01-42) W99621 WASHER ?6.5X?13.2X1.3t  1 € 2,40 € 3
SKLADOM
01.41 EXHAUST PIPE, BREATHE (Ref. č 01-41) 924261 EXHAUST PIPE, BREATHE  1 € 6,69 € 8
NA DOPYT
01.40 CLAMP (Ref. č 01-40) R40002 CLAMP  1 € 2,40 € 3
SKLADOM
01.38 SCREW (Ref. č 01-38) 924339 SCREW  2 € 5,79 € 7
SKLADOM
01.36 SHIM 0.3t (Ref. č 01-36) W99833 SHIM 0.3t  1 € 5,37 € 7
SKLADOM
01.9 S95003 STUD  4 € 2,15 € 3
NA DOPYT
02 BOLT, FLANGE M10X1.25 (Ref. č 02) S20019 BOLT, FLANGE M10X1.25  1 € 3,22 € 4
SKLADOM
08.1 GREASE NIPPLE (Ref. č 08-1) 925494 GREASE NIPPLE  1 € 2,40 € 3
SKLADOM
08 UNIVERSAL JOINT ASSY (Ref. č 08) 927155 UNIVERSAL JOINT ASSY  1 € 306,69 € 377
SKLADOM
07.2 R/B 911645Y BOOT SET, TRANSMISSION SHAFT (Ref. č 07-2) 910604 R/B 911645Y BOOT SET, TRANSMISSION SHAFT  1 € 77,93 € 96
NA DOPYT
07.1 R/B 911607 C CLIP (Ref. č 07-1) 925250 R/B 911607 C CLIP  1 € 2,40 € 3
NA DOPYT
05 NUT, SELF LOCK (Ref. č 05) GA551NT01 NUT, SELF LOCK  4 € 2,40 € 3
SKLADOM
04 BOLT, FLANGE (Ref. č 04) S20057 BOLT, FLANGE  2 € 6,12 € 8
SKLADOM
01.35 SHIM 0.2t (Ref. č 01-35) W99832 SHIM 0.2t  1 € 5,21 € 6
SKLADOM
01.34 BEARING (Ref. č 01-34) 910500 BEARING  1 € 21,90 € 27
NA CESTE
01.33 ORING (Ref. č 01-33) 910208 ORING  1 € 4,79 € 6
SKLADOM
01.17 OIL SEAL?12X?20X5 (Ref. č 01-17) 924381 OIL SEAL?12X?20X5  1 € 2,40 € 3
NA DOPYT
01.16 STEEL ROPE BRACKET (Ref. č 01-16) 910204 STEEL ROPE BRACKET  1 € 9,83 € 12
SKLADOM
01.15 SCREW, SOCKET HEAD M8X1.25X40L (Ref. č 01-15) S70809 SCREW, SOCKET HEAD M8X1.25X40L  4 € 2,40 € 3
SKLADOM
01.14 OIL SEAL (Ref. č 01-14) 910408 OIL SEAL  1 € 16,53 € 20
NA DOPYT
01.13 S70810 SCREW, SOCKET HEAD M8X1.25X36L  1 € 2,15 € 3
NA DOPYT
01.12 SPRING WASHER (Ref. č 01-12) GA556WS04 SPRING WASHER  5 € 2,40 € 3
SKLADOM
01.11 HOUSING, FRONT DRIVE (Ref. č 01-11) 910521 HOUSING, FRONT DRIVE  1 € 49,26 € 61
SKLADOM
01.1 OIL SEAL (Ref. č 01-1) 910586 OIL SEAL  1 € 16,78 € 21
SKLADOM
01.18 R/B 911591 BEARING(6209) (Ref. č 01-18) 910502 R/B 911591 BEARING(6209)  2 € 43,80 € 54
NA DOPYT
01.2 N10001 NUT  4 € 2,15 € 3
NA DOPYT
01.32 R/B 910581-S SLIP LIMITED GEAR ASSY (Ref. č 01-32) 910581 R/B 910581-S SLIP LIMITED GEAR ASSY  1 € 806,36 € 992
NA DOPYT
01.31 PIN, DOWEL (Ref. č 01-31) P40301 PIN, DOWEL  2 € 2,40 € 3
SKLADOM
01.28 INSIDE SPRING (Ref. č 01-28) 924970 INSIDE SPRING  1 € 2,56 € 3
SKLADOM
01.27 924971 WASHER 1t  1 € 2,15 € 3
NA DOPYT
01.25 925353 SPRING  1 € 2,81 € 3
NA DOPYT
01.24 WASHER (Ref. č 01-24) W99218 WASHER  1 € 2,40 € 3
SKLADOM
01.23 E RING (Ref. č 01-23) R10702 E RING  1 € 2,15 € 3
SKLADOM
01.21 P40102 PIN, DOWEL  2 € 4,71 € 6
NA DOPYT
01 REAR DIFFERENTIAL ASSY. (Ref. č 01) 910402 REAR DIFFERENTIAL ASSY.  1 € 1 427,02 € 1 755
SKLADOM ZA 19 dní
Kód produktu TGB_2_116_ETT
typ rozkresu: FRAME PARTS
MODEL: BLADE 1000LT T3b
ZNACKA: TGB
TYP: BLADE 1000
