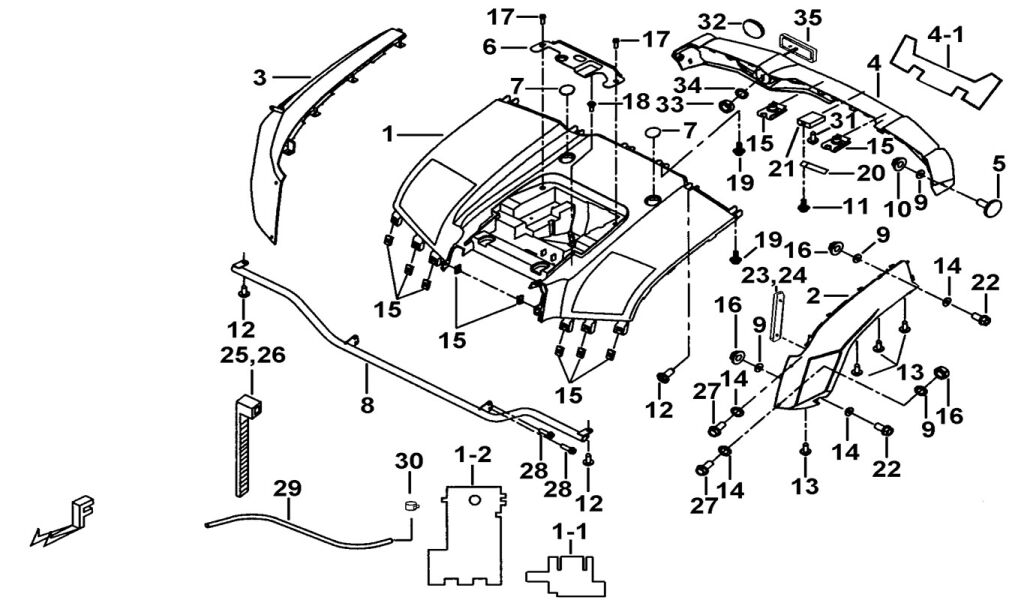

REAR BODY COVER

Ref. č Obr. Kód p. Popis p. ks Cena Dostupnost
18 BOLT M6X16L (Ref. č 18) S25602 BOLT M6X16L  1 € 2,40 € 2,90
SKLADOM
19 BOLT, FLANGE (Ref. č 19) S07601 BOLT, FLANGE  4 € 2,40 € 2,90
SKLADOM
20 CLAMP (Ref. č 20) 514410 CLAMP  3 € 2,40 € 2,90
SKLADOM
21 CONNECTOR (Ref. č 21) 514411 CONNECTOR  2 € 2,40 € 2,90
SKLADOM
22 BOLT, HEX HEAD M6X16 (Ref. č 22) S72605 BOLT, HEX HEAD M6X16  4 € 2,40 € 2,90
SKLADOM
23 PLATE (LH.) (Ref. č 23) 512466 PLATE (LH.)  1 € 9,17 € 11,10
NA DOPYT
24 PLATE (RH.) (Ref. č 24) 512467 PLATE (RH.)  1 € 9,34 € 11,30
SKLADOM
25 CLAMP L200 (Ref. č 25) 518739 CLAMP L200  1 € 3,06 € 3,70
SKLADOM
27 BOLT, HEX SOCKET (Ref. č 27) S72601 BOLT, HEX SOCKET  4 € 2,40 € 2,90
SKLADOM
28 BOLT,HEX HEAD (Ref. č 28) S20611 BOLT,HEX HEAD  4 € 2,40 € 2,90
SKLADOM
29 514467 DRAIN HOSE  1 € 24,79 € 30
NA DOPYT
30 CLAMP (Ref. č 30) R40002 CLAMP  1 € 2,40 € 2,90
SKLADOM
31 SCREW, PAN HEAD (Ref. č 31) S50402 SCREW, PAN HEAD  2 € 2,40 € 2,90
SKLADOM
32 518029 RUBBER PLUG  1
NA DOPYT
Detail
33 NUT,SELFLOCK (Ref. č 33) N20502 NUT,SELFLOCK  2 € 3,97 € 4,80
SKLADOM
34 WASHER (Ref. č 34) GA552WS05 WASHER  2 € 2,40 € 2,90
SKLADOM
17 BOLT, FLANGE (Ref. č 17) S20814 BOLT, FLANGE  2 € 2,40 € 2,90
SKLADOM
16 NUT, SPRING M6 (Ref. č 16) N10603 NUT, SPRING M6  6 € 2,40 € 2,90
SKLADOM
01.1 518014R HEAT INSULATION  1 € 17,19 € 20,80
NA DOPYT

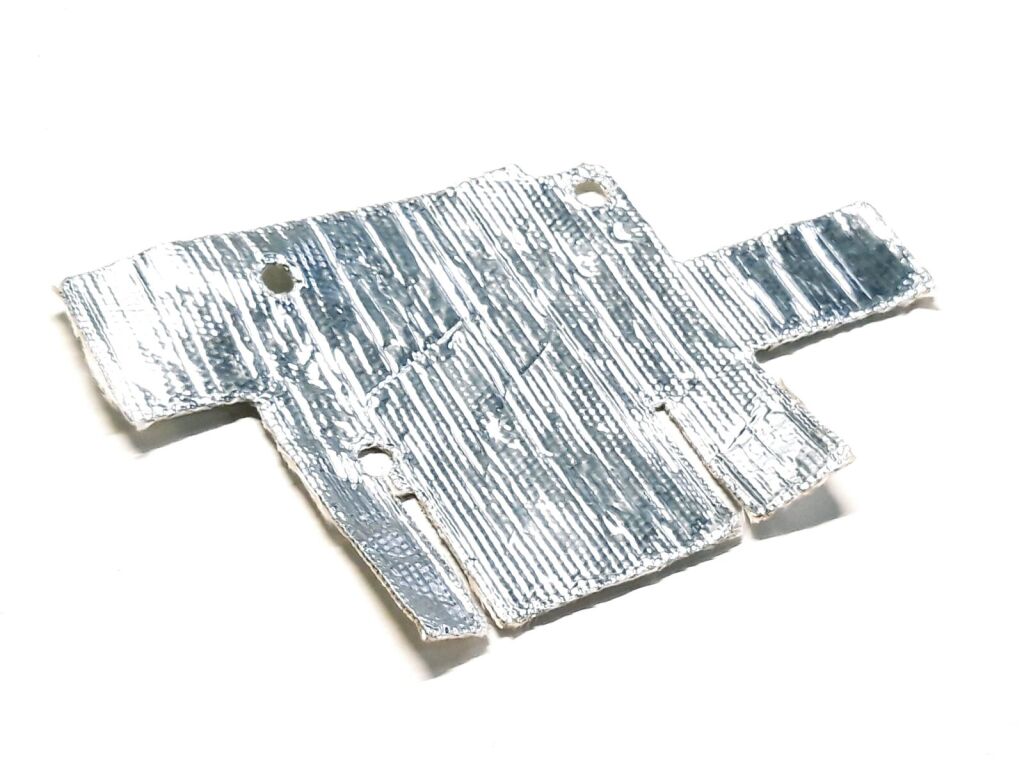

01.2 HEAT INSULATION (Ref. č 01-2) 518011R HEAT INSULATION  1 € 67,52 € 81,70
SKLADOM
02 REAR FENDER SIDE RAIL, LH. (Ref. č 02) 514493 REAR FENDER SIDE RAIL, LH.  1 € 22,56 € 27,30
SKLADOM
03 REAR FENDER SIDE RAIL, RH. (Ref. č 03) 514494 REAR FENDER SIDE RAIL, RH.  1 € 22,56 € 27,30
SKLADOM
04 514553E REAR BUMPER  1 € 111,90 € 135,40
NA CESTE
05 REFLECTOR ASSY., SIDE (REAR) (Ref. č 05) 518007 REFLECTOR ASSY., SIDE (REAR)  2 € 7,52 € 9,10
SKLADOM

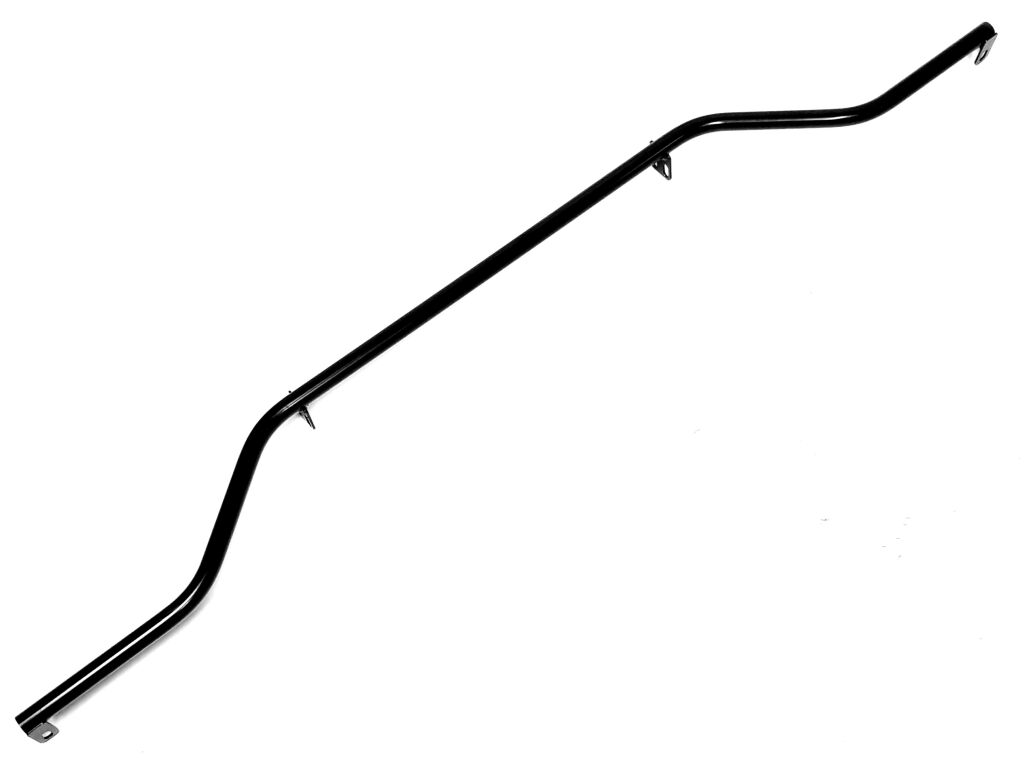

08 518031 BRKT, REAR BODY COVER  1 € 46,03 € 55,70
NA CESTE
09 WASHER (Ref. č 09) W99605 WASHER  8 € 2,40 € 2,90
SKLADOM
10 N20602 NUT, LOCK  2 € 1,98 € 2,40
NA DOPYT
11 BOLT, FLANGE M6X16 (Ref. č 11) GA555SC05 BOLT, FLANGE M6X16  3 € 2,40 € 2,90
SKLADOM
12 SCREW, OVAL HEAD, TAPPING M5X14 (Ref. č 12) S57501 SCREW, OVAL HEAD, TAPPING M5X14  4 € 2,40 € 2,90
SKLADOM
13 SCREW TAPPING M4X12 (Ref. č 13) S50401 SCREW TAPPING M4X12  8 € 2,40 € 2,90
SKLADOM
14 WASHER (Ref. č 14) GA555WS02 WASHER  8 € 2,40 € 2,90
SKLADOM
15 NUT, SPRING M6X1.0 (Ref. č 15) N32601 NUT, SPRING M6X1.0  12 € 2,40 € 2,90
NA CESTE
35 REFLECTOR ASSY.,REAR (Ref. č 35) 458015 REFLECTOR ASSY.,REAR  2 € 6,45 € 7,80
NA CESTE
26 CLAMP L200 (Ref. č 26) 518739 CLAMP L200  4 € 3,06 € 3,70
SKLADOM
