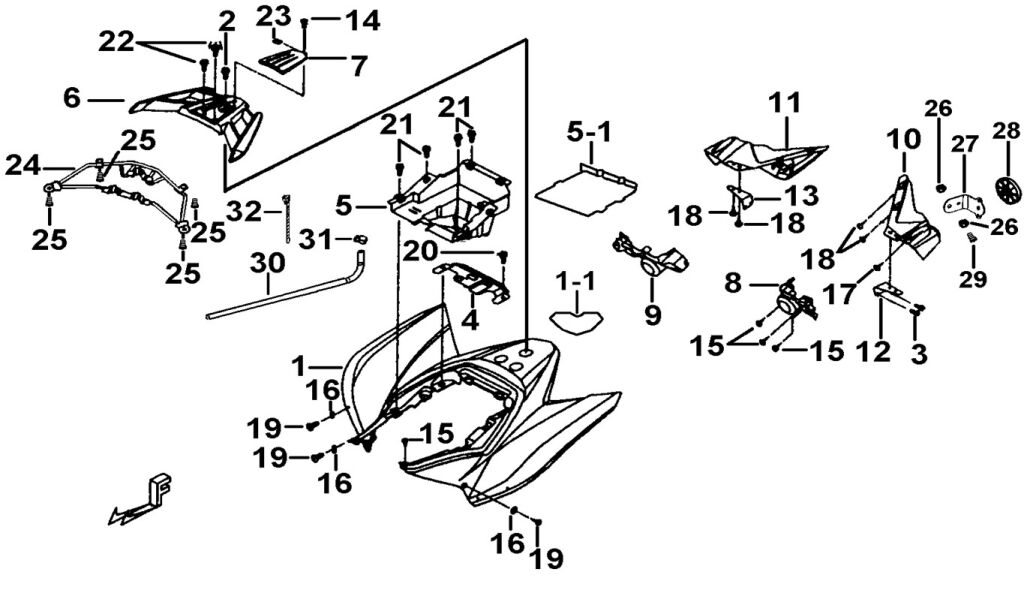

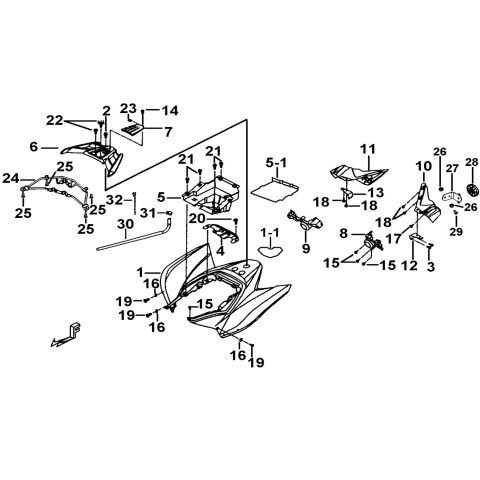

REAR BODY COVER

TGB
Výrobca: TGB
Kód produktu: TGB_4_222_VSF
Ref. č Obr. Kód p. Popis p. ks Cena Dostupnost
01.1 514462 HEAT INSULATION  1 € 10,17 € 12,30
NA DOPYT
18 SCREW, OVAL HEAD, TAPPING M5X14 (Ref. č 18) S57501 SCREW, OVAL HEAD, TAPPING M5X14  8 € 2,40 € 2,90
SKLADOM
27 514444 BRACKET, REFLECTOR, SIDE(REAR)  2 € 8,26 € 10
NA DOPYT
28 REFLECTOR, SIDE(REAR) (Ref. č 28) 453062 REFLECTOR, SIDE(REAR)  2 € 5,87 € 7,10
SKLADOM
29 BOLT, FLANGE M6X16 (Ref. č 29) GA555SC05 BOLT, FLANGE M6X16  2 € 2,40 € 2,90
SKLADOM
03 BOLT, FLANGE M6X16 (Ref. č 03) GA555SC05 BOLT, FLANGE M6X16  4 € 2,40 € 2,90
SKLADOM
19 BOLT, HEX HEAD M6X16 (Ref. č 19) S72605 BOLT, HEX HEAD M6X16  6 € 2,40 € 2,90
SKLADOM
20 BOLT, FLANGE (Ref. č 20) S20814 BOLT, FLANGE  2 € 2,40 € 2,90
SKLADOM
21 BOLT M6X16L (Ref. č 21) S25602 BOLT M6X16L  7 € 2,40 € 2,90
SKLADOM
22 BOLT, FLANGE, HEX HEAD (Ref. č 22) S20804 BOLT, FLANGE, HEX HEAD  2 € 2,40 € 2,90
SKLADOM
23 NUT, SPRING (Ref. č 23) N32501 NUT, SPRING  1 € 2,40 € 2,90
SKLADOM
24 BRACKET, HANDLE (Ref. č 24) 514445 BRACKET, HANDLE  1 € 49,17 € 59,50
NA DOPYT
25 BOLT,HEX HEAD (Ref. č 25) S20611 BOLT,HEX HEAD  4 € 2,40 € 2,90
SKLADOM
26 NUT FLANGE M6 (Ref. č 26) GA554NT04 NUT FLANGE M6  6 € 2,40 € 2,90
SKLADOM
30 514471 DRAIN HOSE  1 € 32,15 € 38,90
NA DOPYT
31 CLAMP (Ref. č 31) R40002 CLAMP  1 € 2,40 € 2,90
SKLADOM
17 SCREW , OVAL HEAD M6X50 (Ref. č 17) S50501 SCREW , OVAL HEAD M6X50  2 € 2,40 € 2,90
SKLADOM
16 WASHER (Ref. č 16) GA555WS02 WASHER  6 € 2,40 € 2,90
SKLADOM
02 BOLT, FLANGE 8x42 (Ref. č 02) S20805 BOLT, FLANGE 8x42  1 € 2,40 € 2,90
NA DOPYT
04 BATTERY FIXED (Ref. č 04) 514413 BATTERY FIXED  1 € 12,64 € 15,30
SKLADOM
05 BATTERY FIXED (Ref. č 05) 514432A BATTERY FIXED  1 € 37,60 € 45,50
SKLADOM
05.1 514442 HEAT INSULATION  1 € 27,60 € 33,40
NA DOPYT
06 HANDLE (Ref. č 06) 515097SW HANDLE  1 € 62,15 € 75,20
SKLADOM
08 FENDER, REAR LAMP LH. (Ref. č 08) 514451 FENDER, REAR LAMP LH.  1 € 14,71 € 17,80
SKLADOM
09 FENDER, REAR LAMP RH. (Ref. č 09) 514452 FENDER, REAR LAMP RH.  1 € 14,71 € 17,80
SKLADOM
10 ORNAMENTAL, REAR LAM LH. (Ref. č 10) 514457 ORNAMENTAL, REAR LAM LH.  1 € 22,40 € 27,10
NA DOPYT
11 ORNAMENTAL, REAR LAMP RH. (Ref. č 11) 514458 ORNAMENTAL, REAR LAMP RH.  1 € 26,94 € 32,60
SKLADOM
12 BRACKET, REAR COVER LH. (Ref. č 12) 511961 BRACKET, REAR COVER LH.  1 € 4,63 € 5,60
SKLADOM
13 BRACKET, REAR COVER RH. (Ref. č 13) 511962 BRACKET, REAR COVER RH.  1 € 4,63 € 5,60
SKLADOM
14 SCREW M5X12 (Ref. č 14) S72502 SCREW M5X12  1 € 2,40 € 2,90
SKLADOM
15 SCREW, TAPPING M4X16 (Ref. č 15) GA552SC11 SCREW, TAPPING M4X16  8 € 2,40 € 2,90
NA CESTE
32 CLAMP L200 (Ref. č 32) 518739 CLAMP L200  3 € 3,06 € 3,70
SKLADOM
