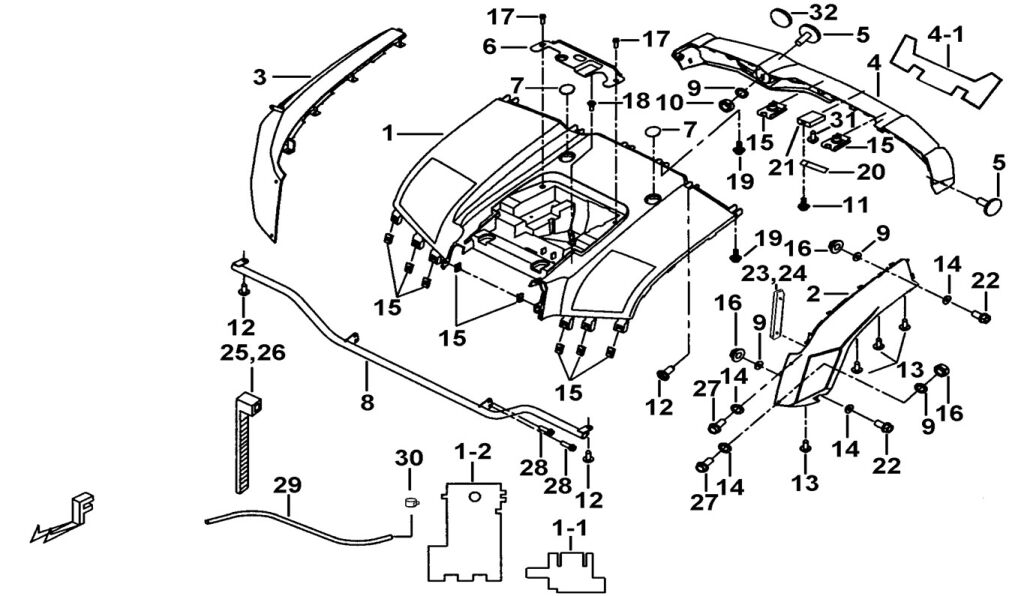

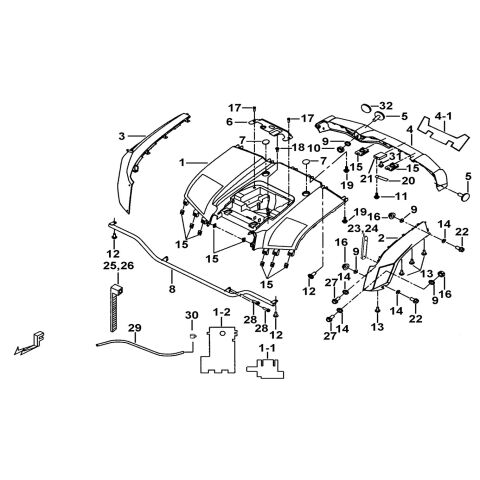

REAR BODY COVER

Ref. č Obr. Kód p. Popis p. ks Cena Dostupnost
01.1 HEAT INSULATION (Ref. č 01-1) 518014 HEAT INSULATION  1 € 15,87 € 19,20
NA DOPYT
18 BOLT M6X16L (Ref. č 18) S25602 BOLT M6X16L  1 € 2,40 € 2,90
SKLADOM
19 BOLT, FLANGE (Ref. č 19) S07601 BOLT, FLANGE  4 € 2,40 € 2,90
SKLADOM
20 CLAMP (Ref. č 20) 514410 CLAMP  3 € 2,40 € 2,90
SKLADOM
21 CONNECTOR (Ref. č 21) 514411 CONNECTOR  2 € 2,40 € 2,90
SKLADOM
22 BOLT, HEX HEAD M6X16 (Ref. č 22) S72605 BOLT, HEX HEAD M6X16  4 € 2,40 € 2,90
SKLADOM
23 PLATE (LH.) (Ref. č 23) 512466 PLATE (LH.)  1 € 9,17 € 11,10
NA DOPYT
24 PLATE (RH.) (Ref. č 24) 512467 PLATE (RH.)  1 € 9,34 € 11,30
SKLADOM
25 CLAMP L200 (Ref. č 25) 518739 CLAMP L200  1 € 3,06 € 3,70
SKLADOM
27 BOLT, HEX SOCKET (Ref. č 27) S72601 BOLT, HEX SOCKET  4 € 2,40 € 2,90
SKLADOM
28 BOLT,HEX HEAD (Ref. č 28) S20611 BOLT,HEX HEAD  4 € 2,40 € 2,90
SKLADOM
29 514467 DRAIN HOSE  1 € 24,79 € 30
NA DOPYT
30 CLAMP (Ref. č 30) R40002 CLAMP  1 € 2,40 € 2,90
SKLADOM
31 SCREW, PAN HEAD (Ref. č 31) S50402 SCREW, PAN HEAD  2 € 2,40 € 2,90
SKLADOM
17 BOLT, FLANGE (Ref. č 17) S20814 BOLT, FLANGE  2 € 2,40 € 2,90
SKLADOM
16 NUT, SPRING M6 (Ref. č 16) N10603 NUT, SPRING M6  6 € 2,40 € 2,90
SKLADOM
01.2 R/B 518011R HEAT INSULATION (Ref. č 01-2) 518011 R/B 518011R HEAT INSULATION  1 € 58,26 € 70,50
NA DOPYT
02 REAR FENDER SIDE RAIL, LH. (Ref. č 02) 514493 REAR FENDER SIDE RAIL, LH.  1 € 22,56 € 27,30
SKLADOM
03 REAR FENDER SIDE RAIL, RH. (Ref. č 03) 514494 REAR FENDER SIDE RAIL, RH.  1 € 22,56 € 27,30
SKLADOM
04 514528E REAR BUMPER COMP.  1 € 108,51 € 131,30
SKLADOM
04.1 R/B 512090R HEAT INSULATION (Ref. č 04-1) 512090 R/B 512090R HEAT INSULATION  1 € 22,89 € 27,70
NA DOPYT
05 REFLECTOR ASSY., SIDE (REAR) (Ref. č 05) 518007 REFLECTOR ASSY., SIDE (REAR)  4 € 7,52 € 9,10
SKLADOM
08 514405 BRKT, REAR BODY COVER  1 € 26,36 € 31,90
SKLADOM
09 WASHER (Ref. č 09) W99605 WASHER  10 € 2,40 € 2,90
SKLADOM
11 BOLT, FLANGE M6X16 (Ref. č 11) GA555SC05 BOLT, FLANGE M6X16  3 € 2,40 € 2,90
SKLADOM
12 SCREW, OVAL HEAD, TAPPING M5X14 (Ref. č 12) S57501 SCREW, OVAL HEAD, TAPPING M5X14  4 € 2,40 € 2,90
SKLADOM
13 SCREW TAPPING M4X12 (Ref. č 13) S50401 SCREW TAPPING M4X12  8 € 2,40 € 2,90
SKLADOM
14 WASHER (Ref. č 14) GA555WS02 WASHER  8 € 2,40 € 2,90
SKLADOM
15 NUT, SPRING M6X1.0 (Ref. č 15) N32601 NUT, SPRING M6X1.0  12 € 2,40 € 2,90
NA CESTE
26 CLAMP L200 (Ref. č 26) 518739 CLAMP L200  4 € 3,06 € 3,70
SKLADOM
