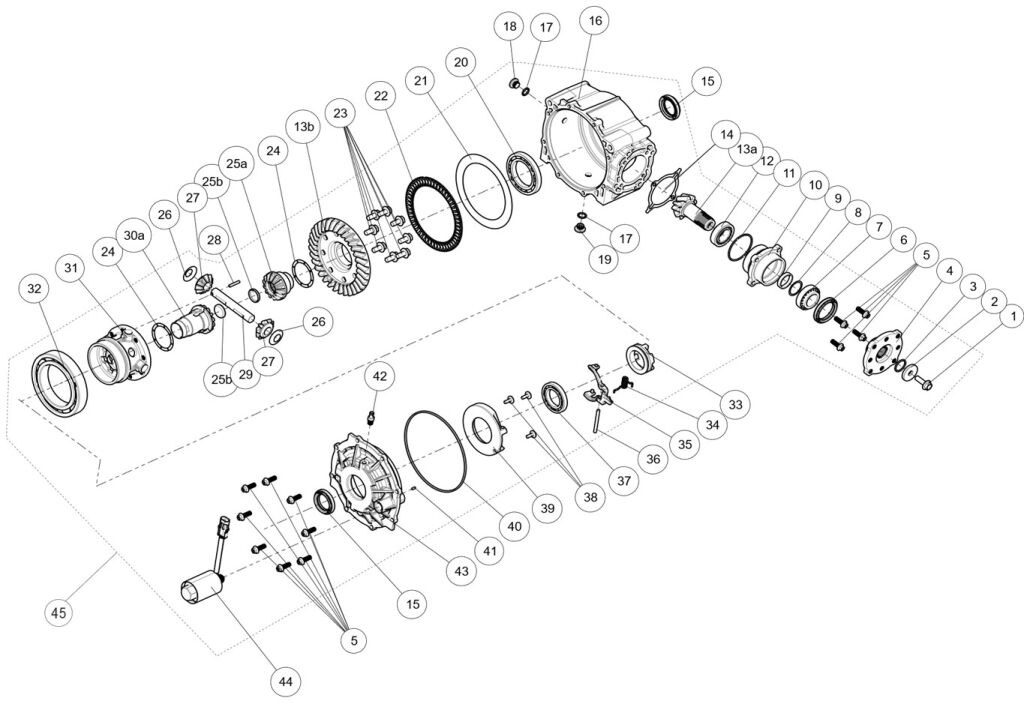

REAR AXLE(with differential，no ABS)

Ref. č Obr. Kód p. Popis p. ks Cena Dostupnost
45 REAR AXLE ASSEMBLY(with differential,no ABS) (Ref. č 45) Q01R00000004 REAR AXLE ASSEMBLY(with differential,no ABS)  1 € 918,88 € 1 111,84
SKLADOM
33 Combination sets (Ref. č 33) Q01R32200001 Combination sets  1 € 25,50 € 30,86
SKLADOM
32 BEARING 6019 (Ref. č 32) GBT000276032 BEARING 6019  1 € 87,47 € 105,84
SKLADOM
31 Q01R30700001 Differential housing  1 € 100,62 € 121,75
NA DOPYT
30 Q01R30100000 AXLE SHAFT BEVEL GEAR Ⅰ PLUG ASSY  1 € 36,64 € 44,33
NA DOPYT
29 Q01R32300001 Planetary gear shaft Ⅳ  1 € 5,14 € 6,22
NA DOPYT
28 GBT00119A001 Cylindrical pin 5×28  1 € 1,98 € 2,40
NA DOPYT
27 Q01R30900003 Planetary gear  1 € 12,87 € 15,57
NA DOPYT
26 Q01R31700003 Planetary gear liner (unavailable)  2 € 2,44 € 2,95
NA CESTE
25 AXLE SHAFT BEVEL GEAR Ⅱ PLUG ASSY (Ref. č 25) Q01R30500000 AXLE SHAFT BEVEL GEAR Ⅱ PLUG ASSY  1 € 86,25 € 104,36
SKLADOM
34 Torsion spring (Ref. č 34) Q01R32000001 Torsion spring  1 € 1,98 € 2,40
SKLADOM
35 Q01R31901001 R/B Q01R31900001 Fork assembly  1 € 32,33 € 39,12
NA DOPYT
44 Solenoid valve assembly (Ref. č 44) Q01R50200001 Solenoid valve assembly  1 € 64,67 € 78,25
SKLADOM

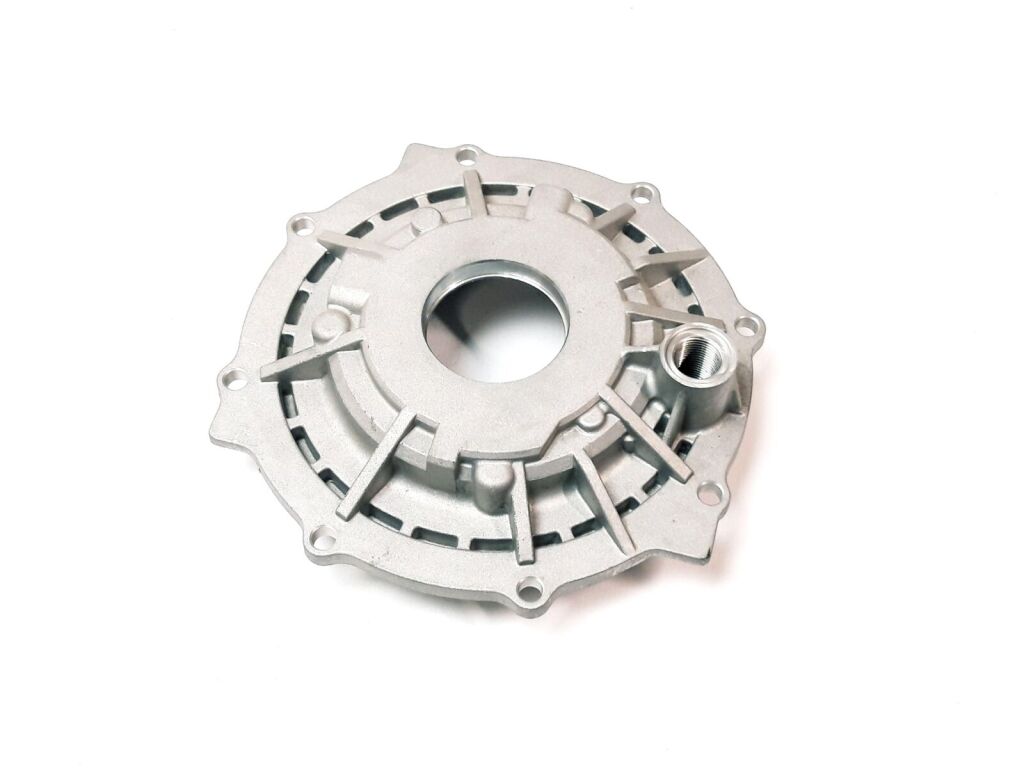

43 Rear axle end cover (Ref. č 43) Q01R40200003 Rear axle end cover  1 € 49,58 € 59,99
SKLADOM
42 BREATHING JOINT (Ref. č 42) Q01F41300001 BREATHING JOINT  1 € 13,99 € 16,93
SKLADOM
41 GBT00119A002 Cylindrical pin 4×8  1 € 1,98 € 2,40
NA DOPYT
40 RECTANGULAR GASKET 180×185×3 (Ref. č 40) Q01R40500001 RECTANGULAR GASKET 180×185×3  1 € 8,83 € 10,68
SKLADOM
39 Bearing seat (Ref. č 39) Q01R31800001 Bearing seat  1 € 23,01 € 27,84
SKLADOM
38 Inner hexagon screws M10×1.25×25 (Ref. č 38) T03000007002 Inner hexagon screws M10×1.25×25  3 € 2,44 € 2,95
SKLADOM
37 BEARING 16008 (Ref. č 37) GBT000276015 BEARING 16008  1 € 11,82 € 14,30
SKLADOM
36 Cylindrical pin 6x60 (Ref. č 36) Q01R32100001 Cylindrical pin 6x60  1 € 1,98 € 2,40
SKLADOM
24 Q01R31600000 Axle bevel gasket  2 € 1,98 € 2,40
NA DOPYT
23 HEXAGON FLANGE BOLT M10×1.0×20 (Ref. č 23) GBT005789055 HEXAGON FLANGE BOLT M10×1.0×20  8 € 2,44 € 2,95
SKLADOM
22 NEEDLE ROLLER BEARING AXK 130X170X5 (Ref. č 22) Q01R40700001 NEEDLE ROLLER BEARING AXK 130X170X5  1 € 36,19 € 43,79
SKLADOM
10 DRIVE GEAR SHAFT SEAT (Ref. č 10) Q01R40400001 DRIVE GEAR SHAFT SEAT  1 € 21,08 € 25,51
SKLADOM
9 SPACER,SECTOR GEAR (Ref. č 9) Q01R10400001 SPACER,SECTOR GEAR  1 € 3,40 € 4,11
SKLADOM
8 Q01R10300000 CLEARANCE ADJUSTING PAD  1 € 2,44 € 2,95
NA DOPYT
7 TAPERED ROLLER BEARING 33006 (Ref. č 7) GBT000297002 TAPERED ROLLER BEARING 33006  1 € 48,63 € 58,84
SKLADOM
6 Oil seal 44×60×7 (Ref. č 6) F01F20503001 Oil seal 44×60×7  1 € 10,60 € 12,82
SKLADOM
5 HEXAGON FLANGE BOLT M8×25 (Ref. č 5) Q01F40201001 HEXAGON FLANGE BOLT M8×25  12 € 2,44 € 2,95
SKLADOM
4 FLANGE,TRANSMISSION SHAFT (Ref. č 4) Q01R40300001 FLANGE,TRANSMISSION SHAFT  1 € 74,18 € 89,76
SKLADOM
3 O-RING SEAL 25×2.65 (Ref. č 3) Q01R41100001 O-RING SEAL 25×2.65  1 € 3,99 € 4,83
SKLADOM
2 FLAT WASHER10.5×39×6 (Ref. č 2) Q01R40900001 FLAT WASHER10.5×39×6  1 € 3,40 € 4,11
SKLADOM
11 O-RING SEAL 61.5*2.65 (Ref. č 11) Q01R41200001 O-RING SEAL 61.5*2.65  1 € 2,44 € 2,95
SKLADOM
12 TAPERED ROLLER BEARING 32006 (Ref. č 12) GBT000297001 TAPERED ROLLER BEARING 32006  1 € 27,88 € 33,73
SKLADOM
21 LIMIT LINER (Ref. č 21) Q01R40800001 LIMIT LINER  1 € 7,46 € 9,03
SKLADOM
20 BEARING 16012 (Ref. č 20) GBT000276013 BEARING 16012  1 € 37,86 € 45,81
SKLADOM
19 ENGINE DRAIN PLUG M14 (Ref. č 19) F01G00200001 ENGINE DRAIN PLUG M14  1 € 5,54 € 6,70
SKLADOM
18 PLUG M14 (Ref. č 18) F02C10008001 PLUG M14  1 € 2,66 € 3,22
SKLADOM
17 O-Ring 13.8×2.5 (Ref. č 17) F01G00005001 O-Ring 13.8×2.5  2 € 2,44 € 2,95
SKLADOM
16 REAR AXLE SHELL (Ref. č 16) Q01R40100003 REAR AXLE SHELL  1 € 97,26 € 117,68
SKLADOM ZA 8 dní
15 OIL SEAL 37×55×7 (Ref. č 15) Q01F40600001 OIL SEAL 37×55×7  2 € 14,47 € 17,51
SKLADOM
14 DRIVE GEAR ADJUSTING PAD (unavailable) (Ref. č 14) Q01R10200000 DRIVE GEAR ADJUSTING PAD (unavailable)  2 € 2,44 € 2,95
NA DOPYT
13 R/B Q02R20100000 DRIVE&DRIVEN BEVEL GEAR ASSY (Ref. č 13) Q01R10100000 R/B Q02R20100000 DRIVE&DRIVEN BEVEL GEAR ASSY  1 € 370,70 € 448,55
SKLADOM
1 HEXAGON FLANGE BOLT M10×1.25×30 (Ref. č 1) GBT005789027 HEXAGON FLANGE BOLT M10×1.25×30  1 € 2,44 € 2,95
SKLADOM
