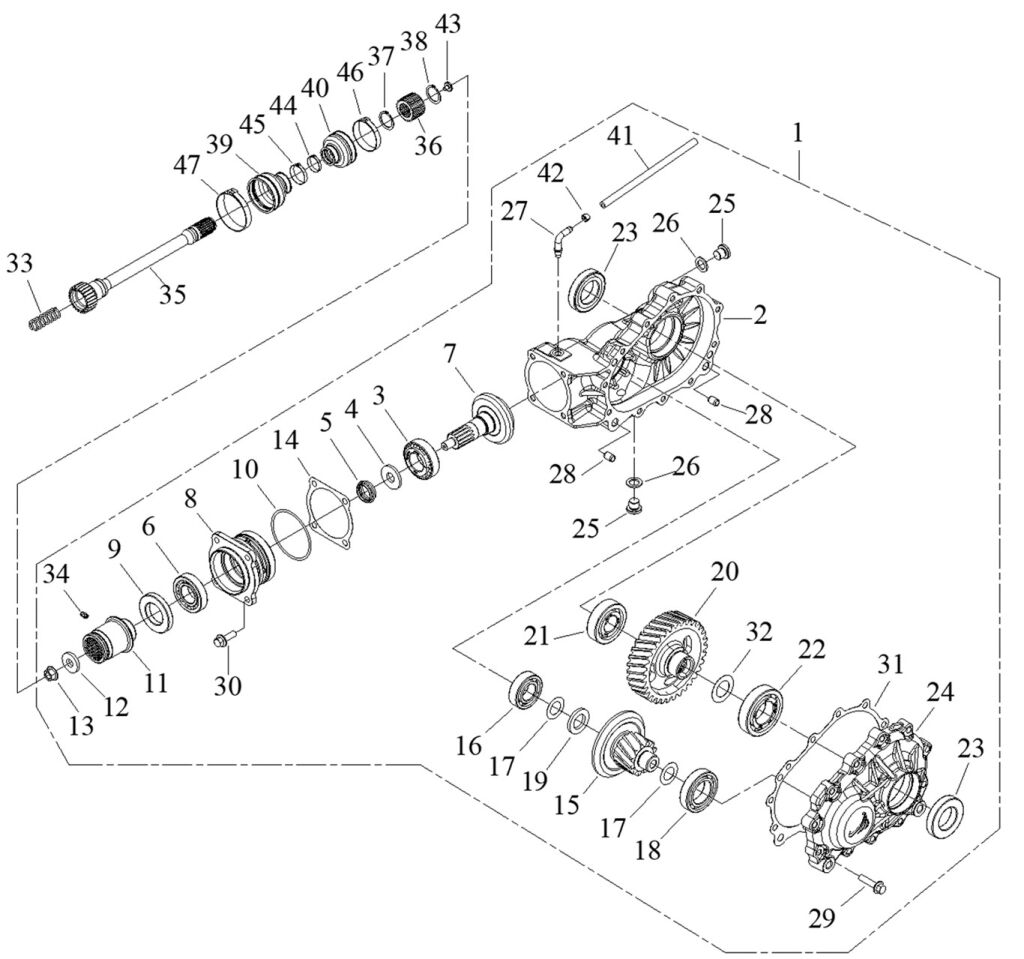

REAR AXLE GEAR CASE ASSY

ACCESS MOTOR
  • Výrobca  ACCESS MOTOR
  • Kód produktu  ACCESS_4_223_MAX_650i_LT
MODEL:
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
47 Clip (Ref. č 47) 97416-535-07 Clip  1 € 2,48 € 3
SKLADOM
34 R/B 91805-A01-100 Grease Valve (Ref. č 34) 91805-A01-000 R/B 91805-A01-100 Grease Valve  1 € 2,48 € 3
SKLADOM
33 Spring, Axle (Ref. č 33) 97214-A27-000 Spring, Axle  1 € 2,48 € 3
SKLADOM
32 93100-35249-02 Washer , Plate  1 € 2,48 € 3
NA DOPYT

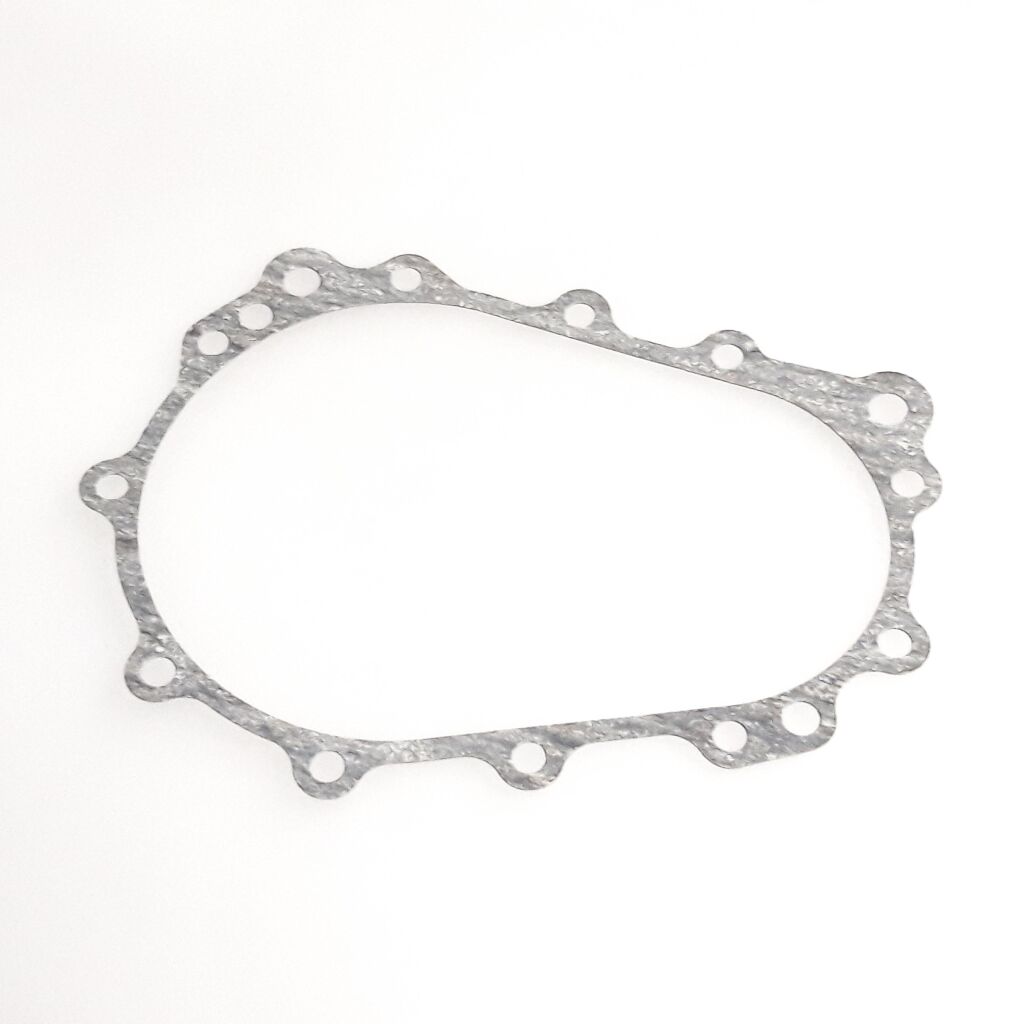

31 Gasket , Rear Axle Gear Case (Ref. č 31) 33101-A27-000 Gasket , Rear Axle Gear Case  1 € 5,79 € 7
NA DOPYT
30 91750-08028-12G Bolt, Hex  4 € 1,90 € 2
NA DOPYT
29 91700-08035-12G-1 Hex. Bolt, Flange  11 € 1,90 € 2
NA DOPYT
28 Pin, Dowel (Ref. č 28) 94001-100140 Pin, Dowel  2 € 2,48 € 3
SKLADOM
27 33315-A13-001 Hose, Breather (unavailable)  1 € 5,54 € 7
NA DOPYT
26 Washer, Plate (AL) (unavailable) (Ref. č 26) 93105-14222-20 Washer, Plate (AL) (unavailable)  2 € 2,48 € 3
NA DOPYT
35 Rear Transmission (Ref. č 35) 33601-A27-000 Rear Transmission  1 € 63,64 € 78
SKLADOM
36 Sleeve, Coupling Shaft (Ref. č 36) 33602-A27-000 Sleeve, Coupling Shaft  1 € 12,40 € 15
SKLADOM
37 Cir Clip (Ref. č 37) 93406-STW22A Cir Clip  1 € 2,48 € 3
SKLADOM
46 Clip (Ref. č 46) 97416-500-07 Clip  1 € 2,48 € 3
SKLADOM
45 Clip (Ref. č 45) 97416-316-07 Clip  1 € 2,48 € 3
SKLADOM
44 Clip (Ref. č 44) 97416-271-07 Clip  1 € 2,48 € 3
SKLADOM
43 Grommet (Ref. č 43) 33355-A27-000 Grommet  1 € 2,48 € 3
SKLADOM
42 97411-085-06 Clip  1 € 2,48 € 3
NA DOPYT
41 15108-A06-000 Hose, Pressure Release  1 € 2,48 € 3
NA DOPYT
40 Dust Cap, Shaft, Outer (unavailable) (Ref. č 40) 33354-A27-010 Dust Cap, Shaft, Outer (unavailable)  1 € 2,48 € 3
NA DOPYT
39 Dust Cap, Shaft, Inner (unavailable) (Ref. č 39) 33354-A27-000 Dust Cap, Shaft, Inner (unavailable)  1 € 3,31 € 4
NA DOPYT
38 Cir Clip (Ref. č 38) 93406-STW19A Cir Clip  1 € 2,48 € 3
SKLADOM
25 Drain Bolt (unavailable) (Ref. č 25) 91833-A13-000 Drain Bolt (unavailable)  2 € 4,96 € 6
SKLADOM
24 33102-A27-000 R/B 33102-A27-001 Cover, Rear Axle Gear Case  1 € 111,65 € 137
NA DOPYT
23 Oil Seal (Ref. č 23) 96100-356212 Oil Seal  2 € 6,03 € 7
SKLADOM
10 96200-714031 O-RING  1 € 3,31 € 4
NA DOPYT
9 Oil Seal TC 35-61-09/13 (Ref. č 9) 96100-356109 Oil Seal TC 35-61-09/13  1 € 4,96 € 6
SKLADOM
8 33103-A27-000 Connector, Rear Axle Gear Case  1 € 49,50 € 61
NA DOPYT
7 33510-A27-000 Shaft, Spiral bevel gear  1 € 243,06 € 299
NA DOPYT
6 95100-30205 Pin Holder, Ball  1 € 28,02 € 34
NA DOPYT
5 33406-A27-000 Spacer, Buffer  1 € 8,18 € 10
NA DOPYT
4 93300-2638-06 Spacer tube  1 € 7,85 € 10
NA DOPYT
3 95100-30206 bearing, Ball  1 € 44,63 € 55
NA DOPYT
2 33100-A27-000 R/B 33100-A27-001 Rear Axle Gear Case  1 € 199,26 € 245
NA DOPYT
11 33405-A27-000 Shaft coupling  1 € 57,85 € 71
NA DOPYT
12 93100-12530-30G Washer,Plate  1 € 2,48 € 3
NA DOPYT
13 Nut, Insert Lock (Ref. č 13) 92130-12S-17G Nut, Insert Lock  1 € 2,48 € 3
SKLADOM
22 95100-6207ZC3 bearing, Ball  1 € 25,04 € 31
NA DOPYT

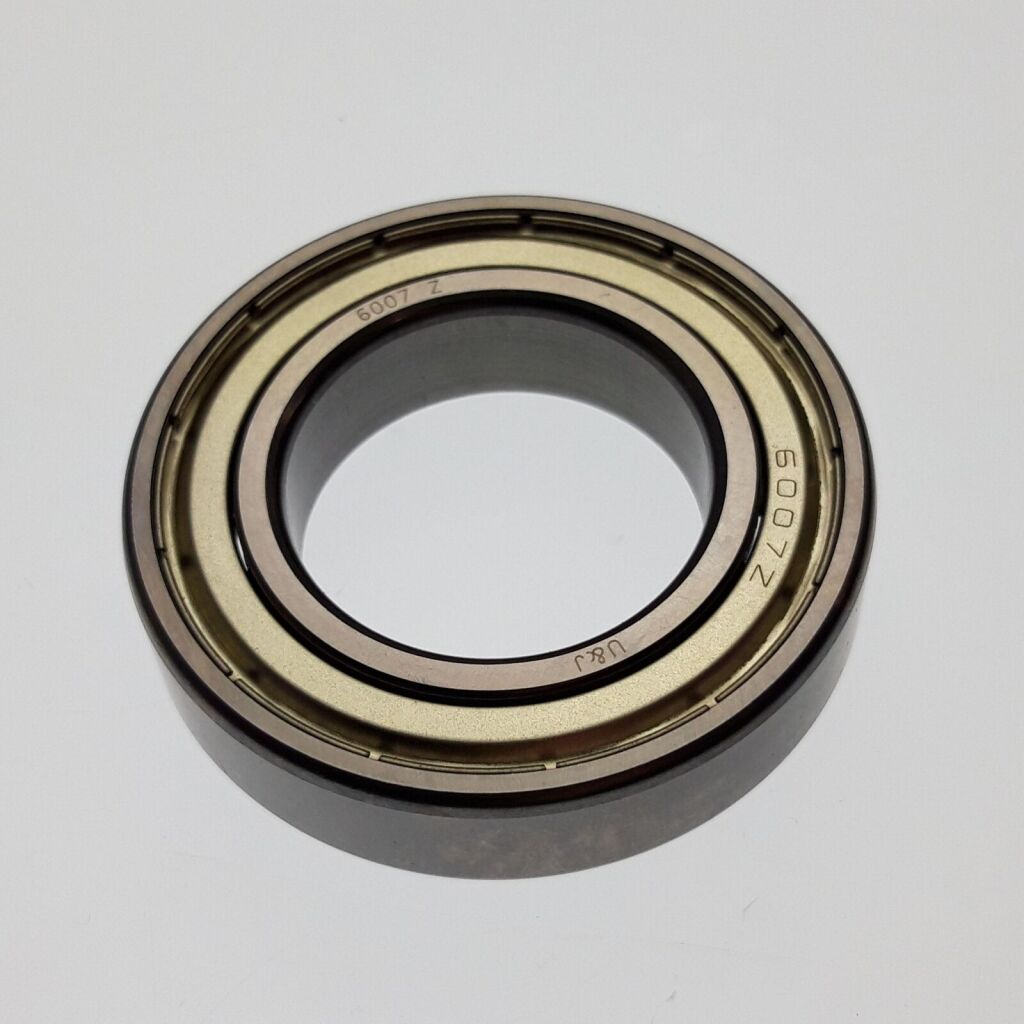

21 Bearing,Ball (Ref. č 21) 95100-6007Z Bearing,Ball  1 € 13,22 € 16
NA DOPYT

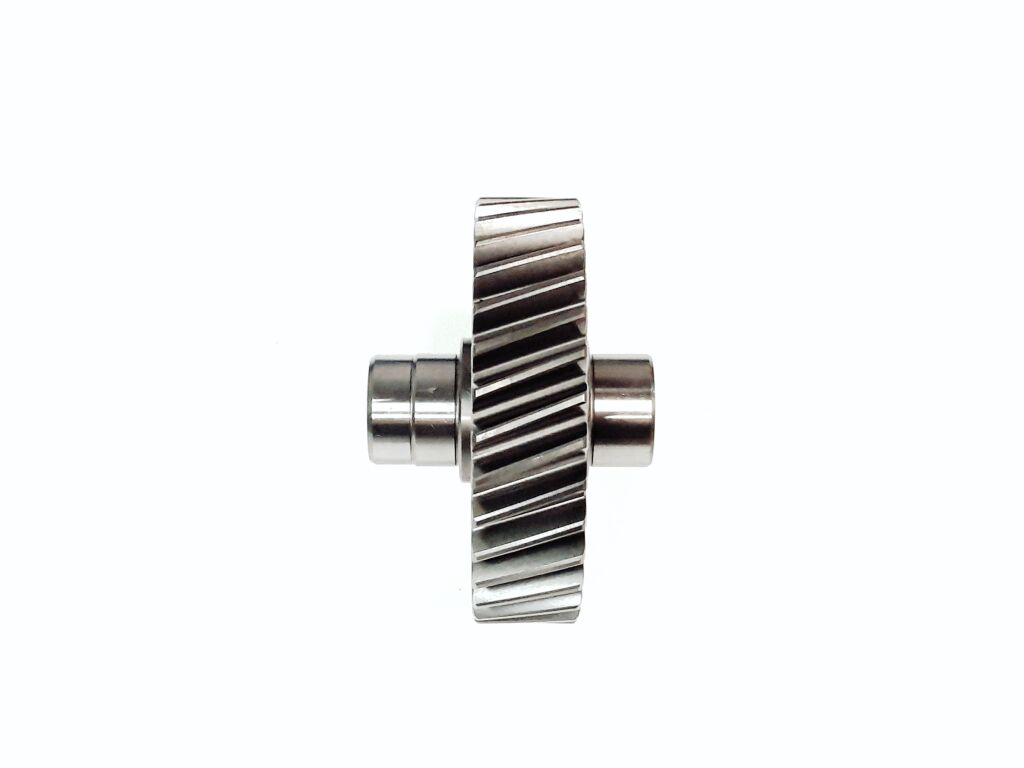

20 Shaft, Helical Gear (Ref. č 20) 33505-A27-001 Shaft, Helical Gear  1 € 176,86 € 218
SKLADOM
19 93300-2542-05 Spacer tube  1 € 9,42 € 12
NA DOPYT
18 95100-6305C3 bearing, Ball  1 € 16,61 € 20
NA DOPYT
17 93100-25238-02 Washer , Plate  2 € 2,15 € 3
NA DOPYT
16 Bearing,Ball (Ref. č 16) 95100-T6205 Bearing,Ball  1 € 4,96 € 6
NA DOPYT
15 33500-A27-000 driven pinion gear  1 € 356,86 € 439
NA DOPYT
14 Gasket, Connector, Rear Axle G (Ref. č 14) 33104-A27-000 Gasket, Connector, Rear Axle G  1 € 2,48 € 3
SKLADOM
1 R/B 33000-A27-002 Rear Axle Gear Case Ass´y (Ref. č 1) 33000-A27-001 R/B 33000-A27-002 Rear Axle Gear Case Ass´y  1 € 880,17 € 1 083
NA DOPYT
Kód produktu ACCESS_4_223_MAX_650i_LT
ZNACKA: ACCESS
typ rozkresu: FRAME PARTS
TYP: ACCESS MAX
MODEL: MAX 650 LT EFI
