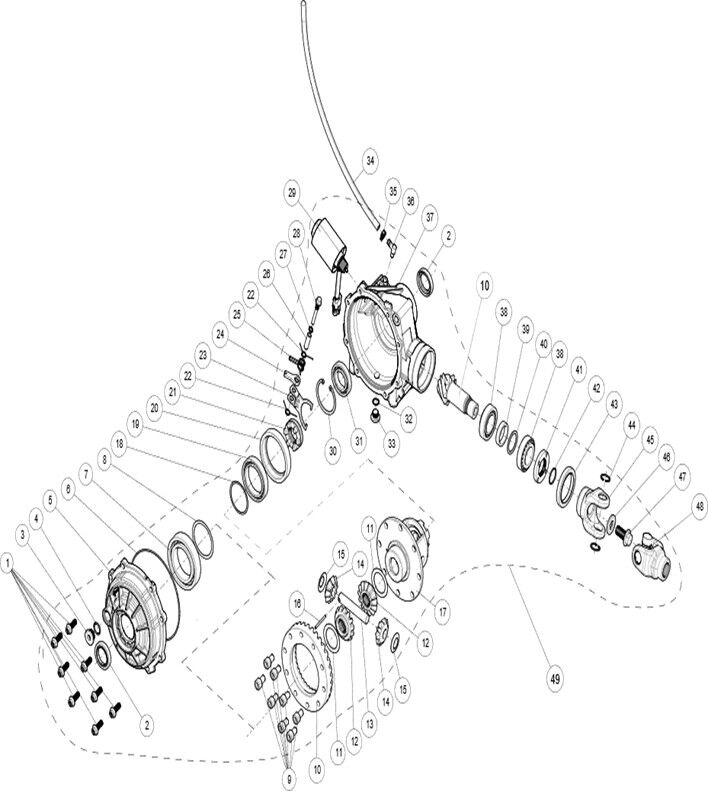

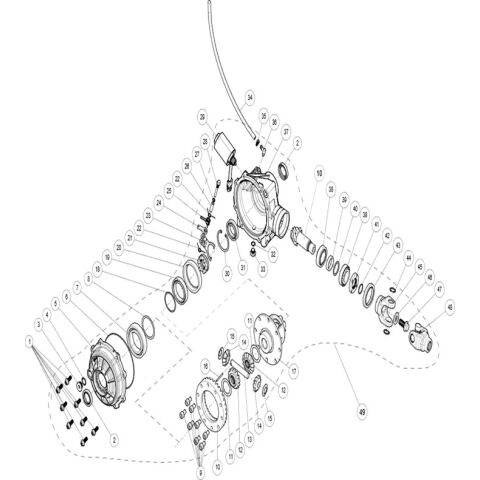

REAR AXLE DIFFERENTIAL

Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
49 450 REAR AXLE DIFFERENTIAL (Ref. č 49) Q02-R000000-000-00 450 REAR AXLE DIFFERENTIAL  1 € 754,30 € 928
NA CESTE
36 Q03F40800001 BREATHING CONNECTOR  1 € 2,40 € 3
NA DOPYT
35 CLAMP,SPRINGBAND 11 (Ref. č 35) QCT006211003 CLAMP,SPRINGBAND 11  1 € 2,15 € 3
SKLADOM
34 PIPE 600 (Ref. č 34) Q02F00005001 PIPE 600  1 € 6,69 € 8
NA DOPYT
33 PLUG M14×1.5×11 (Ref. č 33) Q02F00014001 PLUG M14×1.5×11  1 € 3,31 € 4
SKLADOM ZA 23 dní
32 O-RING 13×1.5 (Ref. č 32) Q02F00006001 O-RING 13×1.5  1 € 2,48 € 3
SKLADOM

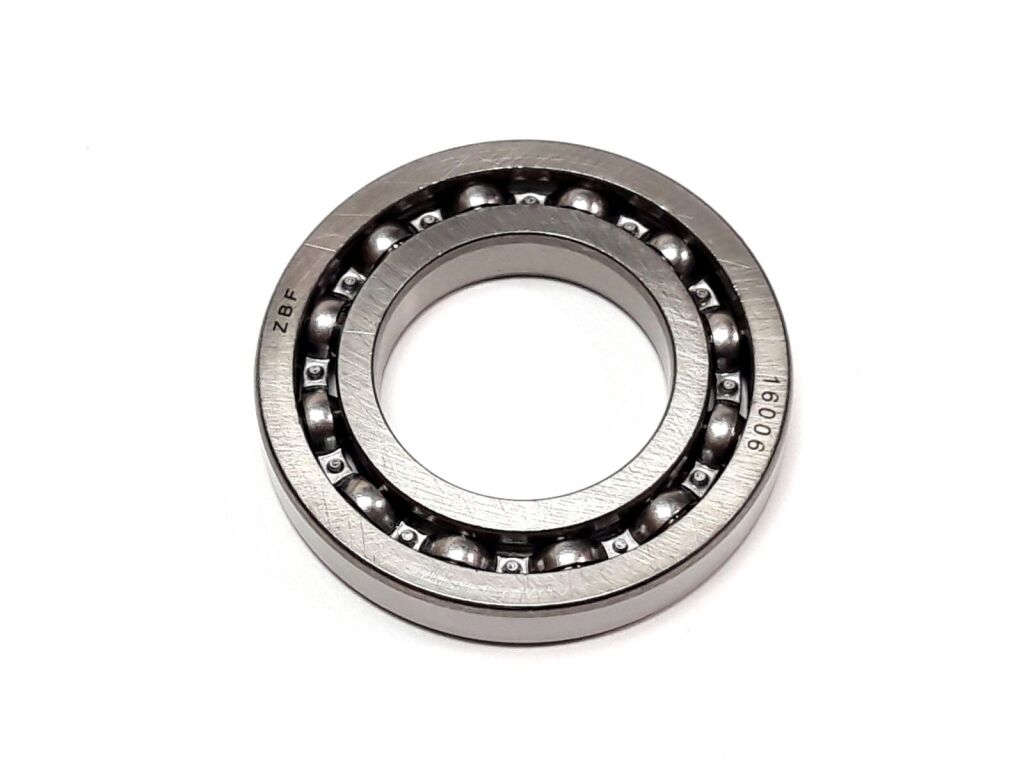

31 BALL BEARING 16006 (Ref. č 31) BG002760-16006-001 BALL BEARING 16006  1 € 4,55 € 6
NA DOPYT
30 CIRCLIP 55 (Ref. č 30) BG008930-55000-F01 CIRCLIP 55  1 € 2,40 € 3
NA CESTE
29 Solenoid valve assembly (Ref. č 29) Q01R50200001 Solenoid valve assembly  1 € 66,45 € 82
SKLADOM
28 Q02-R401007-000-00 SHIFT FORK PIN  1 € 2,40 € 3
NA DOPYT
27 SEALING RING (Ref. č 27) Q02-R401012-000-00 SEALING RING  1 € 2,40 € 3
NA DOPYT
37 Q02-R401016-000-00 REAR AXLE BOX  1 € 89,59 € 110
NA DOPYT
38 TAPERED ROLLER BEARING 32006 (Ref. č 38) GBT000297001 TAPERED ROLLER BEARING 32006  2 € 28,68 € 35
NA DOPYT
48 UNIVERSAL JOINT FORK 2 (Ref. č 48) Q02-R101027-000-00 UNIVERSAL JOINT FORK 2  1 € 30,33 € 37
SKLADOM
47 BOLT M14 ×1.5 × 30 (Ref. č 47) Q02-R101025-000-00 BOLT M14 ×1.5 × 30  1 € 2,40 € 3
SKLADOM
46 WASHER Φ14.5×Φ35.2×4 (Ref. č 46) Q02-R101007-000-00 WASHER Φ14.5×Φ35.2×4  1 € 2,40 € 3
SKLADOM

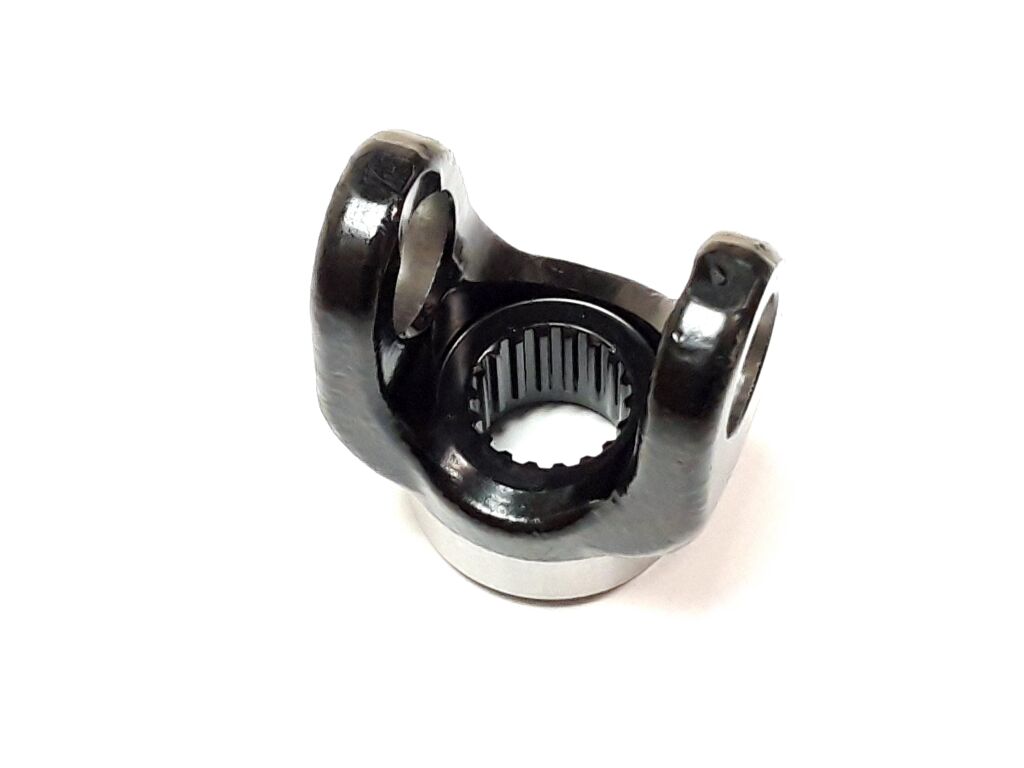

45 UNIVERSAL JOINT FORK (Ref. č 45) Q02-R101022-000-00 UNIVERSAL JOINT FORK  1 € 26,53 € 33
SKLADOM ZA 20 dní
44 CIRCLIP 22 (Ref. č 44) BG008930-22000-F01 CIRCLIP 22  2 € 2,40 € 3
SKLADOM
43 OIL SEAL 48×65×9 (Ref. č 43) Q02F00004001 OIL SEAL 48×65×9  1 € 14,79 € 18
NA CESTE
42 O-RING SEAL Φ 1.9 ×Φ 23.5 (Ref. č 42) Q02-R101026-000-00 O-RING SEAL Φ 1.9 ×Φ 23.5  1 € 2,40 € 3
SKLADOM
41 Q02-R101021-000-00 THREADED SLEEVE M30 × 1.5  1 € 7,27 € 9
NA DOPYT
40 REAR AXLE DRIVE GEAR GASKET (Ref. č 40) Q02-R101020-000-00 REAR AXLE DRIVE GEAR GASKET  1 € 2,40 € 3
SKLADOM
39 Q02-R101019-000-00 SPACER SLEEVE  1 € 2,40 € 3
NA DOPYT

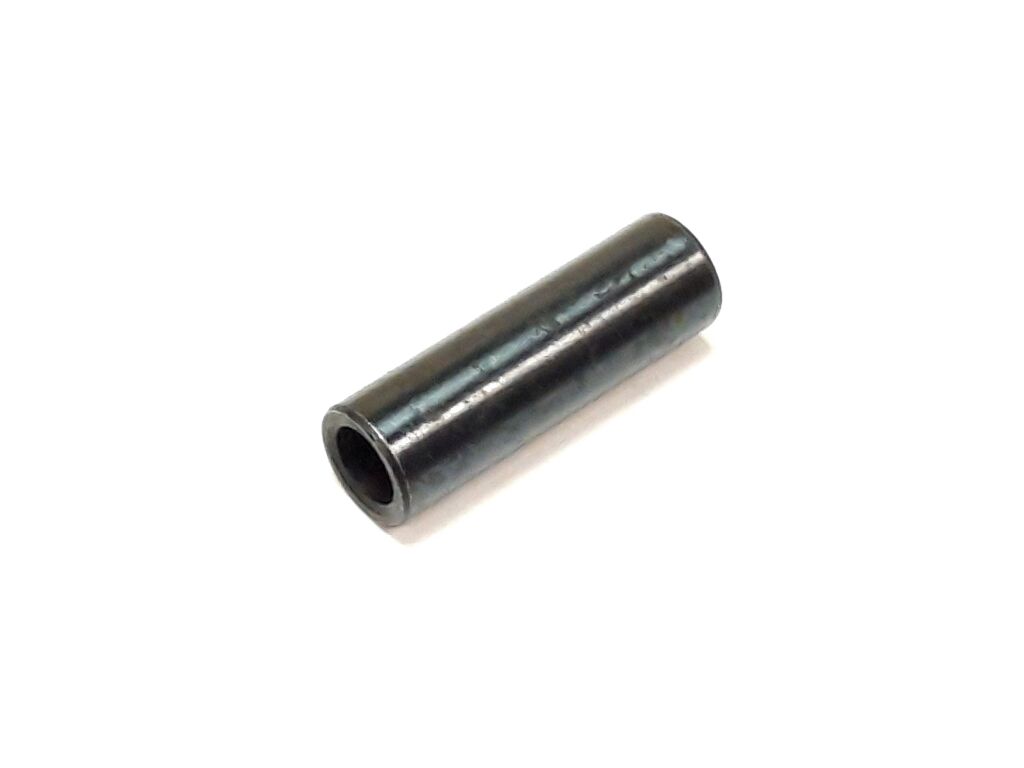

26 SHIFT FORK SHAFT SLEEVE (Ref. č 26) Q02-R401008-000-00 SHIFT FORK SHAFT SLEEVE  1 € 2,81 € 3
NA DOPYT
25 U-SHAPED SPRING (Ref. č 25) Q02-R401011-000-00 U-SHAPED SPRING  1 € 2,40 € 3
NA DOPYT
24 SUPPORT BRACKET (Ref. č 24) Q02-R401009-000-00 SUPPORT BRACKET  1 € 8,02 € 10
NA DOPYT
11 HALF SHAFT BEVEL GEAR GASKET (Ref. č 11) Q02-R301017-000-00 HALF SHAFT BEVEL GEAR GASKET  2 € 2,40 € 3
SKLADOM
10 Q02-R102003-000-00 DRIVE AND DRIVEN BEVEL GEAR (450)  1 € 129,50 € 159
NA DOPYT
9 Q02-R301021-000-00 SCREW M10 × 1.25 × 16  8 € 2,40 € 3
NA DOPYT
8 SHIM Φ 55 ×Φ 65 × (0.7, 0.6, 0.5) (Ref. č 8) Q02-R401021-000-00 SHIM Φ 55 ×Φ 65 × (0.7, 0.6, 0.5)  1 € 2,40 € 3
SKLADOM
7 BEARING 6011 (Ref. č 7) BG002760-6011Z-001 BEARING 6011  1 € 15,62 € 19
SKLADOM

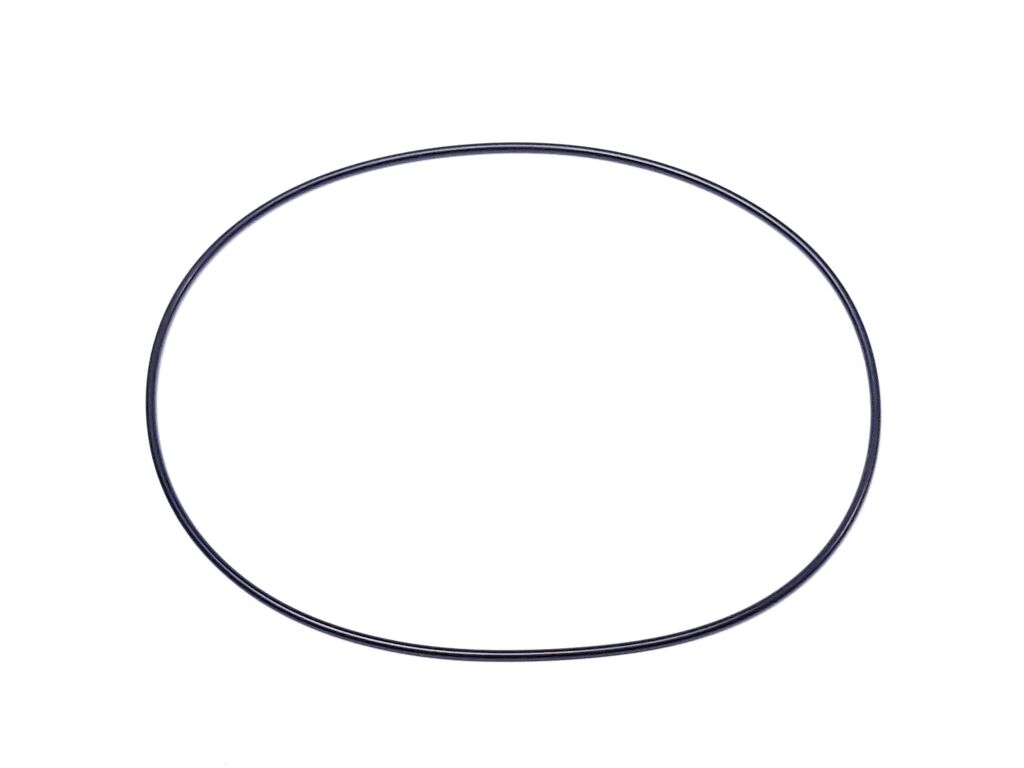

6 O-RING  Φ 153 ×Φ 2.5 (Ref. č 6) Q02-R401025-000-00 O-RING  Φ 153 ×Φ 2.5  1 € 2,40 € 3
NA CESTE
5 Q02-R401015-000-00 REAR AXLE BOX COVER  1 € 32,15 € 40
NA DOPYT
4 O-RING 16.4×2.5 (Ref. č 4) Q02F00009001 O-RING 16.4×2.5  1 € 2,48 € 3
NA CESTE
3 PLUG M18×1.5 (Ref. č 3) Q02F00008001 PLUG M18×1.5  1 € 3,88 € 5
SKLADOM
2 OIL SEAL 30×45×6.5 (Ref. č 2) Q03F40700001 OIL SEAL 30×45×6.5  2 € 3,64 € 4
SKLADOM

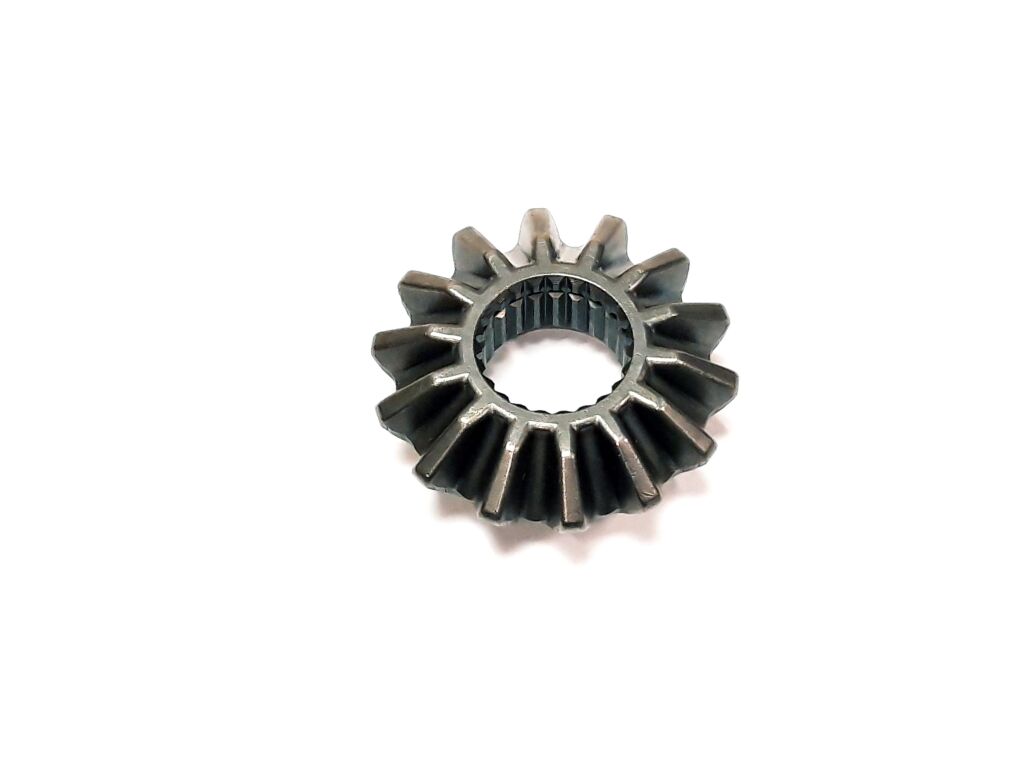

12 HALF SHAFT BEVEL GEAR (Ref. č 12) Q02-R301016-000-00 HALF SHAFT BEVEL GEAR  2 € 6,12 € 8
SKLADOM

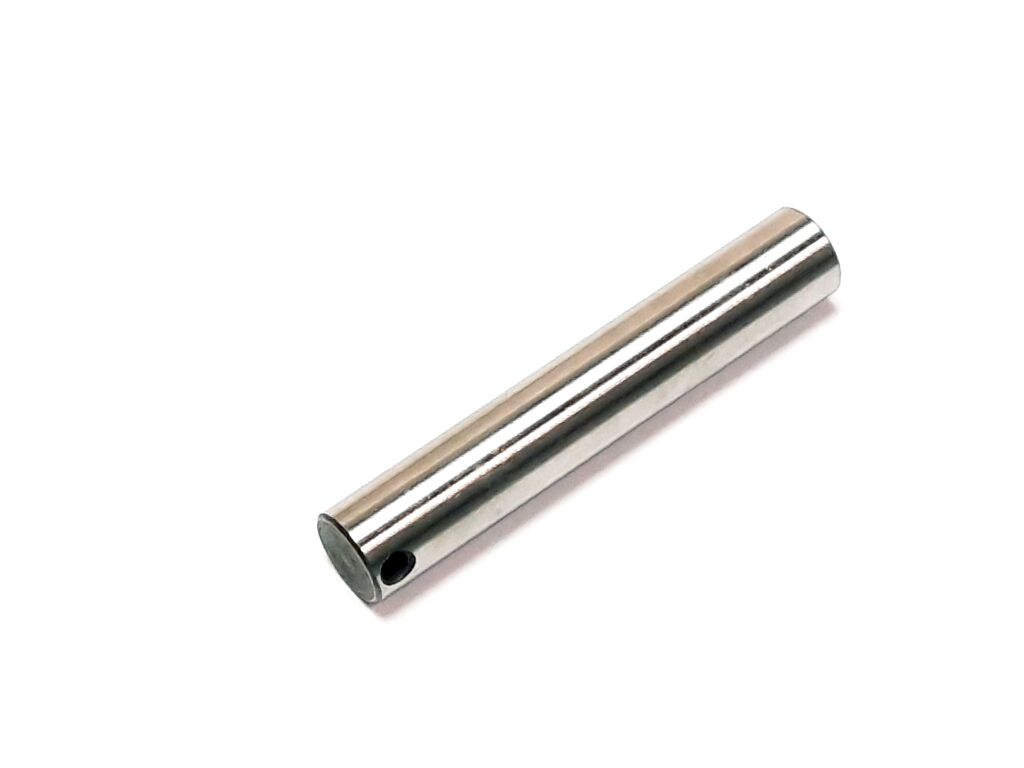

13 PLANETARY GEAR SHAFT (Ref. č 13) Q02-R301018-000-00 PLANETARY GEAR SHAFT  1 € 4,55 € 6
SKLADOM

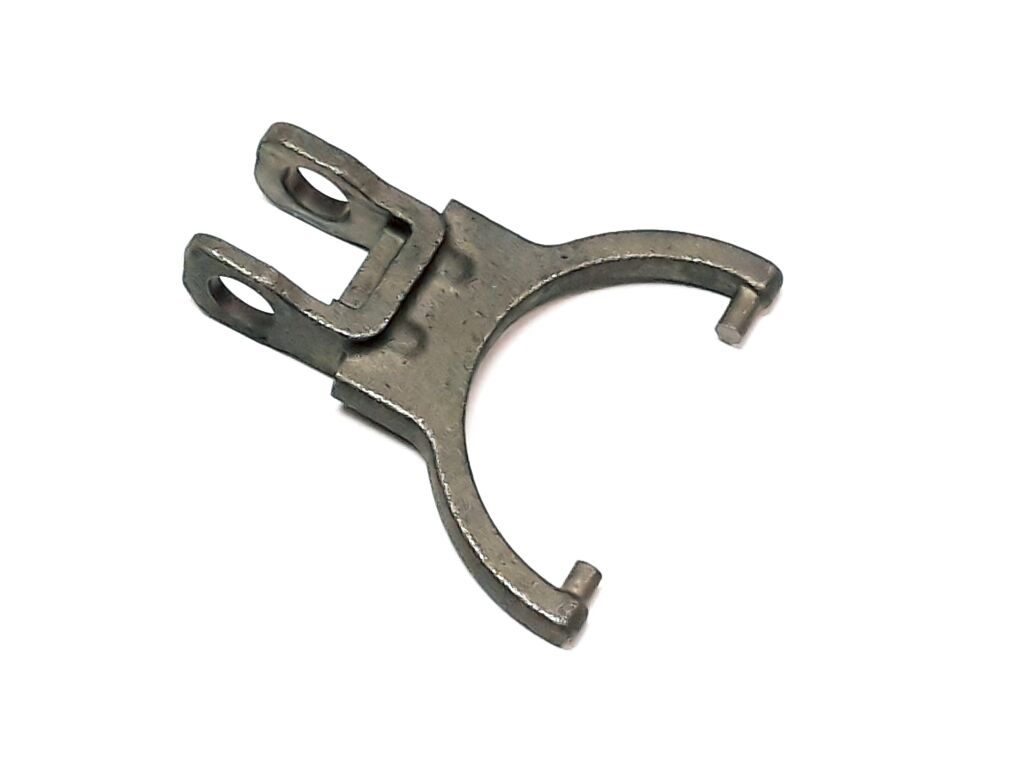

23 SHIFT FORK (Ref. č 23) Q02-R301020-000-00 SHIFT FORK  1 € 8,35 € 10
SKLADOM
22 RESET SPRING (Ref. č 22) Q02-R401019-000-00 RESET SPRING  2 € 2,40 € 3
NA DOPYT

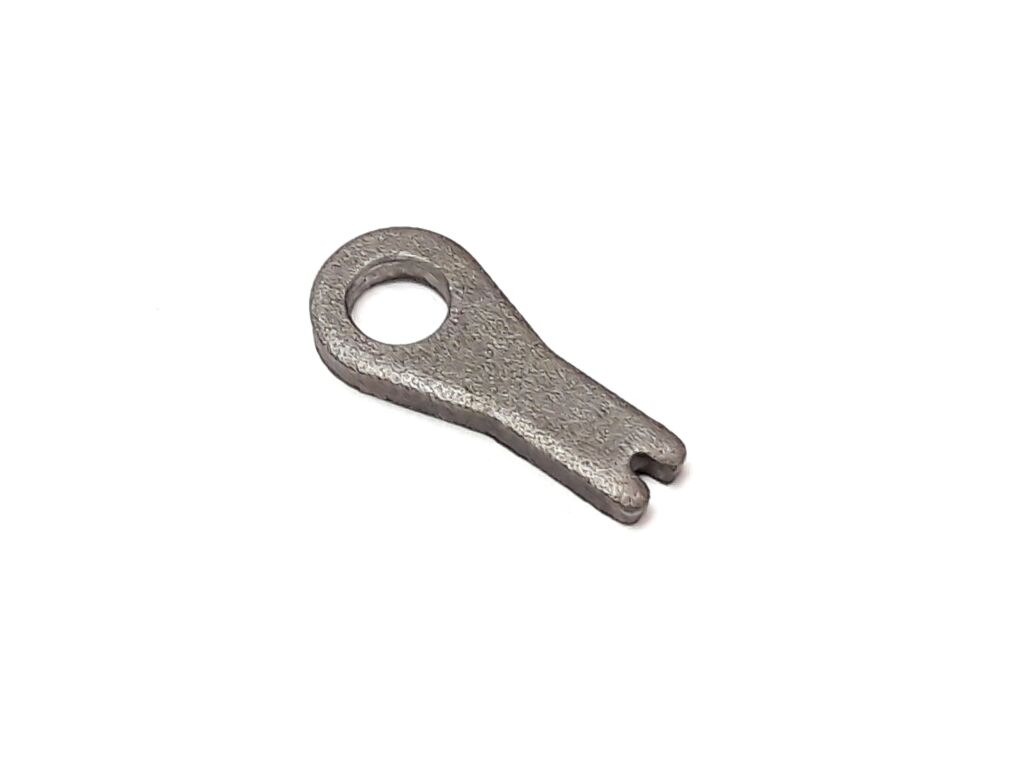

21 CLUTCH TRANSMISSION PAWL (Ref. č 21) Q02-R301019-000-00 CLUTCH TRANSMISSION PAWL  1 € 14,71 € 18
NA DOPYT

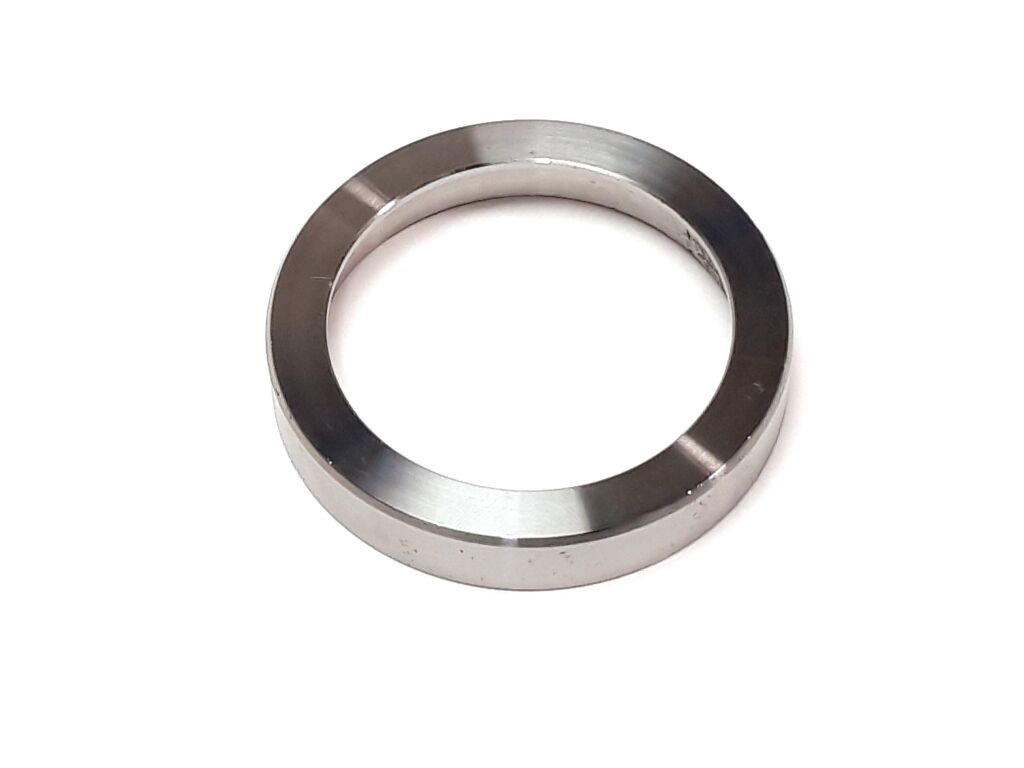

20 BEARING RING (Ref. č 20) Q02-R401017-000-00 BEARING RING  1 € 10 € 12
NA DOPYT

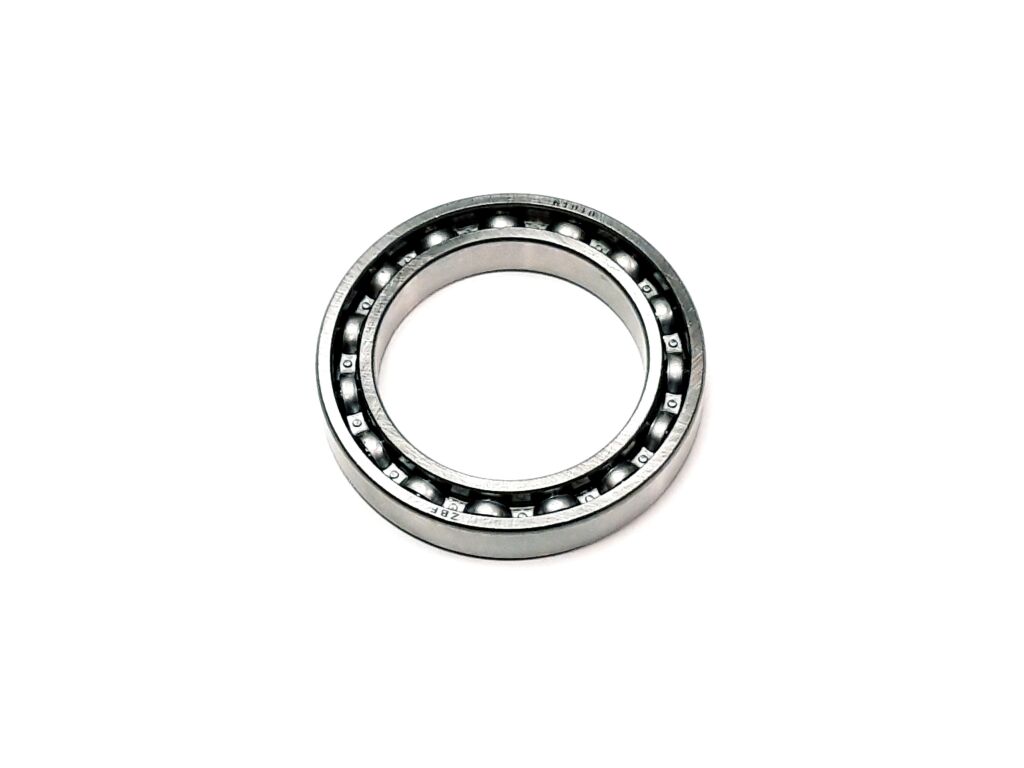

19 BALL BEARING 61910 (Ref. č 19) BG002760-61910-001 BALL BEARING 61910  1 € 15,95 € 20
NA DOPYT
18 SHIM Φ 50 ×Φ 55 × (0.7, 0.6, 0.5) (Ref. č 18) Q02-R401020-000-00 SHIM Φ 50 ×Φ 55 × (0.7, 0.6, 0.5)  1 € 2,40 € 3
SKLADOM
17 DIFFERENTIAL HOUSING (included in Q02-R000000-000-00) (Ref. č 17) Q02-R301013-000-00 DIFFERENTIAL HOUSING (included in Q02-R000000-000-00)  1 € 49,01 € 60
SKLADOM
16 PIN 4 × 35 (Ref. č 16) BG008791-40035-001 PIN 4 × 35  1 € 2,40 € 3
SKLADOM
15 BOWL SHAPED GASKET (Ref. č 15) Q02-R301014-000-00 BOWL SHAPED GASKET  2 € 2,40 € 3
SKLADOM
14 PLANETARY GEAR (Ref. č 14) Q02-R301015-000-00 PLANETARY GEAR  2 € 3,72 € 5
SKLADOM
1 HEXAGON FLANGE BOLT M8×25 (Ref. č 1) Q01F40201001 HEXAGON FLANGE BOLT M8×25  8 € 2,48 € 3
SKLADOM
Kód produktu SEGWAY_1_115_AT5_E5
typ rozkresu: ENGINE PARTS
ZNACKA: SEGWAY
TYP: AT5
MODEL: AT5 S E5, AT5 L E5
