REAR AXLE ASSEMBLY(NO DIFFERENTIAL,NO ABS,THREE BRAKE)

SEGWAY
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
1 HEXAGON FLANGE BOLT M8×25 (Ref. č 1) Q01F40201001 HEXAGON FLANGE BOLT M8×25  12 € 2,48 € 3
SKLADOM
17 TAPERED ROLLER BEARING 32006 (Ref. č 17) GBT000297001 TAPERED ROLLER BEARING 32006  1 € 28,68 € 35
NA CESTE
18 O-RING SEAL 61.5*2.65 (Ref. č 18) Q01R41200001 O-RING SEAL 61.5*2.65  1 € 2,48 € 3
NA CESTE
19 Q01R40600001 DRIVE GEAR SHAFT SEAT  1 € 15,04 € 19
NA DOPYT

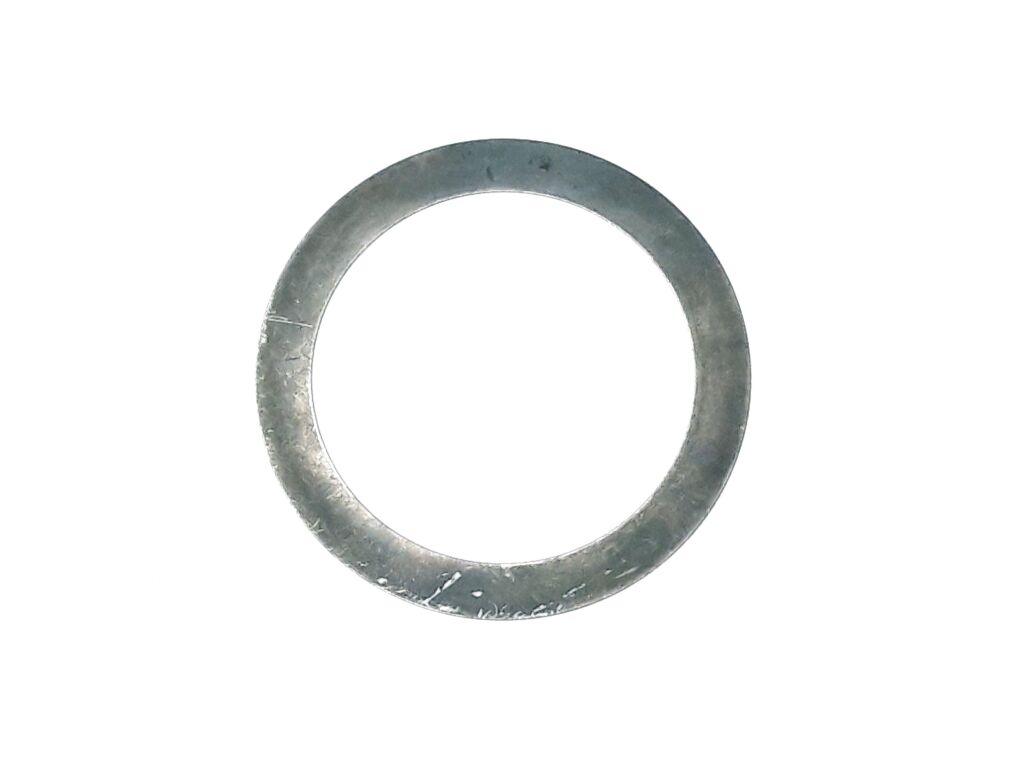

20 SPACER,SECTOR GEAR (Ref. č 20) Q01R10400001 SPACER,SECTOR GEAR  1 € 3,47 € 4
SKLADOM
21 Q01R10300000 CLEARANCE ADJUSTING PAD (unavailable)  1 € 2,48 € 3
NA DOPYT
22 TAPERED ROLLER BEARING 33006 (Ref. č 22) GBT000297002 TAPERED ROLLER BEARING 33006  1 € 50 € 62
SKLADOM
23 Oil seal 44×60×7 (Ref. č 23) F01F20503001 Oil seal 44×60×7  1 € 10,91 € 13
SKLADOM
24 FLANGE,TRANSMISSION SHAFT (Ref. č 24) Q01R40300001 FLANGE,TRANSMISSION SHAFT  1 € 76,28 € 94
SKLADOM
25 O-RING SEAL 25×2.65 (Ref. č 25) Q01R41100001 O-RING SEAL 25×2.65  1 € 4,13 € 5
SKLADOM
26 FLAT WASHER10.5×39×6 (Ref. č 26) Q01R40900001 FLAT WASHER10.5×39×6  1 € 3,47 € 4
SKLADOM
27 HEXAGON FLANGE BOLT M10×1.25×30 (Ref. č 27) GBT005789027 HEXAGON FLANGE BOLT M10×1.25×30  1 € 2,48 € 3
SKLADOM
28 ENGINE DRAIN PLUG M14 (Ref. č 28) F01G00200001 ENGINE DRAIN PLUG M14  1 € 5,70 € 7
NA DOPYT
16 DRIVE GEAR ADJUSTING PAD (unavailable) (Ref. č 16) Q01R10200000 DRIVE GEAR ADJUSTING PAD (unavailable)  2 € 2,48 € 3
NA DOPYT
15 REAR AXLE SHELL (Ref. č 15) Q02R40100001 REAR AXLE SHELL  1 € 205,95 € 253
SKLADOM
14 O-Ring 13.8×2.5 (Ref. č 14) F01G00005001 O-Ring 13.8×2.5  2 € 2,48 € 3
SKLADOM
2 OIL SEAL 37×55×7 (Ref. č 2) Q01F40600001 OIL SEAL 37×55×7  2 € 14,88 € 18
SKLADOM
3 REAR AXLE COVER (Ref. č 3) Q02R40200001 REAR AXLE COVER  1 € 76,78 € 94
SKLADOM
4 BREATHING JOINT (Ref. č 4) Q01F41300001 BREATHING JOINT  1 € 14,38 € 18
SKLADOM
5 RECTANGULAR GASKET 180×185×3 (Ref. č 5) Q01R40500001 RECTANGULAR GASKET 180×185×3  1 € 9,09 € 11
SKLADOM
6 DEEP GROOVE BALL BEARING 6015-Z (Ref. č 6) GBT000276017 DEEP GROOVE BALL BEARING 6015-Z  1 € 98,43 € 121
SKLADOM

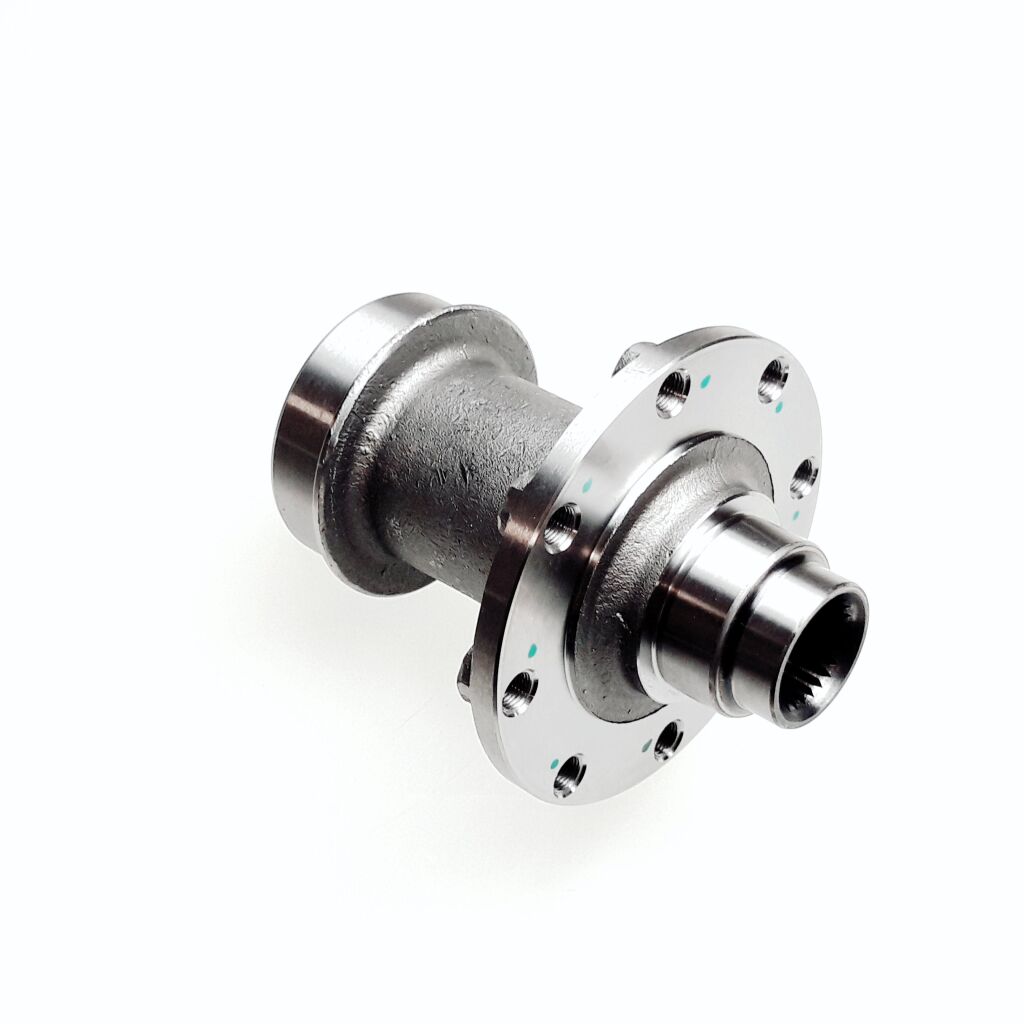

7 TRANSMISSION SHAFT (Ref. č 7) Q02R30100001 TRANSMISSION SHAFT  1 € 266,94 € 328
SKLADOM

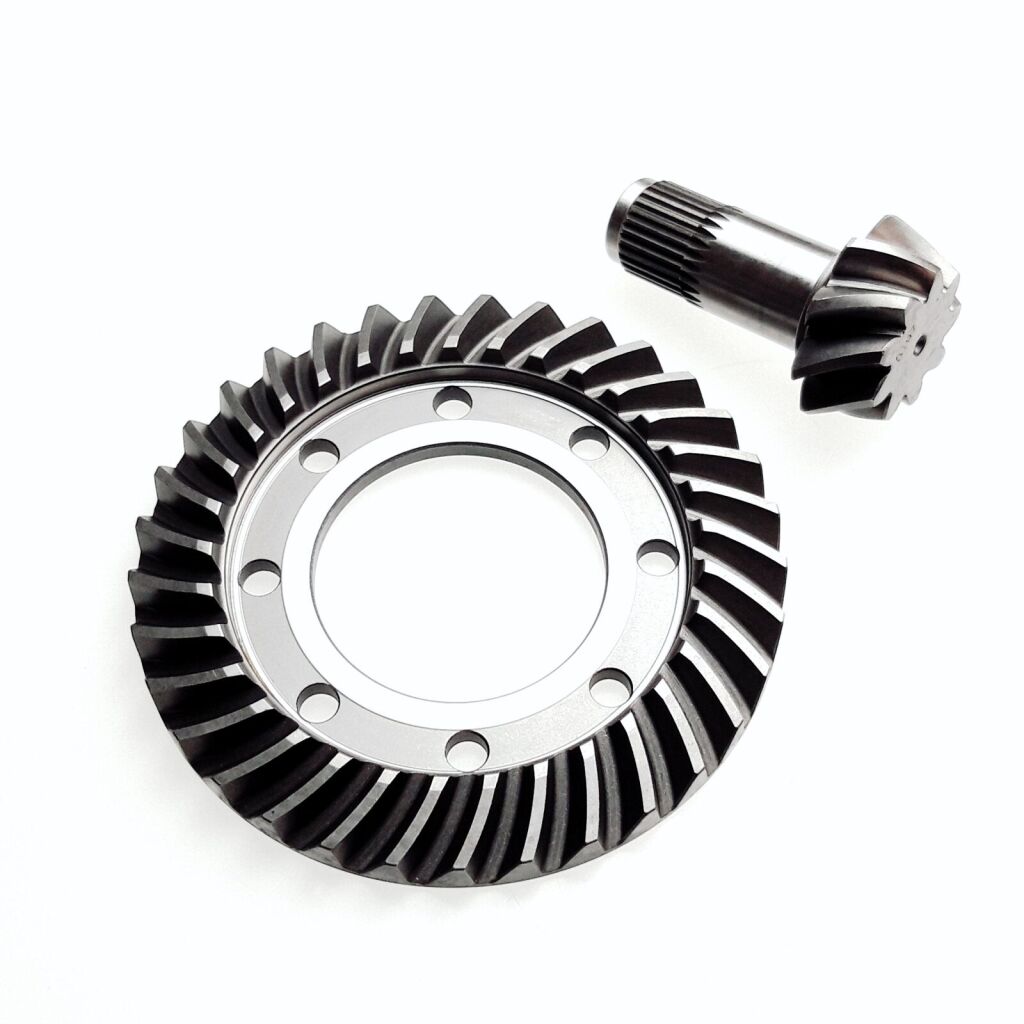

8 DRIVE&DRIVEN BEVEL GEAR KIT (Ref. č 8) Q02R20100000 DRIVE&DRIVEN BEVEL GEAR KIT  1 € 319,17 € 393
SKLADOM
9 HEXAGON FLANGE BOLT M10×1.0×20 (Ref. č 9) GBT005789055 HEXAGON FLANGE BOLT M10×1.0×20  8 € 2,48 € 3
SKLADOM
10 NEEDLE ROLLER BEARING AXK 130X170X5 (Ref. č 10) Q01R40700001 NEEDLE ROLLER BEARING AXK 130X170X5  1 € 37,19 € 46
SKLADOM
11 LIMIT LINER (Ref. č 11) Q01R40800001 LIMIT LINER  1 € 7,69 € 9
SKLADOM
12 DEEP GROOVE BALL BEARING 6209 (Ref. č 12) GBT000276016 DEEP GROOVE BALL BEARING 6209  1 € 30,41 € 37
SKLADOM
13 PLUG M14 (Ref. č 13) F02C10008001 PLUG M14  1 € 2,73 € 3
NA DOPYT
29 Q02R00000004 REAR AXLE ASSEMBLY(no differential,NO ABS,three brake) (240ml)  1 € 944,71 € 1 162
SKLADOM
Kód produktu SGW_2_275_ATV570F-A2
typ rozkresu: FRAME PARTS
ZNACKA: SEGWAY
TYP: AT6
MODEL: Snarler AT6 S T3b, Snarler AT6 L T3b, Snarler AT6 S E5, Snarler AT6 L E5
