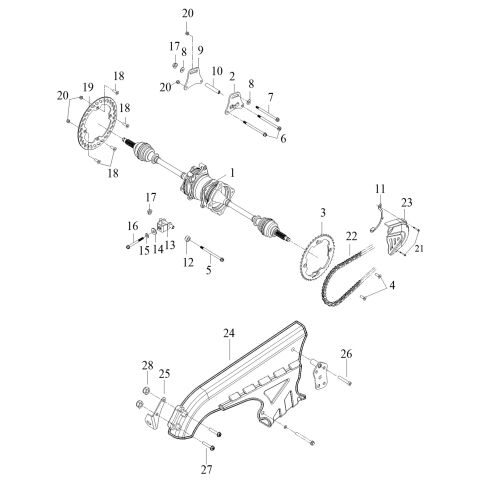

REAR AXLE ASS'Y

ACCESS MOTOR
  • Výrobca  ACCESS MOTOR
  • Kód produktu  Access_F-13_MAX-4-300
MODEL:
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
1 23200-A08-000 R/B 23200-A08-010 Rear Shaft Ass'y  1 € 581,82 € 716
NA DOPYT
17 92130-10S-14G R/B 92130-10S-14W Nut, Insert Lock  4 € 2,48 € 3
NA DOPYT
18 Bolt (Ref. č 18) 91733-08025-06G Bolt  4 € 2,48 € 3
SKLADOM

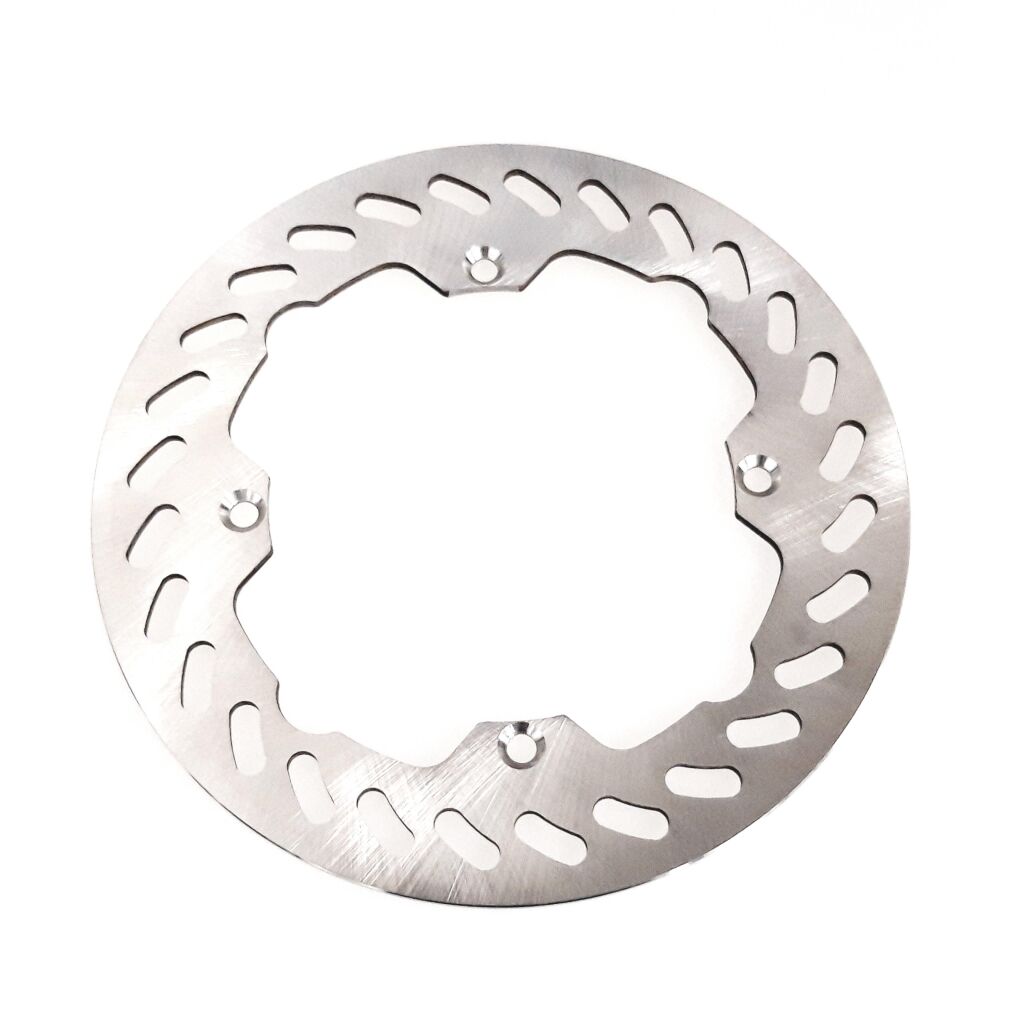

19 Disc Plate (Ref. č 19) 31350-A08-000 Disc Plate  1 € 85,95 € 106
SKLADOM
20 Nut, Insert Lock (Ref. č 20) 92130-08S-14G Nut, Insert Lock  4 € 2,48 € 3
SKLADOM
21 P91700-06038-10G Hex.Washer Face Bolt (unavailable)  2 € 2,48 € 3
NA DOPYT
22 23315-A08-000 R/B 520ORM Chain  1 € 79,34 € 98
NA DOPYT
23 Guard, Chain (Ref. č 23) 71222-A03-001 Guard, Chain  1 € 9,92 € 12
SKLADOM

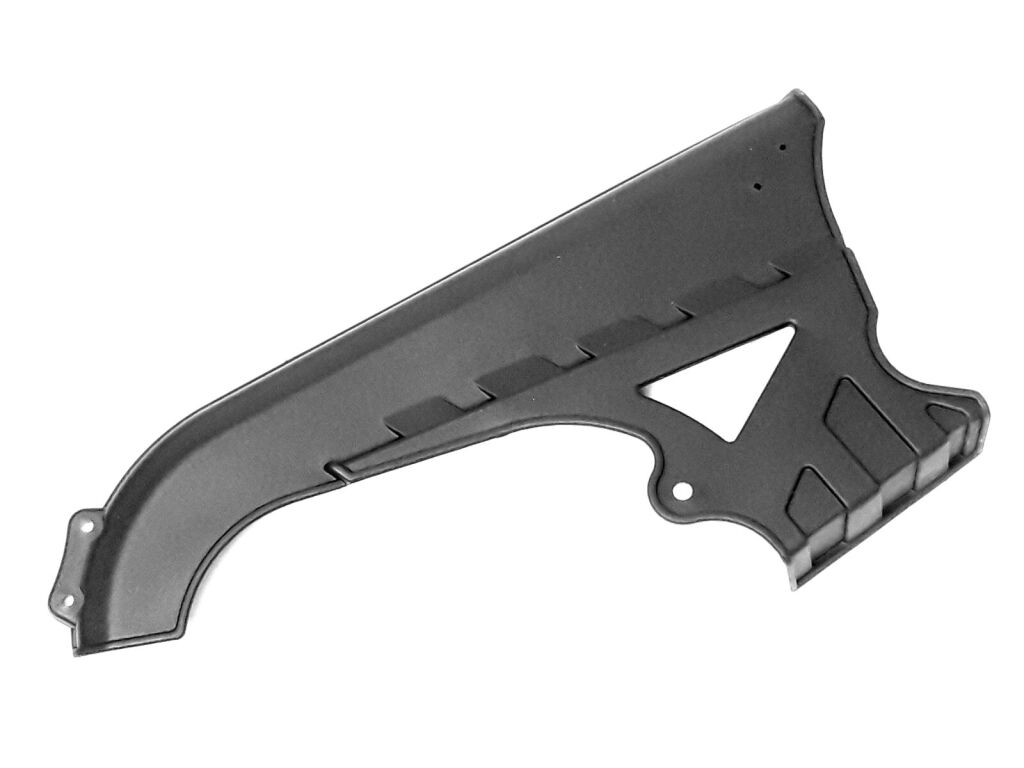

24 Guard, Top, Chain (Ref. č 24) 71230-A09-000 Guard, Top, Chain  1 € 4,96 € 6
SKLADOM
25 Bracket, Chain Cover (Ref. č 25) 71223-A09-000 Bracket, Chain Cover  1 € 2,48 € 3
SKLADOM
26 Screw, Tapping (Ref. č 26) P91825-06040 Screw, Tapping  1 € 2,48 € 3
SKLADOM
27 Hex Washer Face Bolt (Ref. č 27) 91700-06025-10G Hex Washer Face Bolt  2 € 2,48 € 3
SKLADOM
16 Hex Washer Face Bolt (Ref. č 16) 91700-10110-14G Hex Washer Face Bolt  1 € 2,48 € 3
SKLADOM
15 Spring Washer (Ref. č 15) 93103-10017-20 Spring Washer  1 € 2,48 € 3
SKLADOM

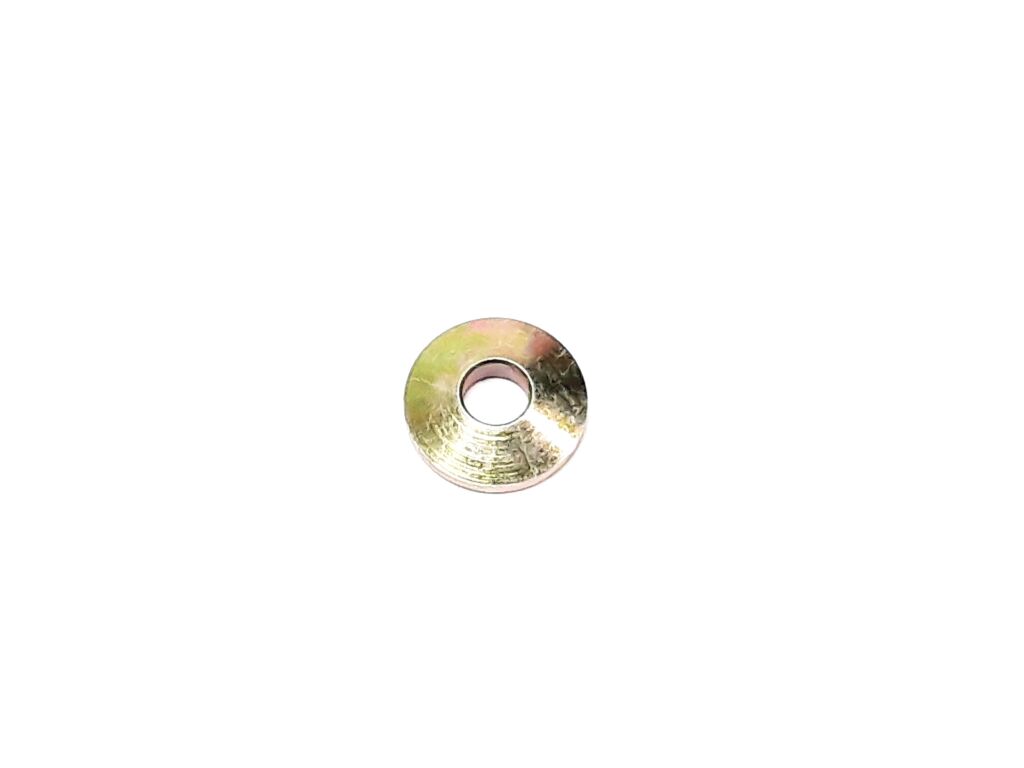

14 Washer, Chain Adjust (Ref. č 14) 23324-A08-000 Washer, Chain Adjust  1 € 2,48 € 3
SKLADOM

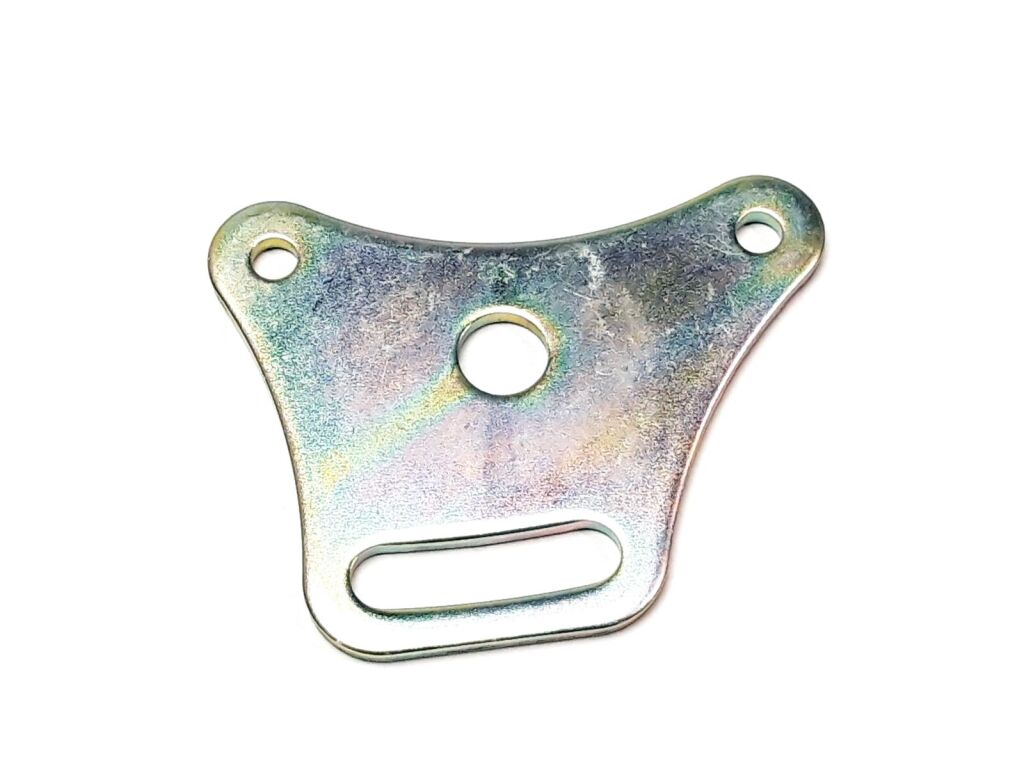

2 Bracket, Right (Ref. č 2) 23224-A08-000 Bracket, Right  1 € 4,13 € 5
SKLADOM

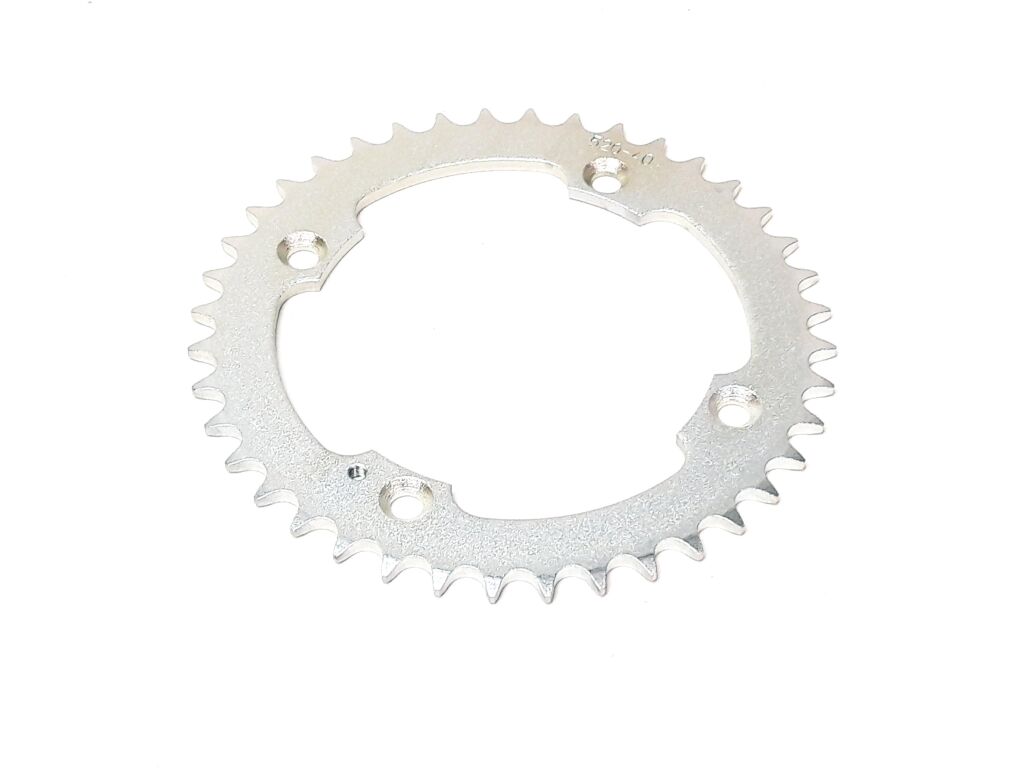

3 Sprocket (unavailable) (Ref. č 3) 23305-A08-000 Sprocket (unavailable)  1
NA DOPYT
Detail
5 Hex Washer Face Bolt (Ref. č 5) 91700-10120-14G Hex Washer Face Bolt  1 € 2,48 € 3
SKLADOM
6 Hex Washer Face Bolt (Ref. č 6) 91700-08127-12C Hex Washer Face Bolt  2 € 3,31 € 4
SKLADOM
7 Hex Washer Face Bolt (Ref. č 7) 91700-10130-14C Hex Washer Face Bolt  1 € 2,48 € 3
SKLADOM
8 93100-10022-35C Washer, Plate  2 € 2,48 € 3
NA DOPYT
9 Bracket, Left (Ref. č 9) 23223-A08-000 Bracket, Left  1 € 4,13 € 5
SKLADOM

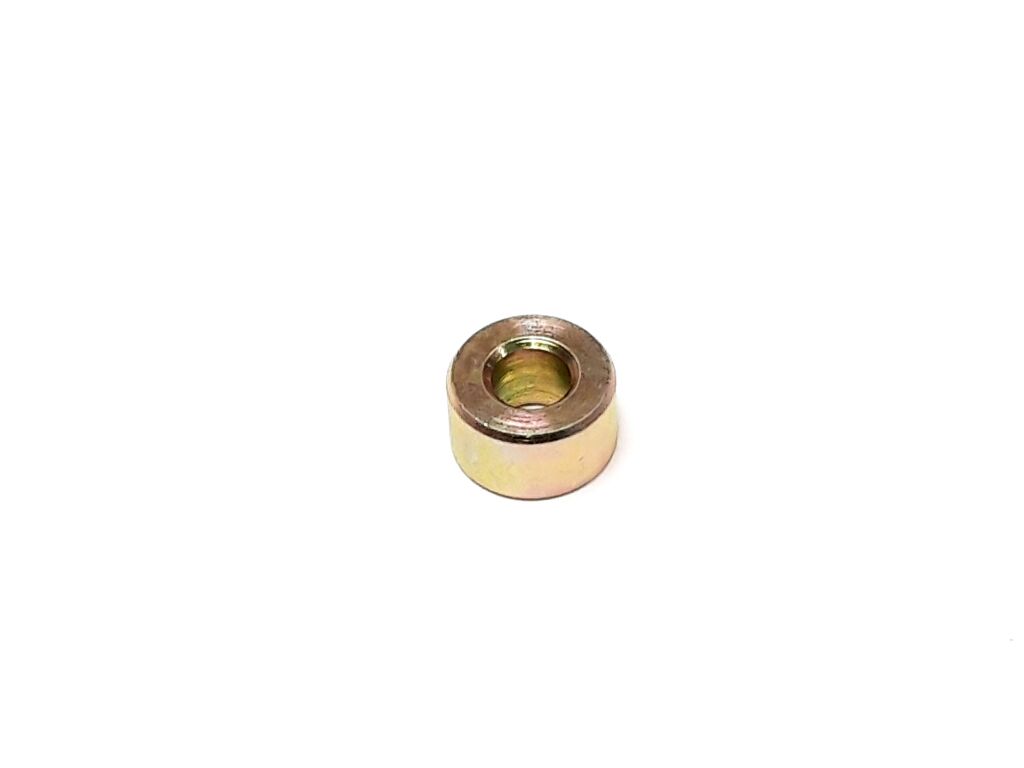

10 Spacer (Ref. č 10) 93300-0813-79 Spacer  1 € 2,48 € 3
SKLADOM
11 Chain Guide Steel (Ref. č 11) 23322-A03-000 Chain Guide Steel  1 € 4,13 € 5
NA DOPYT
12 Spacer (Ref. č 12) 93300-1022-13 Spacer  1 € 2,48 € 3
SKLADOM
13 Adjuster, Chain (Ref. č 13) 23321-A08-000 Adjuster, Chain  1 € 5,79 € 7
SKLADOM
28 Nut, Insert Lock (Ref. č 28) 92130-06S-10G Nut, Insert Lock  2 € 2,48 € 3
SKLADOM
Kód produktu Access_F-13_MAX-4-300
ZNACKA: ACCESS
typ rozkresu: FRAME PARTS
TYP: ACCESS MAX
MODEL: MAX 4 300
