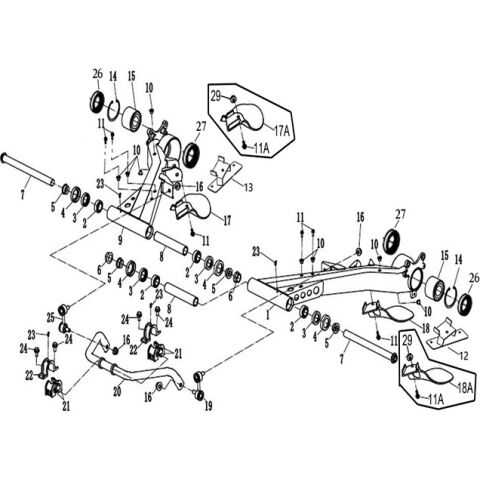

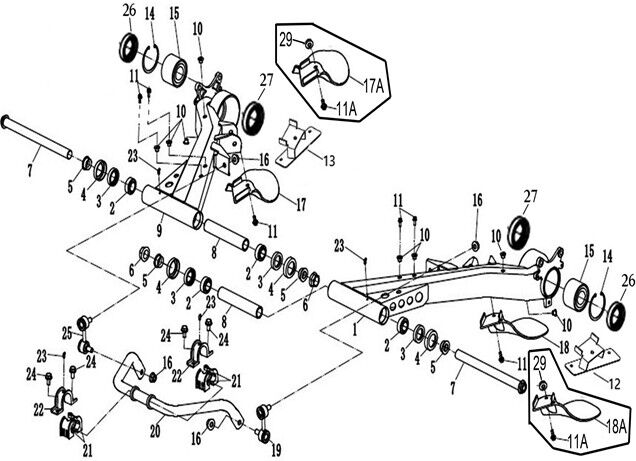

REAR ARM

Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost

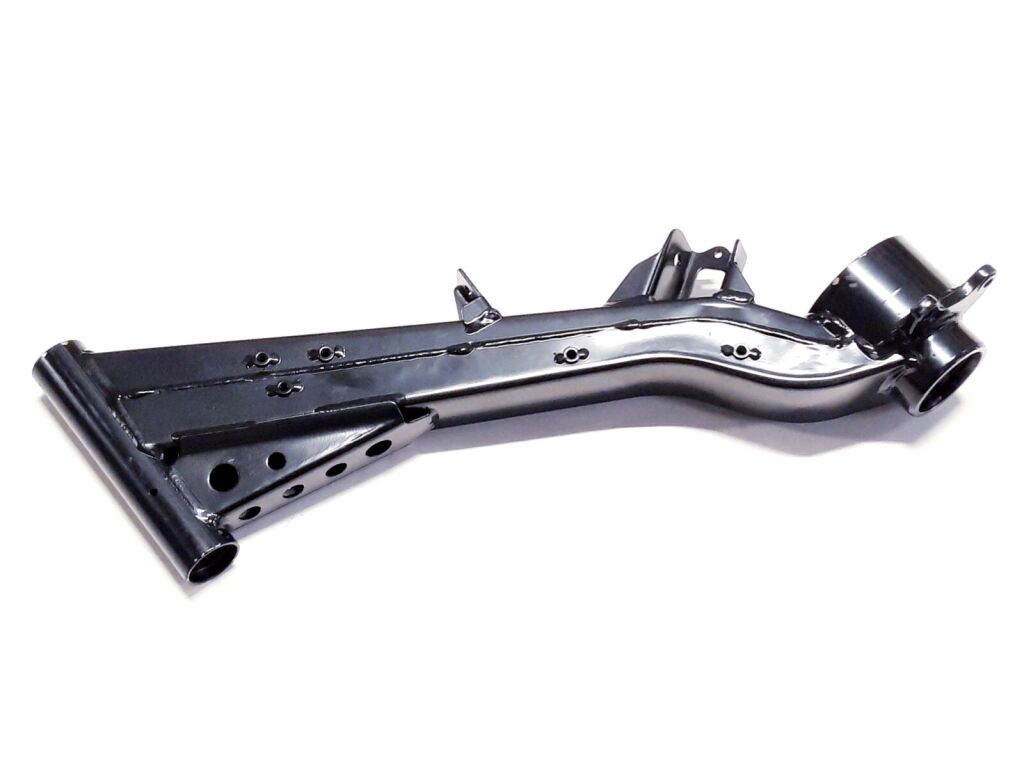

1 38574 REAR SWING ARM, L  1 € 301,07 € 370
SKLADOM
17 A-ARM SHIELD RIGHT (Ref. č 17) 20628 A-ARM SHIELD RIGHT  1 € 2,40 € 3
SKLADOM
17A RIGHT DRIVE AXLE BAFFLE (Ref. č 17A) 38729 RIGHT DRIVE AXLE BAFFLE  1 € 2,23 € 3
NA DOPYT
18 A-ARM SHIELD LEFT (Ref. č 18) 20519 A-ARM SHIELD LEFT  1 € 2,98 € 4
SKLADOM
18A LEFT DRIVE AXLE BAFFLE (Ref. č 18A) 38730 LEFT DRIVE AXLE BAFFLE  1 € 2,23 € 3
SKLADOM
19 JOINT, STABILIZER 2 (Ref. č 19) 27196 JOINT, STABILIZER 2  1 € 22,56 € 28
SKLADOM
20 REAR SWAY BAR ASSY (Ref. č 20) 38586 REAR SWAY BAR ASSY  1 € 31,57 € 39
SKLADOM
21 BUSH, RR. STABILIZER (Ref. č 21) 27091 BUSH, RR. STABILIZER  4 € 6,69 € 8
SKLADOM
22 27090 HOLDER,STABILIZER BUSH (NEW MODEL)  2 € 4,55 € 6
NA DOPYT
23 GREASE FITTING (Ref. č 23) 10026 GREASE FITTING  2 € 2,56 € 3
SKLADOM
24 11461 Hexagon Flange Bolt M8×1.25×20 9.8  4 € 2,40 € 3
NA DOPYT
25 JOINT, STABILIZER 1 (Ref. č 25) 27195 JOINT, STABILIZER 1  1 € 19,75 € 24
SKLADOM
26 SEAL 58 41.2 11 (Ref. č 26) 70676 SEAL 58 41.2 11  2 € 3,47 € 4
SKLADOM
27 SEAL 61.5 43 11 (Ref. č 27) 70675 SEAL 61.5 43 11  2 € 3,80 € 5
NA CESTE
28 10094 Cotter Pin 2×20  4 € 7,02 € 9
NA DOPYT
16 NUT M10X1.25 (Ref. č 16) 10015 NUT M10X1.25  4 € 2,40 € 3
SKLADOM
15 BEARING AU0712 (Ref. č 15) 70674 BEARING AU0712  2 € 79,01 € 97
SKLADOM
14 CIRCLIP 58 (Ref. č 14) 70055 CIRCLIP 58  2 € 2,40 € 3
SKLADOM
2 BEARING, REAR SWINGARM (Ref. č 2) 38575 BEARING, REAR SWINGARM  4 € 27,27 € 34
SKLADOM
3 OIL SEAL 24x38x8 (Ref. č 3) 38576 OIL SEAL 24x38x8  4 € 2,31 € 3
SKLADOM
4 DUST COVER (Ref. č 4) 38577 DUST COVER  4 € 2,31 € 3
SKLADOM
5 BUSHING, SWING ARM (Ref. č 5) 38578 BUSHING, SWING ARM  4 € 2,31 € 3
SKLADOM

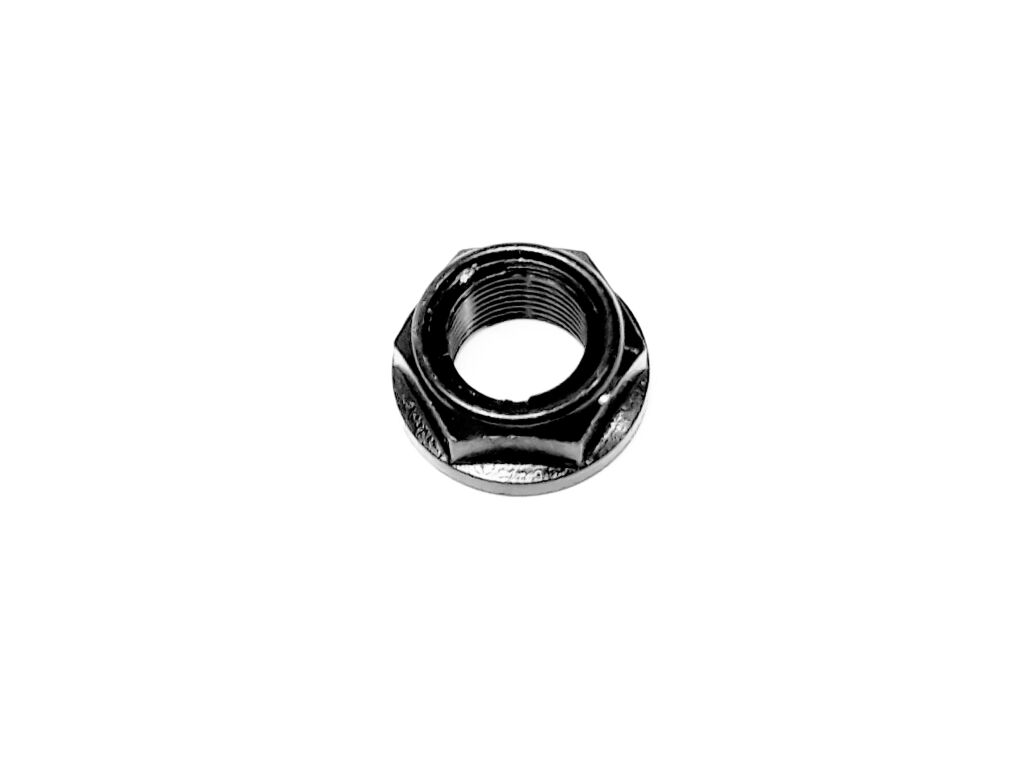

6 LOCK NUT, SWING ARM (Ref. č 6) 38579 LOCK NUT, SWING ARM  2 € 3,97 € 5
SKLADOM
7 REAR SWING ARM SHAFT (Ref. č 7) 38580 REAR SWING ARM SHAFT  2 € 16,78 € 21
SKLADOM
8 INNER LINER, REAR SWING ARM (Ref. č 8) 38581 INNER LINER, REAR SWING ARM  2 € 9,50 € 12
SKLADOM
9 38582 REAR SWING ARM, R  1 € 301,07 € 370
NA DOPYT
10 RIVET NUT (Ref. č 10) 38583 RIVET NUT  6 € 2,23 € 3
SKLADOM
10 11980 NUT M6 BLACK  2
NA DOPYT
11 Bolt M6X16 (Ref. č 11) 11495 Bolt M6X16  6 € 2,40 € 3
NA DOPYT
11A BOLT M5×16 (Ref. č 11A) 11720 BOLT M5×16  2
SKLADOM
12 Rocker guard mounting plate (left) (Ref. č 12) 38584 Rocker guard mounting plate (left)  1 € 5,79 € 7
SKLADOM
13 Rocker guard mounting plate (right) (Ref. č 13) 38585 Rocker guard mounting plate (right)  1 € 5,79 € 7
SKLADOM
29 11983 NUT M5  2
NA DOPYT
Kód produktu LINHAI_2_207_650L_PROMAX
typ rozkresu: FRAME PARTS
ZNACKA: LINHAI
TYP: LINHAI 650
MODEL: 650L PROMAX T3b EFI
