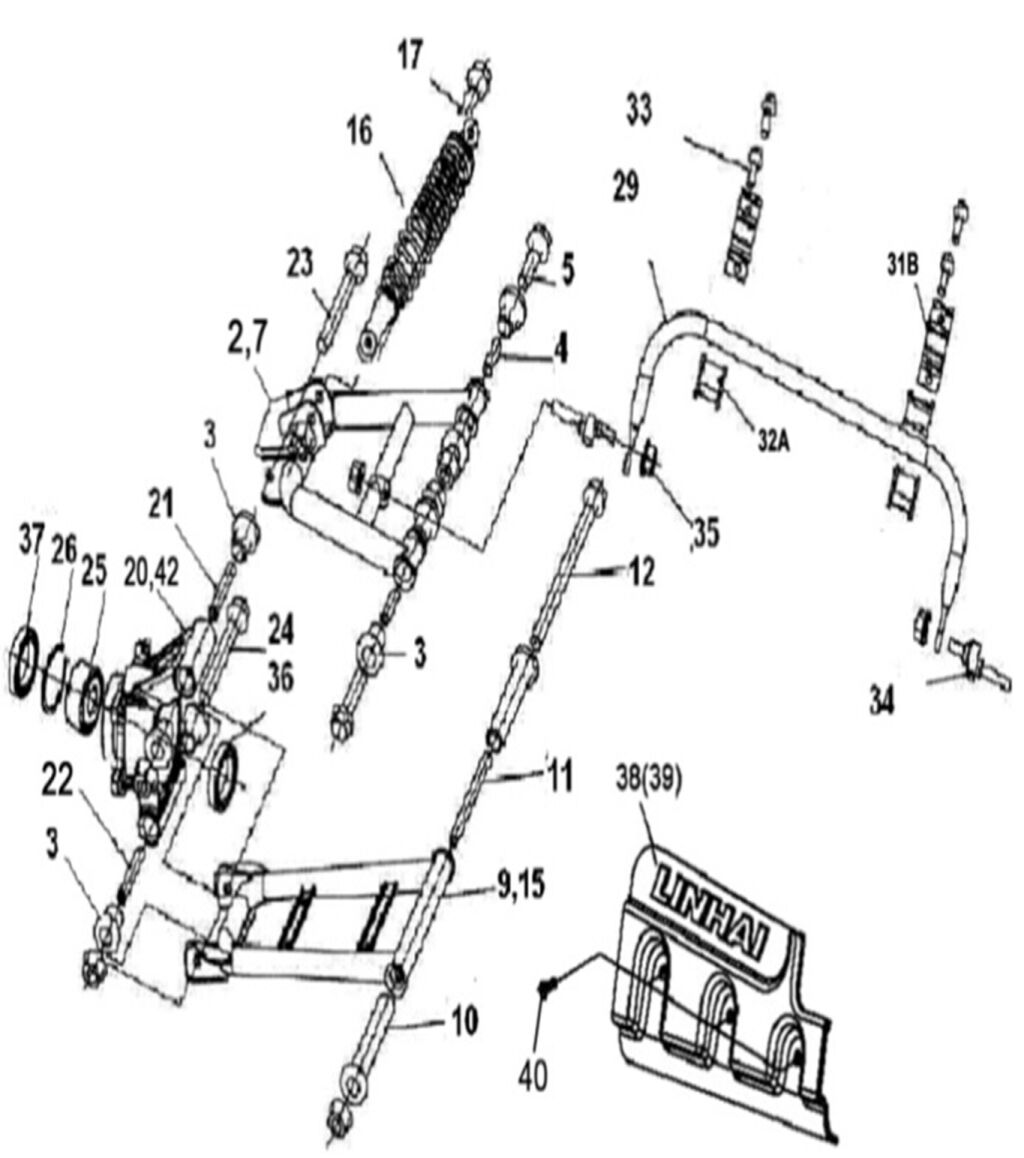

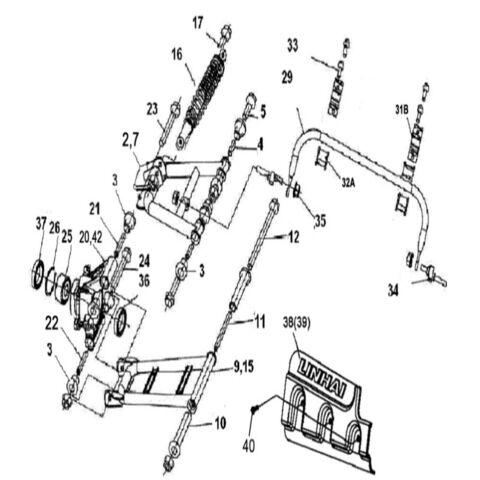

REAR ARM

LINHAI
  • Výrobca  LINHAI
  • Kód produktu  LINHAI_4_406_M550-EURO-4
MODEL:
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
2 ARM, L. RR (Ref. č 2) 27324 ARM, L. RR  1 € 50,74 € 62
NA CESTE
25 BEARING AU0712 (Ref. č 25) 70674 BEARING AU0712  2 € 79,01 € 97
SKLADOM
26 CIRCLIP 58 (Ref. č 26) 70055 CIRCLIP 58  2 € 2,40 € 3
SKLADOM
29 SPRING, RR.STABILIZER (Ref. č 29) 35385 SPRING, RR.STABILIZER  1 € 56,86 € 70
SKLADOM
31B HOLDER, STABILIZER BUSH (NEW MODEL) (Ref. č 31B) 35523 HOLDER, STABILIZER BUSH (NEW MODEL)  2 € 6,61 € 8
SKLADOM
32A BUSH, RR. STABILIZER (Ref. č 32A) 27091 BUSH, RR. STABILIZER  2 € 6,69 € 8
SKLADOM
33 BOLT M8x20 (Ref. č 33) 10081 BOLT M8x20  4 € 2,40 € 3
SKLADOM
34 LINK, RR. STABILIZER (Ref. č 34) 70699 LINK, RR. STABILIZER  2 € 48,68 € 60
SKLADOM
35 NUT M10X1.25 (Ref. č 35) 10015 NUT M10X1.25  18 € 2,40 € 3
SKLADOM
36 SEAL 61.5 43 11 (Ref. č 36) 70675 SEAL 61.5 43 11  2 € 3,80 € 5
NA CESTE
37 SEAL 58 41.2 11 (Ref. č 37) 70676 SEAL 58 41.2 11  2 € 3,47 € 4
SKLADOM
38 ARM PROTECT, R (Ref. č 38) 70977 ARM PROTECT, R  1 € 20,99 € 26
SKLADOM
39 ARM PROTECT, L (Ref. č 39) 70976 ARM PROTECT, L  1 € 23,22 € 29
SKLADOM ZA 1 dní
40 10001 SCREW M5X12  6 € 8,76 € 11
NA DOPYT
24 BOLT, KNUCKLE (LOWER) (Ref. č 24) 70695 BOLT, KNUCKLE (LOWER)  2 € 2,40 € 3
SKLADOM
23 BOLT, KNUCKLE (UPPER) (Ref. č 23) 70694 BOLT, KNUCKLE (UPPER)  2 € 2,40 € 3
SKLADOM
22 COLLAR,RR.KNUCKLE,(LOWER) (Ref. č 22) 70693 COLLAR,RR.KNUCKLE,(LOWER)  2 € 5,87 € 7
SKLADOM
3 BUSH 1, ARM, R. RR (Ref. č 3) 70682 BUSH 1, ARM, R. RR  16 € 4,63 € 6
SKLADOM
4 COLLAR (Ref. č 4) 70683 COLLAR  4 € 6,36 € 8
SKLADOM
5 BOLT M10X1.25X80 (Ref. č 5) 70684 BOLT M10X1.25X80  4 € 2,40 € 3
SKLADOM
7 ARM, R. RR (Ref. č 7) 27325 ARM, R. RR  1 € 55,04 € 68
SKLADOM
9 ARM SET, L. RR (Ref. č 9) 27326 ARM SET, L. RR  1 € 41,40 € 51
SKLADOM
10 BUSH 2, ARM, R. RR (Ref. č 10) 70665 BUSH 2, ARM, R. RR  4 € 5,37 € 7
SKLADOM
11 COLLAR, ARM (Ref. č 11) 70687 COLLAR, ARM  2 € 10,17 € 13
SKLADOM
12 BOLT M10M1.25M230 (Ref. č 12) 70688 BOLT M10M1.25M230  2 € 4,38 € 5
SKLADOM
15 ARM SET, R. RR (Ref. č 15) 27327 ARM SET, R. RR  1 € 41,40 € 51
SKLADOM
16 SHOCK ABSORBER, RR (Ref. č 16) 36161 SHOCK ABSORBER, RR  2 € 175,70 € 216
SKLADOM
17 BOLT M10X1.25X52 (Ref. č 17) 70012 BOLT M10X1.25X52  4 € 2,40 € 3
SKLADOM
20 KNUCKLE, L. RR (CAST STEEL) (Ref. č 20) 36136 KNUCKLE, L. RR (CAST STEEL)  1 € 103,22 € 127
SKLADOM
21 COLLAR,RR.KNUCKLE,(UPPER) (Ref. č 21) 70692 COLLAR,RR.KNUCKLE,(UPPER)  2 € 4,46 € 5
SKLADOM
42 KNUCKLE R.RR (CAST STEEL) (Ref. č 42) 36135 KNUCKLE R.RR (CAST STEEL)  1 € 115,62 € 142
SKLADOM
Kód produktu LINHAI_4_406_M550-EURO-4
ZNACKA: LINHAI
typ rozkresu: BODY PARTS
MODEL: M550 E4
TYP: LINHAI M550
